zabbix2.2安装grafana

23121321 · 发表于 2016-4-28 09:09:49

1、操作环境

1
2
3
4
5
6

CentOS release 6.4 (Final)
Kernel \r on an \m
[iyunv@xo ~]# uname -r
2.6.32-358.el6.x86_64
[iyunv@xo ~]# uname -m
x86_64

2、下载grafana以及安装

1 2	[iyunv@xo ~]# wget https://grafanarel.s3.amazonaws. ... -2.1.1-1.x86_64.rpm [iyunv@xo ~]# yum install grafana-2.1.1-1.x86_64.rpm -y

3、下载zabbix的grafana插件，以及配置相关文件

1 2	[iyunv@xo ~]# git clone https://github.com/linglong0820/grafana-zabbix [iyunv@xo datasource]# cp -r grafana-zabbix/zabbix/ /usr/share/grafana/public/app/plugins/datasource

4、启动grafana

1 2	[iyunv@xo ~]# /etc/init.d/grafana-server start Starting Grafana Server: .... OK

5、修改zabbix的api文件api_jsonrpc.php

1
2
3

[iyunv@xo zabbix]# pwd
/usr/share/zabbix
[iyunv@xo zabbix]# vim api_jsonrpc.php

网上找的内容如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14

修改Zabbix的API文件，由于Zabbix2.2不支持跨域的问题，故添加以下配置：
#sudo vim /usr/share/zabbix/
api_jsonrpc.php
header('Access-Control-Allow-Origin: *');
header('Access-Control-Allow-Headers: Content-Type');
header('Access-Control-Allow-Methods: POST');
header('Access-Control-Max-Age: 1000');
if ($_SERVER['REQUEST_METHOD'] === 'OPTIONS') {
return;
}
#在此之前添加
require_once dirname(__FILE__).'/include/func.inc.php';
require_once dirname(__FILE__).'/include/classes/class.chttp_request.php';
注意:如果是2.4以上版本，请忽略此配置（无需更改api_jsonrpc.php文件）

6、注意这里是Zabbix的WEB API用户和密码(不一定非得是Admin，普通用户即可,具有可读权限)，假如你不能确定用户名密码是否对，用如下shell命令测试:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

[iyunv@xo zabbix]# pwd
/usr/share/grafana/public/app/plugins/datasource/zabbix
[iyunv@xo zabbix]# cat plugin.json
{
  "pluginType": "datasource",
  "name": "Zabbix",
  "type": "zabbix",
  "serviceName": "ZabbixAPIDatasource",
  "module": "plugins/datasource/zabbix/datasource",
  "partials": {
"config": "app/plugins/datasource/zabbix/partials/config.html",
"query": "app/plugins/datasource/zabbix/partials/query.editor.html",
"annotations": "app/plugins/datasource/zabbix/partials/annotations.editor.html"
  },
  "username": "test",
  "password": "test",
  "trends": false,
  "trendsFrom": "7d",
  "limitmetrics": 100,
  "metrics": true,
  "annotations": true
}

shell命令测试

1
2
3
4
5
6
7
8
9
10
11
12
13

[iyunv@xo zabbix]# curl -i -X POST -H 'Content-Type:application/json' -d '{"jsonrpc": "2.0","method":"user.authenticate","params":{"user":"test","password":"test"},"auth": null,"id":0}' http://127.0.0.1/zabbix/api_jsonrpc.php
HTTP/1.1 200 OK
Date: Tue, 26 Apr 2016 01:44:08 GMT
Server: Apache/2.2.15 (CentOS)
X-Powered-By: PHP/5.3.3
Access-Control-Allow-Origin: *
Access-Control-Allow-Headers: Content-Type
Access-Control-Allow-Methods: POST
Access-Control-Max-Age: 1000
Content-Length: 68
Connection: close
Content-Type: application/json
{"jsonrpc":"2.0","result":"8375dc88a89f08229b0feb1b50d4d843","id":0}

注：成功后就可以配置grafana了

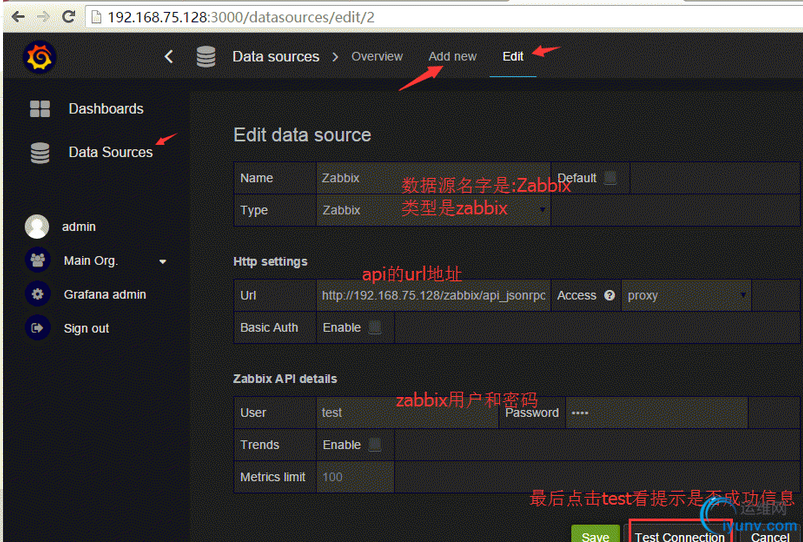

7、配置grafana
默认的登录用户和密码是admin
