部署Zabbix Porxy

3212312

环境：Centos 6.6

1 2 3 4 5 6 7 8 9

[iyunv@Proxy ~]# yum -y install mysql-server [iyunv@Proxy ~]# /etc/init.d/mysqld start [iyunv@Proxy ~]# chkconfig mysqld on [iyunv@Proxy ~]# /usr/bin/mysqladmin -u root password 'redhat' [iyunv@Proxy ~]# mysql -uroot -predhat mysql> CREATE DATABASE zabbix_proxy CHARACTER SET utf8; mysql> GRANT ALL ON zabbix_proxy.* TO 'zabusr'@'192.168.31.%.%' IDENTIFIED BY 'zbxproxy'; mysql> GRANT ALL ON zabbix_proxy.* TO 'zabusr'@'localhost' IDENTIFIED BY 'zbxproxy'; mysql> FLUSH PRIVILEGES;

1 2 3 4

[iyunv@Proxy rpm]# yum -y install zabbix-2.0.14-1.el6.x86_64.rpm zabbix-proxy-2.0.14-1.el6.x86_64.rpm zabbix-proxy-mysql-2.0.14-1.el6.x86_64.rpm [iyunv@Proxy rpm]# rpm -ql zabbix-proxy-mysql [iyunv@Proxy rpm]# mysql -uzabusr -pzbxproxy zabbix_proxy < /usr/share/doc/zabbix-proxy-mysql-2.0.14/create/schema.sql [iyunv@Proxy rpm]#

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

[iyunv@Proxy rpm]# cd /etc/zabbix/ [iyunv@Proxy ~]# grep -v ^# /etc/zabbix/zabbix_proxy.conf |grep -v ^$ Server=192.168.31.130 Hostname=Proxy.example.com                    //这里必须和Zannix WEB gui上保持一直（DM） ListenPort=10051 LogFile=/var/log/zabbix/zabbix_proxy.log LogFileSize=0 PidFile=/var/run/zabbix/zabbix_proxy.pid DBHost=localhost DBName=zabbix_proxy DBUser=zabusr DBPassword=zbxproxy DBSocket=/var/lib/mysql/mysql.sock DBPort=3306 ProxyLocalBuffer=1               //Proxy向Server成功发送数据后保存的时候，单位小时 ProxyOfflineBuffer=24            //Proxy与Server断开连接后数据保存时间，单位小时 ConfigFrequency=600              //Proxy向Server请求配置文件的时间周期，单位秒 DataSenderFrequency=5            //Proxy向Server发送收集数据的时间周期，单位秒 ExternalScripts=/usr/lib/zabbix/externalscripts [iyunv@Proxy ~]# [iyunv@Proxy zabbix]# /etc/init.d/zabbix-proxy start Starting Zabbix proxy:                                     [  OK  ] [iyunv@Proxy zabbix]# [iyunv@Proxy zabbix]# netstat -anp|grep 10051 tcp        0      0 0.0.0.0:10051               0.0.0.0:*                   LISTEN      1481/zabbix_proxy   tcp        0      0 :::10051                    :::*                        LISTEN      1481/zabbix_proxy   [iyunv@Proxy zabbix]#

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

[iyunv@Node ~]# grep -v ^# /etc/zabbix/zabbix_agentd.conf |grep -v ^$ PidFile=/var/run/zabbix/zabbix_agentd.pid LogFile=/var/log/zabbix/zabbix_agentd.log LogFileSize=0 Server=192.168.31.150            //Proxy地址 ListenPort=10050 ServerActive=192.168.31.150     //Proxy地址 Hostname=192.168.31.160 Include=/etc/zabbix/zabbix_agentd.d/ UserParameter=Memory.total,/etc/zabbix/scripts/Memory_status.sh Memory_total UserParameter=Memory.used,/etc/zabbix/scripts/Memory_status.sh Memory_used UserParameter=Memory.free,/etc/zabbix/scripts/Memory_status.sh Memory_free UserParameter=Swap.total,/etc/zabbix/scripts/Memory_status.sh Swap_total UserParameter=Swap.used,/etc/zabbix/scripts/Memory_status.sh Swap_used UserParameter=Swap.free,/etc/zabbix/scripts/Memory_status.sh Swap_free UserParameter=Total.total,/etc/zabbix/scripts/Memory_status.sh Total_total UserParameter=Total.used,/etc/zabbix/scripts/Memory_status.sh Total_used UserParameter=Total.free,/etc/zabbix/scripts/Memory_status.sh Total_free [iyunv@Node ~]#

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

[iyunv@Proxy ~]# tail -2 /etc/hosts 192.168.31.150Proxy.example.com 192.168.31.160Node.example.com [iyunv@Proxy ~]# [iyunv@Node ~]# tail -2 /etc/hosts 192.168.31.160Node.example.com 192.168.31.150Proxy.example.com [iyunv@Node ~]# [iyunv@CentOS ~]# tail -6 /etc/hosts 172.24.17.130 Zabbix.example.com 172.24.17.130 mail.com mail mail.com.com localhost localhost.localdomain 172.24.17.131 131.example.com 172.24.17.132 132.example.com 192.168.31.160Node.example.com 192.168.31.150Proxy.example.com [iyunv@CentOS ~]#

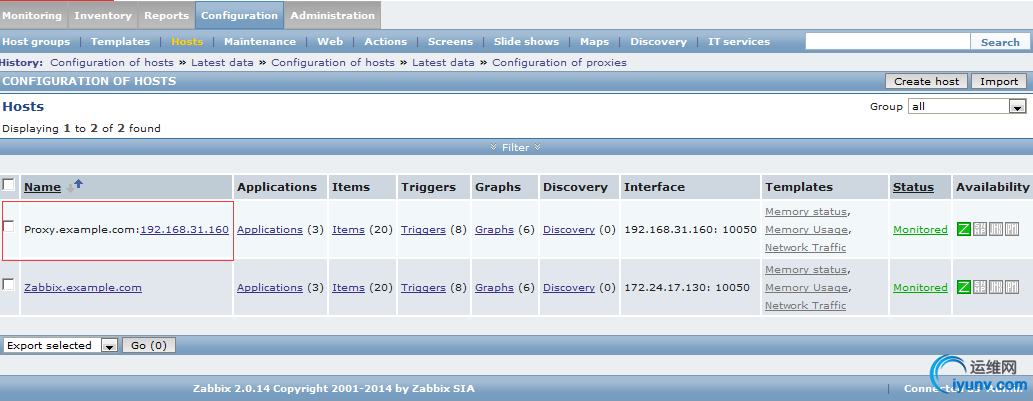

//添加Porxy

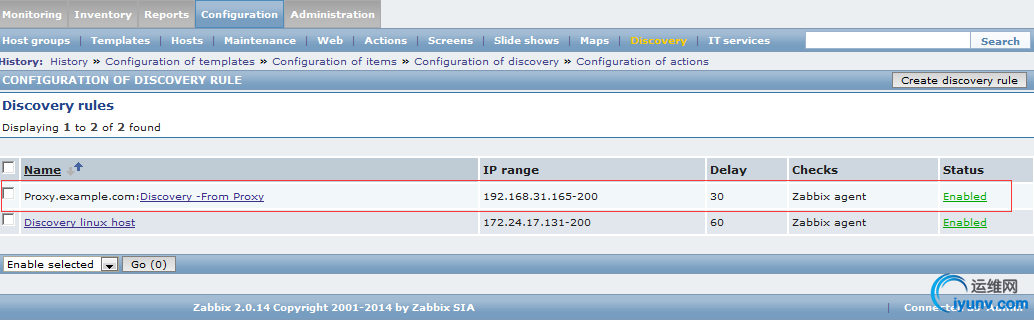

Proxy发现主机
