Zabbix源码安装(LNMP)

3212312

实验环境：CentOS 6.5(最小化安装)
Zabbix Install Scripts：https://yunpan.cn/crF5YFDkRqsGh  访问密码 cfd7
[iyunv@CentOS software]# yum -y install gcc gcc-c++ make
安装PHP：

1 2 3 4 5 6 7 8 9 10 11 12

[iyunv@CentOS software]# yum -y install libxml2 libxml2-devel libjpeg-devel libpng-devel bzip2-devel libcurl-devel gd-devel [iyunv@CentOS software]# tar -jxvf php-5.3.8.tar.bz2 &>/dev/null [iyunv@CentOS software]# cd php-5.3.8 [iyunv@CentOS php-5.3.8]# ./configure --prefix=/usr/local/php --with-bz2 --with-curl --enable-ftp --enable-sockets --enable-bcmath --disable-ipv6 --with-gd --with-jpeg-dir=/usr/local/photo --with-png-dir=/usr/local/photo --with-freetype-dir=/usr/local --enable-gd-native-ttf --with-iconv-dir=/usr/local --enable-mbstring --enable-calendar --with-gettext --with-libxml-dir=/usr/local --with-zlib --with-pdo-mysql=mysqlnd --with-mysqli=mysqlnd --with-mysql=mysqlnd --enable-dom --enable-xml --enable-fpm --with-libdir=lib64 [iyunv@CentOS php-5.3.8]# make &&make install [iyunv@CentOS php-5.3.8]# cp php.ini-production /usr/local/php/lib/php.ini [iyunv@CentOS php-5.3.8]# cp /usr/local/php/etc/php-fpm.conf.default /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# sed -i '/max_execution_time/s/30/300/' /usr/local/php/lib/php.ini [iyunv@CentOS ~]# sed -i '/post_max_size/s/8/16/' /usr/local/php/lib/php.ini [iyunv@CentOS ~]# sed -i '/max_input_time/s/60/300/' /usr/local/php/lib/php.ini [iyunv@CentOS ~]# sed -i '/^;date.timezone/adate.timezone = \"Asia\/Shanghai\"' /usr/local/php/lib/php.ini [iyunv@CentOS ~]# sed -i '/^;date.timezone =/d' /usr/local/php/lib/php.ini

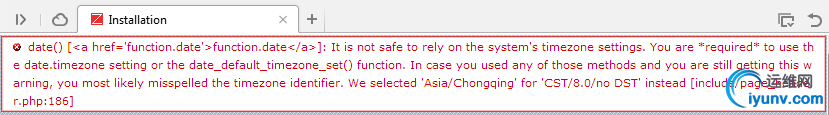

注：如果PHP的时区不是"Asia/Shanghai"，则在安装Zabbix的时候会出现下面的报错信息

--with-config-file-path=PATH这个参数可以指定php.ini文件的位置，默认在PREFIX/lib目录下

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

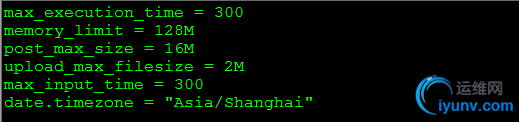

[iyunv@CentOS ~]# /usr/local/php/bin/php -i |grep date.timezone date.timezone => Asia/Shanghai => Asia/Shanghai [iyunv@CentOS ~]# [iyunv@CentOS ~]# sed -i '/run\/php-fpm.pid/s/^;//g' /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# sed -i '/^;pm.min_spare_servers/s/^;//g' /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# sed -i '/^;pm.max_spare_servers/s/^;//g' /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# sed -i '/^;pm.start_servers/s/^;//g' /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# sed -i '/^listen/s/127.0.0.1/0.0.0.0/g' /usr/local/php/etc/php-fpm.conf [iyunv@CentOS ~]# /usr/local/php/sbin/php-fpm [iyunv@CentOS ~]# echo "/usr/local/php/sbin/php-fpm" >>/etc/rc.local [iyunv@CentOS ~]# netstat -anp|grep php-fpm tcp        0      0  0 0.0.0.0 9000              0.0.0.0:*                   LISTEN      106728/php-fpm       unix  3      [ ]         STREAM     CONNECTED     98463  106728/php-fpm       unix  3      [ ]         STREAM     CONNECTED     98462  106728/php-fpm       [iyunv@CentOS ~]# [iyunv@CentOS ~]# ps -ef|grep php|grep -v grep root      30167      1  0 05:01 ?        00:00:00 php-fpm: master process (/usr/local/php/etc/php-fpm.conf) nobody    30168  30167  0 05:01 ?        00:00:00 php-fpm: pool www          nobody    30169  30167  0 05:01 ?        00:00:00 php-fpm: pool www ···    [iyunv@CentOS ~]#

安装Nginx：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

[iyunv@CentOS software]# tar -jxvf pcre-8.12.tar.bz2 &>/dev/null [iyunv@CentOS software]# cd pcre-8.12 [iyunv@CentOS pcre-8.12]# ./configure &&make &&make install [iyunv@CentOS software]# tar -zxvf zlib-1.2.7.tar.gz &>/dev/null [iyunv@CentOS software]# cd zlib-1.2.7 [iyunv@CentOS zlib-1.2.7]# ./configure &&make &&make install [iyunv@CentOS software]# tar -zxvf openssl-1.0.1c.tar.gz &>/dev/null [iyunv@CentOS software]# cd openssl-1.0.1c [iyunv@CentOS openssl-1.0.1c]# ./config &&make &&make install [iyunv@CentOS software]# tar -zxvf nginx-1.6.2.tar.gz &>/dev/null [iyunv@CentOS software]# cd nginx-1.6.2 [iyunv@CentOS nginx-1.6.2]# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-pcre=/software/pcre-8.12 --with-zlib=/software/zlib-1.2.7 --with-openssl=/software/openssl-1.0.1c --with-http_stub_status_module [iyunv@CentOS nginx-1.6.2]# make &&make install [iyunv@CentOS nginx-1.6.2]# chmod 775 /etc/init.d/nginx [iyunv@CentOS nginx-1.6.2]# chkconfig --add nginx [iyunv@CentOS nginx-1.6.2]# chkconfig nginx on [iyunv@CentOS nginx-1.6.2]# /etc/init.d/nginx start Starting nginx:                                            [  OK  ] [iyunv@CentOS nginx-1.6.2]#

安装mysql:

1 2 3 4 5 6 7 8

[iyunv@CentOS software]# yum -y install mysql* [iyunv@CentOS software]# /etc/init.d/mysqld start Starting mysqld:                                           [  OK  ] [iyunv@CentOS software]# chkconfig mysqld on [iyunv@CentOS software]# mysqladmin -uroot password redhat [iyunv@CentOS software]# mysql -uroot -predhat mysql> [iyunv@CentOS software]#

安装Zabbix：

1 2 3 4 5 6 7 8

[iyunv@CentOS software]# yum -y install net-snmp net-snmp-devel libxml2-devel libcurl-devel [iyunv@CentOS software]# tar -zxvf zabbix-2.0.14.tar.gz &>/dev/null [iyunv@CentOS software]# cd zabbix-2.0.14 [iyunv@CentOS zabbix-2.0.14]# ./configure --prefix=/usr/local/zabbix --enable-server --enable-agent --with-mysql --with-net-snmp --with-libcurl --with-libxml2           //libcurl监控web [iyunv@CentOS zabbix-2.0.14]# make &&make install zabbix server一般充当两个角色：server、angent，所以上面的配置参数也同时加上了–enable-agent。 备注：请安装好MySQL，snmp，curl开发库。 root@CentOS software]# useradd -s /sbin/nologin zabbix

初始化数据库：

1 2 3 4 5 6 7 8 9 10

[iyunv@CentOS software]# mysql -uroot -predhat mysql> create database zabbix default charset utf8; Query OK, 1 row affected (0.00 sec) mysql> grant all privileges on zabbix.* to zabbix@localhost identified by 'zabbix'; Query OK, 0 rows affected (0.00 sec) mysql> grant all privileges on zabbix.* to zabbix@192.168.100.241 identified by 'zabbix'; Query OK, 0 rows affected (0.00 sec) mysql> flush privileges; Query OK, 0 rows affected (0.00 sec) mysql>

zabbix server与proxy需要数据库，angent不需要。尤其要注意的是proxy只需要导入一个sql文件，而server一共要导入3个sql文件。我当时在搭建proxy的时候导入了3个sql，导致出现报错。后来才发现proxy只需要导入一个表结构即可

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

[iyunv@CentOS zabbix-2.0.14]# mysql -uzabbix -pzabbix zabbix < database/mysql/schema.sql [iyunv@CentOS zabbix-2.0.14]# mysql -uzabbix -pzabbix zabbix < database/mysql/images.sql [iyunv@CentOS zabbix-2.0.14]# mysql -uzabbix -pzabbix zabbix < database/mysql/data.sql [iyunv@CentOS zabbix-2.0.14]# cp misc/init.d/fedora/core/zabbix_* /etc/init.d/ [iyunv@CentOS zabbix-2.0.14]# chmod 775 /etc/init.d/zabbix_* [iyunv@CentOS ~]# sed -i '/LogFile/s/tmp/var\/log/' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@CentOS ~]# sed -i '/^DBUser=/s/root/zabbix/' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@CentOS ~]# sed -i '/DBPassword=$/s/^#//g' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@CentOS ~]# sed -i '/DBPassword=$/s/^[         ]//g' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@CentOS ~]# sed -i '/DBPassword=$/s/=/&zabbix/g' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@CentOS ~]# sed -i -e '/DBPort=/s/^#//g' /usr/local/zabbix/etc/zabbix_server.conf -e '/DBPort=/s/^[         ]//g' /usr/local/zabbix/etc/zabbix_server.conf [iyunv@Zabbix ~]# sed -i '/^Server/s/127.0.0.1/192.168.100.241/g' /usr/local/zabbix/etc/zabbix_agent.conf [iyunv@Zabbix ~]# sed -i '/^Server/s/127.0.0.1/192.168.100.241/g' /usr/local/zabbix/etc/zabbix_agentd.conf [iyunv@Zabbix ~]# sed -i "/^ServerActive/s/127.0.0.1/${remote_ip}:10051/g" /usr/local/zabbix/etc/zabbix_agentd.conf [iyunv@Zabbix ~]# sed -i "/^Hostname/s/Zabbix server/${remote_ip}/g" /usr/local/zabbix/etc/zabbix_agentd.conf mkdir /usr/local/nginx/html/zabbix [iyunv@CentOS ~]# cat /usr/local/zabbix/etc/zabbix_agent.conf|grep Server|grep -v ^# Server=192.168.100.241            //服务端的IP [iyunv@CentOS ~]# cat /usr/local/zabbix/etc/zabbix_agent.conf|grep UnsafeUser ### Option: UnsafeUserParameters # UnsafeUserParameters=0 [iyunv@CentOS ~]#

默认是不启用自定义脚本功能的，要自定义key，需开启，设置为 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

[iyunv@CentOS ~]# mkdir /usr/local/nginx/html/zabbix [iyunv@CentOS ~]# cp -rf /software/zabbix-2.0.14/frontends/php/* /usr/local/nginx/html/zabbix/ [iyunv@CentOS ~]# chown zabbix:zabbix /usr/local/nginx/html/zabbix/ -R [iyunv@CentOS ~]# chmod o+w /usr/local/nginx/html/zabbix/conf [iyunv@CentOS ~]# ln -s /usr/local/zabbix/sbin/* /usr/local/sbin/ [iyunv@CentOS ~]# touch /var/log/zabbix_server.log [iyunv@CentOS ~]# chown zabbix:zabbix /var/log/zabbix_server.log [iyunv@CentOS ~]# chmod 775 /var/log/zabbix_server.log [iyunv@CentOS ~]# /etc/init.d/zabbix_server start Starting zabbix_server:                                    [  OK  ] [iyunv@CentOS ~]# /etc/init.d/zabbix_agentd start Starting zabbix_agentd:                                    [  OK  ] [iyunv@CentOS ~]# chkconfig --add zabbix_server [iyunv@CentOS ~]# chkconfig --add zabbix_agentd [iyunv@CentOS ~]# chkconfig zabbix_server on [iyunv@CentOS ~]# chkconfig zabbix_agentd on [iyunv@CentOS ~]# chkconfig --list|grep zabbix zabbix_agentd  0:off1:off2:on3:on4:on5:on6:off zabbix_server  0:off1:off2:on3:on4:on5:on6:off [iyunv@CentOS ~]# [iyunv@CentOS ~]# ps -ef|grep zabbix|grep -v grep zabbix    12929      1  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12931  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12932  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12933  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12934  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12935  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12936  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12937  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12938  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12939  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12940  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12941  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12942  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12943  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12944  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12945  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12946  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12947  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12948  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12949  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12961  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12962  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12963  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12964  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12965  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12966  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12967  12929  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_server zabbix    12994      1  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd zabbix    12995  12994  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd zabbix    12996  12994  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd zabbix    12997  12994  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd zabbix    12998  12994  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd zabbix    12999  12994  0 01:56 ?        00:00:00 /usr/local/sbin/zabbix_agentd [iyunv@CentOS ~]# netstat -tunlp|grep zabbix tcp        0      0 0.0.0.0:10050               0.0.0.0:*                   LISTEN      12994/zabbix_agentd tcp        0      0 0.0.0.0:10051               0.0.0.0:*                   LISTEN      12929/zabbix_server [iyunv@CentOS ~]# [iyunv@CentOS ~]# touch /usr/local/nginx/logs/zabbix.access.log [iyunv@CentOS conf]# /etc/init.d/nginx reload nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful Reloading nginx:                                           [  OK  ] [iyunv@CentOS conf]#

1 2 3 4 5 6 7

[iyunv@CentOS ~]# sed -i '/^:OUTPUT/a-A INPUT -p tcp -m state --state NEW -m tcp --dport 80 -j ACCEPT' /etc/sysconfig/iptables [iyunv@CentOS ~]# /etc/init.d/iptables restart iptables: Flushing firewall rules:                         [  OK  ] iptables: Setting chains to policy ACCEPT: filter          [  OK  ] iptables: Unloading modules:                               [  OK  ] iptables: Applying firewall rules:                         [  OK  ] [iyunv@CentOS ~]#

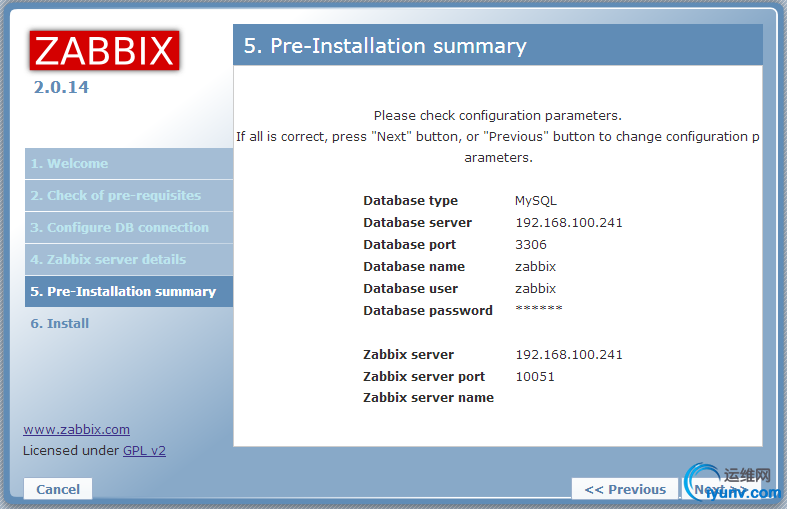

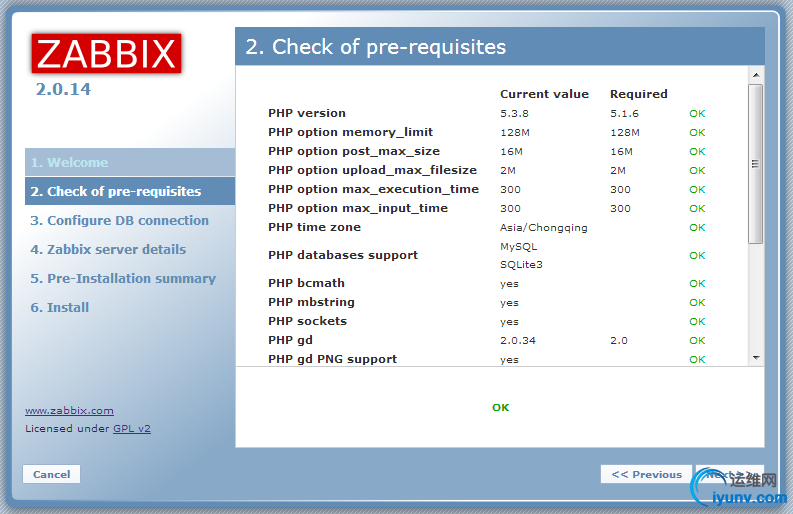

访问：http://192.168.100.241/zabbix/

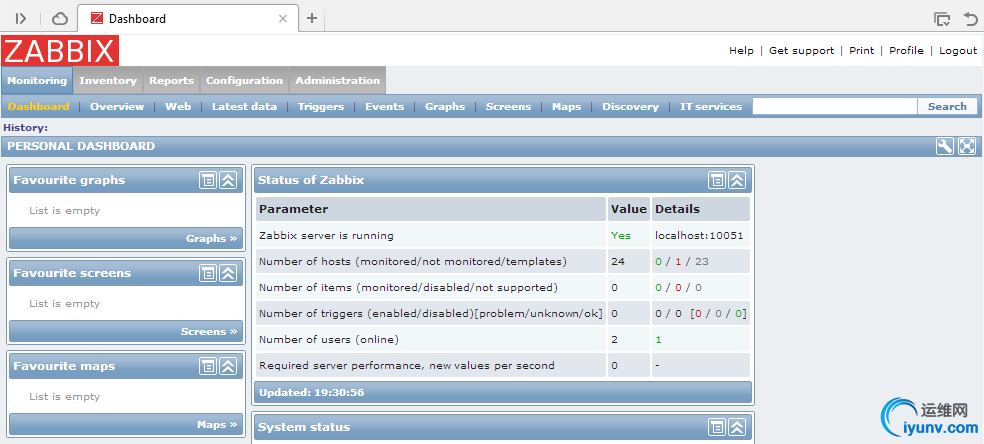

基于LNMP的Zabbix安装完成
更改Zabbix语言：Profile---User---Language：

1 2 3 4 5 6

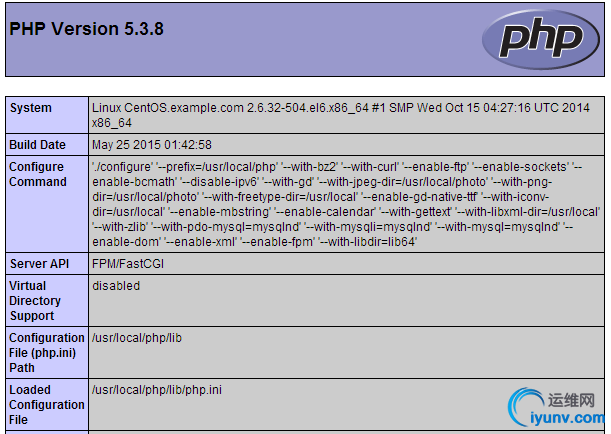

PHP探针： [iyunv@CentOS phpinfo]# cat index.php phpinfo(); ?> [iyunv@CentOS phpinfo]#

Zabbix Agent安装：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

[iyunv@Client software]# yum -y install gcc gcc-c++ make net-snmp net-snmp-devel libxml2-devel libcurl-devel [iyunv@Client software]# tar -zxvf zabbix-2.0.14.tar.gz &>/dev/null [iyunv@Client software]# cd zabbix-2.0.14 [iyunv@Client zabbix-2.0.14]# ./configure --prefix=/usr/local/zabbix --enable-agent [iyunv@Client zabbix-2.0.14]# make &&make install [iyunv@Client software]# useradd -s /sbin/nologin zabbix [iyunv@Client etc]# grep -v ^# zabbix_agentd.conf|grep -v ^$ PidFile=/tmp/zabbix_agentd.pid LogFile=/var/log/zabbix_agentd.log               //修改日志存储路径 DebugLevel=4                                     //开启DEBUG EnableRemoteCommands=0                           //允许远程执行命令 Server=192.168.1.10                              //允许那台机器访问本机key ListenPort=10050                                 //监听端口 StartAgents=8                                    //启动的客户端进程数 ServerActive=192.168.1.10:10051                  //主动监控，服务端的ip及端口 Hostname=Client.example.com                      //客户端的主机名和在WEB添加主机名时一致 Timeout=30                                       //超时时间 UnsafeUserParameters=1                           //用户自定义的key [iyunv@Client etc]# [iyunv@Client ~]# tail -n 2 /etc/hosts 192.168.1.10Zabbix.example.com Zabbix 192.168.1.11Client.example.com Client [iyunv@Client ~]# cp /software/zabbix-2.0.14/misc/init.d/fedora/core/zabbix_agentd /etc/init.d/ [iyunv@Client ~]# ln -s /usr/local/zabbix/sbin/* /usr/local/sbin/ [iyunv@Client ~]# touch /var/log/zabbix_agentd.log [iyunv@Client ~]# chown -R zabbix:zabbix /var/log/zabbix_agentd.log [iyunv@Client ~]# chmod -R 775 /var/log/zabbix_agentd.log [iyunv@Client ~]# /etc/init.d/zabbix_agentd start Starting zabbix_agentd:                                    [  OK  ] [iyunv@Client ~]# chkconfig --add zabbix_agentd [iyunv@Client ~]# chkconfig zabbix_agentd on [iyunv@Client ~]# netstat -anp|grep zabbix tcp        0      0 0.0.0.0:10050               0.0.0.0:*                   LISTEN      10660/zabbix_agentd [iyunv@Client ~]# [iyunv@Client ~]# grep 100 /etc/sysconfig/iptables -A INPUT -m state --state NEW -m tcp -p tcp --dport 10050 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 10051 -j ACCEPT [iyunv@Client ~]#

10051为Zabbix Server的Listen Port
10050为Zabbix Agent的Listen Port
测试端口是否正常：
