一、DG环境配置
此次搭建Standby的主库为：” RedHat 6.5+11G+RAC+ASM安装与配置(三节点)”，11g单实例ASM安装使用ASMLib的方式，不在使用UDEV方式，磁盘为本机磁盘，非远程挂载的磁盘。本次搭建包含了11g单实例ASM的详细安装过程。

1、 基本环境
主库：
实例名：racdb1，racdb2，racdb3        DB_NAME：racdb              DB_UNIQUE_NAME：racdb
备库：
实例名：racdg                         DB_NAME：racdb              DB_UNIQUE_NAME：racdg
IP：172.16.1.15                       HOSTNAME：asm-standby

2、 配置软件安装环境

A、安装oracle RAC所需的linux软件包

[iyunv@asm-standby~] # yum –y install binutils* compat-libstdc++* compat-libcap1 * elfutils-libelf*elfutils-libelf-devel* elfutils-libelf-devel-static* gcc* gcc-c++* glibc*glibc-common* glibc-devel* glibc-headers* ksh* libaio* libaio-devel* libgcc*libgomp* libstdc++* libstdc++-devel* make* sysstat* unixODBC * unixODBC-devel*

B、配置内核参数
执行如下脚本：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

#!/bin/bash prepareSystem(){ # Set SElinux to disabled mode regardless of its initial value   sed -i -e's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config   setenforce 0 # stop iptables   /etc/init.d/iptables stop   chkconfig --level 0123456iptables off   chkconfig --level 0123456ip6tables off } Configure1(){     cat >> /etc/sysctl.conf<<EOF fs.aio-max-nr = 1048576 fs.file-max = 6815744 kernel.shmmni = 4096 kernel.sem = 250 32000 100 128 net.ipv4.ip_local_port_range = 9000 65500 net.core.rmem_default = 262144 net.core.rmem_max = 4194304 net.core.wmem_default = 262144 net.core.wmem_max = 1048576 EOF } Configure2(){     cat >>/etc/security/limits.conf <<EOF oracle   soft  nproc  2047 oracle   hard  nproc  16384 oracle   soft  nofile 1024 oracle   hard  nofile 65536 grid   soft  nproc  2047 grid   hard  nproc  16384 grid   soft  nofile 1024 grid   hard  nofile 65536 EOF } Configure3(){     cat >> /etc/pam.d/login<<EOF session    required     pam_limits.so EOF } prepareSystem Configure1 && sysctl -p Configure2 Configure3

[iyunv@asm-standby~] # sh confirure.sh

C、创建相关组和用户
创建组：
[iyunv@ asm-standby ~] # groupadd oinstall
[iyunv@ asm-standby ~] # groupadd asmadmin
[iyunv@ asm-standby ~] # groupadd asmdba
[iyunv@ asm-standby ~] # groupadd asmoper
[iyunv@ asm-standby ~] # groupadd dba
[iyunv@ asm-standby ~] # groupadd oper

创建grid用户：

节点一ORACLE_SID=+ASM

[iyunv@ asm-standby ~] # useradd -g oinstall -G asmadmin,asmdba,asmoper,dba grid

这里和RAC安装时的所属组不同，多了一个dba组，若不添加此组则会导致数据文件无法写入ASM磁盘组。

[iyunv@ asm-standby ~] # passwd grid

编辑grid用户的环境配置文件（~/.bash_profile），加入如下内容

export PS1="`/bin/hostname -s`-> "

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_SID=+ASM

export ORACLE_BASE=/u/app/grid

export ORACLE_HOME=/u/app/11.2.0/grid

export ORACLE_TERM=xterm

export NLS_DATE_FORMAT='yyyy/mm/dd hh24:mi:ss'

export TNS_ADMIN=$ORACLE_HOME/network/admin

export PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

exportCLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

umask 022

创建ORACLE用户：

节点一：ORACLE_SID=racdg

[iyunv@ asm-standby ~] # usermodd -g oinstall-G dba,oper,asmdba,asmadmin oracle

这里和RAC安装时的所属组不同，多了一个asmadmin组，若不添加此组则会导致在使用RMAN恢复时无写入ASM的权限，不过这里也可以通过修改$ORACLE_HOME/bin/oracle的权限来解决，chgrp asmadmin$ORACLE_HOME/bin/oracle,chmod 6751 $ORACLE_HOME/bin/oracle，（root用户下修改）

[iyunv@ asm-standby ~] # passwd oracle

编辑oracle用户的环境配置文件（~/.bash_profile）,加入如下内容

export TMP=/tmp

export TMPDIR=$TMP

export ORACLE_SID=racdg   #这里你没看错，就是与主库的SID不同

export ORACLE_BASE=/u/app/oracle

export ORACLE_HOME=$ORACLE_BASE/product/11.2.0/db_1

export ORACLE_UNQNAME=racdg

export TNS_ADMIN=$ORACLE_HOME/network/admin

export ORACLE_TERM=xterm

export PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib:$ORACLE_HOME/jdbc/lib

exportCLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

export NLS_DATE_FORMAT='yyyy/mm/dd hh24:mi:ss'

umask 022

创建软件安装目录：

[iyunv@ asm-standby ~] # mkdir-p /u/app/grid
[iyunv@ asm-standby ~] # mkdir-p /u/app/11.2.0/grid
[iyunv@ asm-standby ~] # chown-R grid:oinstall /u/app
[iyunv@ asm-standby ~] # mkdir-p /u/app/oracle
[iyunv@ asm-standby ~] # chownoracle:oinstall /u/app/oracle
[iyunv@ asm-standby ~] # chmod -R 775 /u

3、  配置ASM磁盘

A、添加磁盘分区：

[iyunv@ asm-standby ~]# fdisk -l | tail -n 4  #分区，但请勿格式化，也不要使用LVM方式分区

    Device Boot      Start         End      Blocks  Id  System

/dev/sdb1               1         1306  10490413+  83 Linux

/dev/sdb2            1307        7834  52436160  83  Linux

/dev/sdb3            7835        13054 41929650   83  Linux

B、安装ASMlib包

关于ASMlib包需要注意的问题，需要根据OS内核版本选择对应的ASMlib包，RedHat 5的镜像中是自带，RedHat 6就需要费些功夫了，RedHat6.4之前的版本对应的ASMlib包相对较好查找，RedHat6.4之前使用kmod-oracleasm-2.0.6.rh1-2.el6.x86_64.rpm，RedHat6.5请具体

参考https://access.redhat.com/solutions/698613，需要安装的三个ASMlib包如下：

kmod-oracleasm-2.0.6.rh1-3.el6.x86_64.rpm

oracleasmlib-2.0.4-1.el6.x86_64.rpm

oracleasm-support-2.1.8-1.el6.x86_64.rpm

[iyunv@ asm-standby ~]#uname–r        #查看OS内核版本

2.6.32-431.el6.x86_64

[iyunv@ asm-standby ~]#rpm -qpR kmod-oracleasm-2.0.6.rh1-3.el6_5.x86_64.rpm|grep“2.6”

kernel >= 2.6.32-431.el6

kernel < 2.6.32-432.el6     #通过rpm –qpR知道此安装包支持的内核版本范围

[iyunv@ asm-standby ~]#rpm –ivh kmod-oracleasm-2.0.6.rh1-3.el6_5.x86_64.rpm  #按顺序安装

[iyunv@ asm-standby ~]#rpm –ivh oracleasmlib-2.0.4-1.el6.x86_64.rpm

[iyunv@ asm-standby ~]#rpm –ivh oracleasm-support-2.1.8-1.el6.x86_64.rpm

C、加载ASMlib模块

[iyunv@ asm-standby ~]#whichoracleasm

/usr/sbin/oracleasm

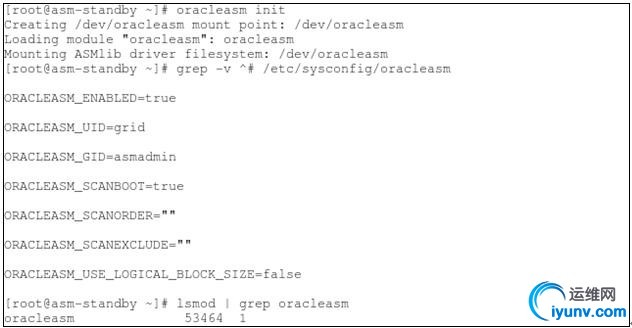

[iyunv@ asm-standby ~]#oracleasm configure –i  #创建/etc/sysconfig/oracleasm配置文件

[iyunv@ asm-standby ~]#oracleasm init  #创建/dev/oracleasm挂载点

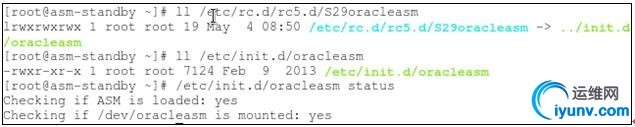

ASM相关服务

D、创建ASM磁盘
[iyunv@ asm-standby ~]#oracleasm createdisk VOL1/dev/sdb1
[iyunv@ asm-standby ~]#oracleasm createdisk VOL2/dev/sdb2
[iyunv@ asm-standby~]#oracleasm createdisk VOL3 /dev/sdb3
[iyunv@ asm-standby ~]#oracleasm scandisks
[iyunv@ asm-standby ~]#oracleasm listdisks
[iyunv@ asm-standby ~]#ls –lh /dev/oracleasm/disks
以上命令均是调用/usr/lib/oracleasm/目录下的脚本，有兴趣的可以认真研究一下。

二、DG软件安装
1、安装GRID软件

[iyunv@ asm-standby ~]#export display=0.0

[iyunv@ asm-standby ~]#xhost +

[iyunv@ asm-standby ~]#su - grid

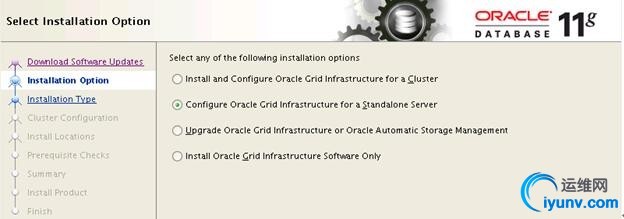

[grid@ asm-standby grid]#./runInstaller    #进入OUI界面，只截取重要截图

这里说说选第二项，而不选第四项的理由：因为第二项是图形化安装和配置，会配置ASM实例，以后开机启动时，会随spfile自启动ASM实例。而如果选第四项的话，则需要使用asmca图形化界面配置ASM实例，启动时，不会随机启动，在安装完软件之后，还会提示执行如下的命令：
/u/app/11.2.0/grid/perl/bin/perl–l /u/app/11.2.0/grid/perl/lib –I /u/app/11.2.0/grid/crs/install /u/app/11.2.0/grid/crs/install/roothas.pl

忽略[INS-32018]错误，这是因为按单实例的方式安装的话，Oracle是不建议将ORACLE_HOME建立在ORACLE_BASE之外的。点击“Yes”，软件会正常安装



在root用户执行脚本：
[iyunv@ asm-standby ~]# sh /u/app/oraInventory/orainstRoot.sh
[iyunv@ asm-standby ~]# sh /u/app/11.2.0/grid/root.sh

2、安装ORACLE软件

[iyunv@ asm-standby ~]#export display=0.0

[iyunv@ asm-standby ~]#xhost +

[iyunv@ asm-standby ~]#su - grid

[oracle@ asm-standby database]#./runInstaller    #进入OUI界面，只截取重要截图

执行脚本：

[iyunv@ asm-standby~]# sh /u/app/oracle/product/11.2.0/db_1/root.sh

3、 配置ASM磁盘组
之前在安装RAC时，使用的是图像化界面，这里不再使用，而是使用命令进行创建ASM磁盘组。
[iyunv@ asm-standby ~]#su – grid
[grid@ asm-standby ~]#sqlplus / as sysasm

SQL>create diskgroup DATA external redundancydisk ‘ORCL:VOL2’;

SQL>create diskgroup ARCH external redundancydisk ‘ORCL:VOL3’;

这里说明一下如使用ASMLib建立ASM磁盘的话，则ASM磁盘路径为ORCL:ASMDISK_NAME，若使用UDEV方式建立的话，则在使用命令新增磁盘组或新增磁盘时，其磁盘路径为UDEV建立时的绝对路径。

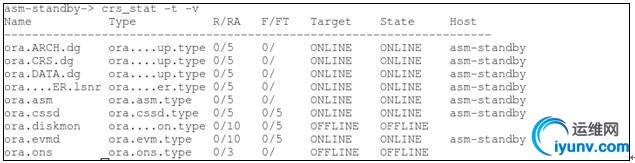

[grid@ asm-standby ~]#crs_stat –t –v


三、DG搭建
1、 主库操作
A、查看主库
[oracle@ note1 ~]#sqlplus / as sysdba

SQL> select name,log_mode,protection_mode,force_loggingfrom v$database;

NAME     LOG_MODE     PROTECTION_MODE      FORCE_LOGGING
------   ----------  ---------------       -------------
RACDB    ARCHIVELOG   MAXIMUMPERFORMANCE  NO

SQL> alter database force logging;

Database altered

B、创建RAMN备份
[oracle@ note1~]#rman target /
RMAN> run {
allocate channel c1 type disk;
allocate channel c2 type disk;
backup database format ‘/u/rman/%d_%T_%U.full’;
sql ‘alter system archive log current’;
backup currnet controlfile for standby format‘/u/rman/%d_%T_%U.ctl’;
release channel c1;
release channel c2;
}
因新建的库，没有很频繁的归档切换，这里就不对归档进行备份。

C、创建pfile文件
[oracle@ note1 ~]#sqlplus / as sysdba

SQL>create pfile=’/u/rman/pfile. ora’ fromspfile;

接下来将RMAN备份集、pfile文件和密码文件拷贝到备库

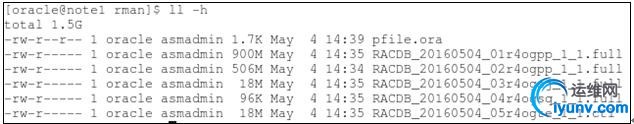

[oracle@ note1 ~]#ls –lh /u/rman


[oracle@ note1~]#scp –r /u/rman/* 172.16.1.15:/u/rman/
[oracle@ note1~]#scp –r $ORACLE_HOME/dbs/orapwracdb1 172.16.1.15:$ORACLE_HOME/dbs/orapwracdg

2、 备库操作
A、 修改备库参数文件
修改前的参数文件：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

racdb1.__db_cache_size=956301312 racdb3.__db_cache_size=939524096 racdb2.__db_cache_size=889192448 racdb1.__java_pool_size=16777216 racdb3.__java_pool_size=16777216 racdb2.__java_pool_size=16777216 racdb1.__large_pool_size=16777216 racdb2.__large_pool_size=16777216 racdb3.__large_pool_size=16777216 racdb1.__pga_aggregate_target=1006632960 racdb3.__pga_aggregate_target=1006632960 racdb2.__pga_aggregate_target=1006632960 racdb1.__sga_target=1509949440 racdb3.__sga_target=1509949440 racdb2.__sga_target=1509949440 racdb1.__shared_io_pool_size=0 racdb3.__shared_io_pool_size=0 racdb2.__shared_io_pool_size=0 racdb1.__shared_pool_size=486539264 racdb3.__shared_pool_size=503316480 racdb2.__shared_pool_size=553648128 racdb1.__streams_pool_size=0 racdb3.__streams_pool_size=0 racdb2.__streams_pool_size=0 *.audit_file_dest='/u/app/oracle/admin/racdb/adump' *.audit_trail='db' *.cluster_database=true *.compatible='11.2.0.0.0' *.control_files='+DATA/racdb/controlfile/current.256.909939065','+ARCH/racdb/controlfile/current.256.909939067' *.db_block_size=8192 *.db_create_file_dest='+DATA' *.db_domain='' *.db_name='racdb' *.db_recovery_file_dest='+ARCH' *.db_recovery_file_dest_size=6948913152 *.diagnostic_dest='/u/app/oracle' *.dispatchers='(protocol=TCP)' racdb3.instance_number=3 racdb2.instance_number=2 racdb1.instance_number=1 *.log_archive_dest_1='LOCATION=+ARCH' *.log_archive_format='%t_%s_%r.dbf' *.memory_target=2506096640 *.open_cursors=300 *.processes=300 *.remote_listener='cluster-scan:1521' *.remote_login_passwordfile='exclusive' *.sessions=335 *.shared_servers=20 racdb2.thread=2 racdb3.thread=3 racdb1.thread=1 racdb3.undo_tablespace='UNDOTBS3' racdb2.undo_tablespace='UNDOTBS2' racdb1.undo_tablespace='UNDOTBS1'

修改后的参数文件：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

racdg.__db_cache_size=956301312 racdg.__java_pool_size=16777216 racdg.__large_pool_size=16777216 racdg.__pga_aggregate_target=1006632960 racdg.__sga_target=1509949440 racdg.__shared_io_pool_size=0 racdg.__shared_pool_size=553648128 racdg.__streams_pool_size=0 *.audit_file_dest='/u/app/oracle/admin/racdg/adump' *.audit_trail='db' *.cluster_database=false *.compatible='11.2.0.0.0' *.control_files='+DATA/racdg/controlfile/current.256.909939065','+ARCH/racdg/controlfile/current.256.909939067' *.db_block_size=8192 *.db_create_file_dest='+DATA' *.db_domain='' *.db_name='racdb' *.db_recovery_file_dest='+ARCH' *.db_recovery_file_dest_size=6948913152 *.diagnostic_dest='/u/app/oracle' *.dispatchers='(protocol=TCP)' *.log_archive_format='%t_%s_%r.dbf' *.memory_target=2506096640 *.open_cursors=300 *.processes=300 *.remote_login_passwordfile='exclusive' *.sessions=335 *.shared_servers=20 *.thread=1 *.undo_tablespace='UNDOTBS1' *.db_unique_name='racdg' *.FAL_CLIENT='racdg' *.FAL_SERVER='racdb1','racdb2','racdb3' *.LOG_ARCHIVE_CONFIG='dg_config=(racdb,racdg)' *.LOG_ARCHIVE_DEST_1='LOCATION=+ARCH/RACDG/archivelog/valid_for=(all_logfiles,all_roles) db_unique_name=racdg' *.LOG_ARCHIVE_DEST_2='SERVICE=racdb1 LGWRASYNC valid_for=(online_logfiles,primary_role) db_unique_name=racdb' *.LOG_ARCHIVE_DEST_STATE_1=ENABLE *.LOG_ARCHIVE_DEST_STATE_2=ENABLE *.STANDBY_FILE_MANAGEMENT=AUTO *.DB_FILE_NAME_CONVERT='+DATA/RACDB/','+DATA/RACDG/','+ARCH/RACDB/','+ARCH/RACDG/' *.LOG_FILE_NAME_CONVERT='+ARCH/RACDB/','+ARCH/RACDG/'

B、 RAC主库、备库TNSNAMES.ORA文件：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

RACDB = (DESCRIPTION =     (ADDRESS= (PROTOCOL = TCP)(HOST = 172.16.1.10)(PORT = 1521))     (ADDRESS= (PROTOCOL = TCP)(HOST = 172.16.1.11)(PORT = 1521))    (CONNECT_DATA =       (SERVER= DEDICATED)      (SERVICE_NAME = racdb)     )   ) RACDB1 = (DESCRIPTION =     (ADDRESS= (PROTOCOL = TCP)(HOST = 172.16.1.7)(PORT = 1521))    (CONNECT_DATA =       (SERVER= DEDICATED)      (SERVICE_NAME = racdb)      (INSTANCE_NAME = racdb1)     )   ) RACDB2 = (DESCRIPTION =     (ADDRESS= (PROTOCOL = TCP)(HOST = 172.16.1.8)(PORT = 1521))    (CONNECT_DATA =       (SERVER= DEDICATED)      (SERVICE_NAME = racdb)      (INSTANCE_NAME = racdb2)     )   ) RACDB3 = (DESCRIPTION =     (ADDRESS = (PROTOCOL = TCP)(HOST =172.16.1.9)(PORT = 1521))    (CONNECT_DATA =       (SERVER= DEDICATED)      (SERVICE_NAME = racdb)      (INSTANCE_NAME = racdb3)     )   ) RACDG = (DESCRIPTION =     (ADDRESS= (PROTOCOL = TCP)(HOST = 172.16.1.15)(PORT = 1521))    (CONNECT_DATA =       (SERVER= DEDICATED)      (SERVICE_NAME = racdg)     )   )

C、 创建备库

[oracle@ asm-standby ~]#mkdir –p /u/app/oracle/admin/racdg/adump
[oracle@ asm-standby ~]#sqlplus / as sysdba

SQL> startup nomount pfile=’/u/rman/pfile.ora’;

SQL> create spfile from pfile=’/u/rman/pfile.ora’;

SQL> shutdown immediate;

SQL> startup nomount;

[oracle@ asm-standby~]#rman target /

RMAN> restore standby controlfile from‘/u/rman/RACDB_20160504_05r4ogte_1_1.ctl’;

RMAN>sql ‘alter database mount standby database’;

RMAN>restore database;


[oracle@ asm-standby~]#sqlplus / as sysdba

SQL>recover managed standby database disconnectfrom session;
#现在执行这个是为将ONLINELOG目录建立起来，因为数据字典中有LOGFILE的记录，会根据记录建立LOGFILE，若不执行的话，在ASMCMD中是看不到ONLINELOG目录的。

SQL>alter database recover managed standbydatabase cancel;

D、 添加主库参数
[oracle@ note1~]#sqlplus / as sysdba

SQL>alter system set standby_file_management=auto scope=both;

SQL>alter system setlog_archive_config=’dg_config=(racdg,racdb)’ scope=both;

SQL>alter system set fal_server=’racdg’scope=both;

SQL>alter system setlog_archive_dest_1=’LOCATION=+ARCH valid_for=(all_logfiles,all_roles)db_unique_name=racdb’ scope=both;

SQL>alter system set log_arhive_dest_2=’SERVICE=racdg LGWR ASYNC valid_for=(online_logfiles,primary_role)db_unique_name=racdg' scope=both;

SQL>alter system setlog_archive_dest_state_1=ENABLE scope=both;

SQL>alter system set log_archive_dest_state_2=ENABLE scope=both;

SQL>alter system archive log current;

备库查看归档是否传过来了

SQL>select sequence#,applied from v$archived_log;

F、 创建Standby redolog
RAC数据库：Standby Redo Log组数=(所有节点中日志组数最大值 + 1) * RAC节点数

[oracle@ asm-standby~]#sqlplus / as sysdba

SQL>alter database add standby logfile thread 1 ('+ARCH') size 50m ;
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.
SQL>c/1/2

l* alter database add standby logfile thread 2 ('+ARCH') size 50m

SQL>/
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.
SQL>c/2/3

l* alter database add standby logfile thread 3 ('+ARCH') size 50m

SQL>/
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.
SQL> /
Database altered.

SQL>recover managed standby database usingcurrent logfile disconnect from session;

查看归档是否同步：
