centos6.5 x86 虚拟机上安装完全分布式hadoop-2.4.1结合hbase-0.94.23
一、环境准备：以下3台虚拟机:
192.168.1.105 nn namenode
192.168.1.106 sn secondarynamenode/datanode
192.168.1.107 dn1 datanode
要求：
1、节点间ping通：
[iyunv@nn ~]# cat /etc/hosts 注意最好把ipv6那行删了，要不可能报错
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
192.168.1.105 nn
192.168.1.106 sn
192.168.1.107 dn1
2、节点间无密码ssh
3、java环境（各个节点配置相同的JAVA_HOME路径什么都要相同）
4、各节点间时间要同步
无密码login
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[iyunv@dn1 ~]# ssh-keygen -t rsa -P ''
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
a7:16:b7:43:ea:1b:91:f0:c5:ad:e2:ae:16:b7:03:07 root@dn1
The key's randomart image is:
+--[ RSA 2048]----+
| |
| . . |
| . o . |
| Eo o . |
| .S = |
| o.oX . |
| =*.o |
| .+o. . |
| ...+o |
+-----------------+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[iyunv@dn1 ~]# ssh-copy-id -i root@localhost
The authenticity of host 'localhost (127.0.0.1)' can't be established.
RSA key fingerprint is 8b:26:11:0f:ec:9d:0f:58:e2:8f:fd:e2:cf:00:d4:1d.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'localhost' (RSA) to the list of known hosts.root@localhost's password:
Now try logging into the machine, with "ssh 'root@localhost'", and check in:
.ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.
[iyunv@dn1 ~]# ssh-copy-id -i root@nn
The authenticity of host 'nn (192.168.1.105)' can't be established.
RSA key fingerprint is 8b:26:11:0f:ec:9d:0f:58:e2:8f:fd:e2:cf:00:d4:1d.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'nn,192.168.1.105' (RSA) to the list of known hosts.root@nn's password: Now try logging into the machine, with "ssh 'root@nn'", and check in:
.ssh/authorized_keys
to make sure we haven't added extra keys that you weren't expecting.
验证：
1
2
3
4
5
6
7
[iyunv@nn ~]# ssh sn
Last login: Tue Sep 16 07:18:38 2014 from dn1
[iyunv@sn ~]# ssh dn1
Last login: Thu Sep 18 11:18:03 2014 from dn1
[iyunv@dn1 ~]# ssh nn
Last login: Tue Sep 16 21:10:05 2014 from dn1
[iyunv@nn ~]#
在hadoop2.x中配置文件与1有所不同： 在hadoop2.x中：
l 去除了原来1.x中包括的$HADOOP_HOME/src目录，该目录包括关键配置文件的默认值；
l 默认不存在mapred-site.xml文件，需要将当前mapred-site.xml.template文件copy一份并重命名为mapred-site.xml，并且只是一个具有configuration节点的空文件；
l 默认不存在mapred-queues.xml文件，需要将当前mapred-queues.xml.template文件copy一份并重命名为mapred-queues.xml； l 删除了master文件，现在master的配置在hdfs-site.xml通过属性dfs.namenode.secondary.http-address来设置，如下：（这点要注意）
<property>
<name>dfs.namenode.secondary.http-address</name>
<value>sn:9001</value>
</property>
[iyunv@nn hadoop]# cat /etc/profile.d/hadoop.sh
HADOOP_HOME=/usr/local/hadoop-2.4.1
PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
export HADOOP_HOME PATH
[iyunv@nn hadoop]#source /etc/profile
[iyunv@nn hadoop-2.4.1]# hadoop versionHadoop
2.4.1Subversion http://svn.apache.org/repos/asf/hadoop/common -r 1604318
Compiled by jenkins on 2014-06-21T05:43ZCompiled with protoc 2.5.0
From source with checksum bb7ac0a3c73dc131f4844b873c74b630
This command was run using /usr/local/hadoop-2.4.1/share/hadoop/common/hadoop-common-2.4.1.jar
4、启动hadoop:
1
2
3
4
5
6
7
8
9
[iyunv@nn hadoop]#hadoop namenode -format
.........
14/09/18 13:41:11 INFO util.GSet: capacity = 2^16 = 65536 entries
14/09/18 13:41:11 INFO namenode.AclConfigFlag: ACLs enabled? false
14/09/18 13:41:11 INFO namenode.FSImage: Allocated new BlockPoolId: BP-1418484038-127.0.0.1-1411018871656
14/09/18 13:41:11 INFO common.Storage: Storage directory /tmpdir/dfs/name has been successfully formatted.
14/09/18 13:41:12 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0
14/09/18 13:41:12 INFO util.ExitUtil: Exiting with status 0
14/09/18 13:41:12 INFO namenode.NameNode: SHUTDOWN_MSG: /************************************************************SHUTDOWN_MSG: Shutting down NameNode at nn/127.0.0.1************************************************************/
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[iyunv@nn hadoop]# start-dfs.sh
Starting namenodes on [nn]
nn: starting namenode, logging to /usr/local/hadoop-2.4.1/logs/hadoop-root-namenode-nn.out
sn: starting datanode, logging to /usr/local/hadoop-2.4.1/logs/hadoop-root-datanode-sn.out
dn1: starting datanode, logging to /usr/local/hadoop-2.4.1/logs/hadoop-root-datanode-dn1.out
Starting secondary namenodes [sn]
sn: starting secondarynamenode, logging to /usr/local/hadoop-2.4.1/logs/hadoop-root-secondarynamenode-sn.out
[iyunv@nn hadoop]# start-yarn.sh
starting yarn daemons
starting resourcemanager, logging to /usr/local/hadoop-2.4.1/logs/yarn-root-resourcemanager-nn.out
dn1: starting nodemanager, logging to /usr/local/hadoop-2.4.1/logs/yarn-root-nodemanager-dn1.out
sn: starting nodemanager, logging to /usr/local/hadoop-2.4.1/logs/yarn-root-nodemanager-sn.out
[iyunv@nn hadoop]# jps
10487 Jps
10206 ResourceManager
9983 NameNode
[iyunv@nn hadoop]#
[iyunv@nn hadoop-2.4.1]# hadoop jar ./share/hadoop/mapreduce/hadoop-mapreduce-examples-2.4.1.jar wordcount /test/NOTICE.txt /test/wordcount.out
14/09/18 22:43:29 INFO client.RMProxy: Connecting to ResourceManager at nn/192.168.1.105:8032
14/09/18 22:43:31 INFO input.FileInputFormat: Total input paths to process : 1
14/09/18 22:43:31 INFO mapreduce.JobSubmitter: number of splits:1
14/09/18 22:43:32 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1411050377567_0001
14/09/18 22:43:33 INFO impl.YarnClientImpl: Submitted application application_1411050377567_0001
14/09/18 22:43:33 INFO mapreduce.Job: The url to track the job: http://nn:8088/proxy/application_1411050377567_0001/
14/09/18 22:43:33 INFO mapreduce.Job: Running job: job_1411050377567_0001
14/09/18 22:43:49 INFO mapreduce.Job: Job job_1411050377567_0001 running in uber mode : false
14/09/18 22:43:49 INFO mapreduce.Job: map 0% reduce 0%
14/09/18 22:44:04 INFO mapreduce.Job: map 100% reduce 0%
14/09/18 22:44:13 INFO mapreduce.Job: map 100% reduce 100%
14/09/18 22:44:15 INFO mapreduce.Job: Job job_1411050377567_0001 completed successfully
14/09/18 22:44:15 INFO mapreduce.Job: Counters: 49
File System Counters
FILE: Number of bytes read=173
FILE: Number of bytes written=185967
FILE: Number of read operations=0
FILE: Number of large read operations=0
FILE: Number of write operations=0
HDFS: Number of bytes read=196
HDFS: Number of bytes written=123
HDFS: Number of read operations=6
HDFS: Number of large read operations=0
HDFS: Number of write operations=2
Job Counters
Launched map tasks=1
Launched reduce tasks=1
Data-local map tasks=1
Total time spent by all maps in occupied slots (ms)=13789
Total time spent by all reduces in occupied slots (ms)=6376
Total time spent by all map tasks (ms)=13789
Total time spent by all reduce tasks (ms)=6376
Total vcore-seconds taken by all map tasks=13789
Total vcore-seconds taken by all reduce tasks=6376
Total megabyte-seconds taken by all map tasks=14119936
Total megabyte-seconds taken by all reduce tasks=6529024
Map-Reduce Framework
Map input records=2
Map output records=11
Map output bytes=145
Map output materialized bytes=173
Input split bytes=95
Combine input records=11
Combine output records=11
Reduce input groups=11
Reduce shuffle bytes=173
Reduce input records=11
Reduce output records=11
Spilled Records=22
Shuffled Maps =1
Failed Shuffles=0
Merged Map outputs=1
GC time elapsed (ms)=439
CPU time spent (ms)=2310
Physical memory (bytes) snapshot=210075648
Virtual memory (bytes) snapshot=794005504
Total committed heap usage (bytes)=125480960
Shuffle Errors
BAD_ID=0
CONNECTION=0
IO_ERROR=0
WRONG_LENGTH=0
WRONG_MAP=0
WRONG_REDUCE=0
File Input Format Counters
Bytes Read=101
File Output Format Counters
Bytes Written=123
[iyunv@nn hadoop-2.4.1]#
PS： 在安装的时候遇到一个错误：纠结好长时间：

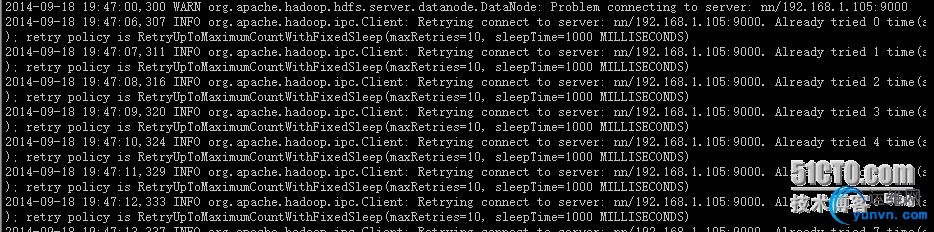

就是在2个datanode日志中一直重复出现以下：好像是连接不上namenode:
INFO org.apache.hadoop.ipc.Client: Retrying connect to server: nn/192.168.1.105:9000. Already tried 6 time(s
最终： 修改/etc/hosts文件解决，不知道为什么
