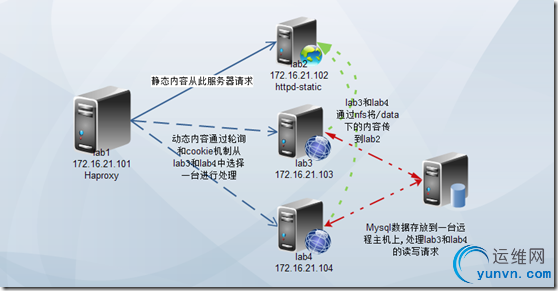

1.实验拓扑:
2.后端部署Httpd服务器和Mysql服务器 1.安装程序
分别在lab2,lab3,lab4上安装httpd,
在lab3,lab4上安装php以及php-mysql
2.部署论坛
#在Mysql服务器上创建一个Discuz数据库
1
| mysql> create database discuz;
|
#为Mysql提供远程访问帐号,并配置密码
1
| mysql> grant all on discuz.* to bbs@'172.16.21.%' identified by '123456';
|

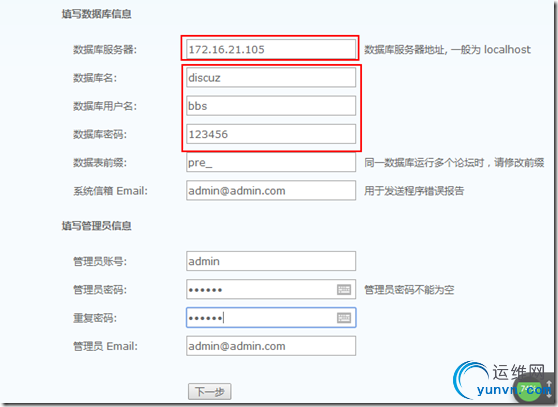

#将论坛程序解压到lab3的网站根目录,通过网页访问lab3,安装论坛程序

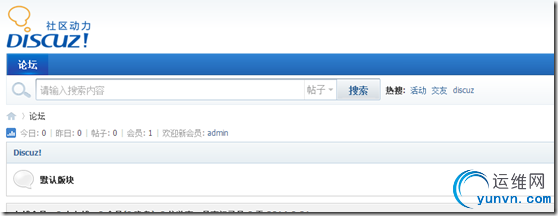

论坛程序已经可以访问
将网站根目录复制到lab4及lab2的对应目录下,并保证文件权限
1
2
| [iyunv@lab4 ~]# scp -r lab3:/var/www/html/* /var/www/html/
[iyunv@lab4 ~]# scp -r lab2:/var/www/html/* /var/www/html/
|
3.创建配置共享存储
1
2
3
4
5
6
| [iyunv@lab2 html]# cat /etc/exports
/var/www/html/data 172.16.21.0/24(rw,all_squash,anonuid=48,insecure)
#lab3挂载
[iyunv@lab4 data]# mount lab2:/var/www/html/data/ /var/www/html/data/
#lab4挂载
[iyunv@lab4 data]# mount lab2:/var/www/html/data/ /var/www/html/data/
|
3.前端Haproxy配置#Haproxy配置文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
| [iyunv@lab1 ~]# cat /etc/haproxy/haproxy.cfg
#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global #全局配置
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults #默认配置
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 3000
#---------------------------------------------------------------------
# main frontend which proxys to the backends
#---------------------------------------------------------------------
frontend web *:80 #前端接收设置
acl url_static path_beg -i /data /static /images /javascript /stylesheets #定义静态内容前缀
acl url_static path_end -i .jpg .gif .png .css .js .html .ico #定义静态内容后缀
use_backend static if url_static
default_backend app
#---------------------------------------------------------------------
# static backend for serving up images, stylesheets and such
#---------------------------------------------------------------------
backend static #后端静态服务器设置
balance roundrobin
server static 172.16.21.102:80 check
option forwardfor except 127.0.0.1/8
option originalto
#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
backend app #后端动态服务器设置
balance roundrobin #使用轮询的调度方式
cookie srv insert nocache #插入cookie,使其可以访问到后端的同一台动态服务器,防止登录信息丢失
server app1 172.16.21.103:80 check cookie app1
server app2 172.16.21.104:80 check cookie app2
option forwardfor except 127.0.0.1/8 #添加X-forwarded-for头部信息,向后端主机提供真实访问IP,需要在httpd配置文件中修改
option originalto
listen admin_stat #状态页面设置
bind *:8080
stats enable
stats uri /haproxy
stats refresh 10s
stats auth haadmin:haadmin
stats admin if TRUE
option forwardfor except 127.0.0.1/8
option originalto
|
启动Haproxy,访问论坛

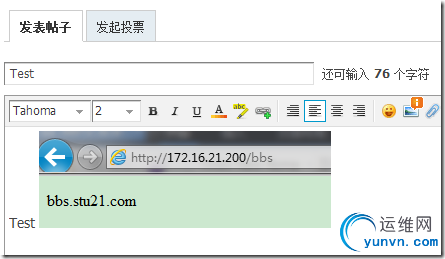

发帖,图片上传测试

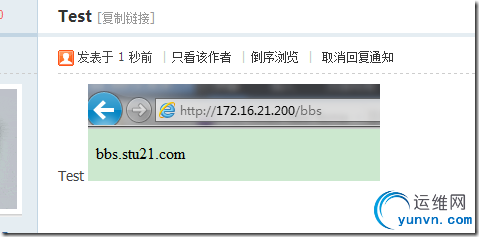

#帖子图片访问正常
#清除Cookie后访问成功
#Httpd配置调整
将日志格式中需要记录访问IP的%h更改为{X-Forwarded-For}i,以方便记录统计数据
|
|
|
