Docker仓库搭建（Registry + Portus）

iyuytre · 发表于 2016-8-2 08:56:09

1、安装CentOS 7.2（步骤略）
2、更新系统

1	yum update -y

3、安装docker-compose

1
2
3

yum -y install epel-release #pip安装包在epel源中
yum -y install python-pip
pip install -U docker-compose

4、安装git客户端

1	yum install -y git

5、复制Portus安装程序

1 2	git clone https://github.com/SUSE/Portus.git

6、配置Docker安装源

1
2
3
4
5
6
7
8

vi /etc/yum.repos.d/docker.repo
[dockerrepo]
name=Docker Repository
baseurl=https://yum.dockerproject.org/repo/main/centos/$releasever/
enabled=1
gpgcheck=1
gpgkey=
https://yum.dockerproject.org/gpg

7、安装docker引擎并启动

1
2
3
4

yum cleal all && yum makecache
yum install -y docker-engine
systemctl start docker.service
systemctl enable docker.service

8、安装Portus

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

./compose-setup.sh -e 192.168.0.109
#安装过程中会下载registry、mariadb、rails、ports_web等几个docker镜像
#如果网络不好可以先下载对应的几个docker镜像文件
#然后上传到portus服务器上并用docker load命令加载。
#镜像的具体版本号以实际为准。
REPOSITORY       TAG                IMAGE ID          CREATED          SIZE
portus_web       latest             24a654206d8b       2 days ago       1.086 GB
registry          2.3.1             83139345d017       4 months ago       165.8 MB
mariadb          10.0.23          93631b528e67       5 months ago       304.6 MB
rails             4.2.2             99b347e4bbb4       13 months ago    884.5 MB
安装过后会给出相应的登陆信息和客户端需要的操作样例
###################
#    SUCCESS    #
###################

Make sure port 3000 and 5000 are open on host 192.168.0.109

Open http://192.168.0.109:3000 with your browser and perform the following steps:

  1. Create an admin account
  2. You will be redirected to a page where you have to register the registry. In this form:
- Choose a custom name for the registry.
- Enter 192.168.0.109:5000 as the hostname.
- Do *not* check the "Use SSL" checkbox, since this setup is not using SSL.

Perform the following actions on the docker hosts that need to interact with your registry:

  - Ensure the docker daemon is started with the '--insecure-registry 192.168.0.109:5000'
  - Perform the docker login.

To authenticate against your registry using the docker cli do:

  $ docker login -u <portus username> -p <password> -e <email> 192.168.0.109:5000

To push an image to the private registry:

  $ docker pull busybox
  $ docker tag busybox 192.168.0.109:5000/<username>busybox
  $ docker push 192.168.0.109:5000/<username>busybox

9、打开防火墙端口

1
2
3

firewall-cmd --zone=public --add-port=3000/tcp --permanent
firewall-cmd --zone=public --add-port=5000/tcp --permanent
systemctl restart firewall.service

10、Portus初始化

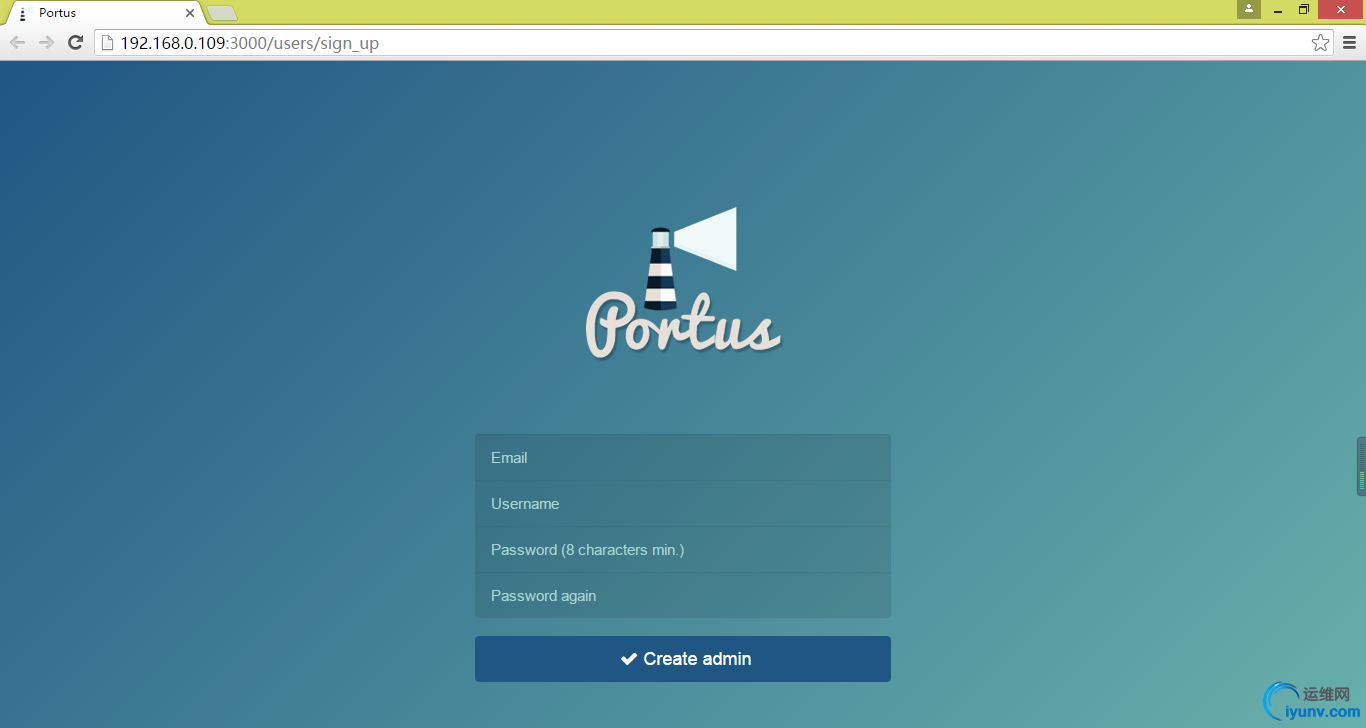

1	在浏览器中打开创建默认管理员用户

连接到本docker仓库（也可以是其他仓库，必须是registry 2.0以上版本）

10、上传镜像测试
修改文件/lib/systemd/system/docker.service中的ExecStart增加--insecure-registry 192.168.0.109:5000并重启docker服务

1 2	systemctl daemon-reload systemctl restart docker.service

检查docker服务

1 2	# ps -ef\|grep insecure-registry root 29486 1 0 01:32 ? 00:00:00 /usr/bin/dockerd --insecure-registry 192.168.0.109:5000

下载busybox镜像并上传到私有的仓库中（安装结束时有操作提示）
docker pull busybox
docker tag busybox 192.168.0.109:5000/admin/busybox
docker login -u admin -p admin123 192.168.0.109:5000
docker push 192.168.0.109:5000/admin/busybox

检查Portus界面的镜像信息
