ORA-00328 ORA-00334 MRP0: Background Media Recovery terminated with error 328

0987

环境介绍：前几天搭建了一套 二节点单实例的 linux+oracle11.2.0.3+dataguard   maximize availability 的环境。
故障现象：今天发现不能同步了，在trace文件alert_orcl.log里发现有报错信息MRP进程启不来
MRP0: Background Media Recovery terminated with error 328
ORA-00328: 8386238 , 8972415
ORA-00334: '/opt/oracle/fast_recovery_area/DG_BEI/archivelog/2014_09_28/o1_mf_1_830_b2h9mjmn_.arc'
在报上述错误前trace文件alert_orcl.log有报与主库网络中断错误
RFS[4]: Assigned to RFS process 20669
RFS[4]: Possible network disconnect with primary database
Sun Sep 28 13:23:48 2014

MRP0: Background Media Recovery terminated with error 328详细报错信息如下：

Mon Sep 29 14:32:28 2014
alter database recover managed standby database using current logfile disconnect from session nodelay
Attempt to start background Managed Standby Recovery process (orcl)
Mon Sep 29 14:32:28 2014
MRP0 started with pid=27, OS id=23710
MRP0: Background Managed Standby Recovery process started (orcl)
started logmerger process
Mon Sep 29 14:32:33 2014
Managed Standby Recovery starting Real Time Apply
Parallel Media Recovery started with 2 slaves
Waiting for all non-current ORLs to be archived...
All non-current ORLs have been archived.
Clearing online redo logfile 1 /opt/oracle/oradata/orcl/redo01.log
Clearing online log 1 of thread 1 sequence number 835
Clearing online redo logfile 1 complete
Clearing online redo logfile 2 /opt/oracle/oradata/orcl/redo02.log
Clearing online log 2 of thread 1 sequence number 834
Clearing online redo logfile 2 complete
Clearing online redo logfile 3 /opt/oracle/oradata/orcl/redo03.log
Clearing online log 3 of thread 1 sequence number 835
Clearing online redo logfile 3 complete
Media Recovery Log /opt/oracle/fast_recovery_area/DG_BEI/archivelog/2014_09_28/o1_mf_1_830_b2h9mjmn_.arc
Errors with log /opt/oracle/fast_recovery_area/DG_BEI/archivelog/2014_09_28/o1_mf_1_830_b2h9mjmn_.arc

MRP0: Background Media Recovery terminated with error 328

Errors in file /opt/oracle/diag/rdbms/dg_bei/orcl/trace/orcl_pr00_23712.trc:
ORA-00328: 8386238 , 8972415
ORA-00334: : '/opt/oracle/fast_recovery_area/DG_BEI/archivelog/2014_09_28/o1_mf_1_830_b2h9mjmn_.arc'
Managed Standby Recovery not using Real Time Apply
Recovery interrupted!
Completed: alter database recover managed standby database using current logfile disconnect from session nodelay
MRP0: Background Media Recovery process shutdown (orcl)
Mon Sep 29 14:34:06 2014
RFS[1]: Assigned to RFS process 23726
RFS[1]: Opened log for thread 1 sequence 836 dbid 1356850190 branch 829069458
Archived Log entry 77 added for thread 1 sequence 836 rlc 829069458 ID 0x50df5e0e dest 2:
Mon Sep 29 14:34:08 2014
Primary database is in MAXIMUM AVAILABILITY mode
Changing standby controlfile to RESYNCHRONIZATION level
Standby controlfile consistent with primary
RFS[2]: Assigned to RFS process 23728
RFS[2]: Selected log 4 for thread 1 sequence 838 dbid 1356850190 branch 829069458
Mon Sep 29 14:34:08 2014
RFS[3]: Assigned to RFS process 23730
RFS[3]: Selected log 5 for thread 1 sequence 837 dbid 1356850190 branch 829069458
Mon Sep 29 14:34:08 2014
Archived Log entry 78 added for thread 1 sequence 837 ID 0x50df5e0e dest 1:
Changing standby controlfile to MAXIMUM AVAILABILITY level
RFS[2]: Selected log 5 for thread 1 sequence 839 dbid 1356850190 branch 829069458
Mon Sep 29 14:34:11 2014
Archived Log entry 79 added for thread 1 sequence 838 ID 0x50df5e0e dest 1:

处理过程：

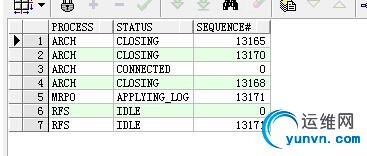

1.备库上检查恢复相关的进程，确实少了MRP

select process,status,sequence# from v$managed_standby;

2.在备库上检查归档日志视图

sql>select name,sequence#,applied from v$archived_log;

奇怪的事：trace日志中报错的归档日志显示被应用了，如红框中示

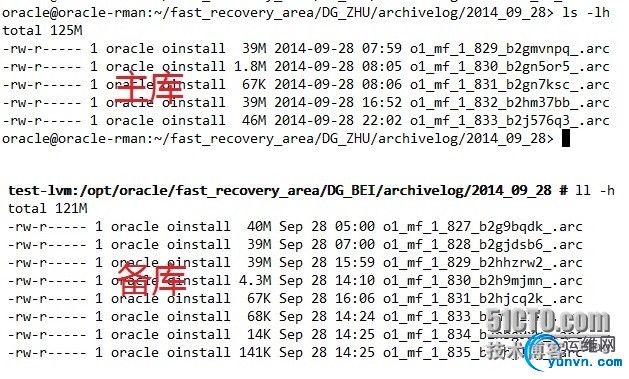

3.对比主库与备库 2014_09_28归档日志，数据和大小都不一样，备库比主库日志数量要多，但比主库要小，如下图示：（估计是传输日志的时候刚好网络中断造成的大小不一致）


4.万能的google搜索，大概是归档日志传输出错，从主库copy日志到备库，然后再执行恢复
4.1 以防万一，先将备库2014_09_28归档日志备份一下，然后删除备库2014_09_28归档文件夹
4.2 从主库上scp 复制2014_09_28归档文件夹到备库
4.3 备库上执行恢复操作
SQL> alter database recover managed standby database using current logfile disconnect;
查看trace日志显示正常了

5.到备库上确认归档日志

sql>select name,sequence#,applied from v$archived_log;

显示能正常应用了，不过有一个日志（红框中示）没用应用，我猜因为从主库copy过来的日志文件没有这个文件（只5个，原备库有8个），检查了数据是正常的。故障应该算是解决了。
