Mysql集群架构MHA应用实战

uykh

      MHA（Master High Availability）目前在MySQL高可用方面是一个相对成熟的解决方案，它由日本DeNA公司youshimaton（现就职于Facebook公司）开发，
是一套优秀的作为MySQL高可用性环境下故障切换和主从提升的高可用软件。在MySQL故障切换过程中，MHA能做到在0~30秒之内自动完成数据库的故障切换操作，
并且在进行故障切换的过程中，MHA能在最大程度上保证数据的一致性，以达到真正意义上的高可用。
该软件由两部分组成：MHA Manager（管理节点）和MHA Node（数据节点）。MHA Manager可以单独部署在一台独立的机器上管理多个master-slave集群，
也可以部署在一台slave节点上。MHA Node运行在每台MySQL服务器上，MHA Manager会定时探测集群中的master节点，当master出现故障时，
它可以自动将最新数据的slave提升为新的master，然后将所有其他的slave重新指向新的master。整个故障转移过程对应用程序完全透明。
在MHA自动故障切换过程中，MHA试图从宕机的主服务器上保存二进制日志，最大程度的保证数据的不丢失，但这并不总是可行的。
例如，如果主服务器硬件故障或无法通过ssh访问，MHA没法保存二进制日志，只进行故障转移而丢失了最新的数据。
使用MySQL 5.5的半同步复制，可以大大降低数据丢失的风险。MHA可以与半同步复制结合起来。如果只有一个slave已经收到了最新的二进制日志
，MHA可以将最新的二进制日志应用于其他所有的slave服务器上，因此可以保证所有节点的数据一致性。
目前MHA主要支持一主多从的架构，要搭建MHA,要求一个复制集群中必须最少有三台数据库服务器，一主二从，即一台充当master，一台充当备用master，
另外一台充当从库，因为至少需要三台服务器，出于机器成本的考虑，淘宝也在该基础上进行了改造，目前淘宝TMHA已经支持一主一从。
官方介绍：https://code.google.com/p/mysql-master-ha/

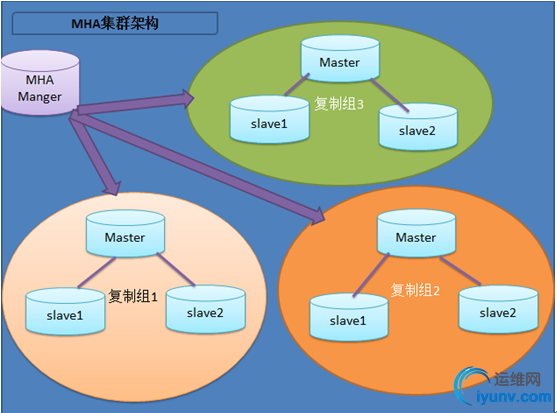

下图展示了如何通过MHA Manager管理多组主从复制。可以将MHA工作原理总结为如下

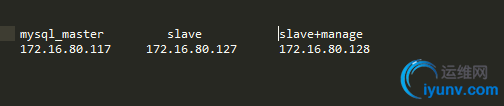

本次环境规划如下  (centos6.7)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71

1、配置三台服务器ssh互信 ssh-keygen -t rsa  一路回车即可 Generating public/private rsa key pair. Enter file in which to save the key (/root/.ssh/id_rsa): Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /root/.ssh/id_rsa. Your public key has been saved in /root/.ssh/id_rsa.pub. The key fingerprint is: c7:2e:ca:e2:c2:3b:30:63:97:b4:62:81:dd:27:e3:f9 root@centos02 The key's randomart image is: +--[ RSA 2048]----+ |                 | |                 | |.. .             | |....+ .  .       | |  o.o=  S o      | |++ +o    o       | |o=o  .  . .      | |  + ..E. .       | |  .=..o          | +-----------------+ [iyunv@ansible mysql]#ssh-copy-id -i /root/.ssh/id_rsa.pub root@172.16.80.117 [iyunv@ansible mysql]#ssh-copy-id  -i /root/.ssh/id_rsa.pub root@172.16.80.128 [iyunv@ansible mysql]# ssh-copy-id -i /root/.ssh/id_rsa.pub 172.16.80.127 The authenticity of host '172.16.80.127 (172.16.80.127)' can't be established. RSA key fingerprint is 05:89:5e:3d:2a:c1:ae:90:27:d9:a5:48:4a:ab:b9:79. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added '172.16.80.127' (RSA) to the list of known hosts. root@172.16.80.127's password: Now try logging into the machine, with "ssh '172.16.80.127'", and check in:   .ssh/authorized_keys to make sure we haven't added extra keys that you weren't expecting. 测试 [iyunv@ansible mysql]# ssh 172.16.80.117 ifconfig eth0 eth0      Link encap:Ethernet  HWaddr 00:0C:29:45:FE:30             inet addr:172.16.80.117  Bcast:172.16.80.255  Mask:255.255.255.0           inet6 addr: fe80::20c:29ff:fe45:fe30/64 Scope:Link           UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1           RX packets:1220176 errors:0 dropped:0 overruns:0 frame:0           TX packets:980887 errors:0 dropped:0 overruns:0 carrier:0           collisions:0 txqueuelen:1000           RX bytes:1198343068 (1.1 GiB)  TX bytes:1318688106 (1.2 GiB) [iyunv@ansible mysql]# ssh 172.16.80.127 ifconfig eth0 eth0      Link encap:Ethernet  HWaddr 00:0C:29:FF:58:D9             inet addr:172.16.80.127  Bcast:172.16.80.255  Mask:255.255.255.0           inet6 addr: fe80::20c:29ff:feff:58d9/64 Scope:Link           UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1           RX packets:162129 errors:0 dropped:0 overruns:0 frame:0           TX packets:27546 errors:0 dropped:0 overruns:0 carrier:0           collisions:0 txqueuelen:1000           RX bytes:225287420 (214.8 MiB)  TX bytes:1921228 (1.8 MiB) 2、三节点配置epel的yum源，安装相关依赖包 rpm -Uvh rpm --import/etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-6 yum  -y install perl-DBD-MySQL  ncftp 在3个mysql节点做授权配置 mysql>  grant replication slave  on *.* to 'martin'@'172.16.80.%' identified by '123456'; Query OK, 0 rows affected (0.05 sec) mysql> grant all on *.* to 'root'@'172.16.80.%' identified by '123456'; Query OK, 0 rows affected (0.00 sec)

1 2 3 4 5 6 7 8

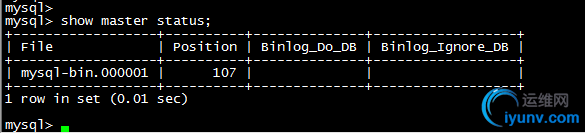

查看主节点上的日志状态mysql> show master status; mysql> show master status; +------------------+----------+--------------+------------------+ | File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | +------------------+----------+--------------+------------------+ | mysql-bin.000001 |      107 |              |                  | +------------------+----------+--------------+------------------+ 1 row in set (0.01 sec)

1 2 3 4 5 6 7 8 9 10 11 12

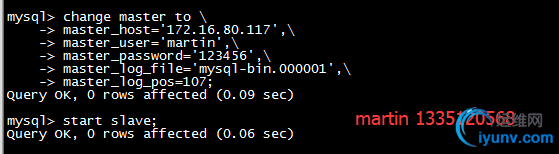

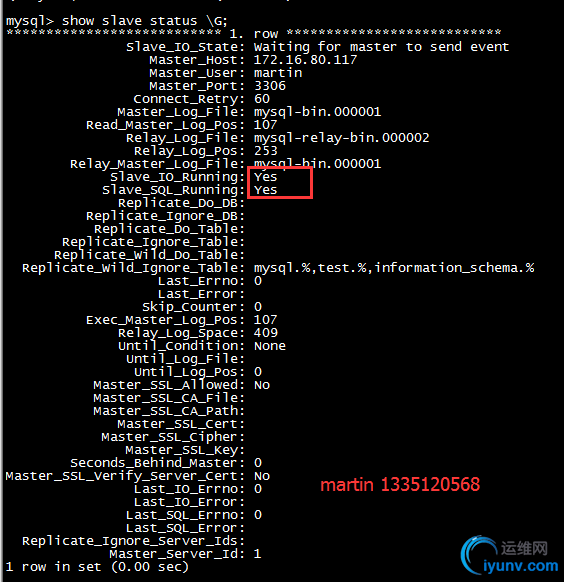

3、在两个从节点上面执行如下操作 change master to \ master_host='172.16.80.117',\ master_user='martin',\ master_password='123456',\ master_log_file='mysql-bin.000001',\ master_log_pos=107; mysql> start slave; Query OK, 0 rows affected (0.06 sec) mysql> show slave status \G;   可以看到主从同步状态正常

1 2 3 4 5 6 7 8 9 10 11 12 13

4、安装MHA软件MHA提供了源码和rpm包两种安装方式，如果是rpm包安装，方式如下： 1）在三个节点依次安装MHA的node [iyunv@ansible tools]# rpm -ivh mha4mysql-node-0.56-0.el6.noarch.rpm Preparing...########################################### [100%]    1:mha4mysql-node ########################################### [100%] 2）最后在Slave/MHA Manager节点安装mha4mysql-manage： yum install perl-Parallel-ForkManager perl-Time-HiRes \ perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch \ perl-Parallel-ForkManagerperl-Config-IniFilesperl-Time-HiRes [iyunv@ansible tools]# rpm -ivh mha4mysql-manager-0.56-0.el6.noarch.rpm Preparing...########################################### [100%]   1:mha4mysql-manager ########################################### [100%] [iyunv@ansible tools]# mkdir -p /etc/mha/scripts

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223

1、通过masterha_check_ssh验证ssh信任登录是否成功， [iyunv@ansible scripts]# masterha_check_ssh  --conf=/etc/mha/app1.cnf Thu Aug 11 19:29:03 2016 - [info] Reading default configuration from /etc/masterha_default.cnf.. Thu Aug 11 19:29:03 2016 - [info] Reading application default configuration from /etc/mha/app1.cnf.. Thu Aug 11 19:29:03 2016 - [info] Reading server configuration from /etc/mha/app1.cnf.. Thu Aug 11 19:29:03 2016 - [info] Starting SSH connection tests.. Thu Aug 11 19:29:04 2016 - [debug] Thu Aug 11 19:29:03 2016 - [debug]  Connecting via SSH from root@172.16.80.117(172.16.80.117:22) to root@172.16.80.127(172.16.80.127:22).. Thu Aug 11 19:29:03 2016 - [debug]   ok. Thu Aug 11 19:29:03 2016 - [debug]  Connecting via SSH from root@172.16.80.117(172.16.80.117:22) to root@172.16.80.128(172.16.80.128:22).. Thu Aug 11 19:29:04 2016 - [debug]   ok. Thu Aug 11 19:29:04 2016 - [debug] Thu Aug 11 19:29:03 2016 - [debug]  Connecting via SSH from root@172.16.80.127(172.16.80.127:22) to root@172.16.80.117(172.16.80.117:22).. Thu Aug 11 19:29:04 2016 - [debug]   ok. Thu Aug 11 19:29:04 2016 - [debug]  Connecting via SSH from root@172.16.80.127(172.16.80.127:22) to root@172.16.80.128(172.16.80.128:22).. Thu Aug 11 19:29:04 2016 - [debug]   ok. Thu Aug 11 19:29:04 2016 - [debug] Thu Aug 11 19:29:04 2016 - [debug]  Connecting via SSH from root@172.16.80.128(172.16.80.128:22) to root@172.16.80.117(172.16.80.117:22).. Thu Aug 11 19:29:04 2016 - [debug]   ok. Thu Aug 11 19:29:04 2016 - [debug]  Connecting via SSH from root@172.16.80.128(172.16.80.128:22) to root@172.16.80.127(172.16.80.127:22).. Thu Aug 11 19:29:04 2016 - [debug]   ok. Thu Aug 11 19:29:04 2016 - [info] All SSH connection tests passed successfully. 2、masterha_check_repl验证mysql复制是否成功 masterha_check_repl --conf=/etc/mha/app1.cnf [iyunv@ansible scripts]# masterha_check_repl --conf=/etc/mha/app1.cnf Thu Aug 11 19:31:53 2016 - [info] Reading default configuration from /etc/masterha_default.cnf.. Thu Aug 11 19:31:53 2016 - [info] Reading application default configuration from /etc/mha/app1.cnf.. Thu Aug 11 19:31:53 2016 - [info] Reading server configuration from /etc/mha/app1.cnf.. Thu Aug 11 19:31:53 2016 - [info] MHA::MasterMonitor version 0.56. Thu Aug 11 19:31:54 2016 - [info] GTID failover mode = 0 Thu Aug 11 19:31:54 2016 - [info] Dead Servers: Thu Aug 11 19:31:54 2016 - [info] Alive Servers: Thu Aug 11 19:31:54 2016 - [info]   172.16.80.117(172.16.80.117:3306) Thu Aug 11 19:31:54 2016 - [info]   172.16.80.127(172.16.80.127:3306) Thu Aug 11 19:31:54 2016 - [info]   172.16.80.128(172.16.80.128:3306) Thu Aug 11 19:31:54 2016 - [info] Alive Slaves: Thu Aug 11 19:31:54 2016 - [info]   172.16.80.127(172.16.80.127:3306)  Version=5.5.49-log (oldest major version between slaves) log-bin:enabled Thu Aug 11 19:31:54 2016 - [info]     Replicating from 172.16.80.117(172.16.80.117:3306) Thu Aug 11 19:31:54 2016 - [info]     Primary candidate for the new Master (candidate_master is set) Thu Aug 11 19:31:54 2016 - [info]   172.16.80.128(172.16.80.128:3306)  Version=5.5.49-log (oldest major version between slaves) log-bin:enabled Thu Aug 11 19:31:54 2016 - [info]     Replicating from 172.16.80.117(172.16.80.117:3306) Thu Aug 11 19:31:54 2016 - [info]     Not candidate for the new Master (no_master is set) Thu Aug 11 19:31:54 2016 - [info] Current Alive Master: 172.16.80.117(172.16.80.117:3306) Thu Aug 11 19:31:54 2016 - [info] Checking slave configurations.. Thu Aug 11 19:31:54 2016 - [warning]  relay_log_purge=0 is not set on slave 172.16.80.127(172.16.80.127:3306). Thu Aug 11 19:31:54 2016 - [warning]  relay_log_purge=0 is not set on slave 172.16.80.128(172.16.80.128:3306). Thu Aug 11 19:31:54 2016 - [info] Checking replication filtering settings.. Thu Aug 11 19:31:54 2016 - [info]  binlog_do_db= , binlog_ignore_db= Thu Aug 11 19:31:54 2016 - [info]  Replication filtering check ok. Thu Aug 11 19:31:54 2016 - [info] GTID (with auto-pos) is not supported Thu Aug 11 19:31:54 2016 - [info] Starting SSH connection tests.. Thu Aug 11 19:31:56 2016 - [info] All SSH connection tests passed successfully. Thu Aug 11 19:31:56 2016 - [info] Checking MHA Node version.. Thu Aug 11 19:31:56 2016 - [info]  Version check ok. Thu Aug 11 19:31:56 2016 - [info] Checking SSH publickey authentication settings on the current master.. Thu Aug 11 19:31:57 2016 - [info] HealthCheck: SSH to 172.16.80.117 is reachable. Thu Aug 11 19:31:57 2016 - [info] Master MHA Node version is 0.56. Thu Aug 11 19:31:57 2016 - [info] Checking recovery script configurations on 172.16.80.117(172.16.80.117:3306).. Thu Aug 11 19:31:57 2016 - [info]   Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/application/mysql/data --output_file=/var/tmp/save_binary_logs_test --manager_version=0.56 --start_file=mysql-bin.000001 Thu Aug 11 19:31:57 2016 - [info]   Connecting to root@172.16.80.117(172.16.80.117:22)..   Creating /var/tmp if not exists..    ok.   Checking output directory is accessible or not..    ok.   Binlog found at /application/mysql/data, up to mysql-bin.000001 Thu Aug 11 19:31:57 2016 - [info] Binlog setting check done. Thu Aug 11 19:31:57 2016 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers.. Thu Aug 11 19:31:57 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=172.16.80.127 --slave_ip=172.16.80.127 --slave_port=3306 --workdir=/var/tmp --target_version=5.5.49-log --manager_version=0.56 --relay_log_info=/application/mysql/data/relay-log.info  --relay_dir=/application/mysql/data/  --slave_pass=xxx Thu Aug 11 19:31:57 2016 - [info]   Connecting to root@172.16.80.127(172.16.80.127:22)..   Checking slave recovery environment settings..     Opening /application/mysql/data/relay-log.info ... ok.     Relay log found at /application/mysql/data, up to mysql-relay-bin.000002     Temporary relay log file is /application/mysql/data/mysql-relay-bin.000002     Testing mysql connection and privileges.. done.     Testing mysqlbinlog output.. done.     Cleaning up test file(s).. done. Thu Aug 11 19:31:58 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=172.16.80.128 --slave_ip=172.16.80.128 --slave_port=3306 --workdir=/var/tmp --target_version=5.5.49-log --manager_version=0.56 --relay_log_info=/application/mysql/data/relay-log.info  --relay_dir=/application/mysql/data/  --slave_pass=xxx Thu Aug 11 19:31:58 2016 - [info]   Connecting to root@172.16.80.128(172.16.80.128:22)..   Checking slave recovery environment settings..     Opening /application/mysql/data/relay-log.info ... ok.     Relay log found at /application/mysql/data, up to mysql-relay-bin.000002     Temporary relay log file is /application/mysql/data/mysql-relay-bin.000002     Testing mysql connection and privileges.. done.     Testing mysqlbinlog output.. done.     Cleaning up test file(s).. done. Thu Aug 11 19:31:58 2016 - [info] Slaves settings check done. Thu Aug 11 19:31:58 2016 - [info] 172.16.80.117(172.16.80.117:3306) (current master) +--172.16.80.127(172.16.80.127:3306) +--172.16.80.128(172.16.80.128:3306) Thu Aug 11 19:31:58 2016 - [info] Checking replication health on 172.16.80.127.. Thu Aug 11 19:31:58 2016 - [info]  ok. Thu Aug 11 19:31:58 2016 - [info] Checking replication health on 172.16.80.128.. Thu Aug 11 19:31:58 2016 - [info]  ok. Thu Aug 11 19:31:58 2016 - [info] Checking master_ip_failover_script status: Thu Aug 11 19:31:58 2016 - [info]   /etc/mha/scripts/master_ip_failover --command=status --ssh_user=root --orig_master_host=172.16.80.117 --orig_master_ip=172.16.80.117 --orig_master_port=3306 IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 172.16.80.200/24=== Checking the Status of the script.. OK Thu Aug 11 19:31:58 2016 - [info]  OK. Thu Aug 11 19:31:58 2016 - [warning] shutdown_script is not defined. Thu Aug 11 19:31:58 2016 - [info] Got exit code 0 (Not master dead). MySQL Replication Health is OK. 准备failover脚本用于vip切换 [iyunv@ansible ~]# cat /etc/mha/scripts/master_ip_failover #!/usr/bin/env perl use strict; use warnings FATAL => 'all'; use Getopt::Long; my (     $command,          $ssh_user,        $orig_master_host, $orig_master_ip,     $orig_master_port, $new_master_host, $new_master_ip,    $new_master_port ); my $vip = '172.16.80.200/24'; my $key = '1'; my $ssh_start_vip = "/sbin/ifconfig eth0:$key $vip"; my $ssh_stop_vip = "/sbin/ifconfig eth0:$key down"; GetOptions(     'command=s'          => \$command,     'ssh_user=s'         => \$ssh_user,     'orig_master_host=s' => \$orig_master_host,     'orig_master_ip=s'   => \$orig_master_ip,     'orig_master_port=i' => \$orig_master_port,     'new_master_host=s'  => \$new_master_host,     'new_master_ip=s'    => \$new_master_ip,     'new_master_port=i'  => \$new_master_port, ); exit &main(); sub main {     print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";     if ( $command eq "stop" || $command eq "stopssh" ) {         my $exit_code = 1;         eval {             print "Disabling the VIP on old master: $orig_master_host \n";             &stop_vip();             $exit_code = 0;         };         if ($@) {             warn "Got Error: $@\n";             exit $exit_code;         }         exit $exit_code;     }     elsif ( $command eq "start" ) {         my $exit_code = 10;         eval {             print "Enabling the VIP - $vip on the new master - $new_master_host \n";             &start_vip();             $exit_code = 0;         };         if ($@) {             warn $@;             exit $exit_code;         }         exit $exit_code;     }     elsif ( $command eq "status" ) {         print "Checking the Status of the script.. OK \n";         exit 0;     }     else {         &usage();         exit 1;     } } sub start_vip() {     `ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`; } sub stop_vip() {      return 0  unless  ($ssh_user);     `ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`; } sub usage {     print     "Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n"; } 启动MHA 先执行如下命令： /sbin/ifconfig eth0:1 172.16.80.200（只需第一次添加） 将vip绑定到目前的master上。 然后通过masterha_manager启动MHA监控： [iyunv@ansible scripts]# mkdir /var/log//masterha/app1 -p [iyunv@ansible scripts]# touch /var/log/masterha/app1/manager.log [iyunv@ansible scripts]# nohup masterha_manager --conf=/etc/mha/app1.cnf  \ --remove_dead_master_conf--ignore_last_failover< /dev/null > \ /var/log/masterha/app1/manager.log 2>&1 & 然后通过masterha_check_status查看MHA状态 [iyunv@ansible scripts]# masterha_check_status --conf=/etc/mha/app1.cnf app1 (pid:58184) is running(0:PING_OK), master:172.16.80.117 模拟主库 172.16.80.117 数据库挂掉 [iyunv@centos02 .ssh]# /etc/init.d/mysqld stop Shutting down MySQL................               [  OK  ]

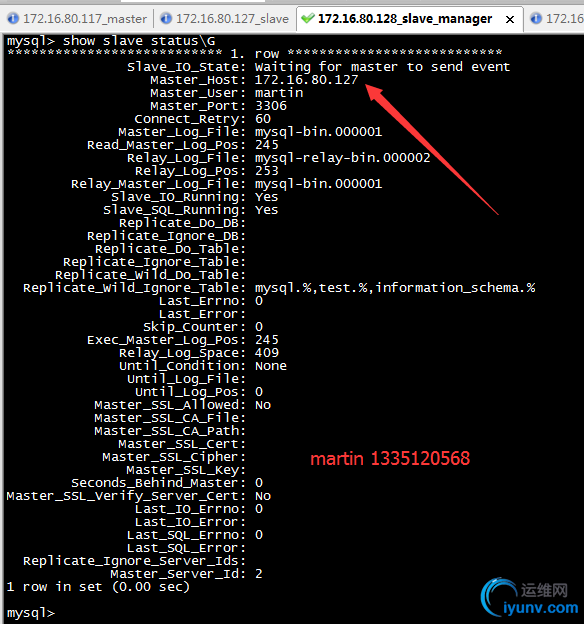

可以看到这个从库自动连接到了新的主库 172.16.80.127上面

1 2 3 4

切换完成后，关注如下变化： 1、    vip自动从原来的master切换到新的master，同时，manager节点的监控进程自动退出。 2、    在日志目录（/var/log/masterha/app1）产生一个app1.failover.complete文件 3、    /etc/mha/app1.cnf配置文件中原来老的master配置被删除。

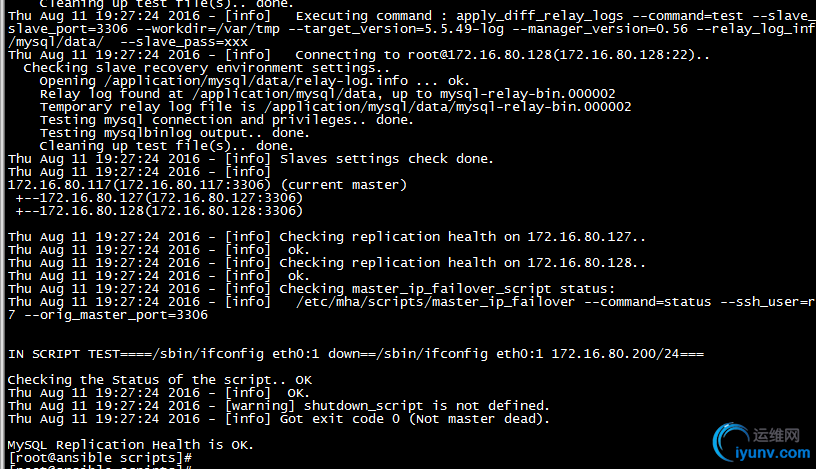

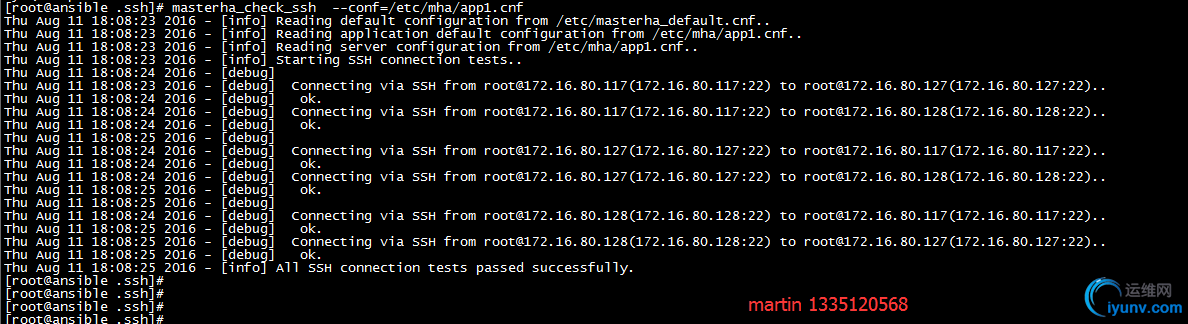

再截图之前ssh及mysql主从检查的过程
