最近在研究memcached,有兴趣的朋友,欢迎围观我的memcached演练系列。
memcached演练(1) 搭建memcached服务memcached演练(2) 访问memcached服务 memcached演练(3) 使用apache+搭建双节点tomcat集群memcached演练(4) 使用apache+memcached-session-manager+t..memcached演练(5) 内存管理memcached演练(6) 高可用实例HA(伪集群方案 )memcache-client-forjava 是一款memcached高可用解决方案,由一位阿里的一个牛人开源的一个框架。项目源码发布在google.code。需要翻墙下载。如果不能下载,留下邮箱。
周所周知,memcache是一个分布式数据缓存组件,节点的一致性和高可用均需要在客户端实现。
这个项目已经很长时间没有更新了,最新版是2.5.1。但项目不庞大,是研究源码,提高设计能力的一个好的选择。
主要内容
1.为什么要分析缓存源码
2.将memcache-client-forjava demo maven化
3.分析DefaultCacheImpl作为起点,进行分析
1.为什么要分析缓存源码
就不说虚的啦,互联网大环境等等。如果你在各大招聘网站,刷过招聘JD,应该对一些招聘要求要求有很深的印象。
**最少熟悉一款nosql数据库,如redis,memcached等
**要求具备数据库调优,web服务调优经验...
可见缓存是我们不得不掌握的一项技能了。而且我有过一次面试,直接让“如何设计一款缓存服务”。现在想想,回答不太理想,这也是我对缓存这一块耿耿于怀的一个诱因。
分享些关于缓存的若干资源,大家有兴趣补补。
几个著名Java开源缓存框架介绍
维基百科(缓存)
【Web缓存机制系列】
JSR107
缓存一致性(Cache Coherency)入门
按一个正常访问请求来说,缓存发生地点:浏览器缓存,代理缓存(CDN缓存),web缓存(本地缓存),web分布式缓存,数据库缓存,操作系统缓存,CPU缓存。
缓存的意义:适配CPU和磁盘随机访问的速度差异,重用计算结果,降低重复计算等。
评价缓存的一些指标:命中率,过期数据清除算法等。
2.将memcache-client-forjava demo maven化
个人由于比较讨厌维护jar之间的依赖,比较喜欢使用maven管理之。
2.1 先从https://code.google.com/archive/ ... t-forjava/downloads下载
2.2 由于memcache-client-forjava 并没有提交到中央仓库,所以需要我们手动上传至本地仓库。
1
2
3
| mvn install:install-file -DgroupId=com.alisoft -DartifactId=alisoft-xplatform-asf-cache -Dversion=2.5.1 -Dpackaging=jar -Dfile=C:\Users\zhaoguoyu\Downloads\alisoft-xplatform-asf-cache-2.5.1.jar
mvn install:install-file -DgroupId=com.alisoft -DartifactId=alisoft-xplatform-asf-cache -Dversion=2.5.1 -Dpackaging=jar -Dfile=C:\Users\zhaoguoyu\Downloads\alisoft-xplatform-asf-cache-2.5.1-src.jar -DgeneratePom=true -Dclassifier=sources
|
2.3 pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
| <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.alisoft.examples</groupId>
<artifactId>asftest</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>jar</packaging>
<name>asftest</name>
<url>http://maven.apache.org</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>com.alisoft</groupId>
<artifactId>alisoft-xplatform-asf-cache</artifactId>
<version>2.5.1</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>org.codehaus.woodstox</groupId>
<artifactId>wstx-asl</artifactId>
<version>3.2.1</version>
</dependency>
<dependency>
<groupId>stax</groupId>
<artifactId>stax-api</artifactId>
<version>1.0.1</version>
</dependency>
<dependency>
<groupId>com.caucho</groupId>
<artifactId>hessian</artifactId>
<version>4.0.7</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>
</dependencies>
</project>
|
2.4 复制cache-demo-2.5代码到test目录
2.5 最后的项目结构
3.分析DefaultCacheImpl

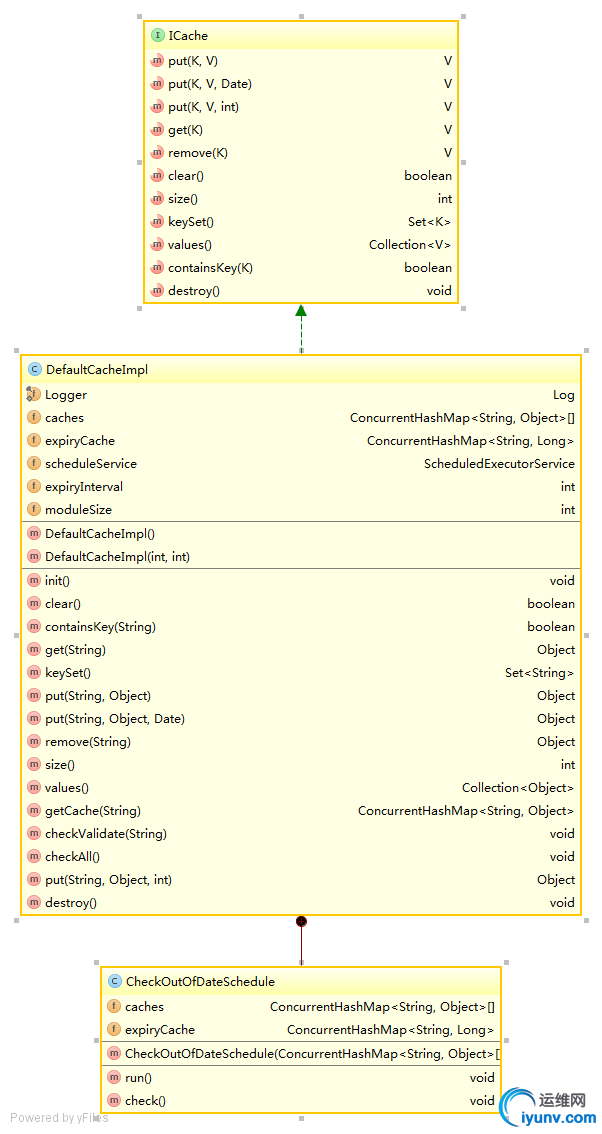

3.1 DefaultCacheImpl类图
1
| <span style="font-size:16px;">ICache<K,V>: Cache统一接口,支持泛型。具有常用的数据的增删改查接口。<br>DefaultCacheImpl:实现了ICache接口,是默认的本地Cache的实现,线程安全。<br>CheckOutOfDateSchedule:过期数据检查任务,定期清除过期数据。</span><br><span style="font-size:16px;">接下来,重点分析下DefaultCacheImpl具体实现</span>
|
3.2 主要属性
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| public class DefaultCacheImpl implements ICache<String,Object>
{
/**
* 具体内容存放的地方
*/
ConcurrentHashMap<String, Object>[] caches;
/**
* 超期信息存储
*/
ConcurrentHashMap<String, Long> expiryCache;
/**
* 清理超期内容的服务
*/
private ScheduledExecutorService scheduleService;
/**
* 清理超期信息的时间间隔,默认10分钟
*/
private int expiryInterval = 10;
/**
* 内部cache的个数,根据key的hash对module取模来定位到具体的某一个内部的Map,
* 减小阻塞情况发生。
*/
private int moduleSize = 10;
...
}
|
- 维护了2个ConcurrentHashMap,分别存储数据有效信息和实际数据,而ConcurrentHashMap本身是线程安全的。
- scheduleService驱动CheckOutOfDateSchedule任务执行
- 考虑热快情况,加入了取模逻辑,降低数据争用。
3.3 初始化
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| public DefaultCacheImpl()
{
init();
}
public DefaultCacheImpl(int expiryInterval,int moduleSize)
{
this.expiryInterval = expiryInterval;
this.moduleSize = moduleSize;
init();
}
@SuppressWarnings("unchecked")
private void init()
{
caches = new ConcurrentHashMap[moduleSize];
//初始化数据存放桶
for(int i = 0 ; i < moduleSize ;i ++)
caches = new ConcurrentHashMap<String, Object>();
expiryCache = new ConcurrentHashMap<String, Long>();
scheduleService = Executors.newScheduledThreadPool(1);
//启动定时任务
scheduleService.scheduleAtFixedRate(new CheckOutOfDateSchedule(caches,expiryCache),
0, expiryInterval * 60, TimeUnit.SECONDS);
if (Logger.isInfoEnabled())
Logger.info("DefaultCache CheckService is start!");
}
|
3.4 数据的存取
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
| ...
public boolean containsKey(String key)
{
checkValidate(key);
return getCache(key).containsKey(key);
}
public Object get(String key)
{
checkValidate(key);
return getCache(key).get(key);
}
public Object put(String key, Object value)
{
Object result = getCache(key).put(key, value);
expiryCache.put(key,(long)-1);
return result;
}
public Object put(String key, Object value, Date expiry)
{
Object result = getCache(key).put(key, value);
expiryCache.put(key,expiry.getTime());
return result;
}
private ConcurrentHashMap<String, Object>getCache(String key)
{
long hashCode = (long)key.hashCode();
if (hashCode < 0)
hashCode = -hashCode;
int moudleNum = (int)hashCode % moduleSize;
return caches[moudleNum];
}
/**
检查key是否过期,过期则删除
*/
private void checkValidate(String key)
{
if (expiryCache.get(key) != null && expiryCache.get(key) != -1
&& new Date(expiryCache.get(key)).before(new Date()))
{
getCache(key).remove(key);
expiryCache.remove(key);
}
}
...
|
数据的存储:首先根据key 的hashCode选择合适的数据桶,还需要在expiryCache中记录过期信息。
数据的读取:首先根据key expiryCache记录,判断是否过期,过期则删除。
逻辑非常简单,但是这各默认实现,没有考虑数据回收情况。当缓存大批量数据,容易出现内存溢出。
3.5 缓存溢出再现
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| public class DefaultCacheImplTest{
ICache<String,Object> cache;
@Before
public void setUpBeforeClass() throws Exception
{
cache = new DefaultCacheImpl();
}
@After
public void tearDownAfterClass() throws Exception
{
cache.clear();
}
@Test
public void testGet()
{
int i=0;
while(true){
i++;
cache.put("key1"+i, "value"+i);
System.out.println(""+i);;
}
// Assert.assertEquals("value1", cache.get("key1"));
}
...
}
|
为了容易再现问题,加入“-Xmx5m -Xms5m”
经过测试接近30000时,出现java.lang.OutOfMemoryError: Java heap space。
个人认为一个缓存必须要具备以下组件
而DefaultCacheImpl 简单实现了3 和4.
但不可否认,它为我们研究缓存提供了入门参考。
|
|
|
