CENTOS7.2使用RDO方式安装OpenStack Mitaka笔记

8700

CENTOS7.2使用RDO方式安装OpenStack Mitaka笔记


1、配置/etc/hosts
192.168.13.108 openstack


2、配置OpenStack Mitaka安装源
[iyunv@openstack ~]# sudo yum install -y centos-release-openstack-mitaka
[iyunv@openstack ~]# yum clean all; yum makecache; yum update


3、安装packstack,开始安装OpenStack
[iyunv@openstack ~]# yum install -y openstack-packstack
[iyunv@openstack ~]# packstack --allinone


第一次报错：
192.168.13.108_cinder.pp:                         [ ERROR ]
Applying Puppet manifests                         [ ERROR ]


ERROR : Error appeared during Puppet run: 192.168.13.108_cinder.pp
Error: Failed to apply catalog: Found 1 dependency cycle:
You will find full trace in log /var/tmp/packstack/20160920-033611-c2FBxv/manifests/192.168.13.108_cinder.pp.log


[iyunv@openstack ~]# cat /var/tmp/packstack/20160920-033611-c2FBxv/manifests/192.168.13.108_cinder.pp.log
Warning: Scope(Class[Cinder::Backup::Swift]): The OpenStack default value of backup_swift_container differs from the puppet module default of "volumes_backup" and will be changed to the upstream OpenStack default in N-release.
Warning: Scope(Cinder::Type[iscsi]): Parameters $os_password/$os_region_name/$os_tenant_name/$os_username/$os_auth_url are not longer required
Warning: Scope(Cinder::Type[iscsi]): Auth creds will be used from env or /root/openrc file or cinder.conf
Notice: Compiled catalog for openstack.openstacklocal in environment production in 1.19 seconds
Error: Failed to apply catalog: Found 1 dependency cycle:
(Exec[losetup /dev/loop2 /var/lib/cinder/cinder-volumes] => Class[Cinder::Setup_test_volume] => File[/var/lib/cinder] => File[/var/lib/cinder/cinder-volumes] => Exec[losetup /dev/loop2 /var/lib/cinder/cinder-volumes])
Try the '--graph' option and opening the resulting '.dot' file in OmniGraffle or GraphViz


修改answer-file:
[iyunv@openstack ~]# vim packstack-answers-20160920-033612.txt
CONFIG_CINDER_BACKEND=lvm  #默认存储后端使用用块存储，默认为lvm，因为本次实验使用的是已有OpenStack的VM中测试，只一个分区，没有创建cinder-volumes，修改为
CONFIG_CINDER_BACKEND=


使用answer-file继续安装
[iyunv@openstack ~]# packstack --answer-file=packstack-answers-20160920-033612.txt


第二个报错：
192.168.13.108_provision_glance:                  [ ERROR ]
Applying Puppet manifests                         [ ERROR ]


ERROR : Error appeared during Puppet run: 192.168.13.108_provision_glance
Error: Execution of '/usr/bin/openstack image create --format shell cirros --public --container-format=bare --disk-format=qcow2 --copy-from=http://download.cirros-cloud.net/0.3.4/cirros-0.3.4-x86_64-disk.img' returned 1: 400 Bad Request: The HTTP URL is invalid: HTTPConnectionPool(host='download.cirros-cloud.net', port=80): Max retries exceeded with url: /0.3.4/cirros-0.3.4-x86_64-disk.img (Caused by NewConnectionError('<requests.packages.urllib3.connection.HTTPConnection object at 0x529ed10>: Failed to establish a new connection: [Errno -2] Name or service not known',)) (HTTP 400)
网络太慢，下载cirros镜像失败，再试一次就好了。

[iyunv@openstack ~]# packstack --answer-file=packstack-answers-20160920-033612.txt
Welcome to the Packstack setup utility


The installation log file is available at: /var/tmp/packstack/20160920-062350-B8XWSm/openstack-setup.log


Installing:
Clean Up                                             [ DONE ]
Discovering ip protocol version                      [ DONE ]
Setting up ssh keys                                  [ DONE ]
Preparing servers                                    [ DONE ]
Pre installing Puppet and discovering hosts' details [ DONE ]
Adding pre install manifest entries                  [ DONE ]
Setting up CACERT                                    [ DONE ]
Adding AMQP manifest entries                         [ DONE ]
Adding MariaDB manifest entries                      [ DONE ]
Adding Apache manifest entries                       [ DONE ]
Fixing Keystone LDAP config parameters to be undef if empty[ DONE ]
Adding Keystone manifest entries                     [ DONE ]
Adding Glance Keystone manifest entries              [ DONE ]
Adding Glance manifest entries                       [ DONE ]
Adding Cinder Keystone manifest entries              [ DONE ]
Adding Cinder manifest entries                       [ DONE ]
Adding Nova API manifest entries                     [ DONE ]
Adding Nova Keystone manifest entries                [ DONE ]
Adding Nova Cert manifest entries                    [ DONE ]
Adding Nova Conductor manifest entries               [ DONE ]
Creating ssh keys for Nova migration                 [ DONE ]
Gathering ssh host keys for Nova migration           [ DONE ]
Adding Nova Compute manifest entries                 [ DONE ]
Adding Nova Scheduler manifest entries               [ DONE ]
Adding Nova VNC Proxy manifest entries               [ DONE ]
Adding OpenStack Network-related Nova manifest entries[ DONE ]
Adding Nova Common manifest entries                  [ DONE ]
Adding Neutron VPNaaS Agent manifest entries         [ DONE ]
Adding Neutron FWaaS Agent manifest entries          [ DONE ]
Adding Neutron LBaaS Agent manifest entries          [ DONE ]
Adding Neutron API manifest entries                  [ DONE ]
Adding Neutron Keystone manifest entries             [ DONE ]
Adding Neutron L3 manifest entries                   [ DONE ]
Adding Neutron L2 Agent manifest entries             [ DONE ]
Adding Neutron DHCP Agent manifest entries           [ DONE ]
Adding Neutron Metering Agent manifest entries       [ DONE ]
Adding Neutron Metadata Agent manifest entries       [ DONE ]
Adding Neutron SR-IOV Switch Agent manifest entries  [ DONE ]
Checking if NetworkManager is enabled and running    [ DONE ]
Adding OpenStack Client manifest entries             [ DONE ]
Adding Horizon manifest entries                      [ DONE ]
Adding Swift Keystone manifest entries               [ DONE ]
Adding Swift builder manifest entries                [ DONE ]
Adding Swift proxy manifest entries                  [ DONE ]
Adding Swift storage manifest entries                [ DONE ]
Adding Swift common manifest entries                 [ DONE ]
Adding Provisioning manifest entries                 [ DONE ]
Adding Provisioning Glance manifest entries          [ DONE ]
Adding Provisioning Demo bridge manifest entries     [ DONE ]
Adding Gnocchi manifest entries                      [ DONE ]
Adding Gnocchi Keystone manifest entries             [ DONE ]
Adding MongoDB manifest entries                      [ DONE ]
Adding Redis manifest entries                        [ DONE ]
Adding Ceilometer manifest entries                   [ DONE ]
Adding Ceilometer Keystone manifest entries          [ DONE ]
Adding Aodh manifest entries                         [ DONE ]
Adding Aodh Keystone manifest entries                [ DONE ]
Adding Nagios server manifest entries                [ DONE ]
Adding Nagios host manifest entries                  [ DONE ]
Copying Puppet modules and manifests                 [ DONE ]
Applying 192.168.13.108_prescript.pp
192.168.13.108_prescript.pp:                         [ DONE ]
Applying 192.168.13.108_amqp.pp
Applying 192.168.13.108_mariadb.pp
192.168.13.108_amqp.pp:                              [ DONE ]
192.168.13.108_mariadb.pp:                           [ DONE ]
Applying 192.168.13.108_apache.pp
192.168.13.108_apache.pp:                            [ DONE ]
Applying 192.168.13.108_keystone.pp
Applying 192.168.13.108_glance.pp
Applying 192.168.13.108_cinder.pp
192.168.13.108_keystone.pp:                          [ DONE ]
192.168.13.108_glance.pp:                            [ DONE ]
192.168.13.108_cinder.pp:                            [ DONE ]
Applying 192.168.13.108_api_nova.pp
192.168.13.108_api_nova.pp:                          [ DONE ]
Applying 192.168.13.108_nova.pp
192.168.13.108_nova.pp:                              [ DONE ]
Applying 192.168.13.108_neutron.pp
192.168.13.108_neutron.pp:                           [ DONE ]
Applying 192.168.13.108_osclient.pp
Applying 192.168.13.108_horizon.pp
192.168.13.108_osclient.pp:                          [ DONE ]
192.168.13.108_horizon.pp:                           [ DONE ]
Applying 192.168.13.108_ring_swift.pp
192.168.13.108_ring_swift.pp:                        [ DONE ]
Applying 192.168.13.108_swift.pp
192.168.13.108_swift.pp:                             [ DONE ]
Applying 192.168.13.108_provision.pp
Applying 192.168.13.108_provision_glance
192.168.13.108_provision.pp:                         [ DONE ]
192.168.13.108_provision_glance:                     [ DONE ]
Applying 192.168.13.108_provision_bridge.pp
192.168.13.108_provision_bridge.pp:                  [ DONE ]
Applying 192.168.13.108_gnocchi.pp
192.168.13.108_gnocchi.pp:                           [ DONE ]
Applying 192.168.13.108_mongodb.pp
Applying 192.168.13.108_redis.pp
192.168.13.108_mongodb.pp:                           [ DONE ]
192.168.13.108_redis.pp:                             [ DONE ]
Applying 192.168.13.108_ceilometer.pp
192.168.13.108_ceilometer.pp:                        [ DONE ]
Applying 192.168.13.108_aodh.pp
192.168.13.108_aodh.pp:                              [ DONE ]
Applying 192.168.13.108_nagios.pp
Applying 192.168.13.108_nagios_nrpe.pp
192.168.13.108_nagios.pp:                            [ DONE ]
192.168.13.108_nagios_nrpe.pp:                       [ DONE ]
Applying Puppet manifests                            [ DONE ]
Finalizing                                           [ DONE ]


**** Installation completed successfully ******


Additional information:
* Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components.
* File /root/keystonerc_admin has been created on OpenStack client host 192.168.13.108. To use the command line tools you need to source the file.

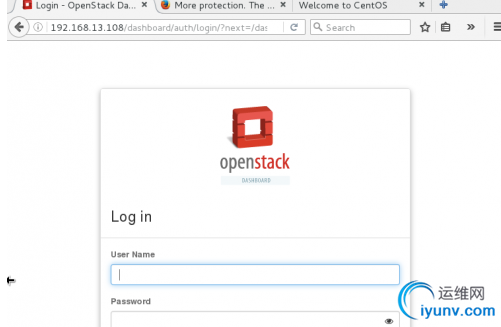

* To access the OpenStack Dashboard browse to http://192.168.13.108/dashboard .
Please, find your login credentials stored in the keystonerc_admin in your home directory.
* To use Nagios, browse to http://192.168.13.108/nagios username: nagiosadmin, password: ab7b1f659e654acc
* Because of the kernel update the host 192.168.13.108 requires reboot.
* The installation log file is available at: /var/tmp/packstack/20160920-062350-B8XWSm/openstack-setup.log
* The generated manifests are available at: /var/tmp/packstack/20160920-062350-B8XWSm/manifests
[iyunv@openstack ~]#


基本安装完成！



RDO官方安装步骤：

• On CentOS:
  $ sudo yum install -y centos-release-openstack-mitaka
  $ sudo yum update -y
  $ sudo yum install -y openstack-packstack
  $ packstack --allinone

• $ sudo systemctl disable firewalld
  $ sudo systemctl stop firewalld
  $ sudo systemctl disable NetworkManager
  $ sudo systemctl stop NetworkManager
  $ sudo systemctl enable network
  $ sudo systemctl start network
