实验环境:RHEL6.5 server1.example.com 172.25.254.1 server2.example.com 172.25.254.2 实验内容: 1.tomcat基本配置 1.1安装tomcat 1.2配置环境变量并启动tomcat 1.3设置开机启动 2.配置测试网页 (1)自己写的JSP测试页进行测试 (2) 网络中的测试页 3.编辑nginx的配置文件 4.测试访问 172.25.254.1/test.jsp 5.tomcat 集群 5.1Server2端配置: 5.2 rr论寻 5.3 ip_hash绑定 安装包:apache-tomcat-7.0.37.tar.gz 前提:已经配置好Nginx与JDK环境
1.tomcat基本配置 1.1安装tomcat
[iyunv@server1 mnt]# cd /opt/lnmp/ [iyunv@server1 lnmp]# ls apache-tomcat-7.0.37.tar.gz java [iyunv@server1 lnmp]# tar zxf apache-tomcat-7.0.37.tar.gz [iyunv@server1 lnmp]# ln -s apache-tomcat-7.0.37 tomcat ##链接改名 1.2配置环境变量并启动tomcat
[iyunv@server1 lnmp]# vim /etc/profile [iyunv@server1 lnmp]# source /etc/profile [iyunv@server1 lnmp]# startup.sh ##启动tomcat,tomcat的端口号是8080 Using CATALINA_BASE: /opt/lnmp/tomcat Using CATALINA_HOME: /opt/lnmp/tomcat Using CATALINA_TMPDIR: /opt/lnmp/tomcat/temp Using JRE_HOME: /opt/lnmp/java/ Using CLASSPATH: /opt/lnmp/tomcat/bin/bootstrap.jar:/opt/lnmp/tomcat/bin/tomcat-juli.jar [iyunv@server1 bin]# netstat -antple|grep 8080 tcp 0 0 :::8080 :::* LISTEN 0 21195 2913/java 1.3设置开机启动
[iyunv@server1 lnmp]# cd tomcat/bin/ ###bin下的部分sh文件是tomcat的功能启动脚本文件 [iyunv@server1 bin]# vim /etc/rc.local ##因为nginx和tomcat等没有开机启动脚本,/etc/rc.local是开机读取的文件, source /etc/profile ##该文件读取的是环境变量中的绝对路径 /opt/lnmp/nginx/sbin/nginx /opt/lnmp/tomcat/bin/startup.sh
2.配置测试网页
(1)自己写的JSP测试页进行测试 vim /opt/lnmp/tomcat/webapps/ROOT/steven.jsp SERVER-willis - Time is:<%=new java.util.Date()%> 刷新可看到实时时间
(2) 网络中的测试页 vim /opt/lnmp/tomcat/webapps/ROOT/test.jsp
<%@ page contentType="text/html; charset=GBK" %> <%@ page import="java.util.*" %> <html><head><title>Cluster App Test</title></head> <body> Server Info: <% out.println(request.getLocalAddr() + " : " + request.getLocalPort()+"<br>");%> <% out.println("<br> ID " + session.getId()+"<br>"); String dataName = request.getParameter("dataName"); if (dataName != null && dataName.length() > 0) { String dataValue = request.getParameter("dataValue"); session.setAttribute(dataName, dataValue); } out.print("<b>Session list</b>"); Enumeration e = session.getAttributeNames(); while (e.hasMoreElements()) { String name = (String)e.nextElement(); String value = session.getAttribute(name).toString(); out.println( name + " = " + value+"<br>"); System.out.println( name + " = " + value); } %> <form action="test.jsp" method="POST"> name:<input type=text size=20 name="dataName"> <br> key:<input type=text size=20 name="dataValue"> <br> <input type=submit> </form> </body> </html>
3.编辑nginx的配置文件
[iyunv@server1 nginx]# pwd /opt/lnmp/nginx [iyunv@server1 nginx]# vim conf/nginx.conf location / { root html; index index.jsp index.php index.html index.htm; } location ~ \.jsp$ { proxy_pass http://localhost:8080; } [iyunv@server1 lnmp]# nginx -t nginx: the configuration file /opt/lnmp/nginx/conf/nginx.conf syntax is ok nginx: configuration file /opt/lnmp/nginx/conf/nginx.conf test is successful [iyunv@server1 lnmp]# nginx -s reload

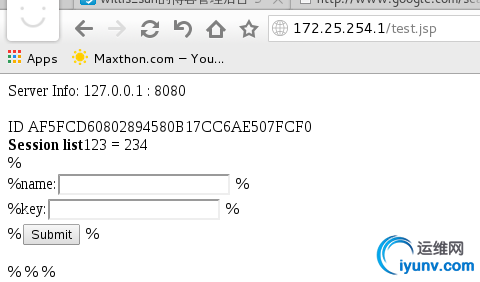

4.测试访问 172.25.254.1/test.jsp
5.tomcat 集群 再启动一个虚拟机server2 IP为172.25.254.2 5.1Server2端配置: 把server1端配置好的java-jdk,nginx和tomcat复制到启动的server2中 [iyunv@server2 ~]# mkdir /opt/lnmp [iyunv@server2 ~]# [iyunv@server2 ~]# cd /opt/lnmp [iyunv@server2 lnmp]# scp -r 172.25.254.1:/opt/lnmp/* . [iyunv@server2 lnmp]# scp -r 172.25.254.1:/etc/profile /etc/ [iyunv@server2 lnmp]# source /etc/profile [iyunv@server2 lnmp]# startup.sh
测试server2的tomcat
5.2 rr论寻 [iyunv@server2 lnmp]# vim /opt/lnmp/nginx/conf/nginx.conf 18 http { 19 include mime.types; 20 default_type application/octet-stream; 21 upstream tomcat{ 22 server 172.25.6.10:8080; 23 server 172.25.6.20:8080; 24 }
49 location / { 50 root html; 51 index index.jsp index.php index.html index.htm; 52 } 53 location ~ \.jsp$ { 54 proxy_pass http://tomcat; 55 } 56 测试:访问172.25.254.2:8080 无论是那个ip访问的都是server1一次server2一次 关闭server1的tomcat,只访问server2
5.3 ip_hash绑定(同一个ip访问的是同一台服务器) (1)vim /opt/lnmp/nginx/conf/nginx.conf 18 http { 19 include mime.types; 20 default_type application/octet-stream; 21 upstream tomcat{ 22 ip_hash; 23 server 172.25.15.110:8080; 24 server 172.25.15.112:8080; 25 } (2)测试 ./shutdown.sh 关闭一台后访问另外一台
|
