CentOS6.7系统下安装配置Oracle11G R2

yutrew

一、安装Oracle 11G前环境搭建
    本次实验是基于Linux（CentOS6.7_64）下搭建oracle 11g环境，这里选择CentOS安装oracle并不是最佳选择，可以根据需要选择不同的Linux发行版，如Oracle Linux、SuSE Linux、Red Hat、IBM AIX等。

    VM或物理机的配置要求：
    在实验环境安装oracle11g最少需要2G内存、2个cpu、2G交换分区、磁盘空间不低于20G。
    生产环境中，要保证oracle的性能，建议最低配置为8G内存、4个cpu、8G交换分区，如果生产环境比较繁忙，则需要更高的配置。

二、安装Oracle 11G前准备工作
上传oracle11g安装包，解压
linux.x64_11gR2_database_1of2.zip
linux.x64_11gR2_database_2of2.zip

配置/etc/hosts文件，添加ip与主机名的解析

1 2 3 4 5

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 #eth0 10.11.12.88     hm

创建oracle相关用户和组

1 2 3 4 5

[iyunv@hm ~]# groupadd dba [iyunv@hm ~]# groupadd oinstall [iyunv@hm ~]# useradd -g oinstall -G dba -m oracle [iyunv@hm ~]# id oracle uid=500(oracle) gid=501(oinstall) groups=501(oinstall),500(dba)

创建oracle软件安装目录

1 2 3 4 5

[iyunv@hm ~]# mkdir /u01/app/oracle -p [iyunv@hm ~]# chown -R oracle. /u01/ [iyunv@hm ~]# chmod 775 -R /u01/ [iyunv@hm ~]# ls -ld /u01/ drwxr-xr-x. 3 oracle oinstall 4096 Oct 14 22:58 /u01/

oracle用户环境变量设置，su进入oracle用户下，修改~/.bash_profile文件，添加以下内容

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

export TMP=/tmp export TMPDIR=$TMP export ORACLE_TERM=xterm export ORACLE_BASE=/u01/app/oracle export ORACLE_HOME=$ORACLE_BASE/db export ORACLE_SID=orcl export PATH=$ORACLE_HOME/bin:$PATH export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/usr/lib:/usr/lib64 if [ $USER = "oracle" ];then     if [ $SHELL = "/bin/ksh" ];then         ulimit -p 16384         ulimit -n 65536     else         ulimit -u 16384 -n 65536     fi fi

修改内核参数，打开/etc/sysctl.conf文件，添加以下参数，并修改/etc/security/limits.conf文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

kernel.shmmax = 68719476736 kernel.shmall = 4294967296 net.core.rmem_default = 262144 net.core.rmem_max = 4194304 net.core.wmem_default = 262144 net.core.wmem_max = 1048576 fs.aio-max-nr = 1048576 net.ipv4.ip_local_port_range = 9000 65500 fs.file-max = 6815744 kernel.sem = 250 32000 100 128 kernel.shmmni = 4096 [iyunv@hm ~]# sysctl -p net.ipv4.ip_forward = 0 net.ipv4.conf.default.rp_filter = 1 net.ipv4.conf.default.accept_source_route = 0 kernel.sysrq = 0 kernel.core_uses_pid = 1 net.ipv4.tcp_syncookies = 1 kernel.msgmnb = 65536 kernel.msgmax = 65536 kernel.shmmax = 68719476736 kernel.shmall = 4294967296 kernel.shmmax = 68719476736 kernel.shmall = 4294967296 net.core.rmem_default = 262144 net.core.rmem_max = 4194304 net.core.wmem_default = 262144 net.core.wmem_max = 1048576 fs.aio-max-nr = 1048576 net.ipv4.ip_local_port_range = 9000 65500 fs.file-max = 6815744 kernel.sem = 250 32000 100 128 kernel.shmmni = 4096 在/etc/security/limits.conf文件末尾添加如下内容 oracle          soft    nproc           2047 oracle          hard    nproc           16384 oracle          soft    nofile          4096 oracle          hard    nofile          65536 并同时修改/etc/pam.d/login文件，添加以下内容 session    required     pam_limits.so

安装oracle依赖的软件包

[iyunv@hm ~]# yum install gcc gcc-c++ libaio glibc compat-libstdc++-33 elfutils-libelf-devel libaio-devel libgcc libstdc++ libstdc++-devel unixODBC unixODBC-devel glibc-common ksh make sysstat pdksh [iyunv@hm ~]# yum install glibc-2.12-1.192.el6.i686 检查是否安装 [iyunv@hm ~]# for i in gcc gcc-c++ libaio glibc compat-libstdc++-33 elfutils-libelf-devel libaio-devel libgcc libstdc++ libstdc++-devel unixODBC unixODBC-devel glibc-common ksh make sysstat pdksh;do rpm -q $i;done gcc-4.4.7-17.el6.x86_64 gcc-c++-4.4.7-17.el6.x86_64 libaio-0.3.107-10.el6.x86_64 glibc-2.12-1.192.el6.x86_64 compat-libstdc++-33-3.2.3-69.el6.x86_64 elfutils-libelf-devel-0.164-2.el6.x86_64 libaio-devel-0.3.107-10.el6.x86_64 libgcc-4.4.7-17.el6.x86_64 libstdc++-4.4.7-17.el6.x86_64 libstdc++-devel-4.4.7-17.el6.x86_64 unixODBC-2.2.14-14.el6.x86_64 unixODBC-devel-2.2.14-14.el6.x86_64 glibc-common-2.12-1.192.el6.x86_64 ksh-20120801-33.el6.x86_64 make-3.81-23.el6.x86_64 sysstat-9.0.4-31.el6.x86_64 package pdksh is not installed

三、安装oracle11g软件
解压oracle11g软件包
[iyunv@hm oracle]# unzip linux.x64_11gR2_database_1of2.zip
[iyunv@hm oracle]# unzip linux.x64_11gR2_database_2of2.zip

1 2 3 4 5 6 7 8 9 10 11

[iyunv@hm oracle]# chown -R oracle. database/ [iyunv@hm oracle]# ls -l database/ total 36 drwxr-xr-x. 12 oracle oinstall 4096 Aug 17  2009 doc drwxr-xr-x.  4 oracle oinstall 4096 Aug 15  2009 install drwxrwxr-x.  2 oracle oinstall 4096 Aug 15  2009 response drwxr-xr-x.  2 oracle oinstall 4096 Aug 15  2009 rpm -rwxr-xr-x.  1 oracle oinstall 3226 Aug 15  2009 runInstaller drwxrwxr-x.  2 oracle oinstall 4096 Aug 15  2009 sshsetup drwxr-xr-x. 14 oracle oinstall 4096 Aug 15  2009 stage -rw-r--r--.  1 oracle oinstall 5402 Aug 18  2009 welcome.html

以orcle用户登录图形界面安装oracle，也可以使用vnc远程安装。这里直接用Xshell远程调用linux图形界面进行安装

1 2 3

[iyunv@hm ~]# su - oracle [oracle@hm ~]$ export DISPLAY=10.11.12.1:0.0 [oracle@hm ~]$ xhost +

进入database目录，执行runInstalle

1 2 3 4 5 6 7 8

[oracle@hm ~]$ cd /usr/local/src/oracle/database/ [oracle@hm database]$ ./runInstaller Starting Oracle Universal Installer... Checking Temp space: must be greater than 120 MB.   Actual 21645 MB    Passed Checking swap space: must be greater than 150 MB.   Actual 4095 MB    Passed Checking monitor: must be configured to display at least 256 colors.    Actual 16777216    Passed Preparing to launch Oracle Universal Installer from /tmp/OraInstall2016-10-15_12-48-55PM. Please wait ...

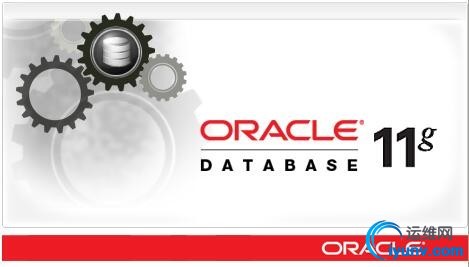

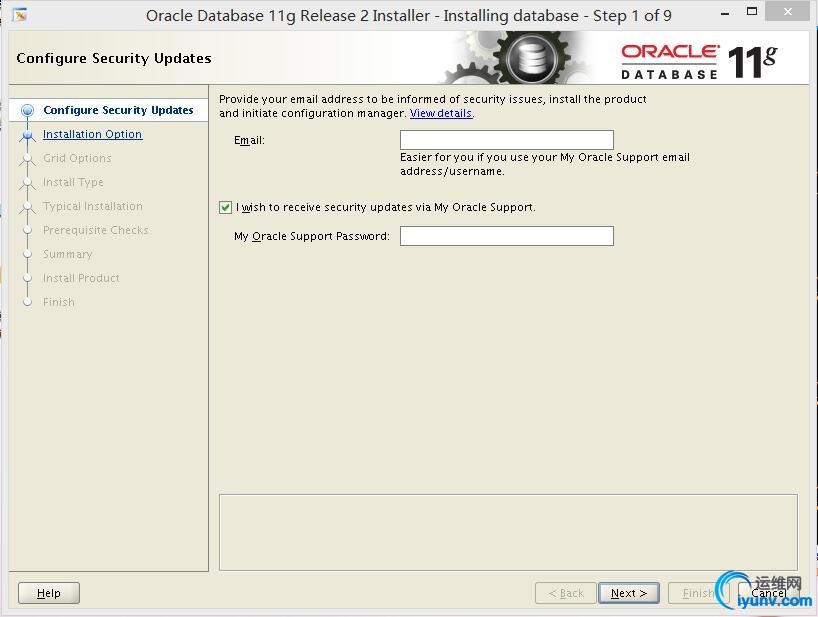

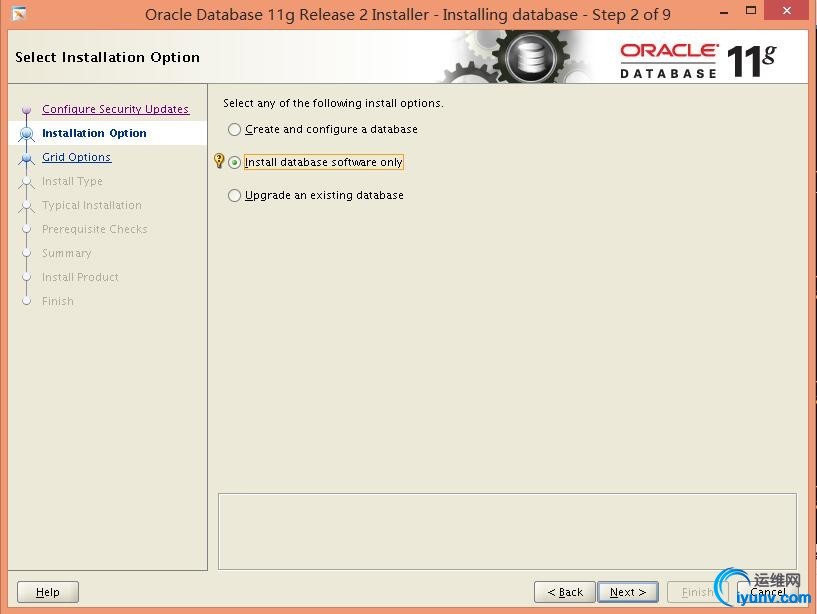

进入图形界面安装

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

[iyunv@hm ~]# /u01/app/oraInventory/orainstRoot.sh Changing permissions of /u01/app/oraInventory. Adding read,write permissions for group. Removing read,write,execute permissions for world. Changing groupname of /u01/app/oraInventory to oinstall. The execution of the script is complete. [iyunv@hm ~]# /u01/app/oracle/db/root.sh Running Oracle 11g root.sh script... The following environment variables are set as:     ORACLE_OWNER= oracle     ORACLE_HOME=  /u01/app/oracle/db Enter the full pathname of the local bin directory: [/usr/local/bin]:    Copying dbhome to /usr/local/bin ...    Copying oraenv to /usr/local/bin ...    Copying coraenv to /usr/local/bin ... Creating /etc/oratab file... Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root.sh script. Now product-specific root actions will be performed. Finished product-specific root actions.

启动监听

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

[oracle@hm ~]$ lsnrctl start LSNRCTL for Linux: Version 11.2.0.1.0 - Production on 15-OCT-2016 23:30:07 Copyright (c) 1991, 2009, Oracle.  All rights reserved. Starting /u01/app/oracle/db/bin/tnslsnr: please wait... TNSLSNR for Linux: Version 11.2.0.1.0 - Production Log messages written to /u01/app/oracle/diag/tnslsnr/hm/listener/alert/log.xml Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=hm)(PORT=1521))) Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521)) STATUS of the LISTENER ------------------------ Alias                     LISTENER Version                   TNSLSNR for Linux: Version 11.2.0.1.0 - Production Start Date                15-OCT-2016 23:30:09 Uptime                    0 days 0 hr. 0 min. 1 sec Trace Level               off Security                  ON: Local OS Authentication SNMP                      OFF Listener Log File         /u01/app/oracle/diag/tnslsnr/hm/listener/alert/log.xml Listening Endpoints Summary...   (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=hm)(PORT=1521))) The listener supports no services The command completed successfully

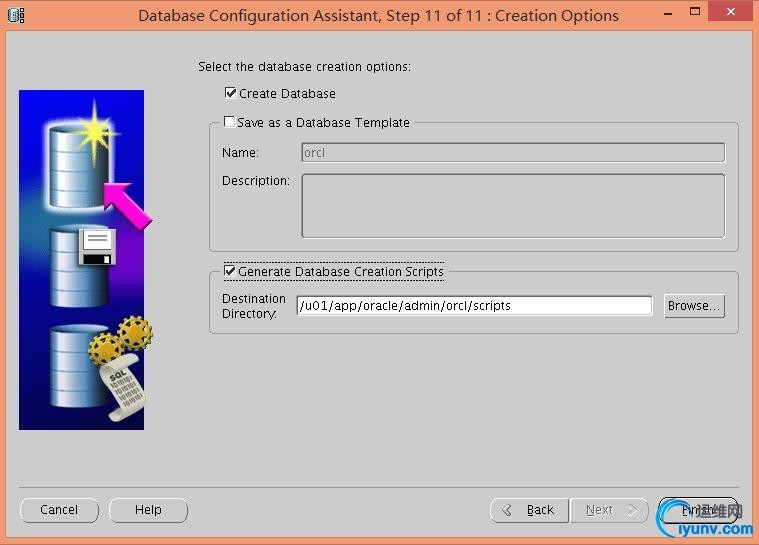

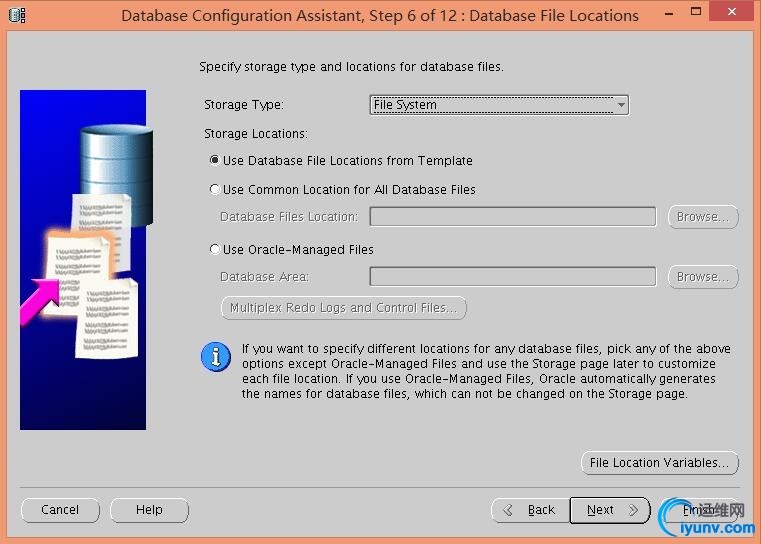

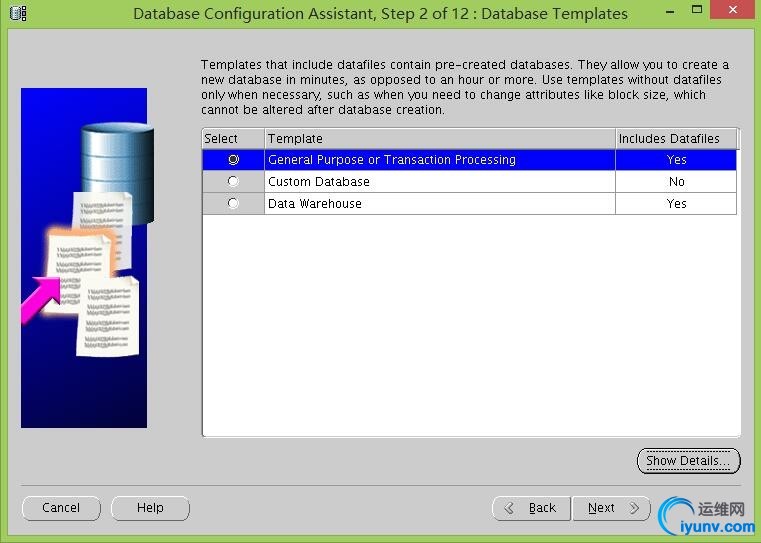

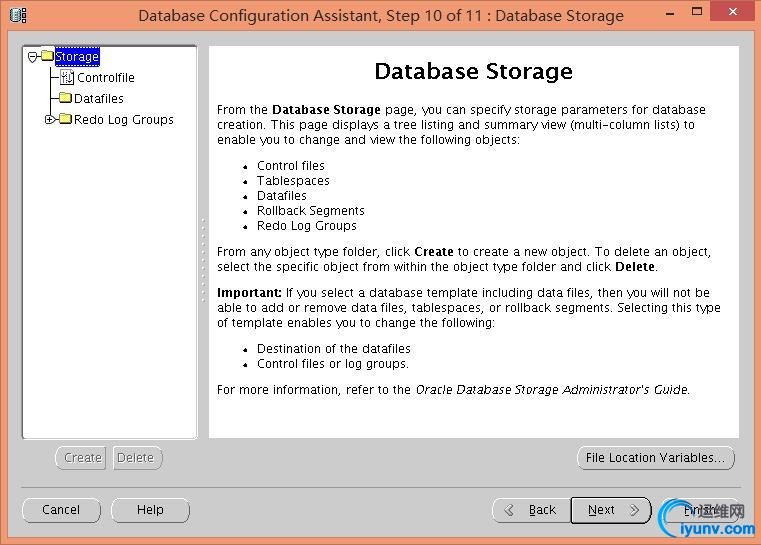

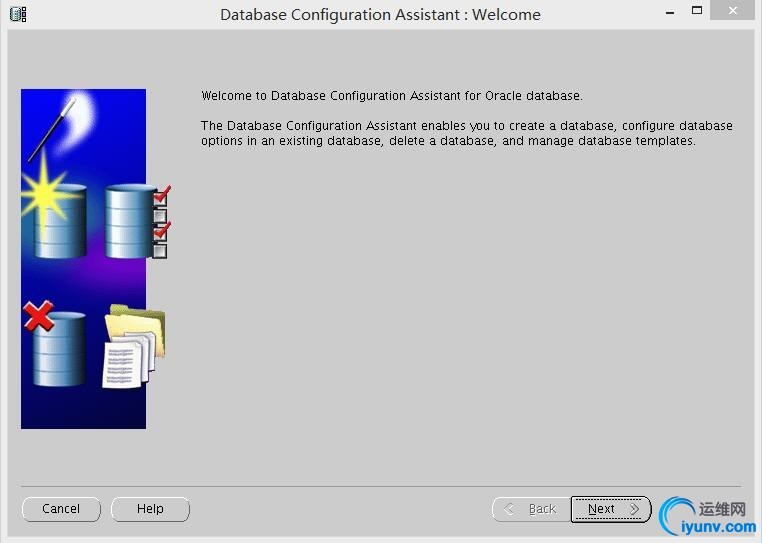

创建数据库实例，oracle用户下使用dbca工具创建
[oracle@hm ~]$ dbca















安装完成检查，查看oracle进程与监听状态

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

[oracle@hm ~]$ ps -ef | grep ora_ oracle    6636     1  0 23:41 ?        00:00:00 ora_pmon_orcl oracle    6638     1  0 23:41 ?        00:00:04 ora_vktm_orcl oracle    6642     1  0 23:41 ?        00:00:00 ora_gen0_orcl oracle    6644     1  0 23:41 ?        00:00:00 ora_diag_orcl oracle    6646     1  0 23:41 ?        00:00:00 ora_dbrm_orcl oracle    6648     1  0 23:41 ?        00:00:00 ora_psp0_orcl oracle    6650     1  0 23:41 ?        00:00:05 ora_dia0_orcl oracle    6652     1  0 23:41 ?        00:00:00 ora_mman_orcl oracle    6654     1  0 23:41 ?        00:00:00 ora_dbw0_orcl oracle    6656     1  0 23:41 ?        00:00:00 ora_lgwr_orcl oracle    6658     1  0 23:41 ?        00:00:00 ora_ckpt_orcl oracle    6660     1  0 23:41 ?        00:00:00 ora_smon_orcl oracle    6662     1  0 23:41 ?        00:00:00 ora_reco_orcl oracle    6664     1  0 23:41 ?        00:00:02 ora_mmon_orcl oracle    6666     1  0 23:41 ?        00:00:02 ora_mmnl_orcl oracle    6668     1  0 23:41 ?        00:00:00 ora_d000_orcl oracle    6670     1  0 23:41 ?        00:00:00 ora_s000_orcl oracle    6719     1  0 23:41 ?        00:00:00 ora_qmnc_orcl oracle    6739     1  0 23:41 ?        00:00:01 ora_cjq0_orcl oracle    6832     1  0 23:41 ?        00:00:00 ora_q000_orcl oracle    6834     1  0 23:41 ?        00:00:00 ora_q001_orcl oracle    6842     1  0 23:42 ?        00:00:00 ora_smco_orcl oracle    6844     1  0 23:42 ?        00:00:00 ora_w000_orcl oracle   15858  2208  0 23:59 pts/0    00:00:00 grep ora_ [oracle@hm ~]$ lsnrctl status LSNRCTL for Linux: Version 11.2.0.1.0 - Production on 15-OCT-2016 23:59:58 Copyright (c) 1991, 2009, Oracle.  All rights reserved. Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521)) STATUS of the LISTENER ------------------------ Alias                     LISTENER Version                   TNSLSNR for Linux: Version 11.2.0.1.0 - Production Start Date                15-OCT-2016 23:30:09 Uptime                    0 days 0 hr. 29 min. 50 sec Trace Level               off Security                  ON: Local OS Authentication SNMP                      OFF Listener Log File         /u01/app/oracle/diag/tnslsnr/hm/listener/alert/log.xml Listening Endpoints Summary...   (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=hm)(PORT=1521))) Services Summary... Service "orcl" has 1 instance(s).   Instance "orcl", status READY, has 1 handler(s) for this service... Service "orclXDB" has 1 instance(s).   Instance "orcl", status READY, has 1 handler(s) for this service... The command completed successfully

登录oracle数据库，查看数据库实例状态、实例名、数据库文件、日志文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

SQL> select status from v$instance; STATUS ------------ OPEN SQL> select name from v$database; NAME --------- ORCL SQL> select name from v$datafile; NAME -------------------------------------------------------------------------------- /u01/app/oracle/oradata/orcl/system01.dbf /u01/app/oracle/oradata/orcl/sysaux01.dbf /u01/app/oracle/oradata/orcl/undotbs01.dbf /u01/app/oracle/oradata/orcl/users01.dbf SQL> select member from v$logfile; MEMBER -------------------------------------------------------------------------------- /u01/app/oracle/oradata/orcl/redo03.log /u01/app/oracle/oradata/orcl/redo02.log /u01/app/oracle/oradata/orcl/redo01.log

查看oracle数据库版本

1 2 3 4 5 6 7 8 9

SQL> select * from v$version; BANNER -------------------------------------------------------------------------------- Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production PL/SQL Release 11.2.0.1.0 - Production CORE    11.2.0.1.0    Production TNS for Linux: Version 11.2.0.1.0 - Production NLSRTL Version 11.2.0.1.0 - Production

关闭与启动
关闭数据库实例

1 2 3 4

SQL> shutdown immediate; Database closed. Database dismounted. ORACLE instance shut down.

关闭监听

1 2 3 4 5 6 7 8 9 10 11

[oracle@hm ~]$ lsnrctl stop LSNRCTL for Linux: Version 11.2.0.1.0 - Production on 16-OCT-2016 00:16:41 Copyright (c) 1991, 2009, Oracle.  All rights reserved. Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521)) The command completed successfully [oracle@hm ~]$ ps -ef | grep ora_ oracle   16987  2208  0 00:17 pts/0    00:00:00 grep ora_

启动监听

1	[oracle@hm ~]$ lsnrctl start

启动实例

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

[oracle@hm ~]$ sqlplus / as sysdba SQL*Plus: Release 11.2.0.1.0 Production on Sun Oct 16 00:19:39 2016 Copyright (c) 1982, 2009, Oracle.  All rights reserved. Connected to an idle instance. SQL> startup; ORACLE instance started. Total System Global Area  780824576 bytes Fixed Size            2217424 bytes Variable Size          599788080 bytes Database Buffers      171966464 bytes Redo Buffers            6852608 bytes Database mounted. Database opened. SQL> select status from v$instance; STATUS ------------ OPEN
