用SQL Server 监控 OS Server 的Task Management信息

mindong

用SQL Server 监控 OS Server 的Task Management信息

--原文来自于http://www.databasejournal.com/features/mssql/article.php/3562586/Monitor-CPU-Usage-of-All-Running-Processes---Part-II.htm

一： 监控程序部分

1. 在C 盘创一个文件夹：如 C:\Monitorprocess
2. 创建 C:\monitorprocess\ Servers.txt 用来记录要监控的服务器：内容如下
Server1
Server2
DB_Server1
DB_Server2
….

3. 在用记事本写一个C:\monitorprocess\Listremoteprocess2.vbs程序， 内容如下

'Objective: To Find the CPU usage of each process that are running on a remote machine
'Created by : MAK
'Created Date: Nov 2, 2005
'Syntax: cscript Listremoteprocess2.vbs machinename
'Example: cscript Listremoteprocess2.vbs MyMachine

Set objArgs = WScript.Arguments
strComputer =objArgs(0)

Set objWMIService = GetObject("winmgmts:\\" & strComputer & "\root\cimv2")
Set colProcesses = objWMIService.ExecQuery("Select * from Win32_PerfFormattedData_PerfProc_Process",,48)
' wscript.echo "Computer Name" & "," & "Process Name" & ","& "CPU Usage"

For Each objItem in colProcesses
if objItem.Name <> "Idle" and objItem.Name <> "_Total" then
wscript.echo strcomputer & "," & objItem.Name & ","& objItem.PercentProcessorTime
end if
Next


4. 创建 C:\monitorprocess\ Listaprocessremote.bat ， 内容如下

REM Objective: To execute the Listremoteprocess2.vbsfor every server listed in servers.txt
REM Created by: MAK
REM Created by" Nov 2, 2005
REM Usage: Listaprocessremote.bat Allservers.csv

dir %1
if %errorlevel% == 0 goto process
goto delfile

:delfile
del %1
goto process

:process
for /f "tokens=1 delims=&" %%i in (c:\Monitorprocess\Servers.txt) do cscript/nologo c:\Monitorprocess\Listremoteprocess2.vbs %%i >>%1
goto end

:end

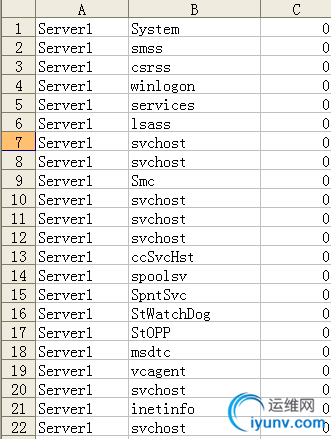

5. 测试 创建的监控程序,cmd 进入dos,
cd c:\Monitorprocess

Listaprocessremote.bat myserverprocess.csv


二：确认正常通过测试过，我后开始进入数据库的设置部分
1. 创建数据库，用户及存放监控数据的表


create database MonitorProcesses
go
use MonitorProcesses
go
Create table Processes (
id int identity (1,1) not null,
ServerName varchar(128),
ProcessName varchar(256),
CPU_Usage int not null,
Time datetime constraint currentdate default getdate())
go
Create view Processes_view as
select ServerName,ProcessName, CPU_Usage from Processes
go
use master
go
sp_addlogin 'procuser','your_password','MonitorProcesses'
go
use MonitorProcesses
go
sp_adduser 'procuser'
go
sp_addrolemember 'db_datareader','procuser'
go
sp_addrolemember 'db_datawriter','procuser'
go


2. 创建Job 来执行监控程序，并收集监控数据




1）设置Monitor 程序



Type: Operation System Command(CmdExec)
Command:
cd C:\Monitorprocess
Listaprocessremote.bat myserverprocess.csv

2. 将监控数据导入数据库表




Type:Transact-SQL Script(TSQL)
Command:
use MonitorProcesses
go
BULK INSERT MonitorProcesses.dbo.Processes_view
FROM 'c:\Monitorprocess\myserverprocess.csv'
WITH
(
FIELDTERMINATOR = ',',
ROWTERMINATOR = '\n'
)

3. 设定Job 的Schedule 来定时执行监控收集数据。

4. 查询收集的监控数据

select * from Processes
select * from Processes where processname like '%SQLServr'
Select * from Processes where servername ='ATDBQA'
