SQL Server 2005 – Automating Creation of Database Snapshots

xyzjr

UPDATE:上一文另一版本

　　SQL Server 2005 is packed with many  new features. One of the new features that I would like to discuss in this  article is Database Snapshots, which are read only static views of a database.  SQL Server 2005 allows you to create multiple snapshots on a database. In this  article, I would like to demonstrate the creation of database snapshots and  automating the creation of database snapshots.

　　First let's simulate the whole snapshot creation  process.
　　Step 1

　　Copy and paste the query below into the Microsoft SQL Server  Management Studio's Query window and execute it. This statement creates the  database demo.　　

Create Database demo on Primary　　

(Name ='demo_Data',　　

FileName=  'E:\MSSQL2005\MSSQL.1\MSSQL\Data\demo_Data.Mdf',　　

Size=100MB,　　

MaxSize=200MB,　　

FILEGROWTH=10%)　　

Log on　　

(Name = 'demo_Log',　　

FileName=  'E:\MSSQL2005\MSSQL.1\MSSQL\Data\demo_Log.Ldf',　　

Size=30MB,　　

MaxSize=50MB,　　

FILEGROWTH=10%);


　　


　　Figure 1



　　


　　
　　
　　
　　Setp  2
　　
　　Let us create a table and insert some rows.　　

　　Copy and paste the query below into the Microsoft SQL Server  Management Studio's Query window and execute it. This statement creates the  table info  and inserts 5 rows to the table.　　

Use demo　　

go　　

Create table info (Id int, name  varchar(100),cname varchar(100))　　

go　　

insert into info values (1,'longrujun','沧海笑一声')　　

insert into info values (2,'zengyu','无梨头')　　

insert into info values (3,'zhy','美女杀手')　　

insert into info values (4,'xiongfei','六煞')　　

insert into info values (5,'hanlei','酒鬼')　　

go





Figure 2





Step 3

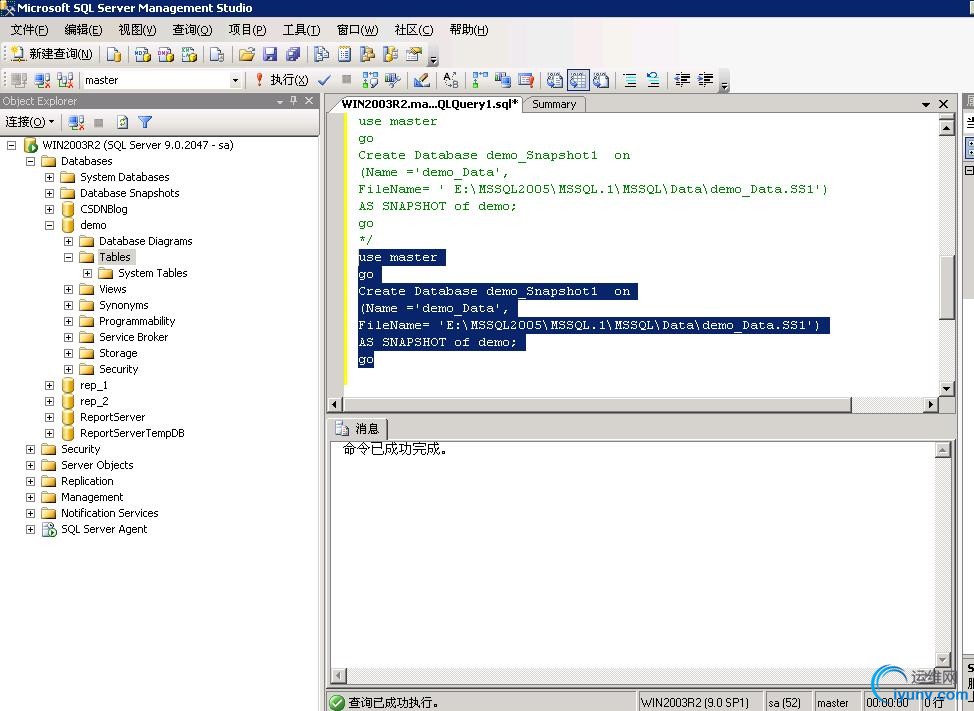

Now let's create  a snapshot for the database demo.　　


Copy and paste  the query below into the Microsoft SQL Server Management Studio's Query window  and execute it. This statement creates the snapshot demo_Snapshot1 for the  database demo.　　


use master　　


go　　


Create Database demo_Snapshot1 on　　


(Name ='demo_Data',　　


FileName= 'E:\MSSQL2005\MSSQL.1\MSSQL\Data\demo_Data.SS1')　　


AS SNAPSHOT of demo;　　


Go　　



This would create  a file E:\MSSQL2005\MSSQL.1\MSSQL\Data\demo_Data.SS1 as  shown in the following Figure




　　Figure 3,4














Step  4


Now let's delete  some rows from the original database.　　


Copy and paste  the query below into the Microsoft SQL Server Management Studio's Query window  and execute it. This statement deletes two rows from the demo  database.　　


Use demo　　


Go　　


Select * from  info　　


　　

　　Figure 5

use demo　　

go　　

delete from info where id in (2,4)　　

go
　　

Step 5
　　Now let's query the table info from the original database demo and from the SnapShot view demo_Snapshot1.　　


　　Copy and paste the query below into the Microsoft SQL Server Management Studio's Query window and execute it. This statement displays all of the rows from the table info from the database demo. [Refer Fig ]　　


use demo　　

go　　

Select * from info　　

go

　　

　　Figure 6

Copy and paste the query below into the Microsoft SQL Server Management Studio's Query window and execute it. This statement displays all of the rows from the table info, from the snapshot demo_Snapshot1 (the snapshot view of the database info.)

use demo_Snapshot1　　

go　　

Select * from info　　

go



　　Figure 7

　　

　　　　Now, let's automate creation of a daily database snapshot and let's keep one week worth of snapshots.　　

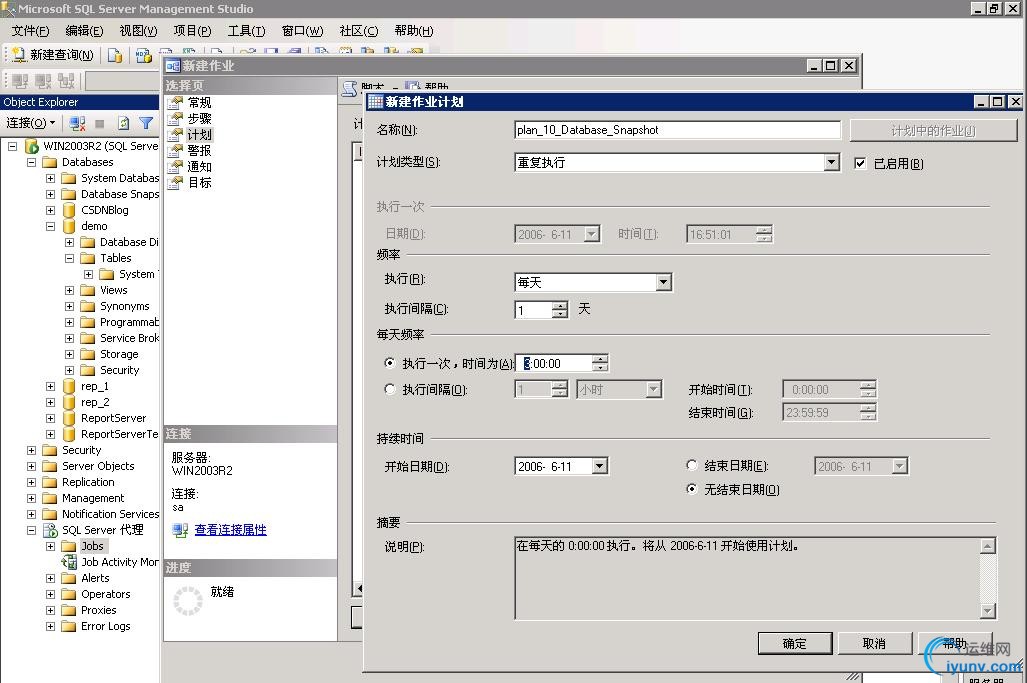

　　Create a SQL Server Scheduled job [Refer Fig 8,9,10,11] to execute the following statement every night at 3:00 am

　　

　　

　　

　　

　　Figure 8
　　　　


　　　　Figure 9


　　　　


　　　　the code is here


　　　　


　　　　　　declare @query varchar(1000)　　


　　declare @DatabaseName varchar(128)　　


　　declare @snapshotName varchar(128)　　


　　declare @snapDataName varchar(128)　　


　　declare @snapFileName varchar(128)　　


　　declare @snapFilePath varchar(128)　　


　　declare @nalja varchar(12)　　


　　set @nalja=convert(varchar(4), datepart(yyyy, getdate())) + convert　　


　　(varchar(4), datepart(mm, getdate())) + convert(varchar(4), datepart　　


　　(dd, getdate()))　　


　　　　


　　print 'It is ' + @nalja　　


　　Set @DatabaseName ='demo'　　


　　Set @SnapDataName='demo_Data'　　


　　Set @SnapshotName ='demo_Snapshot'+'_'+@nalja　　


　　Set @SnapFilename ='"E:\MSSQL2005\MSSQL.1\MSSQL\Data\demo_Data'+'_'+@nalja+'.ss"'　　


　　　　


　　Print 'Snapshot name is ' +@SnapshotName　　


　　select * from sys.databases where source_database_id =db_id(@databasename) and name = @SnapshotName 　　


　　if @@rowcount <>0　　


　　begin　　


　　set @query = 'Drop database '+ @SnapshotName　　


　　print @query　　


　　exec(@query)　　


　　end　　


　　set @query ='Create database ' + @SnapshotName + ' on (Name = ' +@snapDataName +', FileName=' +@SnapFilename +') AS SNAPSHOT of ' + @databasename+';'　　


　　print @query　　


　　exec(@query)　　




　　　　


　　　　　　Figure 10



　　　　　　



　　　　　　　　The naming convention of the database snapshot is demo_Snapshot_Day　　

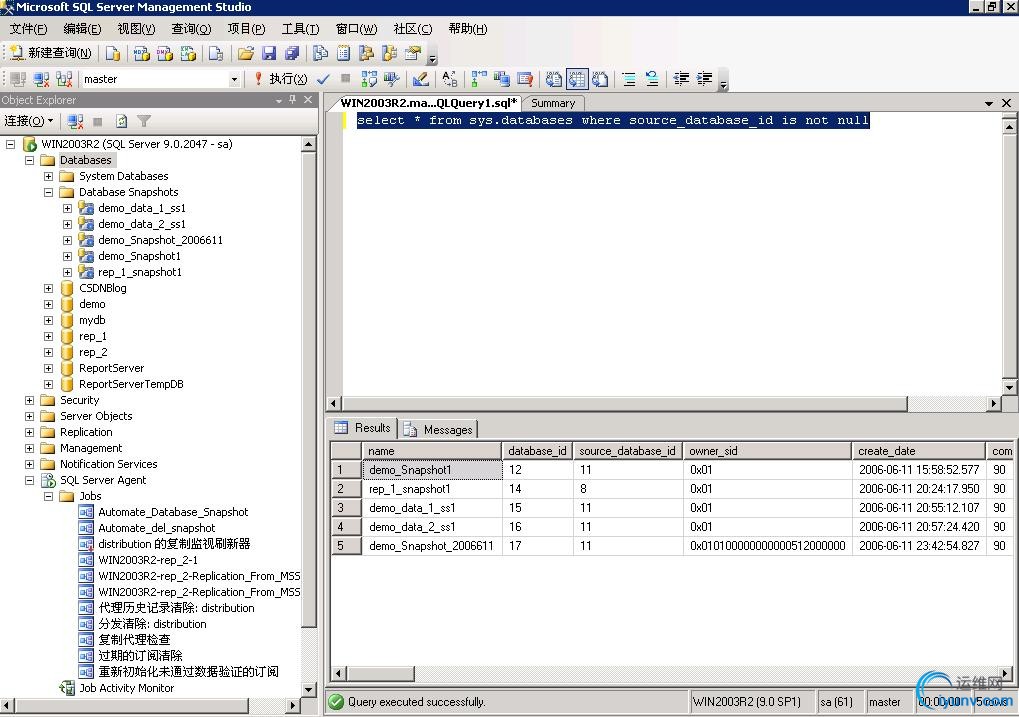

　　The following SQL statement will list all of the database snapshots available on a SQL Server instance. [Refer Fig 11]　　


　　select * from sys.databases where source_database_id is not null　　





　　　　　　



　　　　　　



　　　　　　　　Figure 11




　　　　　　　　




Note: By changing the naming convention and the schedule of this process,
you can convert this daily database snapshot process to a weekly or monthly
database snapshot process.　　





Conclusion


　　



This article demonstrated the creation of a database snapshot and the automating of the creation of database snapshots.
By creating a database snapshot everyday, it would be more convenient to go back to a particular day to get data, or compare
or to monitor the status of the data. The database can be reverted to a database snapshot using the RESTORE command.
