[经验分享] Spark SQL 初探

[复制链接]
xxggmmxx

尚未签到
发表于 2016-11-9 07:06:12 | 显示全部楼层 |阅读模式

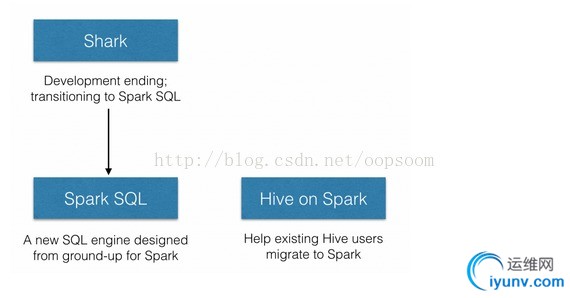

早在Spark Submit 2013里就有介绍到Spark SQL，不过更多的是介绍Catalyst查询优化框架。经过一年的开发，在今年Spark Submit 2014上，Databricks宣布放弃Shark 的开发，而转投Spark SQL，理由是Shark继承了Hive太多，优化出现了瓶颈，如图：
今天把Spark最新的代码签了下来，测试了一下：

1、编译SparkSQL

-bash-3.2$ git config --global http.sslVerify false
-bash-3.2$ git clone https://github.com/apache/spark.git
正克隆到 'spark'...
remote: Reusing existing pack: 107821, done.
remote: Counting objects: 103, done.
remote: Compressing objects: 100% (72/72), done.
remote: Total 107924 (delta 20), reused 64 (delta 16)
Receiving objects: 100% (107924/107924), 69.06 MiB | 3.39 MiB/s, done.
Resolving deltas: 100% (50174/50174), done.
　　    这里还是需要先build一下的，sbt/sbt assembly（如何build匹配版本，请参考 Spark编译及集群搭建
）
运行 sbt/sbt hive/console也会进行编译。
最新的spark sql提供了一个console，在这里可以直接的运行交互式查下，也提供了几个例子。

2、执行Spark SQL

官方提供给我们了一个测试用例。通过查看log，find . -name TestHive*  找到了位于：
 /app/hadoop/shengli/spark/sql/hive/src/main/scala/org/apache/spark/sql/hive/hiveTestHive.scala 有兴趣可以自己打开 编译 调试下看看。
首先进入控制台：

sbt/sbt hive/console
[info] Starting scala interpreter...
[info]
import org.apache.spark.sql.catalyst.analysis._
import org.apache.spark.sql.catalyst.dsl._
import org.apache.spark.sql.catalyst.errors._
import org.apache.spark.sql.catalyst.expressions._
import org.apache.spark.sql.catalyst.plans.logical._
import org.apache.spark.sql.catalyst.rules._
import org.apache.spark.sql.catalyst.types._
import org.apache.spark.sql.catalyst.util._
import org.apache.spark.sql.execution
import org.apache.spark.sql.hive._
import org.apache.spark.sql.hive.test.TestHive._
import org.apache.spark.sql.parquet.ParquetTestData
Welcome to Scala version 2.10.4 (Java HotSpot(TM) 64-Bit Server VM, Java 1.6.0_20).
Type in expressions to have them evaluated.
Type :help for more information.
scala>
查看一下当前RunTime下都提供了哪些方法：

scala>
<init>                        DslAttribute                  DslExpression                 DslString                     DslSymbol
ParquetTestData               SqlCmd                        analyzer                      autoConvertJoinSize           binaryToLiteral
booleanToLiteral              byteToLiteral                 cacheTable                    cacheTables                   catalog
classOf                       clear                         clone                         configure                     contains
createParquetFile             createSchemaRDD               createTable                   decimalToLiteral              describedTable
doubleToLiteral               emptyResult                   eq                            equals                        executePlan
executeSql                    execution                     finalize                      floatToLiteral                get
getAll                        getClass                      getHiveFile                   getOption                     hashCode
hiveDevHome                   hiveFilesTemp                 hiveHome                      hivePlanner                   hiveQTestUtilTables
hiveconf                      hiveql                        hql                           inRepoTests                   inferSchema
intToLiteral                  isCached                      joinBroadcastTables           jsonFile                      jsonRDD
loadTestTable                 logger                        logicalPlanToSparkQuery       longToLiteral                 metastorePath
ne                            notify                        notifyAll                     numShufflePartitions          optimizer
originalUdfs                  outputBuffer                  parquetFile                   parseSql                      parser
planner                       prepareForExecution           registerRDDAsTable            registerTestTable             reset
runHive                       runSqlHive                    sessionState                  set                           shortToLiteral
sparkContext                  sql                           stringToLiteral               symbolToUnresolvedAttribute   synchronized
table                         testTables                    timestampToLiteral            toDebugString                 toString
uncacheTable                  wait                          warehousePath
我们发现，这个测试用例里面有一个testTables，由于这些成员都是lazy的，所以一开始没有被加载：
查看测试用例要加载哪些表：

scala> testTables
14/07/02 18:45:59 INFO spark.SecurityManager: Changing view acls to: hadoop
14/07/02 18:45:59 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(hadoop)
14/07/02 18:46:00 INFO slf4j.Slf4jLogger: Slf4jLogger started
14/07/02 18:46:00 INFO Remoting: Starting remoting
14/07/02 18:46:00 INFO Remoting: Remoting started; listening on addresses :[akka.tcp://spark@web02.dw:42984]
14/07/02 18:46:00 INFO Remoting: Remoting now listens on addresses: [akka.tcp://spark@web02.dw:42984]
14/07/02 18:46:00 INFO spark.SparkEnv: Registering MapOutputTracker
14/07/02 18:46:00 INFO spark.SparkEnv: Registering BlockManagerMaster
14/07/02 18:46:00 INFO storage.DiskBlockManager: Created local directory at /tmp/spark-local-20140702184600-9e16
14/07/02 18:46:00 INFO network.ConnectionManager: Bound socket to port 48348 with id = ConnectionManagerId(web02.dw,48348)
14/07/02 18:46:00 INFO storage.MemoryStore: MemoryStore started with capacity 1097.0 MB
14/07/02 18:46:00 INFO storage.BlockManagerMaster: Trying to register BlockManager
14/07/02 18:46:00 INFO storage.BlockManagerInfo: Registering block manager web02.dw:48348 with 1097.0 MB RAM
14/07/02 18:46:00 INFO storage.BlockManagerMaster: Registered BlockManager
14/07/02 18:46:00 INFO spark.HttpServer: Starting HTTP Server
14/07/02 18:46:01 INFO server.Server: jetty-8.1.14.v20131031
14/07/02 18:46:01 INFO server.AbstractConnector: Started SocketConnector@0.0.0.0:36260
14/07/02 18:46:01 INFO broadcast.HttpBroadcast: Broadcast server started at http://10.1.8.207:36260
14/07/02 18:46:01 INFO spark.HttpFileServer: HTTP File server directory is /tmp/spark-ca40f66c-edc3-484f-b317-d3f512aab244
14/07/02 18:46:01 INFO spark.HttpServer: Starting HTTP Server
14/07/02 18:46:01 INFO server.Server: jetty-8.1.14.v20131031
14/07/02 18:46:01 INFO server.AbstractConnector: Started SocketConnector@0.0.0.0:57821
14/07/02 18:46:01 INFO server.Server: jetty-8.1.14.v20131031
14/07/02 18:46:02 INFO server.AbstractConnector: Started SelectChannelConnector@0.0.0.0:4040
14/07/02 18:46:02 INFO ui.SparkUI: Started SparkUI at http://web02.dw:4040
metastore path is /tmp/sparkHiveMetastore8060064816530828092
warehousePath path is /tmp/sparkHiveWarehouse5366068035857129261
hiveHome path is Some(/home/hadoop/Java/lib/hive-0.6.0)
hiveDevHome path is None
res0: scala.collection.mutable.HashMap[String,org.apache.spark.sql.hive.test.TestHive.TestTable] = Map(sales -> TestTable(sales,WrappedArray(<function0>, <function0>)), src -> TestTable(src,WrappedArray(<function0>, <function0>)), src1 -> TestTable(src1,WrappedArray(<function0>, <function0>)), serdeins -> TestTable(serdeins,WrappedArray(<function0>, <function0>)), src_thrift -> TestTable(src_thrift,WrappedArray(<function0>)), srcpart -> TestTable(srcpart,WrappedArray(<function0>)), episodes -> TestTable(episodes,WrappedArray(<function0>, <function0>)), srcpart1 -> TestTable(srcpart1,WrappedArray(<function0>)))
测试select语句

1.首先声明一个sql
2.这是测试用例会用hive的metastore，创建一个derby的数据库
3.创建上述的所以表，并把数据加载进去。
4.Parse这条select * from sales 语句。
5. 生成SchemaRDD并产生查询计划。
6. 当对querySales这个RDD执行Action的时候，会计算这条sql的执行。
以下是执行的详细结果：（可以看到log打出的大概执行步骤）

scala> val querySales = sql("select * from sales")
14/07/02 18:51:19 INFO test.TestHive$: Loading test table sales
14/07/02 18:51:19 INFO parse.ParseDriver: Parsing command: CREATE TABLE IF NOT EXISTS sales (key STRING, value INT)
ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.RegexSerDe'
WITH SERDEPROPERTIES ("input.regex" = "([^ ]*)  ([^ ]*)")
14/07/02 18:51:19 INFO parse.ParseDriver: Parse Completed
14/07/02 18:51:19 INFO analysis.Analyzer: Max iterations (2) reached for batch MultiInstanceRelations
14/07/02 18:51:19 INFO analysis.Analyzer: Max iterations (2) reached for batch CaseInsensitiveAttributeReferences
14/07/02 18:51:19 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Add exchange
14/07/02 18:51:19 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Prepare Expressions
14/07/02 18:51:19 INFO ql.Driver: <PERFLOG method=Driver.run>
14/07/02 18:51:19 INFO ql.Driver: <PERFLOG method=TimeToSubmit>
14/07/02 18:51:19 INFO ql.Driver: <PERFLOG method=compile>
14/07/02 18:51:19 INFO ql.Driver: <PERFLOG method=parse>
14/07/02 18:51:19 INFO parse.ParseDriver: Parsing command: CREATE TABLE IF NOT EXISTS sales (key STRING, value INT)
ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.RegexSerDe'
WITH SERDEPROPERTIES ("input.regex" = "([^ ]*)  ([^ ]*)")
14/07/02 18:51:19 INFO parse.ParseDriver: Parse Completed
14/07/02 18:51:19 INFO ql.Driver: </PERFLOG method=parse start=1404298279883 end=1404298279885 duration=2>
14/07/02 18:51:19 INFO ql.Driver: <PERFLOG method=semanticAnalyze>
14/07/02 18:51:19 INFO parse.SemanticAnalyzer: Starting Semantic Analysis
14/07/02 18:51:19 INFO parse.SemanticAnalyzer: Creating table sales position=27
14/07/02 18:51:20 INFO metastore.HiveMetaStore: 0: Opening raw store with implemenation class:org.apache.hadoop.hive.metastore.ObjectStore
14/07/02 18:51:20 INFO metastore.ObjectStore: ObjectStore, initialize called
14/07/02 18:51:20 INFO DataNucleus.Persistence: Property datanucleus.cache.level2 unknown - will be ignored
14/07/02 18:51:21 WARN bonecp.BoneCPConfig: Max Connections < 1. Setting to 20
14/07/02 18:51:25 INFO metastore.ObjectStore: Setting MetaStore object pin classes with hive.metastore.cache.pinobjtypes="Table,StorageDescriptor,SerDeInfo,Partition,Database,Type,FieldSchema,Order"
14/07/02 18:51:25 INFO metastore.ObjectStore: Initialized ObjectStore
14/07/02 18:51:26 WARN bonecp.BoneCPConfig: Max Connections < 1. Setting to 20
14/07/02 18:51:26 WARN metastore.ObjectStore: Version information not found in metastore. hive.metastore.schema.verification is not enabled so recording the schema version 0.12.0
14/07/02 18:51:27 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:27 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:27 INFO DataNucleus.Datastore: The class "org.apache.hadoop.hive.metastore.model.MFieldSchema" is tagged as "embedded-only" so does not have its own datastore table.
14/07/02 18:51:27 INFO DataNucleus.Datastore: The class "org.apache.hadoop.hive.metastore.model.MOrder" is tagged as "embedded-only" so does not have its own datastore table.
14/07/02 18:51:28 INFO ql.Driver: Semantic Analysis Completed
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=semanticAnalyze start=1404298279885 end=1404298288331 duration=8446>
14/07/02 18:51:28 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=compile start=1404298279840 end=1404298288340 duration=8500>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=Driver.execute>
14/07/02 18:51:28 INFO ql.Driver: Starting command: CREATE TABLE IF NOT EXISTS sales (key STRING, value INT)
ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.RegexSerDe'
WITH SERDEPROPERTIES ("input.regex" = "([^ ]*)  ([^ ]*)")
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=TimeToSubmit start=1404298279840 end=1404298288351 duration=8511>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=runTasks>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=task.DDL.Stage-0>
14/07/02 18:51:28 INFO metastore.HiveMetaStore: 0: create_table: Table(tableName:sales, dbName:default, owner:hadoop, createTime:1404298288, lastAccessTime:0, retention:0, sd:StorageDescriptor(cols:[FieldSchema(name:key, type:string, comment:null), FieldSchema(name:value, type:int, comment:null)], location:null, inputFormat:org.apache.hadoop.mapred.TextInputFormat, outputFormat:org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat, compressed:false, numBuckets:-1, serdeInfo:SerDeInfo(name:null, serializationLib:org.apache.hadoop.hive.serde2.RegexSerDe, parameters:{serialization.format=1, input.regex=([^ ]*)        ([^ ]*)}), bucketCols:[], sortCols:[], parameters:{}, skewedInfo:SkewedInfo(skewedColNames:[], skewedColValues:[], skewedColValueLocationMaps:{}), storedAsSubDirectories:false), partitionKeys:[], parameters:{}, viewOriginalText:null, viewExpandedText:null, tableType:MANAGED_TABLE, privileges:PrincipalPrivilegeSet(userPrivileges:null, groupPrivileges:null, rolePrivileges:null))
14/07/02 18:51:28 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=create_table: Table(tableName:sales, dbName:default, owner:hadoop, createTime:1404298288, lastAccessTime:0, retention:0, sd:StorageDescriptor(cols:[FieldSchema(name:key, type:string, comment:null), FieldSchema(name:value, type:int, comment:null)], location:null, inputFormat:org.apache.hadoop.mapred.TextInputFormat, outputFormat:org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat, compressed:false, numBuckets:-1, serdeInfo:SerDeInfo(name:null, serializationLib:org.apache.hadoop.hive.serde2.RegexSerDe, parameters:{serialization.format=1, input.regex=([^ ]*)       ([^ ]*)}), bucketCols:[], sortCols:[], parameters:{}, skewedInfo:SkewedInfo(skewedColNames:[], skewedColValues:[], skewedColValueLocationMaps:{}), storedAsSubDirectories:false), partitionKeys:[], parameters:{}, viewOriginalText:null, viewExpandedText:null, tableType:MANAGED_TABLE, privileges:PrincipalPrivilegeSet(userPrivileges:null, groupPrivileges:null, rolePrivileges:null))
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=task.DDL.Stage-0 start=1404298288351 end=1404298288589 duration=238>
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=runTasks start=1404298288351 end=1404298288589 duration=238>
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=Driver.execute start=1404298288340 end=1404298288589 duration=249>
14/07/02 18:51:28 INFO ql.Driver: OK
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=releaseLocks>
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=releaseLocks start=1404298288590 end=1404298288590 duration=0>
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=Driver.run start=1404298279839 end=1404298288590 duration=8751>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=releaseLocks>
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=releaseLocks start=1404298288590 end=1404298288590 duration=0>
14/07/02 18:51:28 INFO parse.ParseDriver: Parsing command: LOAD DATA LOCAL INPATH 'sql/hive/src/test/resources/data/files/sales.txt' INTO TABLE sales
14/07/02 18:51:28 INFO parse.ParseDriver: Parse Completed
14/07/02 18:51:28 INFO analysis.Analyzer: Max iterations (2) reached for batch MultiInstanceRelations
14/07/02 18:51:28 INFO analysis.Analyzer: Max iterations (2) reached for batch CaseInsensitiveAttributeReferences
14/07/02 18:51:28 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Add exchange
14/07/02 18:51:28 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Prepare Expressions
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=Driver.run>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=TimeToSubmit>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=compile>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=parse>
14/07/02 18:51:28 INFO parse.ParseDriver: Parsing command: LOAD DATA LOCAL INPATH 'sql/hive/src/test/resources/data/files/sales.txt' INTO TABLE sales
14/07/02 18:51:28 INFO parse.ParseDriver: Parse Completed
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=parse start=1404298288629 end=1404298288629 duration=0>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=semanticAnalyze>
14/07/02 18:51:28 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:28 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:28 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
14/07/02 18:51:28 INFO ql.Driver: Semantic Analysis Completed
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=semanticAnalyze start=1404298288630 end=1404298288942 duration=312>
14/07/02 18:51:28 INFO ql.Driver: Returning Hive schema: Schema(fieldSchemas:null, properties:null)
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=compile start=1404298288628 end=1404298288943 duration=315>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=Driver.execute>
14/07/02 18:51:28 INFO ql.Driver: Starting command: LOAD DATA LOCAL INPATH 'sql/hive/src/test/resources/data/files/sales.txt' INTO TABLE sales
14/07/02 18:51:28 INFO ql.Driver: </PERFLOG method=TimeToSubmit start=1404298288628 end=1404298288943 duration=315>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=runTasks>
14/07/02 18:51:28 INFO ql.Driver: <PERFLOG method=task.COPY.Stage-0>
14/07/02 18:51:28 INFO exec.Task: Copying data from file:/app/hadoop/spark/sql/hive/src/test/resources/data/files/sales.txt to file:/tmp/hive-hadoop/hive_2014-07-02_18-51-28_629_2309366591646930035-1/-ext-10000
14/07/02 18:51:28 INFO exec.Task: Copying file: file:/app/hadoop/spark/sql/hive/src/test/resources/data/files/sales.txt
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=task.COPY.Stage-0 start=1404298288943 end=1404298289037 duration=94>
14/07/02 18:51:29 INFO ql.Driver: <PERFLOG method=task.MOVE.Stage-1>
14/07/02 18:51:29 INFO exec.Task: Loading data to table default.sales from file:/tmp/hive-hadoop/hive_2014-07-02_18-51-28_629_2309366591646930035-1/-ext-10000
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: alter_table: db=default tbl=sales newtbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=alter_table: db=default tbl=sales newtbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=task.MOVE.Stage-1 start=1404298289037 end=1404298289196 duration=159>
14/07/02 18:51:29 INFO ql.Driver: <PERFLOG method=task.STATS.Stage-2>
14/07/02 18:51:29 INFO exec.StatsTask: Executing stats task
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: alter_table: db=default tbl=sales newtbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=alter_table: db=default tbl=sales newtbl=sales
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO exec.Task: Table default.sales stats: [num_partitions: 0, num_files: 1, num_rows: 0, total_size: 13, raw_data_size: 0]
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=task.STATS.Stage-2 start=1404298289196 end=1404298289282 duration=86>
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=runTasks start=1404298288943 end=1404298289282 duration=339>
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=Driver.execute start=1404298288943 end=1404298289282 duration=339>
14/07/02 18:51:29 INFO ql.Driver: OK
14/07/02 18:51:29 INFO ql.Driver: <PERFLOG method=releaseLocks>
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=releaseLocks start=1404298289282 end=1404298289282 duration=0>
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=Driver.run start=1404298288628 end=1404298289282 duration=654>
14/07/02 18:51:29 INFO ql.Driver: <PERFLOG method=releaseLocks>
14/07/02 18:51:29 INFO ql.Driver: </PERFLOG method=releaseLocks start=1404298289282 end=1404298289282 duration=0>
14/07/02 18:51:29 INFO analysis.Analyzer: Max iterations (2) reached for batch MultiInstanceRelations
14/07/02 18:51:29 INFO analysis.Analyzer: Max iterations (2) reached for batch CaseInsensitiveAttributeReferences
14/07/02 18:51:29 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=sales
14/07/02 18:51:29 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=sales
14/07/02 18:51:29 INFO storage.MemoryStore: ensureFreeSpace(355913) called with curMem=0, maxMem=1150314086
14/07/02 18:51:29 INFO storage.MemoryStore: Block broadcast_0 stored as values in memory (estimated size 347.6 KB, free 1096.7 MB)
14/07/02 18:51:29 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Add exchange
14/07/02 18:51:29 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Prepare Expressions
querySales: org.apache.spark.sql.SchemaRDD =
SchemaRDD[0] at RDD at SchemaRDD.scala:100
== Query Plan ==
HiveTableScan [key#2,value#3], (MetastoreRelation default, sales, None), None
执行spark sql

scala> querySales.collect()
14/07/02 18:57:32 WARN snappy.LoadSnappy: Snappy native library is available
14/07/02 18:57:32 WARN snappy.LoadSnappy: Snappy native library not loaded
14/07/02 18:57:32 INFO mapred.FileInputFormat: Total input paths to process : 1
14/07/02 18:57:32 INFO spark.SparkContext: Starting job: collect at SparkPlan.scala:52
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Got job 0 (collect at SparkPlan.scala:52) with 3 output partitions (allowLocal=false)
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Final stage: Stage 0(collect at SparkPlan.scala:52)
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Parents of final stage: List()
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Missing parents: List()
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Submitting Stage 0 (MappedRDD[5] at map at SparkPlan.scala:52), which has no missing parents
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Submitting 3 missing tasks from Stage 0 (MappedRDD[5] at map at SparkPlan.scala:52)
14/07/02 18:57:32 INFO scheduler.TaskSchedulerImpl: Adding task set 0.0 with 3 tasks
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Re-computing pending task lists.
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Starting task 0.0:0 as TID 0 on executor localhost: localhost (PROCESS_LOCAL)
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Serialized task 0.0:0 as 3606 bytes in 20 ms
14/07/02 18:57:32 INFO executor.Executor: Running task ID 0
14/07/02 18:57:32 INFO storage.BlockManager: Found block broadcast_0 locally
14/07/02 18:57:32 INFO rdd.HadoopRDD: Input split: file:/tmp/sparkHiveWarehouse5366068035857129261/sales/sales.txt:0+6
14/07/02 18:57:32 INFO executor.Executor: Serialized size of result for 0 is 1947
14/07/02 18:57:32 INFO executor.Executor: Sending result for 0 directly to driver
14/07/02 18:57:32 INFO executor.Executor: Finished task ID 0
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Starting task 0.0:1 as TID 1 on executor localhost: localhost (PROCESS_LOCAL)
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Serialized task 0.0:1 as 3606 bytes in 0 ms
14/07/02 18:57:32 INFO executor.Executor: Running task ID 1
14/07/02 18:57:32 INFO storage.BlockManager: Found block broadcast_0 locally
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Completed ResultTask(0, 0)
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Finished TID 0 in 243 ms on localhost (progress: 1/3)
14/07/02 18:57:32 INFO rdd.HadoopRDD: Input split: file:/tmp/sparkHiveWarehouse5366068035857129261/sales/sales.txt:6+6
14/07/02 18:57:32 INFO executor.Executor: Serialized size of result for 1 is 1948
14/07/02 18:57:32 INFO executor.Executor: Sending result for 1 directly to driver
14/07/02 18:57:32 INFO executor.Executor: Finished task ID 1
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Starting task 0.0:2 as TID 2 on executor localhost: localhost (PROCESS_LOCAL)
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Serialized task 0.0:2 as 3606 bytes in 1 ms
14/07/02 18:57:32 INFO executor.Executor: Running task ID 2
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Finished TID 1 in 36 ms on localhost (progress: 2/3)
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Completed ResultTask(0, 1)
14/07/02 18:57:32 INFO storage.BlockManager: Found block broadcast_0 locally
14/07/02 18:57:32 INFO rdd.HadoopRDD: Input split: file:/tmp/sparkHiveWarehouse5366068035857129261/sales/sales.txt:12+1
14/07/02 18:57:32 INFO executor.Executor: Serialized size of result for 2 is 1721
14/07/02 18:57:32 INFO executor.Executor: Sending result for 2 directly to driver
14/07/02 18:57:32 INFO executor.Executor: Finished task ID 2
14/07/02 18:57:32 INFO scheduler.TaskSetManager: Finished TID 2 in 96 ms on localhost (progress: 3/3)
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Completed ResultTask(0, 2)
14/07/02 18:57:32 INFO scheduler.TaskSchedulerImpl: Removed TaskSet 0.0, whose tasks have all completed, from pool
14/07/02 18:57:32 INFO scheduler.DAGScheduler: Stage 0 (collect at SparkPlan.scala:52) finished in 0.366 s
14/07/02 18:57:32 INFO spark.SparkContext: Job finished: collect at SparkPlan.scala:52, took 0.454512333 s
res1: Array[org.apache.spark.sql.Row] = Array([Joe,2], [Hank,2])
执行结果：
Array([Joe,2], [Hank,2])


查询计划优化：

<pre name="code" class="python">scala> val query = sql("SELECT * FROM (SELECT * FROM src) a")
query: org.apache.spark.sql.SchemaRDD =
SchemaRDD[6] at RDD at SchemaRDD.scala:100
== Query Plan ==
<span style="font-family: Arial, Helvetica, sans-serif;">HiveTableScan [key#6,value#7], (MetastoreRelation default, src, None), None</span>


3、Spark SQL LINQ



在Spark相关的框架里，一切的核心体都是RDD，SchemaRDD提供类似LINQ的语法api：
such as take, where... etc

scala> query.
++                         aggregate                  as                         asInstanceOf               baseLogicalPlan            baseSchemaRDD
cache                      cartesian                  checkpoint                 coalesce                   collect                    compute
context                    count                      countApprox                countApproxDistinct        countByValue               countByValueApprox
dependencies               distinct                   filter                     filterWith                 first                      flatMap
flatMapWith                fold                       foreach                    foreachPartition           foreachWith                generate
getCheckpointFile          getPartitions              getStorageLevel            glom                       groupBy                    id
insertInto                 intersection               isCheckpointed             isInstanceOf               iterator                   join
keyBy                      limit                      map                        mapPartitions              mapPartitionsWithContext   mapPartitionsWithIndex
mapPartitionsWithSplit     mapWith                    max                        min                        name                       name_=
orderBy                    partitioner                partitions                 persist                    pipe                       preferredLocations
printSchema                queryExecution             randomSplit                reduce                     registerAsTable            repartition
sample                     saveAsObjectFile           saveAsParquetFile          saveAsTable                saveAsTextFile             schemaString
select                     setName                    sortBy                     sparkContext               sqlContext                 subtract
take                       takeOrdered                takeSample                 toArray                    toDebugString              toJavaRDD
toJavaSchemaRDD            toLocalIterator            toSchemaRDD                toString                   top                        union
unionAll                   unpersist                  where                      zip                        zipPartitions              zipWithIndex
zipWithUniqueId
注意key前面带了一撇，这个是Catalyst的查下语法，以后我会写一篇详细介绍：

scala> query.where('key === 100).collect()
14/07/02 19:07:55 INFO analysis.Analyzer: Max iterations (2) reached for batch MultiInstanceRelations
14/07/02 19:07:55 INFO analysis.Analyzer: Max iterations (2) reached for batch CaseInsensitiveAttributeReferences
14/07/02 19:07:55 INFO metastore.HiveMetaStore: 0: get_table : db=default tbl=src
14/07/02 19:07:55 INFO HiveMetaStore.audit: ugi=hadoop  ip=unknown-ip-addr      cmd=get_table : db=default tbl=src
14/07/02 19:07:55 INFO storage.MemoryStore: ensureFreeSpace(358003) called with curMem=713876, maxMem=1150314086
14/07/02 19:07:55 INFO storage.MemoryStore: Block broadcast_3 stored as values in memory (estimated size 349.6 KB, free 1096.0 MB)
14/07/02 19:07:55 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Add exchange
14/07/02 19:07:55 INFO sql.SQLContext$$anon$1: Max iterations (2) reached for batch Prepare Expressions
14/07/02 19:07:55 INFO mapred.FileInputFormat: Total input paths to process : 1
14/07/02 19:07:55 INFO spark.SparkContext: Starting job: collect at SparkPlan.scala:52
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Got job 2 (collect at SparkPlan.scala:52) with 2 output partitions (allowLocal=false)
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Final stage: Stage 2(collect at SparkPlan.scala:52)
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Parents of final stage: List()
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Missing parents: List()
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Submitting Stage 2 (MappedRDD[20] at map at SparkPlan.scala:52), which has no missing parents
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Submitting 2 missing tasks from Stage 2 (MappedRDD[20] at map at SparkPlan.scala:52)
14/07/02 19:07:55 INFO scheduler.TaskSchedulerImpl: Adding task set 2.0 with 2 tasks
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Starting task 2.0:0 as TID 5 on executor localhost: localhost (PROCESS_LOCAL)
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Serialized task 2.0:0 as 3854 bytes in 0 ms
14/07/02 19:07:55 INFO executor.Executor: Running task ID 5
14/07/02 19:07:55 INFO storage.BlockManager: Found block broadcast_3 locally
14/07/02 19:07:55 INFO rdd.HadoopRDD: Input split: file:/tmp/sparkHiveWarehouse5366068035857129261/src/kv1.txt:0+2906
14/07/02 19:07:55 INFO executor.Executor: Serialized size of result for 5 is 1951
14/07/02 19:07:55 INFO executor.Executor: Sending result for 5 directly to driver
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Starting task 2.0:1 as TID 6 on executor localhost: localhost (PROCESS_LOCAL)
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Serialized task 2.0:1 as 3854 bytes in 0 ms
14/07/02 19:07:55 INFO executor.Executor: Finished task ID 5
14/07/02 19:07:55 INFO executor.Executor: Running task ID 6
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Finished TID 5 in 44 ms on localhost (progress: 1/2)
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Completed ResultTask(2, 0)
14/07/02 19:07:55 INFO storage.BlockManager: Found block broadcast_3 locally
14/07/02 19:07:55 INFO rdd.HadoopRDD: Input split: file:/tmp/sparkHiveWarehouse5366068035857129261/src/kv1.txt:2906+2906
14/07/02 19:07:55 INFO executor.Executor: Serialized size of result for 6 is 1951
14/07/02 19:07:55 INFO executor.Executor: Sending result for 6 directly to driver
14/07/02 19:07:55 INFO executor.Executor: Finished task ID 6
14/07/02 19:07:55 INFO scheduler.TaskSetManager: Finished TID 6 in 19 ms on localhost (progress: 2/2)
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Completed ResultTask(2, 1)
14/07/02 19:07:55 INFO scheduler.TaskSchedulerImpl: Removed TaskSet 2.0, whose tasks have all completed, from pool
14/07/02 19:07:55 INFO scheduler.DAGScheduler: Stage 2 (collect at SparkPlan.scala:52) finished in 0.062 s
14/07/02 19:07:55 INFO spark.SparkContext: Job finished: collect at SparkPlan.scala:52, took 0.06947625 s
res6: Array[org.apache.spark.sql.Row] = Array([100,val_100], [100,val_100])
查询出2个key为100的结果。

4、总结：

Spark SQL 提供了一种Catalyst查询优化框架，在把SQL解析成逻辑执行计划，对执行计划优化，最后变成RDD操作，多种框架一种API，简单，规范。
本文暂且为止，后续还会继续相关的深入研究。
http://www.tuicool.com/articles/2Efi22


运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-297667-1-1.html 上篇帖子： SQL经典语句 下篇帖子： 维护常用sql
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
