How To Use SQL XML ?

zhufeng518 · 发表于 2016-11-10 07:31:08

How To Use SQL XML ?

1.Program->Configure SQL XML Support in IIS

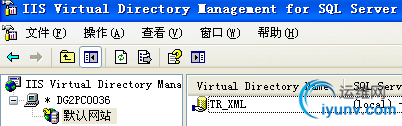

2. Create Virtual Directory

-2.1. Fill Virtual Name and Local Path

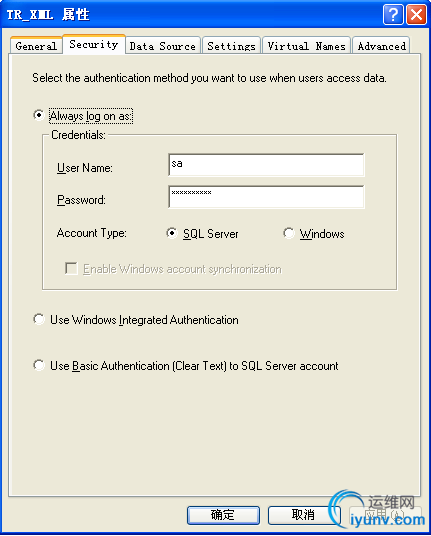

-2.2 Set Your Database Login User Name and Password

-2.3. Set SQL Server and Database

-2.4 Choice Setting Tab page -> Allow All

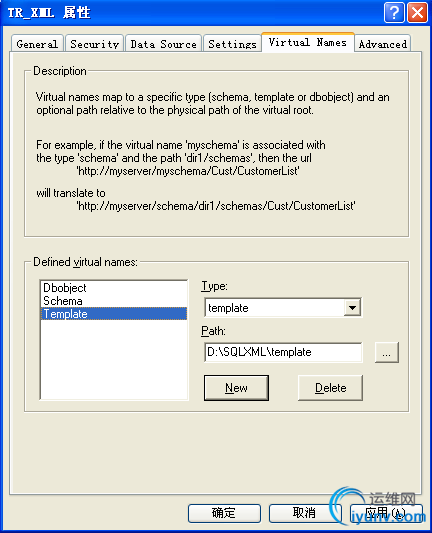

-2.5. Set Virtual Name.(Schema and Template in the Virtual Driver are have physics folder, Dbobject not have.)

-2.6 Click OK or Apply ->OK

3. Test SQL XML-> At the IE Address->

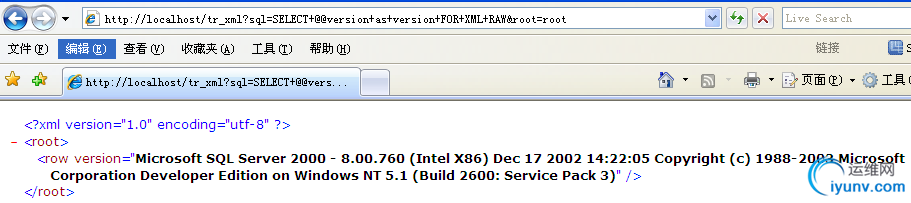

1. SQL In IE address

http://localhost/tr_xml?sql=SELECT+@@version+as+version+FOR+XML+RAW&root=root

2.XML File In IE address

<?xml version="1.0" encoding="utf-8"?>
<Menu xmlns:sql="urn:schemas-microsoft-com:xml-sql">
<sql:query>
SELECT Menu_ID,Menu_Name,Url,Status
FROM TB_Menu
FOR XML AUTO
</sql:query>
</Menu>

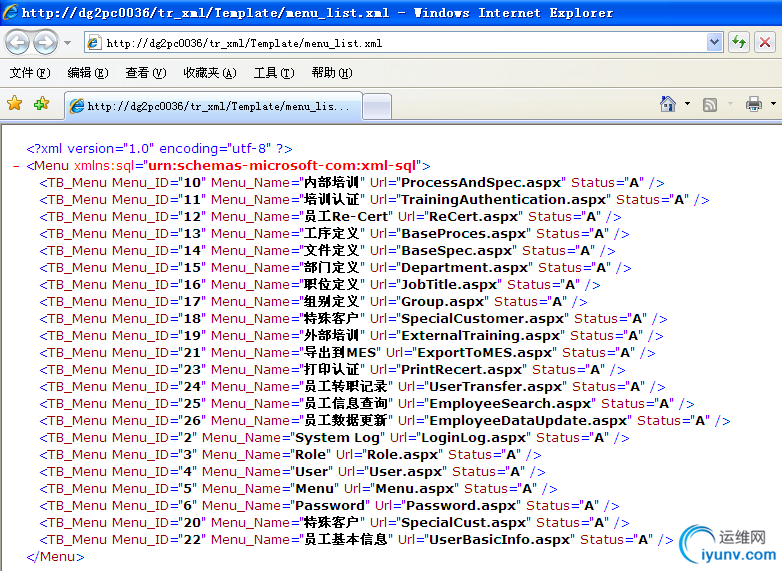

3. Use Style Sheet Display
XML Name: Menu_List.xml

<?xml version="1.0" encoding="utf-8"?>
<?xml-stylesheet type="text/xsl" href="Menu_List.xsl"?>
<Menu xmlns:sql="urn:schemas-microsoft-com:xml-sql">
<sql:query>
SELECT Menu_ID,Menu_Name,Url,Status
FROM TB_Menu
FOR XML AUTO
</sql:query>
</Menu>

XML Style Sheet Name: Menu_List.xsl

<?xml version='1.0' ?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/TR/WD-xsl">
<xsl:template match="/">
<html>
<head>
<title>Menu List</title>
<base href="http://dg2pc0036/tr_xml/Template/" />
</head>
<body>
<table border="0" cellPadding="1" cellSpacing="1"
width="100%"
style="COLOR:black;FONT-FAMILY:Arial;FONT-SIZE:12pt.;FONT-WEIGHT:500">

<tr bgColor="#336699" align="center">
<TD>Menu ID:</TD>
<TD>Menu Name:</TD>
<TD>Url:</TD>
<TD>Status:</TD>
</tr>

<xsl:for-each select="Menu/TB_Menu">
<tr style="COLOR: black; FONT-FAMILY: Arial; FONT-SIZE: 0.8em; FONT-WEIGHT: 500">
<td bgColor="#F0F0F0"><xsl:value-of select="@Menu_ID"/></td>
<td bgColor="#F0F0F0"><xsl:value-of select="@Menu_Name"/></td>
<td bgColor="#F0F0F0"><xsl:value-of select="@Url"/></td>
<td bgColor="#F0F0F0"><xsl:value-of select="@Status"/></td>
</tr>
</xsl:for-each>
</table>
</body>
</html>
</xsl:template>
</xsl:stylesheet>
