db2 odbc连接设置

alibabamama

　　参考：http://www.withdata.com/blog/tips/how-to-install-and-configure-db2-odbc-driver.html
　　驱动下载地址：https://www-933.ibm.com/support/fixcentral/swg/selectFixes?parent=ibm%2FInformation%2BManagement&product=ibm/Information+Management/IBM+Data+Server+Client+Packages&release=10.5.*&platform=Windows+32-bit,+x86&function=fixId&fixids=*odbc_cli*&includeSupersedes=0
How to Install and Configure DB2 ODBC Driver
　　by Shiji Pan

Posted on August 27, 2011
　　1 Download and Install
　　Download DB2 CLI ODBC Driver:
　　for x86 (32bit):
　　https://delivery04.dhe.ibm.com/sdfdl/v2/sar/CM/IM/04qs9/0/Xa.2/Xb.jusyLTSp44S03o2gwPADMzlDcfeJnsfCE8Y8a4irGv6duELOADVNn04YxvA/Xc.CM/IM/04qs9/0/v10.5fp4_nt32_odbc_cli.zip/Xd./Xf.LPR.D1vk/Xg.7844487/Xi.habanero/XY.habanero/XZ.jdm2CccvOKn3Ld3nwm-Pj62vpeA/v10.5fp4_nt32_odbc_cli.zip
　　https://www-933.ibm.com/support/fixcentral/swg/selectFixes?parent=ibm%2FInformation%2BManagement&product=ibm/Information+Management/IBM+Data+Server+Client+Packages&release=10.5.*&platform=Windows+32-bit,+x86&function=fixId&fixids=*odbc_cli*&includeSupersedes=0
　　for x64 (64bit):
　　https://delivery04.dhe.ibm.com/sdfdl/v2/sar/CM/IM/04qs7/0/Xa.2/Xb.jusyLTSp44S03o2gwLvv_gehwZO_FuEKqSjmFO6RZHWDmK3FXWGSKLzrKXQ/Xc.CM/IM/04qs7/0/v10.5fp4_ntx64_odbc_cli.zip/Xd./Xf.LPR.D1vk/Xg.7844482/Xi.habanero/XY.habanero/XZ.tXV1ZzgNXYn-0zygvQ8Qb8WK01k/v10.5fp4_ntx64_odbc_cli.zip
　　https://www-933.ibm.com/support/fixcentral/swg/selectFixes?parent=ibm%2FInformation%2BManagement&product=ibm/Information+Management/IBM+Data+Server+Client+Packages&release=10.5.*&platform=Windows+64-bit,+x86&function=fixId&fixids=*odbc_cli*&includeSupersedes=0
　　Uncompress the zip file to a folder, for example: F:\work\clidriver .
　　In folder F:\work\clidriver\bin, right click on file db2.ini -> “Properties” -> uncheck the “read only” attribute.
　　update: in recent version, you need create a “db2dsdriver.cfg” file in path “F:\work\clidriver\cfg”, content like this:
　　<configuration>
<databases>
<database name=”sample” host=”192.168.1.102&Prime; port=”50000&Prime;>
<parameter name=”CurrentSchema” value=”sample”/>
<wlb>
<parameter name=”enableWLB” value=”true”/>
<parameter name=”maxTransports” value=”50&Prime;/>
</wlb>
<acr>
<parameter name=”enableACR” value=”true”/>
</acr>
</database>
</databases>
<parameters>
<parameter name=”GlobalParam” value=”Value”/>
</parameters>
</configuration>
　　2 Register ODBC driver
Run “CMD”, if win7, run as Administrator (http://www.withdata.com/ad/tips/how-to-open-elevated-command-prompt-with-administrators-rights-in-windows-7.html)
　　F:\work\clidriver\bin>db2oreg1.exe -i
　　Add “F:\work\clidriver\bin\” to your system PATH .
　　3 Create a new ODBC Data Source Name (DSN) using the ODBC Driver Manager.
　　The ODBC Driver Manager is in the Windows Control panel -> Administrative tools.
　　Add a “User DSN”
　　select “IBM DB2 DRIVER for ODBC – F:/work/clidriver” as driver.

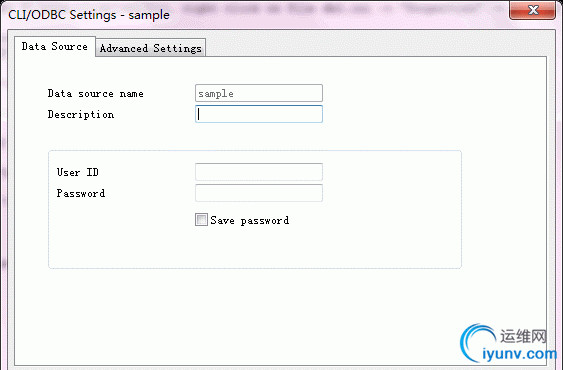

　　next, set “Data source name”

　　In “Database alias” row, click “Add”.

　　To “Advanced settings” tab, click “Add”.

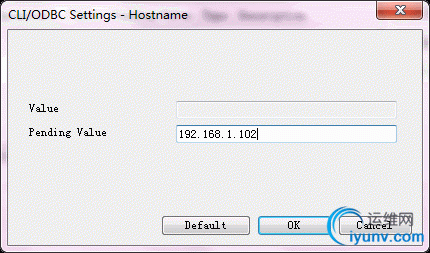

　　add “Hostname”.

　　add “Port”, “Database”, and “Protocol”.

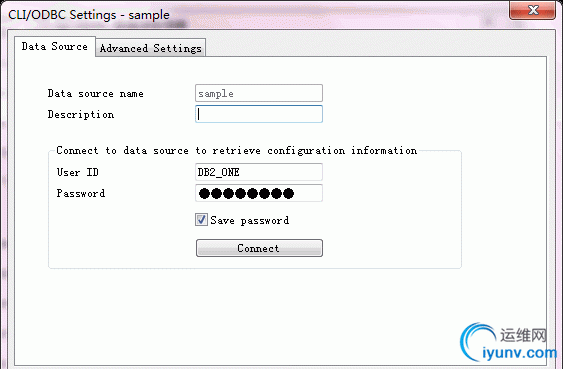

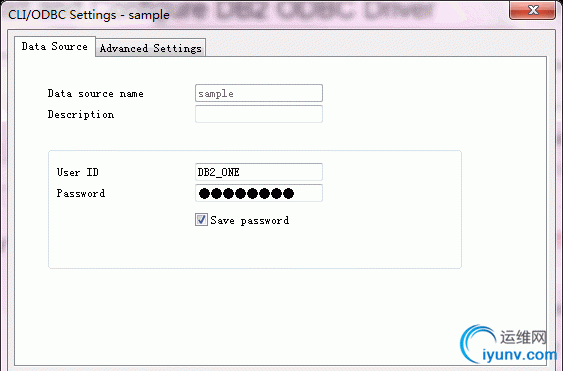

　　To “Data Source” tab, input “User ID” and “Password”.

　　Click “OK”.
　　4 Test DSN

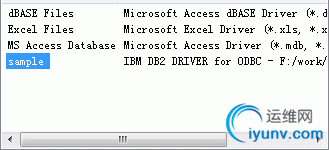

Select saved “DSN”, click “Configure”.

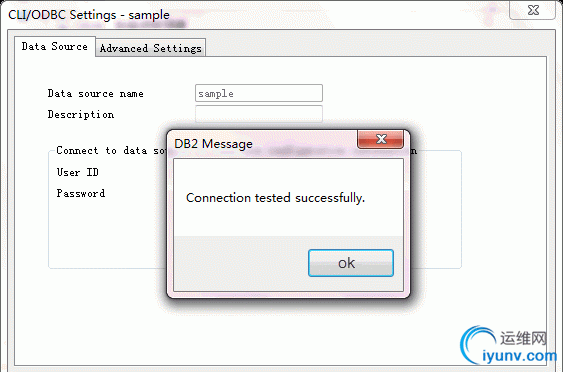

　　Click “Connect” to test.

Be Sociable, Share!

测试连接是确保双方机器可以ping通，如果不同查看是否防火墙未关闭
