PostgreSQL启动过程中的那些事七：初始化共享内存和信号十八：shmem中初始化WalSender和WalRecv相关结构

86565656

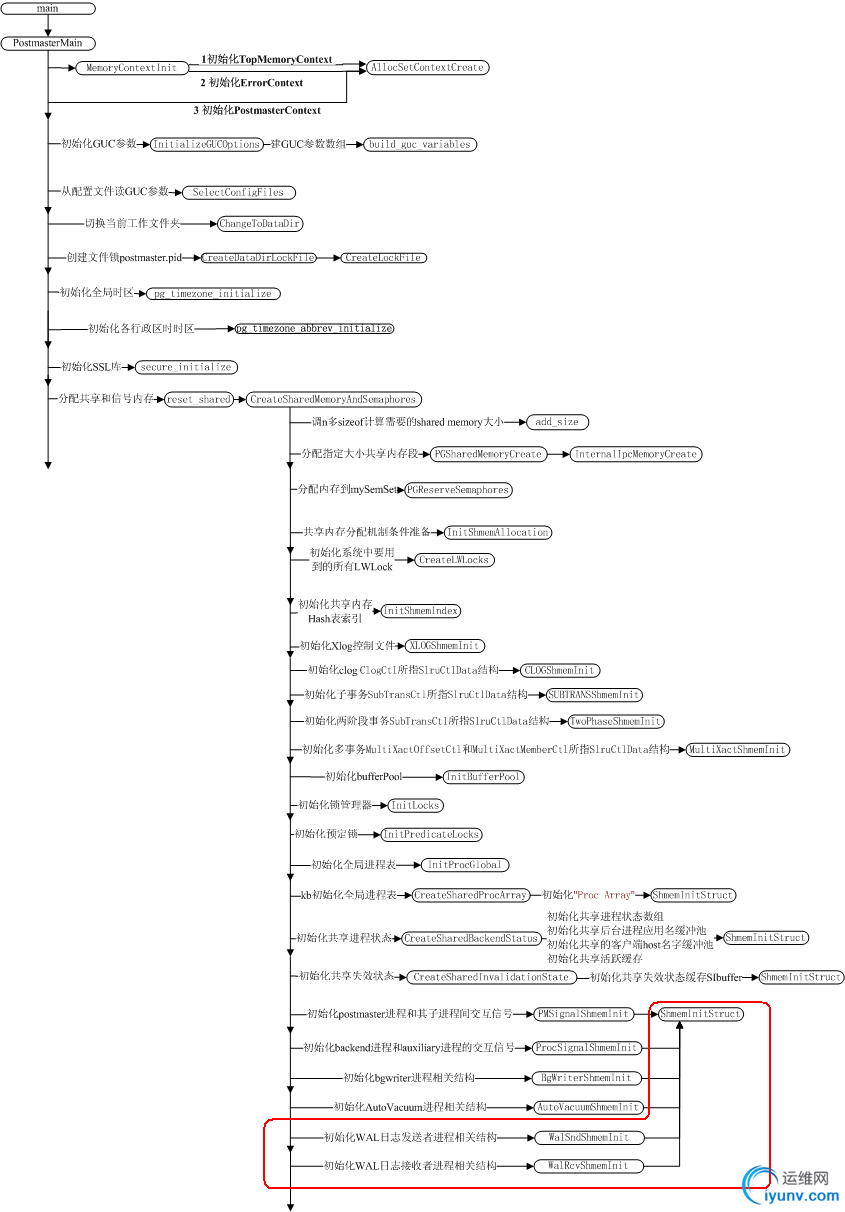

　　1先上个图，看一下函数调用过程梗概，中间略过部分细节
　　

初始化walsender和walreceiver相关结构方法调用流程图



2初始化xlog相关结构
话说main()->…->PostmasterMain()->…->reset_shared() ->CreateSharedMemoryAndSemaphores()>…->WalSndShmemInit()，调用ShmemInitStruct()，在其中调用hash_search()在哈希表索引"ShmemIndex"中查找"Wal Sender Ctl"，如果没有，就在shmemIndex中给"Wal Sender Ctl"分一个HashElement和ShmemIndexEnt（entry），在其中的Entry中写上"WalSender Ctl"。返回ShmemInitStruct()，再调用ShmemAlloc()在共享内存上给"WalSender Ctl"相关结构（见下面“Wal Sender Ctl和Wal Receiver Ctl相关结构图”）分配空间，设置entry（在这儿及ShmemIndexEnt类型变量）的成员location指向该空间，size成员记录该空间大小，最后返回WalSndShmemInit()，让WalSndCtlData*类型全局变量WalSndCtl指向所分配内存，初始化WalSndCtlData结构类型的成员值。
接着WalRcvShmemInit()-> ShmemInitStruct()，在其中调用hash_search()在哈希表索引"ShmemIndex"中查找"Wal Receiver Ctl"，如果没有，就在shmemIndex中给"Wal Receiver Ctl"分一个HashElement和ShmemIndexEnt（entry），在其中的Entry中写上"WalReceiver Ctl"。返回ShmemInitStruct()，再调用ShmemAlloc()在共享内存上给"WalReceiver Ctl"相关结构（见下面“Wal Sender Ctl和Wal Receiver Ctl相关结构图”）分配空间，设置entry（在这儿及ShmemIndexEnt类型变量）的成员location指向该空间，size成员记录该空间大小，最后返回WalRcvShmemInit()，让WalRcvData*类型全局变量WalRcv指向所分配内存，初始化WalRcvData结构类型的成员值。

相关结构定义和图见下面：

typedef enum WalSndState

{

    WALSNDSTATE_STARTUP = 0,

    WALSNDSTATE_BACKUP,

    WALSNDSTATE_CATCHUP,

    WALSNDSTATE_STREAMING

} WalSndState;



/*

 * Each walsenderhas a WalSnd structin shared memory.

 */

typedef struct WalSnd

{

    pid_t      pid;          /* this walsender's process id, or 0 */

    WalSndState state;          /* this walsender's state */

    XLogRecPtr sentPtr;      /* WAL has been sent up to this point */



    /*

     * The xloglocations that have been written, flushed, and applied by

     * standby-side. These maybe invalid if the standby-side has not offered

     * values yet.

     */

    XLogRecPtr write;

    XLogRecPtr flush;

    XLogRecPtr apply;



    /* Protects shared variables shown above.*/

    slock_t       mutex;



    /*

     * Latch used by backendsto wake up this walsenderwhen it has work to

     * do.

     */

    Latch      latch;



    /*

     * The priority order ofthe standby managed by this WALSender, as listed

     * insynchronous_standby_names, or 0 if not-listed. Protected by

     * SyncRepLock.

     */

    int        sync_standby_priority;

} WalSnd;



extern WalSnd *MyWalSnd;



/* There is one WalSndCtl structfor the whole database cluster */

typedef struct

{

    /*

     * Synchronous replicationqueue. Protected by SyncRepLock.

     */

    SHM_QUEUE  SyncRepQueue;



    /*

     * Current location of thehead of the queue. All waiters should have a

     * waitLSN that followsthis value. Protected by SyncRepLock.

     */

    XLogRecPtr lsn;



    /*

     * Are any sync standbysdefined?  Waiting backendscan'treload the

     * configfilesafely, so WAL writer updates this value as needed.

     * Protected bySyncRepLock.

     */

    bool       sync_standbys_defined;



    WalSnd     walsnds[1];       /* VARIABLE LENGTH ARRAY */

} WalSndCtlData;



extern WalSndCtlData *WalSndCtl;



typedef enum

{

    WALRCV_STOPPED,             /* stopped and mustn't start up again */

    WALRCV_STARTING,         /* launched, but the process hasn't

                             *initialized yet */

    WALRCV_RUNNING,             /* walreceiveris running */

    WALRCV_STOPPING             /* requested to stop, but still running */

} WalRcvState;



/* Shared memory area formanagement of walreceiverprocess */

typedef struct

{

    /*

     * PID of currently active walreceiverprocess, its current state and

     * start time (actually,the time at which it was requested to be

     * started).

     */

    pid_t      pid;

    WalRcvState walRcvState;

    pg_time_t  startTime;



    /*

     * receiveStart is thefirst byte position that will be received. When

     * startup process startsthe walreceiver, it sets receiveStart to the

     * point where it wants thestreaming to begin.

     */

    XLogRecPtr receiveStart;



    /*

     * receivedUpto-1 is thelast byte position that has already been

     * received.  At the first startup of walreceiver,receivedUpto is set to

     * receiveStart. Afterthat, walreceiverupdates this whenever it flushes

     * the received WAL todisk.

     */

    XLogRecPtr receivedUpto;



    /*

     * latestChunkStart is thestarting byte position of the current "batch"

     * of received WAL.  It's actually the same as the previous valueof

     * receivedUpto before thelast flush to disk.   Startup process canuse

     * this to detect whetherit's keeping up or not.

     */

    XLogRecPtr latestChunkStart;



    /*

     * connection string; isused for walreceiverto connect with the primary.

     */

    char       conninfo[MAXCONNINFO];



    slock_t       mutex;        /* locks shared variables shown above */

} WalRcvData;



extern WalRcvData *WalRcv;



初始化完Wal Receiver Ctl和Wal Receiver Ctl相关结构的共享内存结构图

　　

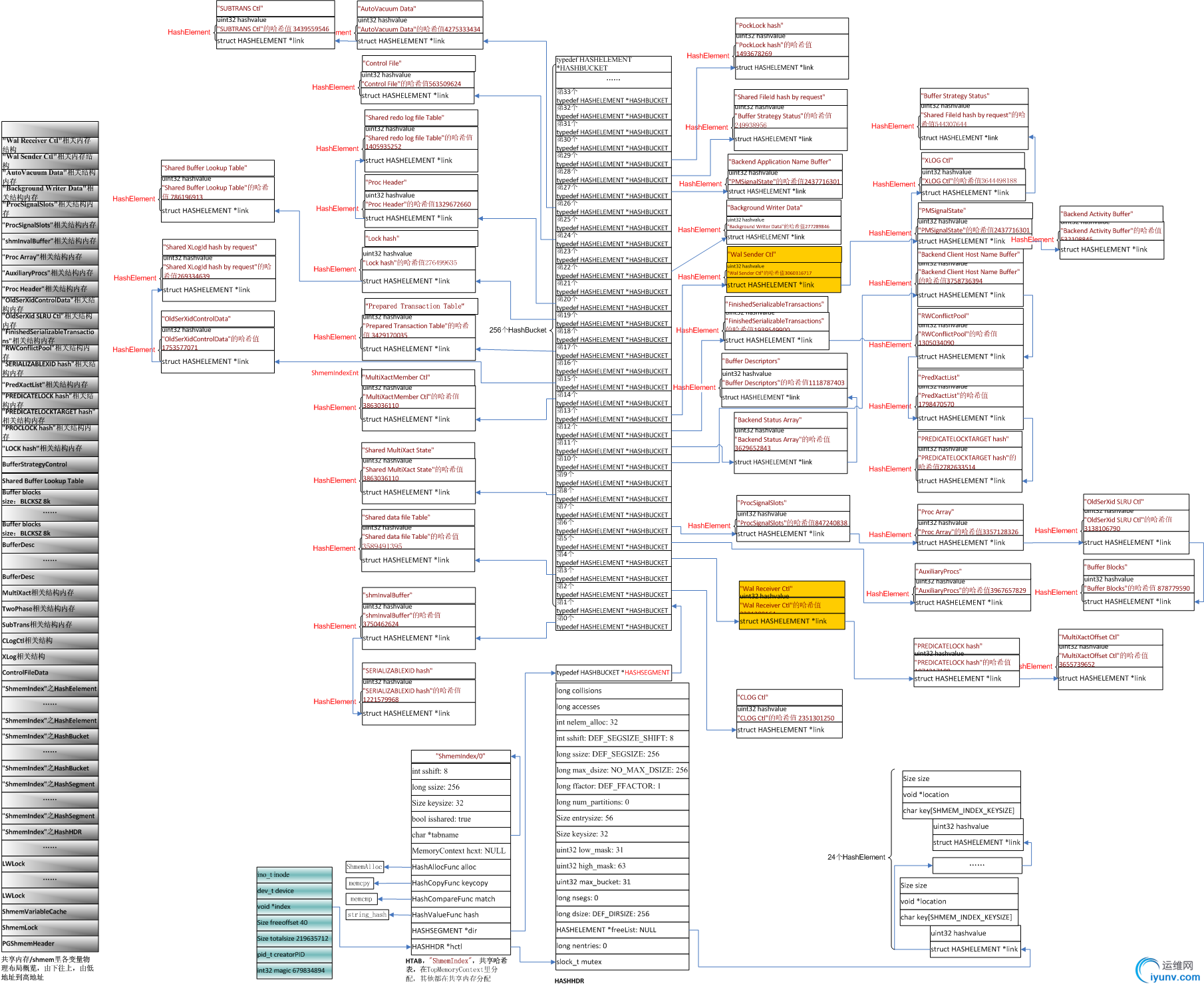

       为了精简上图，把创建shmem的哈希表索引"ShmemIndex"时创建的HCTL结构删掉了，这个结构的作用是记录创建可扩展哈希表的相关信息，不过这个结构在"ShmemIndex"创建完成后也会由于出了对象作用域而消失。增加了左边灰色底的部分，描述共享内存/shmem里各变量物理布局概览，由下往上，由低地址到高地址。图中黄色的索引项就是本节新增加的索引项。

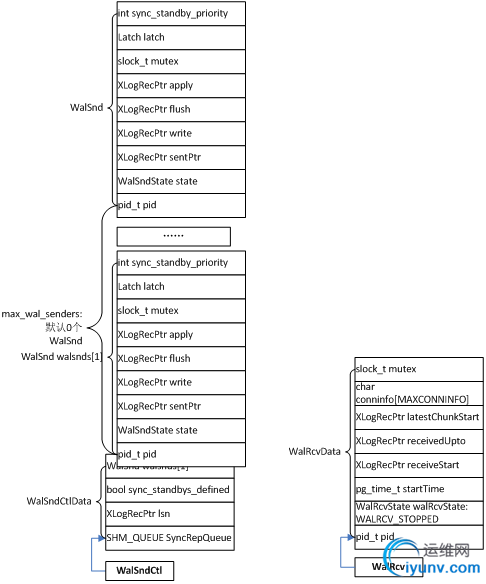

Wal Sender Ctl和Wal Receiver Ctl相关结构图
