Maven+Struts2+MyBatis+Spring搭建教程

cxin

　　教程目标：
　　在MyEclipse中搭建Struts2+MyBatis+Spring环境，用Maven管理项目，利用mybatis-gernerator插件生成部分代码
　　附带目标：
　　struts2的自定义拦截器和国际化，mybatis-spring自动装配Dao，mybatis-gernerator的配置
　　先贴下搭建成功后项目的结构图，方便理解：
　　

　　1、新建web project，add maven spport：
　　

　　2、编辑已经生成的pom.xml：pom文件不是一口气写完的，而是随着添加struts、mybatis和spring等特性以后才逐渐完成的，我在这里就把完成以后的贴在这里了

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>MybatisSpringStrut2</groupId>
<artifactId>MybatisSpringStrut2</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>war</packaging>
<name>Mybatis+Spring+Strut2集成示例</name>
<developers>
<developer>
<name>Sam</name>
<email>sanlai_lee@foxmail.com</email>
</developer>
</developers>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<!-- 下面这些定义的属性在mybatis-generator.xml文件中引用  -->
<classPathEntry.location>${basedir}/WebRoot/WEB-INF/lib/mysql-connector-java-5.1.18.jar</classPathEntry.location>
<jdbc.driverClass>com.mysql.jdbc.Driver</jdbc.driverClass>
<jdbc.connectionURL>jdbc:mysql://localhost:3306/test?generateSimpleParameterMetadata=true</jdbc.connectionURL>
<jdbc.userId>root</jdbc.userId>
<jdbc.password>1120</jdbc.password>
<model.target.dir>${basedir}/src/java</model.target.dir>
<mappers.target.dir>${basedir}/src/config</mappers.target.dir>
<client.target.dir>${basedir}/src/java</client.target.dir>
</properties>
<!-- 依赖包  -->
<dependencies>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>bean-validator</artifactId>
<version>3.0-JBoss-4.0.2</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.annotation</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.ejb</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.enterprise.deploy</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.jms</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.management.j2ee</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.eclipse.persistence</groupId>
<artifactId>javax.persistence</artifactId>
<version>2.0.0</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.resource</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.security.auth.message</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.security.jacc</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.servlet</artifactId>
<version>3.0.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.servlet.jsp</artifactId>
<version>3.0.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.servlet.jsp.jstl</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.transaction</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>javax.xml.bind</groupId>
<artifactId>jaxb-api-osgi</artifactId>
<version>2.2.1</version>
</dependency>
<dependency>
<groupId>javax.ws.rs</groupId>
<artifactId>jsr311-api</artifactId>
<version>1.1.1</version>
</dependency>
<dependency>
<groupId>javax.mail</groupId>
<artifactId>mail</artifactId>
<version>1.4.3</version>
</dependency>
<dependency>
<groupId>javax.xml</groupId>
<artifactId>webservices-api-osgi</artifactId>
<version>2.0.1</version>
</dependency>
<dependency>
<groupId>org.jboss.weld</groupId>
<artifactId>weld-osgi-bundle</artifactId>
<version>1.0.1-SP3</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.15</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.18</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.0.6</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.0.2</version>
</dependency>
<dependency>
<groupId>xerces</groupId>
<artifactId>xmlParserAPIs</artifactId>
<version>2.6.2</version>
</dependency>
<dependency>
<groupId>dom4j</groupId>
<artifactId>dom4j</artifactId>
<version>1.6.1</version>
</dependency>
<dependency>
<groupId>com.sun.mail</groupId>
<artifactId>pop3</artifactId>
<version>1.4.4</version>
</dependency>
<dependency>
<groupId>com.sun.mail</groupId>
<artifactId>smtp</artifactId>
<version>1.4.4</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>2.2.2</version>
<type>jar</type>
</dependency>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts2-core</artifactId>
<version>2.2.3.1</version>
</dependency>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts2-json-plugin</artifactId>
<version>2.2.3.1</version>
</dependency>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts2-config-browser-plugin</artifactId>
<version>2.2.3.1</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts2-spring-plugin</artifactId>
<version>2.2.3.1</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.1.1</version>
</dependency>
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.1.2</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-asm</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-expression</artifactId>
<version>3.0.6.RELEASE</version>
</dependency>
<dependency>
<groupId>commons-pool</groupId>
<artifactId>commons-pool</artifactId>
<version>1.5.6</version>
</dependency>
</dependencies>
<build>
<!-- 源文件夹位置定义 -->
<sourceDirectory>${basedir}/src/java,${basedir}/src/config</sourceDirectory>
<!-- 输出文件夹位置定义 -->
<outputDirectory>${basedir}/WebRoot/WEB-INF/classes</outputDirectory>
<!-- 资源文件位置定义 -->
<resources>
<resource>
<targetPath>${project.build.outputDirectory}</targetPath>
<directory>${project.build.sourceDirectory}</directory>
<excludes>
<exclude>**/*.java</exclude>
</excludes>
</resource>
<resource>
<directory>${project.build.sourceDirectory}</directory>
<includes>
<include>**/*.xml,**/*.properties</include>
</includes>
</resource>
</resources>
<!-- war包的最终名字格式定义 -->
<finalName>${project.artifactId}-${project.version}</finalName>
<!-- 插件定义 -->
<plugins>
<!-- 打包插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>2.1.1</version>
<configuration>
<webappDirectory>${basedir}/WebRoot</webappDirectory>
<warSourceDirectory>${basedir}/WebRoot</warSourceDirectory>
<outputDirectory>${basedir}/target/output</outputDirectory>
</configuration>
</plugin>
<!-- 编译插件 -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.3.2</version>
<configuration>
<source>1.6</source>
<target>1.6</target>
</configuration>
</plugin>
<!-- mybatis的代码生成插件 -->
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.1</version>
<configuration>
<configurationFile>${basedir}/src/config/mybatis-generator.xml</configurationFile>
<verbose>true</verbose>
<overwrite>true</overwrite>
</configuration>
<executions>
<execution>
<id>Generate MyBatis Artifacts</id>
<goals>
<goal>generate</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
 　　3、编辑web.xml：

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
<display-name>MybatisSpringStrut2</display-name>
<!-- struts2过滤器配置 -->
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 集成spring -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- spring的配置文件位置 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath*:spring/applicationContext*.xml</param-value>
</context-param>
<!-- 欢迎页面配置 -->
<welcome-file-list>
<welcome-file>site/index.jsp</welcome-file>
</welcome-file-list>
</web-app>

 　　4、struts2的配置文件：
　　strutsxml:

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
<display-name>MybatisSpringStrut2</display-name>
<!-- struts2过滤器配置 -->
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 集成spring -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- spring的配置文件位置 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath*:spring/applicationContext*.xml</param-value>
</context-param>
<!-- 欢迎页面配置 -->
<welcome-file-list>
<welcome-file>site/index.jsp</welcome-file>
</welcome-file-list>
</web-app>

　　struts/struts-admin.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<!--
result type：
<result-types>
<result-type name="chain" class="com.opensymphony.xwork2.ActionChainResult"/>
<result-type name="dispatcher" class="org.apache.struts2.dispatcher.ServletDispatcherResult" default="true"/>
<result-type name="freemarker" class="org.apache.struts2.views.freemarker.FreemarkerResult"/>
<result-type name="httpheader" class="org.apache.struts2.dispatcher.HttpHeaderResult"/>
<result-type name="redirect" class="org.apache.struts2.dispatcher.ServletRedirectResult"/>
<result-type name="redirectAction" class="org.apache.struts2.dispatcher.ServletActionRedirectResult"/>
<result-type name="stream" class="org.apache.struts2.dispatcher.StreamResult"/>
<result-type name="velocity" class="org.apache.struts2.dispatcher.VelocityResult"/>
<result-type name="xslt" class="org.apache.struts2.views.xslt.XSLTResult"/>
<result-type name="plainText" class="org.apache.struts2.dispatcher.PlainTextResult" />
</result-types>
-->
<package name="admin" namespace="/admin" extends="my-truts2">
<action name="login">
<result>/admin/login.jsp</result>
</action>
<action name="main">
<result>/admin/main.jsp</result>
</action>
<!-- 测试拦截器 -->
<action name="testInterceptor" class="adminAction" method="testInterceptor">
<interceptor-ref name="adminLoginInterceptorStack"/>
<result>/admin/main.jsp</result>
</action>
<!-- 测试数据访问功能CRUD -->
<action name="testCrud" class="adminAction" method="testCrud">
<result>/admin/main.jsp</result>
</action>
</package>
</struts>
　　struts/struts-index.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<!--
result type：
<result-types>
<result-type name="chain" class="com.opensymphony.xwork2.ActionChainResult"/>
<result-type name="dispatcher" class="org.apache.struts2.dispatcher.ServletDispatcherResult" default="true"/>
<result-type name="freemarker" class="org.apache.struts2.views.freemarker.FreemarkerResult"/>
<result-type name="httpheader" class="org.apache.struts2.dispatcher.HttpHeaderResult"/>
<result-type name="redirect" class="org.apache.struts2.dispatcher.ServletRedirectResult"/>
<result-type name="redirectAction" class="org.apache.struts2.dispatcher.ServletActionRedirectResult"/>
<result-type name="stream" class="org.apache.struts2.dispatcher.StreamResult"/>
<result-type name="velocity" class="org.apache.struts2.dispatcher.VelocityResult"/>
<result-type name="xslt" class="org.apache.struts2.views.xslt.XSLTResult"/>
<result-type name="plainText" class="org.apache.struts2.dispatcher.PlainTextResult" />
</result-types>
-->
<package name="index" namespace="/" extends="my-truts2">
<action name="index">
<result>/site/index.jsp</result>
</action>
<action name="language">
<result type="redirectAction">index</result>
</action>
</package>
</struts>
 　　5、spring的配置文件，位于src/config/spring:
　　applicationContext.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<!-- 数据源连接信息配置文件 -->
<context:property-placeholder location="classpath*:jdbc.properties" />
<!-- 开发环境数据源 -->
<bean id="dataSource_dev" class="org.apache.commons.dbcp.BasicDataSource"
destroy-method="close">
<property name="driverClassName" value="${jdbc.driverClassName.mysql_dev}" />
<property name="url" value="${jdbc.url.mysql_dev}" />
<property name="username" value="${jdbc.username.mysql_dev}" />
<property name="password" value="${jdbc.password.mysql_dev}" />
</bean>
<!-- 生产环境数据源 -->
<bean id="dataSource_product" class="com.mchange.v2.c3p0.ComboPooledDataSource"
destroy-method="close">
<property name="driverClass" value="${jdbc.driverClassName.mysql}" />
<property name="jdbcUrl" value="${jdbc.url.mysql}" />
<property name="user" value="${jdbc.username.mysql}" />
<property name="password" value="${jdbc.password.mysql}" />
<property name="maxPoolSize" value="${c3p0.maxPoolSize}" />
<property name="acquireIncrement" value="${c3p0.acquireIncrement}" />
<property name="minPoolSize" value="${c3p0.minPoolSize}" />
<property name="maxIdleTime" value="${c3p0.maxIdleTime}" />
</bean>
<!-- 配置sqlSessionFactory -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource_dev" />
<!-- 自动到mappers包下面去搜索mybatis的映射文件 -->
<property name="mapperLocations" value="classpath*:mappers/**/*.xml" />
</bean>
<!-- 使用Spring的事务管理器 -->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource_dev" />
</bean>
</beans>
 　　applicationContextDao.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<!-- 单个的注册 MapperFactoryBean -->
<!--
<bean id="managerVOMapper" class="org.mybatis.spring.mapper.MapperFactoryBean">
<property name="mapperInterface" value="com.xylcolor.dao.ManagerVOMapper" />
<property name="sqlSessionFactory" ref="sqlSessionFactory" />
</bean>
-->
<!-- 利用MyBatis-Spring的自动装配机制：
自动从com.xylcolor.dao包中寻找接口装配成MapperFactoryBean
有了下面这个配置，那么就不需要像上面那样一个一个的去注册映射器Bean了，大大的减少了工作量
-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.xylcolor.dao" />
</bean>
</beans>
 　　applicationContextService.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<bean id="newsService" class="com.xylcolor.service.impl.NewsServiceImpl">
<!--
这里的ref=newsVOMapper,就是mybatis-spring自动装配的,我们在applicationContextDao.xml
文件中并没有显示的注册newsVOMapper这个Bean；
当然这个名字为什么就是newsVOMapper呢，默认的会根据Dao接口名称按照驼峰命名习惯来生成这个名称，
如果你想拥有自己的名称风格，那么你可以在Dao接口上通过注解@Component或@Named来更改名称，
例如：
@Component(value="newsVODao")
public interface NewsVOMapper {……}
或
@Named(value="newsVODao")
public interface NewsVOMapper {……}
这样以后，这里ref就应该是ref="newsVODao"
-->
<property name="newsVOMapper" ref="newsVOMapper" />
</bean>
</beans>
　　applicationContextActions.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<bean id="adminAction" class="com.xylcolor.actions.AdminAction">
<property name="newsService" ref="newsService"/>
</bean>
</beans>
　　6、mybatis的配置文件：mybatis-config.xml，这个文件在我们现在这个环境中其实可以不用，除非你一定要定义一些
　　typeAliases或者settings；项目中实际要用到的映射文件会由插件生成，由mybatis-spring根据你给的路径自动寻找装配：
　　mybatis-config.xml：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<setting name="cacheEnabled" value="true"/>
<setting name="lazyLoadingEnabled" value="true"/>
<setting name="aggressiveLazyLoading" value="true"/>
</settings>
<!-- 别名配置 -->
<typeAliases>
<typeAlias alias="NewsVO" type="com.xylcolor.vo.model.NewsVO"/>
</typeAliases>
</configuration>
　　7、代码生成插件的配置文件：mybatis-generator.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<!-- mybatis-generator插件生成代码的配置文件 -->
<generatorConfiguration>
<classPathEntry location="${classPathEntry.location}" />
<context id="MySQLTables" targetRuntime="MyBatis3">
<jdbcConnection driverClass="${jdbc.driverClass}"
connectionURL="${jdbc.connectionURL}"
userId="${jdbc.userId}"
password="${jdbc.password}">
</jdbcConnection>
<!-- java类型处理器，默认的就这么一个处理器可以用，可以自己写，具体的请参考官方文档http://code.google.com/p/mybatis/wiki/Generator -->
<javaTypeResolver>
<property name="forceBigDecimals" value="false" />
</javaTypeResolver>
<!-- 生成 Model，POJO -->
<javaModelGenerator targetPackage="com.xylcolor.vo.model" targetProject="${model.target.dir}">
<property name="enableSubPackages" value="true" />
<property name="trimStrings" value="true" />
</javaModelGenerator>
<!-- 生成映射文件*.xml -->
<sqlMapGenerator targetPackage="mappers" targetProject="${mappers.target.dir}">
<property name="enableSubPackages" value="true" />
</sqlMapGenerator>
<!-- 生成映射器类 -->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.xylcolor.dao" targetProject="${client.target.dir}">
<property name="enableSubPackages" value="true" />
</javaClientGenerator>
<!-- 指定要生成的表名和对应形成的POJO类名  -->
<table schema=""
tableName="tb_news"
domainObjectName="NewsVO"/>
</context>
</generatorConfiguration>

　　完成上面那些配置文件以后，基本上配置上就完成了，下面的工作就是java代码的完成了，具体的示例代码见附件，必要的地方我都做了注释。
　　看看实际运行情况：

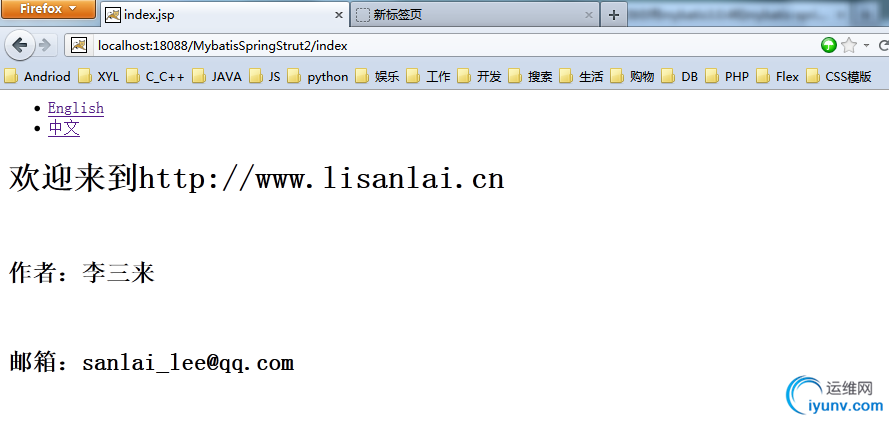

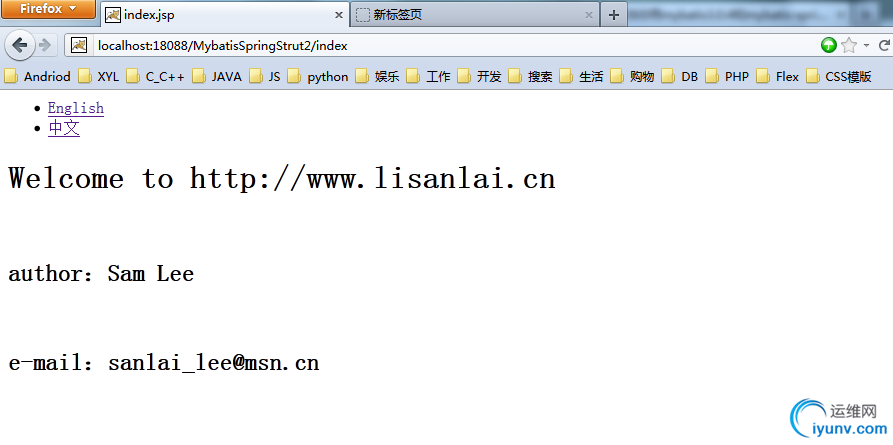

　　1.国际化：
　　

　　

　　2：利用插件生成的代码，完成数据的增删改查：
　　


/**
* 测试数据的增删改查
* @return
* @throws JSONException
*/
public String testCrud() throws JSONException{
String b = "<br />";
String response = "测试数据的增删改查:<br />";
//查
NewsVOExample example = new NewsVOExample();
example.or().andIdIsNotNull();
List<NewsVO> list = newsService.selectByExample(example);
response += "原始数据：<br />";
for (NewsVO newsVO : list) {
response += JSONUtil.serialize(newsVO)+b;
}
//增
NewsVO record = new NewsVO();
record.setTitle("这是我新增的一个新闻");
record.setContent("2012其实真的快到了");
record.setSource("火星资讯");
record.setDate(new Date());
int result = newsService.insert(record);
response += result==1?"插入新数据成功":"插入数据失败"+b;
list = newsService.selectByExample(example);
response += "插入数据后："+b;
for (NewsVO newsVO : list) {
response += JSONUtil.serialize(newsVO)+b;
}
//改
record = newsService.selectByExample(example).get(0);
response += "修改前的数据:"+b+JSONUtil.serialize(record);
example = new NewsVOExample();
example.or().andTitleEqualTo(record.getTitle());
int originId = record.getId();
record.setTitle("这是我修改后的标题");
result = newsService.updateByExample(record, example);
response += result==1?"修改成功":"修改失败"+b;
example.or().andTitleEqualTo(record.getTitle());
record = newsService.selectByPrimaryKey(originId);
response +="修改后的数据:"+b+JSONUtil.serialize(record)+b;
//删
example.or().andTitleEqualTo("这是我新增的一个新闻");
newsService.deleteByExample(example);
example.or().andIdIsNotNull();
list = newsService.selectByExample(example);
response += "删除数据后："+b;
for (NewsVO newsVO : list) {
response += JSONUtil.serialize(newsVO)+b;
}
write(response);
return SUCCESS;
}
