前言，第一次自己搭建环境。也是在网上查资料，自己摸索着搞的
写此文章时，又重新搭建了一次。代码亲测可跑，没有问题，欢迎反馈
本文在maven环境下整合Spring-Mybatis，其中Spring支持当下比较流行的注解注入方式，简化配置
本文存在问题，不支持数据库事务回滚，数据库存入汉字为乱码。
一、准备工作
eclipse 4.2
maven 3.1.0
maven安装就不介绍了，eclipse的maven插件版本为3.0.4，本地版本为3.1.0。用哪个版本的差别不大
二、创建Maven项目
(1)选择安装maven项目。搜索关键字maven，如下图：
(2)这里默认就行了，直接下一步
(3)搜索关键字webapp，选择maven-archetype-webapp点击下一步
(4)填写工程的Group Id，Artifact Id。
Group Id就是大项目的id，Arifact Id就是该项目的Id，点击完成。如下图：
(5)首先，完善目录，增加重要的source Folder，这个不是简单的Floder,这些文件夹是会参与编译的。增加src/main/java目录。如果创建目录时提示目录已经存在，请参考http://yudey.iyunv.com/blog/1985181如下图：
(6)在webapp下创建文件夹jsp，在WEB-INF下创建文件夹config

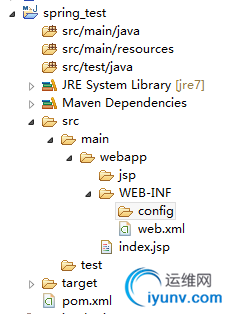

(7)文件目录大体如下：
(8)将工程变成web工程
此时，我们的工程还不是标准的web工程，可以在eclipse中增加web工程的特性，选择工程的Properties,选Project Facets,点击Convert to faceted form... 如下图：
这里，我们选择Dynamic Web Module,版本选择2.4，这个版本比较通用，我本机为默认版本。 如下图：
这样，我们的工程就完全是一个web工程了。
三、文件配置
(1)配置pom.xml,让jar包飞一会。如果pom.xml保存后，有错误提示，很可能是jar包重复，可注释掉重复的引用
文件pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>test</groupId>
<artifactId>spring_test</artifactId>
<packaging>war</packaging>
<version>0.0.1-SNAPSHOT</version>
<name>spring_test Maven Webapp</name>
<url>http://maven.apache.org</url>
<properties>
<org.springframework.version>3.0.6.RELEASE</org.springframework.version>
</properties>
<dependencies>
<!-- Spring jar -->
<!-- Core utilities used by other modules. Define this if you use Spring
Utility APIs (org.springframework.core.*/org.springframework.util.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Expression Language (depends on spring-core) Define this if you use
Spring Expression APIs (org.springframework.expression.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Bean Factory and JavaBeans utilities (depends on spring-core) Define
this if you use Spring Bean APIs (org.springframework.beans.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Aspect Oriented Programming (AOP) Framework (depends on spring-core,
spring-beans) Define this if you use Spring AOP APIs -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Application Context (depends on spring-core, spring-expression, spring-
spring-beans) This is the central artifact for Spring's Dependency Injec
Container and is generally always defined -->
<!-- <dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>3.2.4.RELEASE</version>
<type>pom.tmp.sha1.tmp</type>
</dependency> -->
<!-- Various Application Context utilities, including EhCache, JavaMail,
Quartz, and Freemarker integration Define this if you need any of these -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Transaction Management Abstraction (depends on spring-core, spring-bean
spring-aop, spring-context) Define this if you use Spring Transactions o
DAO Exception Hierarchy (org.springframework.transaction.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- JDBC Data Access Library (depends on spring-core, spring-beans, spring-
spring-tx) Define this if you use Spring's JdbcTemplate API -->
<!-- <dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework.version}</version>
</dependency> -->
<!-- Object-to-Relation-Mapping (ORM) integration with Hibernate, JPA,
and iBatis. (depends on spring-core, spring-beans, spring-context, sprin
Define this if you need ORM (org.springframework.orm.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Object-to-XML Mapping (OXM) abstraction and integration with JAXB,
JiBX, Castor, XStream, and XML Beans. (depends on spring-core, spring-be
spring-context) Define this if you need OXM -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-oxm</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Web application development utilities applicable to both Servlet and
Portlet Environments (depends on spring-core, spring-beans, spring-conte
Define this if you use Spring MVC, or wish to use Struts, JSF, or anothe
web framework with Spring (org.springframework.web.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Spring MVC for Servlet Environments (depends on spring-core, spring-bea
spring-context, spring-web) Define this if you use Spring MVC with a Ser
Container such as Apache Tomcat -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Spring MVC for Portlet Environments (depends on spring-core, spring-bea
spring-context, spring-web) Define this if you use Spring MVC with a Por
Container (org.springframework.web.portlet.*) -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc-portlet</artifactId>
<version>${org.springframework.version}</version>
</dependency>
<!-- Support for testing Spring applications with tools such as JUnit and
TestNG This artifact is generally always defined with a 'test' scope for
the integration testing framework and unit testing stubs -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${org.springframework.version}</version>
<scope>test</scope>
</dependency>
<!-- Mybatis develop jar -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.2.0</version>
</dependency>
<!-- Mybatis and Spring jar, from mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.1.1</version>
</dependency>
<!-- tomcat servlet develop jar -->
<!-- <dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.1.2</version>
<type>pom.lastUpdated</type>
</dependency> -->
<!-- JSTL tag library -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<!-- mysql database driver -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.26</version>
</dependency>
<!--commons-dbcp and commons-pool , Configure Data Source -->
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>
<dependency>
<groupId>commons-pool</groupId>
<artifactId>commons-pool</artifactId>
<version>1.5.6</version>
</dependency>
<!-- Logging depend on the jar, like log4j,json-lib... -->
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging-api</artifactId>
<version>1.1</version>
</dependency>
<!-- spring upload files -->
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.4</version>
</dependency>
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>1.3</version>
</dependency>
<!-- log log4g -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<!-- dom4j analysis XML files -->
<dependency>
<groupId>dom4j</groupId>
<artifactId>dom4j</artifactId>
<version>1.6.1</version>
</dependency>
<!-- Configuration of the transaction -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.7.3</version>
</dependency>
<dependency>
<groupId>aopalliance</groupId>
<artifactId>aopalliance</artifactId>
<version>1.0</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib-nodep</artifactId>
<version>2.2</version>
</dependency>
<!-- json lib -->
<dependency>
<groupId>net.sf.json-lib</groupId>
<artifactId>json-lib</artifactId>
<version>2.4</version>
<type>pom</type>
</dependency>
<!-- <dependency>
<groupId>commons-beanutils</groupId>
<artifactId>commons-beanutils</artifactId>
<version>1.8.4-SNAPSHOT</version>
<type>pom</type>
</dependency> -->
<!-- <dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>4.0-SNAPSHOT</version>
<type>pom</type>
</dependency> -->
<dependency>
<groupId>commons-lang</groupId>
<artifactId>commons-lang</artifactId>
<version>2.6</version>
<type>pom</type>
</dependency>
<dependency>
<groupId>net.sf.ezmorph</groupId>
<artifactId>ezmorph</artifactId>
<version>1.0.6</version>
</dependency>
<!-- junit test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<!-- others -->
<dependency>
<groupId>javax.annotation</groupId>
<artifactId>javax.annotation-api</artifactId>
<version>1.2</version>
</dependency>
</dependencies>
<build>
<finalName>spring_test</finalName>
</build>
</project>
文件web.xml 路径：WEB-INF下
<!DOCTYPE web-app PUBLIC"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app>
<display-name>Archetype Created Web Application</display-name>
<!-- 配置Mybatis数据库配置文件的位置 如果不指定位置，默认找WEB-INF下applicationContext.xml -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/config/app-context.xml</param-value>
</context-param>
<!-- 配置spring转发器 -->
<filter>
<filter-name>characterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<!-- 编码设置 -->
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>characterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 添加启动spring监听器 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<servlet>
<servlet-name>exam</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<!-- 配置spring-servlet.xml位置 如果不指定位置，默认找WEB-INF下 项目名-servlet.xml -->
<param-value>/WEB-INF/config/spring-servlet.xml</param-value>
</init-param>
</servlet>
<servlet-mapping>
<servlet-name>exam</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 首页位置 -->
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
</web-app>
文件app-context.xml 路径：WEB-INF/config下
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd">
<bean
class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
<!-- 先引用jdbc.properties文件，待用 -->
<property name="locations" value="/WEB-INF/config/jdbc.properties" />
</bean>
<!-- 配置数据库 -->
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
destroy-method="close">
<property name="driverClassName" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.user}" />
<property name="password" value="${jdbc.password}" />
<!-- data source configuration -->
<property name="initialSize" value="60" />
<property name="maxActive" value="100" />
<property name="maxIdle" value="50" />
<property name="minIdle" value="10" />
</bean>
<!-- 指定sqlSessionFactory。官方描述：要创建工厂 bean,放置下面的代码在 Spring 的 XML 配置文件中 -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 注入映射器 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.mxy.mapper" />
</bean>
</beans>
文件spring-servlet.xml 路径：WEB-INF/config下
<?xml version="1.0" encoding="UTF-8"?>
<!-- Bean头部 -->
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:context="http://www.springframework.org/schema/context"
xmlns:util="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.0.xsd">
<!-- 激活@Controller模式 即声明 -->
<mvc:annotation-driven />
<!-- 对包中的所有类进行扫描，以完成Bean创建和自动依赖注入的功能 需要更改，要写到代码的外层 -->
<context:component-scan base-package="com.mxy" />
<!-- 注解式声明 -->
<bean class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter" />
<!-- 配置jsp文件前缀后缀 -->
<bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix">
<value>/jsp/</value>
</property>
<property name="suffix">
<value>.jsp</value>
</property>
</bean>
</beans>
文件jdbc.properties 路径：WEB-INF/config下
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/shop
jdbc.user=test
jdbc.password=123456
文件test.sql，这个文件直接在数据库下执行即可
SET FOREIGN_KEY_CHECKS=0;
drop database if exists test;
create database test;
use test;
-- ----------------------------
-- Table structure for `account`
-- ----------------------------
DROP TABLE IF EXISTS `account`;
CREATE TABLE `account` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`userName` varchar(100) DEFAULT NULL,
`password` varchar(100) DEFAULT NULL,
`email` varchar(100) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=56 DEFAULT CHARSET=utf8;
文件TestController.java 路径：com.mxy.controller
package com.mxy.controller;
import java.util.HashMap;
import java.util.Map;
import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;
import com.mxy.model.User;
import com.mxy.service.TestService;
@Controller
@RequestMapping("/testc")
public class TestController {
@Resource
private TestService accountService;
@RequestMapping("/test")
public ModelAndView test(HttpServletRequest request,
HttpServletResponse response) {
Map<String, Object> resultMap = new HashMap<String, Object>();
String userName = request.getParameter("username");
String password = request.getParameter("password");
String email = request.getParameter("email");
User entity = new User();
entity.setUserName(userName);
entity.setPassword(password);
entity.setEmail(email);
User user = accountService.select(entity);
if (user != null) {
return new ModelAndView("error", resultMap);
}
accountService.insert(entity);
resultMap.put("user", entity);
return new ModelAndView("success", resultMap);
}
}
文件TestMapper.java 路径：com.mxy.mapper
package com.mxy.mapper;
import org.springframework.transaction.annotation.Transactional;
import com.mxy.model.User;
@Transactional
public interface TestMapper {
public Integer insert(User entity);
public User select(User entity);
}
文件TestMapper.xml 路径：com.mxy.mapper
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.mxy.mapper.TestMapper">
<resultMap id="account_Result" type="com.mxy.model.User">
<result property="id" column="id" jdbcType="DECIMAL"/>
<result property="username" column="userName" jdbcType="VARCHAR"/>
<result property="password" column="password" jdbcType="VARCHAR"/>
<result property="email" column="email" jdbcType="DECIMAL"/>
</resultMap>
<insert id="insert" parameterType="com.mxy.model.User">
insert into account(userName,password,email) values(#{userName},#{password},#{email})
</insert>
<select id="select" parameterType="com.mxy.model.User" resultType="com.mxy.model.User">
select * from account where userName=#{userName}
</select>
</mapper>
文件User.java 路径：com.mxy.model
package com.mxy.model;
public class User {
private int id;
private String userName;
private String password;
private String email;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getUserName() {
return userName;
}
public void setUserName(String userName) {
this.userName = userName;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
}
文件TestService.java 路径：com.mxy.service
package com.mxy.service;
import com.mxy.model.User;
public interface TestService{
public Integer insert(User entity);
public User select(User entity);
}
文件TestServiceImpl.java 路径：com.mxy.service.impl
package com.mxy.service.impl;
import javax.annotation.Resource;
import org.springframework.stereotype.Service;
import com.mxy.mapper.TestMapper;
import com.mxy.model.User;
import com.mxy.service.TestService;
@Service
public class TestServiceImpl implements TestService {
@Resource
private TestMapper accountMapper;
public Integer insert(User entity) {
// TODO Auto-generated method stub
return accountMapper.insert(entity);
}
public User select(User entity) {
// TODO Auto-generated method stub
return accountMapper.select(entity);
}
}
文件index.jsp 路径：webapp下
<html>
<body>
<%
request.getRequestDispatcher("/jsp/add.jsp").forward(request,response);
%>
</body>
</html>
文件error.jsp 路径：webapp/jsp下
<%@ page isELIgnored="false"%>
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
用户已经存在，<a href="/spring_test">返回</a>
</body>
</html>
文件add.jsp 路径：webapp/jsp下
<%@ page language="java" contentType="text/html; charset=utf-8"
pageEncoding="utf-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
<div>
<form action="testc/test" method="post">
<p>用户名：<input type="text" name="username"></p>
<p>密码：<input type="password" name="password"></p>
<p>邮箱：<input type="text" name="email"></p>
<p><input type="submit" value="添加用户"></p>
</form>
</div>
</body>
</html>
文件success.jsp 路径：webapp/jsp下
<%@ page isELIgnored="false"%>
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
恭喜，添加成功！<br />
用户名：${user.userName}<br />
密码：${user.password}<br />
邮箱：${user.email}<br />
邮箱：${userName}<br />
<a href="/spring_test">返回</a><br />
</body>
</html>
发布后访问本地地址 http://localhost:8080/spring_test 如
KO。。。。
上面我们提到插入到数据库是乱码，我们可以根据这篇文章解决：http://blog.csdn.net/zht666/article/details/8955952
|
|
QQ群⑧：
窥视卡
雷达卡
发表于 2016-11-27 08:29:58
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
