spring/struts/mybatis搭建开发环境

death114

• eclipse下新建一个web项目，项目结构图如下：




　　其中java文件夹存放以后编写的java文件，resource文件夹存放service、dao、struts的配置文件，sqlmap文件夹存放编程的sqlmap文件，datasource文件夹存放数据源配置的文件。
　　2.编写web.xml:

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
<display-name>water</display-name>
<context-param>
<param-name>configuration</param-name>
<param-value>WEB-INF/applicationContext*.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<listener>
<listener-class>
org.springframework.web.context.request.RequestContextListener</listener-class>
</listener>
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.FilterDispatcher</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<context-param>
<param-name>log4jConfigLocation</param-name>
<param-value>classpath:log4j.properties</param-value>
</context-param>
<listener>
<listener-class>
org.springframework.web.util.Log4jConfigListener
</listener-class>
</listener>
<filter>
<filter-name>encodingfilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingfilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<listener>
<listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
</listener>
</web-app>
　　3.applicationContext.xml文件的编写：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<!-- 导入数据源 -->
<import resource="classpath:datasource/spring-datasource.xml"/>
<!--  -->
<import resource="classpath:com/water3/resource/user/service/spring-user-service.xml"/>
<import resource="classpath:com/water3/resource/user/dao/spring-user-dao.xml"/>
//以上三个import是位于resource文件夹下配置文件，在此导入总配置文件中
</beans>
　　4.配置日志文件log4j.properties:

### set log levels ###
log4j.rootLogger = DEBUG, stdout,D
### 输出到控制台 ###
log4j.appender.stdout = org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern =  %d{ABSOLUTE} %5p %c:%L - %m%n
### 输出到日志文件 ###
log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
log4j.appender.D.File = logs/log.log
log4j.appender.D.Append = true
log4j.appender.D.Threshold = DEBUG
## 输出DEBUG级别以上的日志
log4j.appender.D.layout = org.apache.log4j.PatternLayout
log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n
### 保存异常信息到单独文件 ###
log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
log4j.appender.D.File = logs/error.log
## 异常日志文件名
log4j.appender.D.Append = true
log4j.appender.D.Threshold = ERROR
## 只输出ERROR级别以上的日志!!!
log4j.appender.D.layout = org.apache.log4j.PatternLayout
log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n
　　5.struts.xml文件引入公共配置：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.1.7//EN"
"http://struts.apache.org/dtds/struts-2.1.7.dtd">
<struts>
<constant name="struts.action.extension" value="do"></constant><!-- 请求action时url以.do结束 -->
<constant name="struts.multipart.maxSize" value="166976000" />
<constant name="struts.ui.theme" value="simple" />
<include file="struts-default.xml"></include>
<include file="struts_common.xml"></include>//这个文件存放拦截器之类的公共配置
<!-- 导入struts配置 -->
</include>

</struts>
　　6.数据文件配置water3.properties：

test.proxool.driver-class=com.mysql.jdbc.Driver
test.proxool.user=root
test.proxool.password=root
test.proxool.alias=test_proxool
test.proxool.driver-url=jdbc:mysql://XXXX:3306/test?characterEncoding=utf-8&useUnicode=true
test.proxool.house-keeping-sleep-time=40000
test.proxool.house-keeping-test-sql=SELECT ''
test.proxool.maximum-connection-count=20
test.proxool.minimum-connection-count=5
test.proxool.maximum-connection-lifetime=18000000
test.proxool.simultaneous-build-throttle=5
test.proxool.recently-started-threshold=40000
test.proxool.overload-without-refusal-lifetime=50000
test.proxool.maximum-active-time=60000
test.proxool.verbose=true
test.proxool.trace=true
test.proxool.fatal-sql-exception=Fatal error
##最少连接数
test.proxool.prototype-count=5
test.proxool.statistics-log-level=ERROR
　　spring-datasource.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<context:property-placeholder location="classpath:datasource/*.properties" />
<bean id="dataSource" class="org.logicalcobwebs.proxool.ProxoolDataSource">
<property name="driver">
<value>${test.proxool.driver-class}</value>
</property>
<property name="driverUrl">
<value>${test.proxool.driver-url}</value>
</property>
<property name="user">
<value>${test.proxool.user}</value>
</property>
<property name="password">
<value>${test.proxool.password}</value>
</property>
<property name="alias">
<value>${test.proxool.alias}</value>
</property>
<property name="maximumActiveTime">
<value>${test.proxool.maximum-active-time}</value>
</property>
<property name="houseKeepingSleepTime">
<value>${test.proxool.house-keeping-sleep-time}</value>
</property>
<property name="maximumConnectionCount">
<value>${test.proxool.maximum-connection-count}</value>
</property>
<property name="minimumConnectionCount">
<value>${test.proxool.minimum-connection-count}</value>
</property>
<property name="prototypeCount">
<value>${test.proxool.prototype-count}</value>
</property>
<property name="trace">
<value>${test.proxool.trace}</value>
</property>
<property name="statisticsLogLevel">
<value>${test.proxool.statistics-log-level}</value>
</property>
<property name="maximumConnectionLifetime">
<value>${test.proxool.maximum-connection-lifetime}</value>
</property>
</bean>
<!--配置spring事务管理 -->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource">
</property>
</bean>
<!--配置backendSessionFactory -->
<bean id="backendSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource">
<ref local="dataSource"></ref>
</property>
<property name="configLocation" value="classpath:datasource/water_datasource.xml"></property>
<property name="mapperLocations">
<list>
<value>classpath*:/sqlmap/**/sqlmap*.xml</value>
</list>
</property>
</bean>
</beans>
　　此处注意，mybatis需要配置一个别名文件water_datasource.xml,此文件一定要入如下配置。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0 //EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<typeAliases>
</typeAliases>

</configuration>

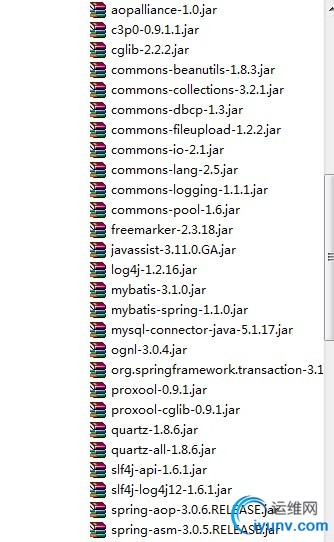

　　至此，项目基本搭建完毕，下图为所需的包：



 附：拦截器配置：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<package name="waterInterceptors" extends="struts-default">
<interceptors>
<interceptor name="myauthority" class="com.water3.java.interceptor.RequestListenerInsterceptor">
</interceptor>
<interceptor-stack name="mydefault">
<interceptor-ref name="defaultStack" />
<interceptor-ref name="myauthority" />
</interceptor-stack>
</interceptors>
<!-- 定义全局Result -->
<global-results>
<!-- 当返回login视图名时，转入/login.jsp页面 -->
<result name="success">/index.jsp</result>
</global-results>
</package>
</struts>
public class RequestListenerInsterceptor extends AbstractInterceptor{
/**
*
*/
private static final long serialVersionUID = 1088113971659489138L;
@Override
public String intercept(ActionInvocation invocation) throws Exception {
ActionContext act = invocation.getInvocationContext();
System.out.println("拦截器测试");
return invocation.invoke();
}
}
　　公共类：

//dao基类
public class BaseDaoImpl<T, PK extends Serializable> extends SqlSessionTemplate{
public BaseDaoImpl(SqlSessionFactory sqlSessionFactory) {
super(sqlSessionFactory);
}

}
//
public class ModelDrivenActionSupport<T> extends BaseActionSupport implements ScopedModelDriven<T>{
/**
*
*/
private static final long serialVersionUID = 4711438804682348737L;
private T model;
private String scope;
@Override
public T getModel() {
return model;
}
@Override
public String getScopeKey() {
return scope;
}
@Override
public void setModel(T model) {
this.model = model;
}
@Override
public void setScopeKey(String scope) {
this.scope = scope;
}
}
//
public class BaseActionSupport extends ActionSupport implements SessionAware,ServletRequestAware,ServletResponseAware{
/**
*
*/
private static final long serialVersionUID = -5514461732932831728L;
public static final String LIST = "list";
public static final String SAVE = "save";
public static final String NORESULT = "noresult";
private String priMsg;
ActionContext context = ActionContext.getContext();
HttpServletRequest request;
HttpServletResponse response;
@SuppressWarnings("rawtypes")
SessionMap session;

public String param(String paramName) {
return request.getParameter(paramName);
}
@SuppressWarnings("rawtypes")
public void setSession(Map map) {
this.session = (SessionMap) map;
}
public void setServletRequest(HttpServletRequest request) {
this.request = request;
}
public void setServletResponse(HttpServletResponse response) {
this.response = response;
}
public HttpServletRequest getRequest() {
return request;
}
public HttpServletResponse getResponse() {
return response;
}
public SessionMap getSession() {
return session;
}
public String getPriMsg() {
return priMsg;
}
public void setPriMsg(String priMsg) {
this.priMsg = priMsg;
}

}
