maven+springMVC+mybatis+junit详细搭建过程(转)

ab520025520025

springMVC+mybatis框架搭建
　　在上一遍博客中以及讲诉了新建maven项目的流程，现在紧跟上一遍文章，接着搭建spring项目
　　首先我们先要弄清搭建项目的一般流程，需要注意哪些方面，想要什么样的效果，自己的功能有哪些？
　　（假设效果：项目目录结构清晰，能够查询到本地数据库中的内容。。）
1.  工程目录结构整理清楚
　　在src/main/java文件夹中，新建包cn.springmvc.model(存放javabean),
　　cn.springmvc.dao（存放spring与mybatis连接接口）,
　　cn.springmvc.service（service接口）,
　　cn.springmvc.service.impl（service接口的实现），
　　cn.springmvc.controller（存放控制层controller）
　　在src/main/resource文件夹中，新建包conf（存放配置文件），
　　mapper（mybatis的mapper文件）
　　在src/test/java文件夹中，新建包cn.springmvc.test(存放测试文件)
　　在WEB-INF文件夹下新建jsp文件夹（存放jsp文件）
　　这样项目结构基本完成了
2.  引入依赖包
　　打开maven的pom文件，对本次开发所需使用的架包依次导入（maven项目管理的优势）
　　查找依赖结构有个不错的网站，http://search.maven.org/   只要输入包名即可查找引来关系
　　pom.xml(包依赖)
?123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">    <modelVersion>4.0.0</modelVersion>    <groupId>eyas.springmvc</groupId>    <artifactId>springmvc</artifactId>    <packaging>war</packaging>    <version>0.0.1-SNAPSHOT</version>    <name>springmvc Maven Webapp</name>    <url>http://maven.apache.org</url>    <properties>        <!-- spring版本号 -->        <spring.version>3.2.4.RELEASE</spring.version>        <!-- mybatis版本号 -->        <mybatis.version>3.2.4</mybatis.version>        <!-- log4j日志文件管理包版本 -->        <slf4j.version>1.6.6</slf4j.version>        <log4j.version>1.2.9</log4j.version>    </properties>    <dependencies>        <!-- spring核心包 -->        <!-- springframe start -->        <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-core</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-web</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-oxm</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-tx</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-jdbc</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-webmvc</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-aop</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-context-support</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-aop</artifactId>            <version>${spring.version}</version>        </dependency>         <dependency>            <groupId>org.springframework</groupId>            <artifactId>spring-test</artifactId>            <version>${spring.version}</version>        </dependency>        <!-- springframe end -->         <!-- mybatis核心包 -->        <dependency>            <groupId>org.mybatis</groupId>            <artifactId>mybatis</artifactId>            <version>${mybatis.version}</version>        </dependency>        <!-- mybatis/spring包 -->        <dependency>            <groupId>org.mybatis</groupId>            <artifactId>mybatis-spring</artifactId>            <version>1.2.2</version>        </dependency>        <!-- mysql驱动包 -->        <dependency>            <groupId>mysql</groupId>            <artifactId>mysql-connector-java</artifactId>            <version>5.1.29</version>        </dependency>        <!-- junit测试包 -->        <dependency>            <groupId>junit</groupId>            <artifactId>junit</artifactId>            <version>4.11</version>            <scope>test</scope>        </dependency>        <!-- 阿里巴巴数据源包 -->        <dependency>            <groupId>com.alibaba</groupId>            <artifactId>druid</artifactId>            <version>1.0.2</version>        </dependency>         <!-- json数据 -->        <dependency>            <groupId>org.codehaus.jackson</groupId>            <artifactId>jackson-mapper-asl</artifactId>            <version>1.9.13</version>        </dependency>         <!-- 日志文件管理包 -->        <!-- log start -->        <dependency>            <groupId>log4j</groupId>            <artifactId>log4j</artifactId>            <version>${log4j.version}</version>        </dependency>        <dependency>            <groupId>org.slf4j</groupId>            <artifactId>slf4j-api</artifactId>            <version>${slf4j.version}</version>        </dependency>        <dependency>            <groupId>org.slf4j</groupId>            <artifactId>slf4j-log4j12</artifactId>            <version>${slf4j.version}</version>        </dependency>        <!-- log end -->    </dependencies>    <build>        <finalName>springmvc</finalName>    </build></project>3. 配置数据库连接属性
　　conf/ jdbc.properties（jdbc配置文件)
?1234jdbc_driverClassName=com.mysql.jdbc.Driverjdbc_url=jdbc:mysql://localhost:3306/mydays?useUnicode=true&amp;characterEncoding=utf-8jdbc_username=rootjdbc_password=root4.  配置spring配置文件
　　conf/spring.xml(spring配置文件的扫描)
?123456789101112131415<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans      http://www.springframework.org/schema/beans/spring-beans-3.0.xsd      http://www.springframework.org/schema/context      http://www.springframework.org/schema/context/spring-context.xsd">     <!-- 引入jdbc配置文件 -->    <context:property-placeholder location="classpath:conf/jdbc.properties"/>         <!-- 扫描文件（自动将servicec层注入） -->    <context:component-scan base-package="cn.springmvc.service"/></beans>  conf/spring-mybatis.xml（spring与mybatis连接属性）?123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xmlns:p="http://www.springframework.org/schema/p"  xmlns:context="http://www.springframework.org/schema/context"  xmlns:aop="http://www.springframework.org/schema/aop"  xmlns:tx="http://www.springframework.org/schema/tx"  xmlns:util="http://www.springframework.org/schema/util"  xsi:schemaLocation="http://www.springframework.org/schema/beans    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd    http://www.springframework.org/schema/context    http://www.springframework.org/schema/context/spring-context-3.2.xsd    http://www.springframework.org/schema/tx    http://www.springframework.org/schema/tx/spring-tx-3.2.xsd    http://www.springframework.org/schema/aop    http://www.springframework.org/schema/aop/spring-aop-3.2.xsd    http://www.springframework.org/schema/util     http://www.springframework.org/schema/util/spring-util-3.2.xsd">     <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init"    destroy-method="close" >    <property name="driverClassName">      <value>${jdbc_driverClassName}</value>    </property>    <property name="url">      <value>${jdbc_url}</value>    </property>    <property name="username">      <value>${jdbc_username}</value>    </property>    <property name="password">      <value>${jdbc_password}</value>    </property>    <!-- 连接池最大使用连接数 -->    <property name="maxActive">      <value>20</value>    </property>    <!-- 初始化连接大小 -->    <property name="initialSize">      <value>1</value>    </property>    <!-- 获取连接最大等待时间 -->    <property name="maxWait">      <value>60000</value>    </property>    <!-- 连接池最大空闲 -->    <property name="maxIdle">      <value>20</value>    </property>    <!-- 连接池最小空闲 -->    <property name="minIdle">      <value>3</value>    </property>    <!-- 自动清除无用连接 -->    <property name="removeAbandoned">      <value>true</value>    </property>    <!-- 清除无用连接的等待时间 -->    <property name="removeAbandonedTimeout">      <value>180</value>    </property>    <!-- 连接属性 -->    <property name="connectionProperties">      <value>clientEncoding=UTF-8</value>    </property>  </bean>         <!-- mybatis文件配置，扫描所有mapper文件 -->      <bean id="sqlSessionFactory"          class="org.mybatis.spring.SqlSessionFactoryBean"          p:dataSource-ref="dataSource"          p:configLocation="classpath:conf/mybatis-config.xml"          p:mapperLocations="classpath:mapper/*.xml"/><!-- configLocation为mybatis属性 mapperLocations为所有mapper-->          <!-- spring与mybatis整合配置，扫描所有dao --> <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"        p:basePackage="cn.springmvc.dao"        p:sqlSessionFactoryBeanName="sqlSessionFactory"/>     <!-- 对数据源进行事务管理 -->  <bean id="transactionManager"        class="org.springframework.jdbc.datasource.DataSourceTransactionManager"        p:dataSource-ref="dataSource"/></beans>5.  java代码编写（model，dao，service层代码）
　　cn.springmvc.model/User.java(用户基本信息)
?123456789101112131415161718192021222324252627282930package cn.springmvc.model;  /** * 用户表 */public class User {     private int id;    private int state;    private String nickname;    public int getId() {        return id;    }    public void setId(int id) {        this.id =>    }    public int getState() {        return state;    }    public void setState(int state) {        this.state = state;    }    public String getNickname() {        return nickname;    }    public void setNickname(String nickname) {        this.nickname = nickname;    }}cn.springmvc.dao/UserDAO.java(dao操作接口)?12345678910111213141516package cn.springmvc.dao; import cn.springmvc.model.User;  public interface UserDAO {     /**     * 添加新用户     * @param user     * @return     */    public int insertUser(User user);          }　　cn.springmvc.service/UserService.java(service层接口)
?123456789package cn.springmvc.service; import cn.springmvc.model.User;  public interface UserService {     public int insertUser(User user);}cn.springmvc.service.impl/UserServiceImpl.java(service层接口实现)?1234567891011121314151617181920212223package cn.springmvc.service.impl; import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service; import cn.springmvc.dao.UserDAO;import cn.springmvc.model.User;import cn.springmvc.service.UserService;  @Servicepublic class UserServiceImpl implements UserService{     @Autowired    private UserDAO userDAO;         @Override    public int insertUser(User user) {        // TODO Auto-generated method stub        return userDAO.insertUser(user);    } }6.  mybatis配置
　　conf/mybatis-config.xml(mybatis配置的基本文件)
?1234567891011121314<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN""http://mybatis.org/dtd/mybatis-3-config.dtd"><configuration>        <!-- 命名空间 -->    <typeAliases>         <typeAlias alias="User" type="cn.springmvc.model.User"/>     </typeAliases>     <!-- 映射map -->    <mappers>    </mappers></configuration>mapper/UserMapper.xml(mybatis的实现)?1234567891011121314151617<?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN""http://mybatis.org/dtd/mybatis-3-mapper.dtd"><mapper namespace="cn.springmvc.dao.UserDAO">                     <insert id="insertUser" parameterType="User" keyProperty="id">             insert into days_user(           state,         nickname)          values          (                 #{state},         #{nickname})         </insert>          </mapper>这样就完成了基本插入用户的功能！7.  junit测试插入功能
　　cn.springmvc.test/UserTest.java(用户测试模块)

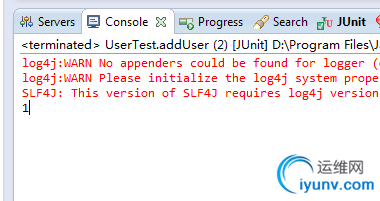

?1234567891011121314151617181920212223242526272829303132package cn.springmvc.test; import org.junit.Before;import org.junit.Test;import org.springframework.context.ApplicationContext;import org.springframework.context.support.ClassPathXmlApplicationContext; import cn.springmvc.model.User;import cn.springmvc.service.UserService;   public class UserTest { private UserService userService;         @Before    public void before(){                                                                            @SuppressWarnings("resource")        ApplicationContext context = new ClassPathXmlApplicationContext(new String[]{"classpath:conf/spring.xml"                ,"classpath:conf/spring-mybatis.xml"});        userService = (UserService) context.getBean("userServiceImpl");    }         @Test    public void addUser(){        User user = new User();        user.setNickname("你好");        user.setState(2);        System.out.println(userService.insertUser(user));    }}测试结果如图：

　　即完成插入功能！
8.  springMVC模块搭建
　　web.xml（web功能配置）
?12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576777879808182838485868788899091929394<?xml version="1.0" encoding="UTF-8"?><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"    xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"    id="WebApp_ID" version="2.5">    <display-name>Archetype Created Web Application</display-name>     <!-- 读取spring配置文件 -->    <context-param>        <param-name>contextConfigLocation</param-name>        <param-value>classpath:conf/spring.xml;            classpath:conf/spring-mybatis.xml        </param-value>    </context-param>    <!-- 设计路径变量值 -->    <context-param>        <param-name>webAppRootKey</param-name>        <param-value>springmvc.root</param-value>    </context-param>      <!-- Spring字符集过滤器 -->    <filter>        <filter-name>SpringEncodingFilter</filter-name>        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>        <init-param>            <param-name>encoding</param-name>            <param-value>UTF-8</param-value>        </init-param>        <init-param>            <param-name>forceEncoding</param-name>            <param-value>true</param-value>        </init-param>    </filter>    <filter-mapping>        <filter-name>SpringEncodingFilter</filter-name>        <url-pattern>/*</url-pattern>    </filter-mapping>     <!-- 日志记录 -->    <context-param>        <!-- 日志配置文件路径 -->        <param-name>log4jConfigLocation</param-name>        <param-value>classpath:conf/log4j.properties</param-value>    </context-param>    <context-param>        <!-- 日志页面的刷新间隔 -->        <param-name>log4jRefreshInterval</param-name>        <param-value>6000</param-value>    </context-param>    <listener>        <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>    </listener>     <listener>        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>    </listener>     <!-- springMVC核心配置 -->    <servlet>        <servlet-name>spring</servlet-name>        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>        <init-param>            <param-name>contextConfigLocation</param-name>            <param-value>classpath:conf/spring-mvc.xml</param-value>        </init-param>        <load-on-startup>2</load-on-startup>    </servlet>    <servlet-mapping>        <servlet-name>spring</servlet-name>        <url-pattern>*.do</url-pattern>    </servlet-mapping>     <welcome-file-list>        <welcome-file>index.jsp</welcome-file>    </welcome-file-list>     <!-- 错误跳转页面 -->    <error-page>        <!-- 路径不正确 -->        <error-code>404</error-code>        <location>/WEB-INF/errorpage/404.jsp</location>    </error-page>    <error-page>        <!-- 没有访问权限，访问被禁止 -->        <error-code>405</error-code>        <location>/WEB-INF/errorpage/405.jsp</location>    </error-page>    <error-page>        <!-- 内部错误 -->        <error-code>500</error-code>        <location>/WEB-INF/errorpage/500.jsp</location>    </error-page></web-app>conf/spring-mvc.xml(mvc配置文件)?123456789101112131415161718192021222324252627282930<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans"  xmlns:p="http://www.springframework.org/schema/p"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xmlns:context="http://www.springframework.org/schema/context"  xmlns:mvc="http://www.springframework.org/schema/mvc"  xsi:schemaLocation="    http://www.springframework.org/schema/beans    http://www.springframework.org/schema/beans/spring-beans-3.2.xsd    http://www.springframework.org/schema/context    http://www.springframework.org/schema/context/spring-context-3.2.xsd    http://www.springframework.org/schema/mvc    http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">         <!-- 扫描controller（controller层注入） -->   <context:component-scan base-package="cn.springmvc.controller"/>       <!-- 避免IE在ajax请求时，返回json出现下载 -->   <bean id="jacksonMessageConverter" class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">             <property name="supportedMediaTypes">            <list>                <value>text/html;charset=UTF-8</value>            </list>        </property>    </bean>        <!-- 对模型视图添加前后缀 -->     <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"      p:prefix="/WEB-INF/jsp/" p:suffix=".jsp"/></beans>9.  log4j日志记录搭建
　　conf/log4j.properties(日志记录的配置文件)
?1234567891011121314151617181920212223242526### set log levels ####log4j.rootLogger = debug , stdout , D , Elog4j.rootLogger = debug , stdout , D ###  output to the console ###log4j.appender.stdout = org.apache.log4j.ConsoleAppenderlog4j.appender.stdout.Target = System.outlog4j.appender.stdout.layout = org.apache.log4j.PatternLayout#log4j.appender.stdout.layout.ConversionPattern = %d{ABSOLUTE} %5p %c{ 1 }:%L - %m%nlog4j.appender.stdout.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [%c]-[%p] %m%n ### Output to the log file ###log4j.appender.D = org.apache.log4j.DailyRollingFileAppenderlog4j.appender.D.File = ${springmvc.root}/WEB-INF/logs/log.loglog4j.appender.D.Append = truelog4j.appender.D.Threshold = DEBUG log4j.appender.D.layout = org.apache.log4j.PatternLayoutlog4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [ %t:%r ] - [ %p ] %m%n ### Save exception information to separate file ###log4j.appender.D = org.apache.log4j.DailyRollingFileAppenderlog4j.appender.D.File = ${springmvc.root}/WEB-INF/logs/error.log log4j.appender.D.Append = truelog4j.appender.D.Threshold = ERROR log4j.appender.D.layout = org.apache.log4j.PatternLayoutlog4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [ %t:%r ] - [ %p ] %m%n10.  测试运行
　　WEB-INF/jsp/index.jsp(测试文件)
?123456789101112<%@ page language="java" contentType="text/html; charset=UTF-8"    pageEncoding="UTF-8"%><!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"><html><head><meta http-equiv="Content-Type" content="text/html; charset=UTF-8"><title>Insert></head><body><h1>欢迎你！！！</h1></body></html>cn.springmvc.controller/UserComtroller.java(controller层控制)?123456789101112131415package cn.springmvc.controller; import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping; @Controller@RequestMapping("/")public class UserController {     @RequestMapping("index")    public String index(){        return "index";    }     }　　将该项目部署到本地tomcat6中
　　右击该项目选择Run as，选择Run on Server
　　选择自己建立的tomcat6运行如图：

　　控制台打印出日志如图（启动成功）：

　　在浏览器中输入：http://localhost:8080/springmvc/index.do 进行测试
　　效果如图（返回成功）：
