MyBatis系列目录--5. MyBatis一级缓存和二级缓存(redis实现)

gwuj

 转载请注明出处哈:http://carlosfu.iyunv.com/blog/2238662





0. 相关知识：

查询缓存：绝大数系统主要是读多写少。

缓存作用：减轻数据库压力，提供访问速度。




1. 一级缓存测试用例

(1) 默认开启，不需要有什么配置

(2) 示意图




(3) 测试代码

package com.sohu.tv.cache;
import org.apache.ibatis.session.SqlSession;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import com.sohu.tv.bean.Player;
import com.sohu.tv.mapper.PlayerDao;
import com.sohu.tv.test.mapper.BaseTest;
/**
* 一级缓存测试
*
* @author leifu
* @Date 2015-8-3
* @Time 下午9:51:00
*/
public class FirstCacheTest extends BaseTest {
private SqlSession sqlSession;
private SqlSession sqlSessionAnother;

@Before
public void before() {
sqlSession = sessionFactory.openSession(false);
sqlSessionAnother = sessionFactory.openSession(false);
}
@After
public void after() {
sqlSession.close();
sqlSessionAnother.close();
}
@Test
public void test1() throws Exception {
PlayerDao playerDao = sqlSession.getMapper(PlayerDao.class);
Player player = playerDao.getPlayerById(1);
System.out.println(player);
playerDao = sqlSession.getMapper(PlayerDao.class);
player = playerDao.getPlayerById(1);
System.out.println(player);
playerDao = sqlSessionAnother.getMapper(PlayerDao.class);
player = playerDao.getPlayerById(1);
System.out.println(player);
}
@Test
public void test2() throws Exception {
PlayerDao playerDao = sqlSession.getMapper(PlayerDao.class);
Player player = playerDao.getPlayerById(1);
System.out.println(player);
//1. session清除或者提交
//        sqlSession1.commit();
//        sqlSession.clearCache();
//2. 增删改查
//        playerDao.savePlayer(new Player(-1, "abcd", 13));
//        playerDao.updatePlayer(new Player(4, "abcd", 13));
playerDao.deletePlayer(4);
player = playerDao.getPlayerById(1);
System.out.println(player);
}

}


2、二级缓存(自带 PerpetualCache)

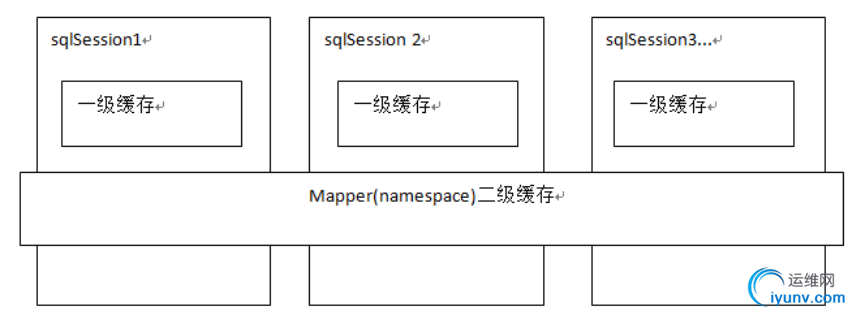

(0) 示意图





(1) 二级缓存需要开启

总配置文件中，二级缓存也是开启的，不需要设置

<setting name="cacheEnabled" value="true"/>
mapper级别的cache需要开启，在对应的mapper.xml写入

<!--开启本mapper的二级缓存-->
<cache/>
(2) 实体类在二级缓存中需要进行序列化，所以所有实体类需要实现Serializable

(3) 示例：

package com.sohu.tv.cache;
import org.apache.ibatis.session.SqlSession;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import com.sohu.tv.bean.Player;
import com.sohu.tv.mapper.PlayerDao;
import com.sohu.tv.test.mapper.BaseTest;
/**
* 二级缓存测试
*
* @author leifu
* @Date 2015-8-3
* @Time 下午10:10:34
*/
public class SecondCacheTest extends BaseTest {
private SqlSession sqlSession1 = sessionFactory.openSession();
private SqlSession sqlSession2 = sessionFactory.openSession();
private SqlSession sqlSession3 = sessionFactory.openSession();
private PlayerDao playerDao1;
private PlayerDao playerDao2;
private PlayerDao playerDao3;
@Before
public void before() {
sqlSession1 = sessionFactory.openSession(false);
sqlSession2 = sessionFactory.openSession(false);
sqlSession3 = sessionFactory.openSession(false);
playerDao1 = sqlSession1.getMapper(PlayerDao.class);
playerDao2 = sqlSession2.getMapper(PlayerDao.class);
playerDao3 = sqlSession3.getMapper(PlayerDao.class);
}
@After
public void after() {
sqlSession1.close();
sqlSession2.close();
sqlSession3.close();
}
@Test
public void test1() throws Exception {
int targetId = 1;
//session1 查询并提交
Player player1 = playerDao1.getPlayerById(targetId);
System.out.println("player1: " + player1);
sqlSession1.commit();
//session2 命中后，更新并提交清空缓存
Player player2 = playerDao2.getPlayerById(targetId);
System.out.println("player2: " + player2);
player2.setAge(15);
playerDao2.update(player2);
sqlSession2.commit();
//session3 不命中
Player player3 = playerDao3.getPlayerById(targetId);
System.out.println("player3: " + player3);
}
@Test
public void test2() throws Exception {
int one = 1;
int two = 2;
//session1 查询并提交
Player player1 = playerDao1.getPlayerById(one);
playerDao1.getPlayerById(two);
System.out.println("player1: " + player1);
sqlSession1.commit();
//session2 命中后，更新并提交清空缓存
Player player2 = playerDao2.getPlayerById(one);
System.out.println("player2: " + player2);
player2.setAge(15);
playerDao2.updatePlayer(player2);
sqlSession2.commit();
//session3 不命中
Player player3 = playerDao3.getPlayerById(two);
System.out.println("player3: " + player3);
}

}
(4) 重要日志：

22:24:37.191 [main] DEBUG com.sohu.tv.mapper.PlayerDao - Cache Hit Ratio [com.sohu.tv.mapper.PlayerDao]: 0.0
22:24:37.196 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Opening JDBC Connection
22:24:37.460 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Created connection 1695520324.
22:24:37.460 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:24:37.463 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - ==> Preparing: select id,name,age from players where id=?
22:24:37.520 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - ==> Parameters: 1(Integer)
22:24:37.541 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - <== Total: 1
player1: Player [id=1, name=kaka, age=60]
22:24:37.549 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:24:37.549 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:24:37.549 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Returned connection 1695520324 to pool.
22:29:13.203 [main] DEBUG com.sohu.tv.mapper.PlayerDao - Cache Hit Ratio [com.sohu.tv.mapper.PlayerDao]: 0.5
player3: Player [id=1, name=kaka, age=60]
22:29:13.204 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Opening JDBC Connection
22:29:13.204 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Checked out connection 1695520324 from pool.
22:29:13.204 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.205 [main] DEBUG c.s.tv.mapper.PlayerDao.updatePlayer - ==> Preparing: update players set name=?,age=? where id=?
22:29:13.207 [main] DEBUG c.s.tv.mapper.PlayerDao.updatePlayer - ==> Parameters: kaka(String), 60(Integer), 1(Integer)
22:29:13.208 [main] DEBUG c.s.tv.mapper.PlayerDao.updatePlayer - <== Updates: 1
22:29:13.210 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Committing JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.210 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.211 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.211 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Returned connection 1695520324 to pool.
22:29:13.211 [main] DEBUG com.sohu.tv.mapper.PlayerDao - Cache Hit Ratio [com.sohu.tv.mapper.PlayerDao]: 0.3333333333333333
22:29:13.211 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Opening JDBC Connection
22:29:13.212 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Checked out connection 1695520324 from pool.
22:29:13.212 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Setting autocommit to false on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.212 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - ==> Preparing: select id,name,age from players where id=?
22:29:13.213 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - ==> Parameters: 1(Integer)
22:29:13.214 [main] DEBUG c.s.t.mapper.PlayerDao.getPlayerById - <== Total: 1
player2: Player [id=1, name=kaka, age=60]
22:29:13.215 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Resetting autocommit to true on JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.216 [main] DEBUG o.a.i.t.jdbc.JdbcTransaction - Closing JDBC Connection [com.mysql.jdbc.JDBC4Connection@650f9644]
22:29:13.216 [main] DEBUG o.a.i.d.pooled.PooledDataSource - Returned connection 1695520324 to pool.








3、二级缓存(Redis版)

(1) redis使用一个简单的单点实例作为数据源:

引入jedis pom依赖：

<jedis.version>2.8.0</jedis.version>
<protostuff.version>1.0.8</protostuff.version>
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
<version>${jedis.version}</version>
</dependency>
<dependency>
<groupId>com.dyuproject.protostuff</groupId>
<artifactId>protostuff-runtime</artifactId>
<version>${protostuff.version}</version>
</dependency>
<dependency>
<groupId>com.dyuproject.protostuff</groupId>
<artifactId>protostuff-core</artifactId>
<version>${protostuff.version}</version>
</dependency>

jedis获取工具(使用jedispool)

package com.sohu.tv.redis;
import org.apache.commons.pool2.impl.GenericObjectPoolConfig;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import redis.clients.jedis.JedisPool;
/**
* jedisPool获取工具
*
* @author leifu
* @Date 2015年8月4日
* @Time 上午9:01:45
*/
public class RedisStandAloneUtil {
private final static Logger logger = LoggerFactory.getLogger(RedisStandAloneUtil.class);
/**
* jedis连接池
*/
private static JedisPool jedisPool;
/**
* redis-host
*/
private final static String REDIS_HOST = "10.10.xx.xx";
/**
* redis-port
*/
private final static int REDIS_PORT = 6384;
static {
try {
jedisPool = new JedisPool(new GenericObjectPoolConfig(), REDIS_HOST, REDIS_PORT);
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
public static JedisPool getJedisPool() {
return jedisPool;
}
public static void main(String[] args) {
System.out.println(RedisStandAloneUtil.getJedisPool().getResource().info());
}
}

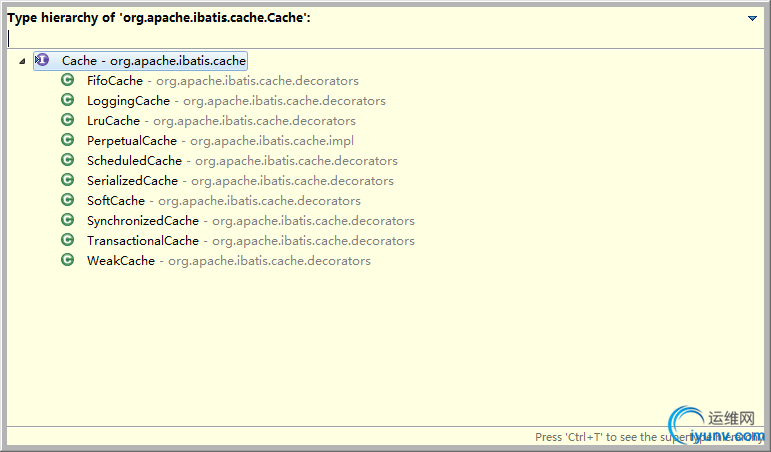

(2) 如果自己实现mybatis的二级缓存，需要实现org.apache.ibatis.cache.Cache接口，已经实现的有如下：





序列化相关工具代码：

package com.sohu.tv.redis.serializable;

import com.dyuproject.protostuff.LinkedBuffer;
import com.dyuproject.protostuff.ProtostuffIOUtil;
import com.dyuproject.protostuff.Schema;
import com.dyuproject.protostuff.runtime.RuntimeSchema;
import java.util.concurrent.ConcurrentHashMap;
public class ProtostuffSerializer {
private static ConcurrentHashMap<Class<?>, Schema<?>> cachedSchema = new ConcurrentHashMap<Class<?>, Schema<?>>();
public <T> byte[] serialize(final T source) {
VO<T> vo = new VO<T>(source);
final LinkedBuffer buffer = LinkedBuffer.allocate(LinkedBuffer.DEFAULT_BUFFER_SIZE);
try {
final Schema<VO> schema = getSchema(VO.class);
return serializeInternal(vo, schema, buffer);
} catch (final Exception e) {
throw new IllegalStateException(e.getMessage(), e);
} finally {
buffer.clear();
}
}
public <T> T deserialize(final byte[] bytes) {
try {
Schema<VO> schema = getSchema(VO.class);
VO vo = deserializeInternal(bytes, schema.newMessage(), schema);
if (vo != null && vo.getValue() != null) {
return (T) vo.getValue();
}
} catch (final Exception e) {
throw new IllegalStateException(e.getMessage(), e);
}
return null;
}
private <T> byte[] serializeInternal(final T source, final Schema<T> schema, final LinkedBuffer buffer) {
return ProtostuffIOUtil.toByteArray(source, schema, buffer);
}
private <T> T deserializeInternal(final byte[] bytes, final T result, final Schema<T> schema) {
ProtostuffIOUtil.mergeFrom(bytes, result, schema);
return result;
}
private static <T> Schema<T> getSchema(Class<T> clazz) {
@SuppressWarnings("unchecked")
Schema<T> schema = (Schema<T>) cachedSchema.get(clazz);
if (schema == null) {
schema = RuntimeSchema.createFrom(clazz);
cachedSchema.put(clazz, schema);
}
return schema;
}
}



package com.sohu.tv.redis.serializable;

import java.io.Serializable;
public class VO<T> implements Serializable {
private T value;
public VO(T value) {
this.value = value;
}
public VO() {
}
public T getValue() {
return value;
}
@Override
public String toString() {
return "VO{" +
"value=" + value +
'}';
}
}



Redis需要自己来实现，代码如下：

package com.sohu.tv.redis;
import java.util.concurrent.locks.ReadWriteLock;
import java.util.concurrent.locks.ReentrantReadWriteLock;
import org.apache.ibatis.cache.Cache;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import redis.clients.jedis.Jedis;
import redis.clients.jedis.serializable.ProtostuffSerializer;
/**
* mybatis redis实现
*
* @author leifu
* @Date 2015年8月4日
* @Time 上午9:12:37
*/
public class MybatisRedisCache implements Cache {
private static Logger logger = LoggerFactory.getLogger(MybatisRedisCache.class);
private String id;
private final ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
private final ProtostuffSerializer protostuffSerializer = new ProtostuffSerializer();
public MybatisRedisCache(final String id) {
if (logger.isInfoEnabled()) {
logger.info("============ MybatisRedisCache id {} ============", id);
}
if (id == null) {
throw new IllegalArgumentException("Cache instances require an ID");
}
this.id = id;
}
@Override
public String getId() {
return this.id;
}
@Override
public int getSize() {
Jedis jedis = null;
int size = -1;
try {
jedis = RedisStandAloneUtil.getJedisPool().getResource();
size = Integer.valueOf(jedis.dbSize().toString());
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
if (jedis != null) {
jedis.close();
}
}
return size;
}
@Override
public void putObject(Object key, Object value) {
if (logger.isInfoEnabled()) {
logger.info("============ putObject key: {}, value: {} ============", key, value);
}
Jedis jedis = null;
try {
jedis = RedisStandAloneUtil.getJedisPool().getResource();
byte[] byteKey = protostuffSerializer.serialize(key);
byte[] byteValue = protostuffSerializer.serialize(value);
jedis.set(byteKey, byteValue);
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
if (jedis != null) {
jedis.close();
}
}
}
@Override
public Object getObject(Object key) {
if (logger.isInfoEnabled()) {
logger.info("============ getObject key: {}============", key);
}
Object object = null;
Jedis jedis = null;
try {
jedis = RedisStandAloneUtil.getJedisPool().getResource();
byte[] bytes = jedis.get(protostuffSerializer.serialize(key));
if (bytes != null) {
object = protostuffSerializer.deserialize(bytes);
}
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
if (jedis != null) {
jedis.close();
}
}
return object;
}
@Override
public Object removeObject(Object key) {
if (logger.isInfoEnabled()) {
logger.info("============ removeObject key: {}============", key);
}
String result = "success";
Jedis jedis = null;
try {
jedis = RedisStandAloneUtil.getJedisPool().getResource();
jedis.del(String.valueOf(key));
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
if (jedis != null) {
jedis.close();
}
}
return result;
}
@Override
public void clear() {
if (logger.isInfoEnabled()) {
logger.info("============ start clear cache ============");
}
String result = "fail";
Jedis jedis = null;
try {
jedis = RedisStandAloneUtil.getJedisPool().getResource();
result = jedis.flushAll();
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
if (jedis != null) {
jedis.close();
}
}
if (logger.isInfoEnabled()) {
logger.info("============ end clear cache result is {}============", result);
}
}
@Override
public ReadWriteLock getReadWriteLock() {
return readWriteLock;
}
}


(3) mapper配置中加入自定义redis二级缓存：



<cache type="com.sohu.tv.redis.MybatisRedisCache"/>
(4) 单元测试同第二节
