elasticsearch5.0集群部署及故障测试

2321212dd · 发表于 2016-11-28 11:14:17

本文主要介绍两节点集群部署，节点故障测试，模拟验证集群脑裂现象。

一、实验环境

节点1:192.168.115.11

节点1:192.168.115.12

版本：5.0.1

二、安装配置

具体部署过程见单机版

1.修改配置文件

1
2
3
4
5
6
7
8
9
10

cat elasticsearch.yml
cluster.name: hnrtest
node.name: hnr01
path.data: /data/elasticsearch5/data
path.logs: /data/elasticsearch5/logs
network.host: 192.168.115.11
discovery.zen.ping.unicast.hosts: ["192.168.115.11", "192.168.115.12"]
discovery.zen.minimum_master_nodes: 1 # 由于只部署两个节点，因此设置为1，否则当master宕机，将无法重新选取master
http.cors.enabled: true
http.cors.allow-origin: "*"

2.启动服务

分别启动两台服务

su - elasticsearch-c "/usr/local/elasticsearch/bin/elasticsearch &"

三、验证

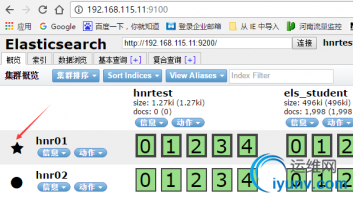

1.通过head插件连接查看

日志信息，提示配置的discovery.zen.minimum_master_nodes太少了

[2016-11-22T14:30:38,276][INFO][o.e.c.s.ClusterService ] [hnr01]added{{hnr02}{L-jKkvuDQOWw8G6aCF8lPQ}{kCIS2DSDQvS-msW_k8cXIw}{192.168.115.12}{192.168.115.12:9300},},reason: zen-disco-node-join[{hnr02}{L-jKkvuDQOWw8G6aCF8lPQ}{kCIS2DSDQvS-msW_k8cXIw}{192.168.115.12}{192.168.115.12:9300}]

[2016-11-22T14:30:38,824][WARN][o.e.d.z.ElectMasterService] [hnr01] value for setting"discovery.zen.minimum_master_nodes" is too low. This can result indata loss! Please set it to at least a quorum of master-eligible nodes (currentvalue: [1], total number of master-eligible nodes used for publishing in thisround: [2])

[2016-11-22T14:30:41,468][INFO][o.e.c.r.a.AllocationService] [hnr01] Cluster health status changed from[YELLOW] to [GREEN] (reason: [shards started [[hnrtest][4]] ...]).

2.批量插入数据

使用python脚本插入数据，提前安装模块

pip3install elasticsearch

1
2
3
4
5
6
7
8

#!/usr/bin/env python
# -*- coding: utf-8 -*-
from elasticsearch import Elasticsearch
from datetime import datetime
# 创建连接
es = Elasticsearch(hosts='192.168.115.11')
for i in range(1,1000):
es.index(index='els_student', doc_type='test-type', id=i, body={"name": "student" + str(i), "age": (i % 100), "timestamp": datetime.now()})

四、故障测试

1.关闭hnr01节点，此时hnr02提升为主节点

重新选举master日志

[2016-11-22T14:29:13,491][INFO][o.e.c.s.ClusterService ] [hnr02]detected_master{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300},added {{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300},},reason: zen-disco-receive(from master [master{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300}committed version [7]])

[2016-11-22T14:29:14,034][INFO][o.e.h.HttpServer ] [hnr02]publish_address {192.168.115.12:9200}, bound_addresses {192.168.115.12:9200}

[2016-11-22T14:29:14,034][INFO][o.e.n.Node ] [hnr02]started

[2016-11-22T15:43:41,575][INFO][o.e.d.z.ZenDiscovery ] [hnr02]master_left[{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300}],reason [shut_down]

[2016-11-22T15:43:41,584][WARN][o.e.d.z.ZenDiscovery ] [hnr02]master left (reason = shut_down), current nodes:{{hnr02}{L-jKkvuDQOWw8G6aCF8lPQ}{kCIS2DSDQvS-msW_k8cXIw}{192.168.115.12}{192.168.115.12:9300},}

[2016-11-22T15:43:41,587][INFO][o.e.c.s.ClusterService ] [hnr02]removed{{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300},},reason: master_failed ({hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{73M2VfECTi2wfJO6WYR5Dw}{192.168.115.11}{192.168.115.11:9300})

[2016-11-22T15:43:44,654][INFO][o.e.c.r.a.AllocationService] [hnr02] Cluster healthstatus changed from [GREEN] to [YELLOW] (reason: [removed dead nodes onelection]).

[2016-11-22T15:43:44,704][INFO][o.e.c.s.ClusterService ] [hnr02]new_master{hnr02}{L-jKkvuDQOWw8G6aCF8lPQ}{kCIS2DSDQvS-msW_k8cXIw}{192.168.115.12}{192.168.115.12:9300},reason: zen-disco-elected-as-master ([0] nodes joined)

[2016-11-22T15:43:44,712][INFO][o.e.c.r.DelayedAllocationService] [hnr02] scheduling reroute for delayedshards in [59.9s] (15 delayed shards)

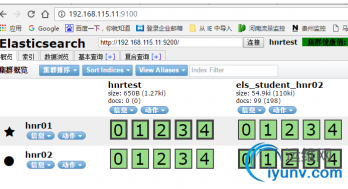

2.重新启动hnr01节点

master上日志输出

[2016-11-22T15:49:40,458][INFO][o.e.c.s.ClusterService ] [hnr02]added{{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{6RHGfHU7RdC5hWVlgQg7WQ}{192.168.115.11}{192.168.115.11:9300},},reason: zen-disco-node-join[{hnr01}{dr7haiVXSc2Pz8V9lHUr1Q}{6RHGfHU7RdC5hWVlgQg7WQ}{192.168.115.11}{192.168.115.11:9300}]

[2016-11-22T15:49:41,039][WARN][o.e.d.z.ElectMasterService] [hnr02] value for setting"discovery.zen.minimum_master_nodes" is too low. This can result indata loss! Please set it to at least a quorum of master-eligible nodes (currentvalue: [1], total number of master-eligible nodes used for publishing in thisround: [2])

[2016-11-22T15:49:50,276][INFO][o.e.c.r.a.AllocationService] [hnr02] Cluster healthstatus changed from [YELLOW] to [GREEN] (reason: [shards started[[hnrtest][4]] ...]).

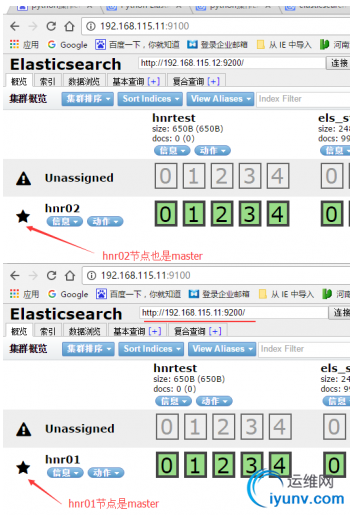

五、集群脑裂验证
