hadoop环境配置（虚拟机安装、JDK、SSH免密登录）

ddlddx0000

宿主机：
操作系统：Microsoft Windows 7 旗舰版 Service Pack 1 (build 7601), 32-bit
处理器：Intel(R) Core(TM)2 Duo CPU     T5870  @ 2.00GHz 双核
内存：3.00 GB
硬盘：日立 HITACHI HTS543225L9SA00(250GB)  使用时间：5922小时  温度：45℃
IP地址：192.168.0.17(内网)

一、服务器规划
3个虚拟linux服务器，每个分配8G硬盘，256M内存，一个作为master，另外2个作为slave，都建立hadoop用户。
　　Master 机器主要配置NameNode 和JobTracker 的角色，负责总管分布式数据和分解任务的执行；
　　2 个Salve 机器配置DataNode 和TaskTracker 的角色，负责分布式数据存储以及任务的执行。
1）master节点：
虚拟机名称：Red Hat_1_Master
hostname：master.hado0p
IP：192.168.70.101
2）slave01节点
虚拟机名称：Red Hat_2_Slave01
hostname：slave01.hadoop
IP：192.169.70.102
3）slave02节点
虚拟机名称：Red Hat_3_Slave02
hostname：slave02.hadoop
IP：192.168.70.103

二、安装虚拟机
虚拟机：vmware workstation 9.0
操作系统：rhel-server-6.4-i386

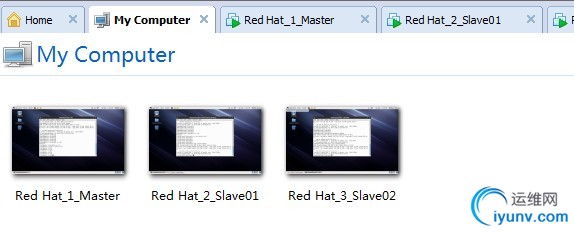

安装过程略，说一下clone，装完一个redhat后，可使用clone方法，克隆另外2个虚拟系统
方法：

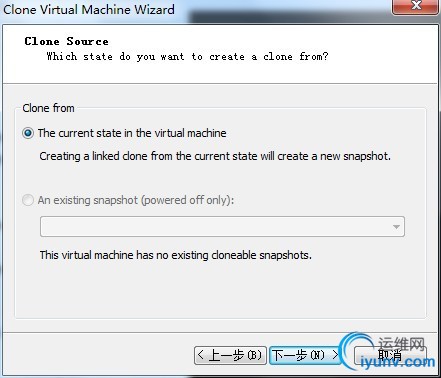

Red Hat_1_Master power off，右键Manage-->Clone

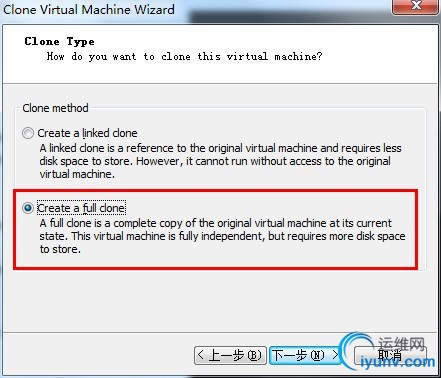

Next，选择 create a full clone

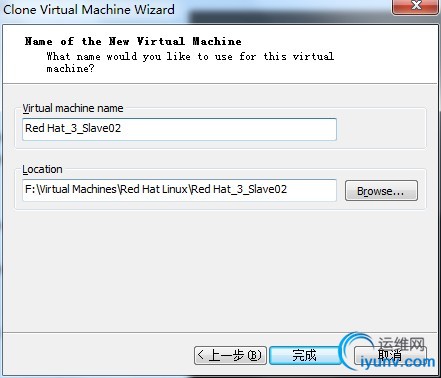

命名虚拟机名称，选择目录

 完成clone。


 三、IP，hosts配置（root用户）
按照一的规划配置IP。
注意：clone的系统，网卡eth0的MAC地址都一样，先将clone出的2台mac改掉：

vi /etc/udev/rules.d/70-persistent-net.rules
删掉eth0的配置，将eth1改为eth0，保存退出；

vi /etc/sysconfig/network-scripts/ifcfg-eth0
将HWADDR值改为rules文件修改后的eth0 MAC，over。
1、修改hostname

vi /etc/hosts
每个节点的hosts文件，添加：

192.168.70.101  master.hadoop
192.168.70.102  slave01.hadoop
192.168.70.103  slave02.hadoop
保存，退出。
2、修改固定IP


vi /etc/sysconfig/network-scripts/ifcfg-eth0


DEVICE="eth0"
BOOTPROTO=static    #静态IP
HWADDR="00:0c:29:cd:32:a1"
IPADDR=192.168.70.102    #IP地址
NETMASK=255.255.255.0   #子网掩码
GATEWAY=192.168.70.2    #默认网关
IPV6INIT="yes"
NM_CONTROLLED="yes"
ONBOOT="yes"
TYPE="Ethernet"
UUID="dd883cbe-f331-4f3a-8972-fd0e24e94704"


保存，退出；其它二台如法炮制。
3、


vi /etc/sysconfig/network


NETWORKING=yes
HOSTNAME=slave01.hadoop    #hostname
GATEWAY=192.168.70.2    #默认网关

保存，退出；其它二台同样修改。

重启network服务，查看IP，宿主机、三台虚拟机器互ping。

四、安装JDK    jdk-6u45-linux-i586.bin
从宿主机通过sftp上传到master节点 /usr目录


chmod +x jdk-6u45-linux-i586.bin
./jdk-6u45-linux-i586.bin

当前目录会unpack出jdk1.6.0_45目录，修改系统环境变量（所有用户生效）


vi /etc/profile

末尾添加：


JAVA_HOME=/usr/jdk1.6.0_45
export JAVA_HOME
PATH=$PATH:$JAVA_HOME/bin
export PATH
CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export CLASSPATH


保存，退出；其它二台做同样配置。
加载环境变量：

source /etc/profile
测试：

java -version

五、ssh免密登录
1、开启认证（root）

[iyunv@master usr]# vi /etc/ssh/sshd_config


#解除注释
RSAAuthentication yes
PubkeyAuthentication yes
AuthorizedKeysFile      .ssh/authorized_keys
#AuthorizedKeysCommand none
#AuthorizedKeysCommandRunAs nobody
 2、生成证书公私密钥（hadoop）

[master@master ~]$ ssh-keygen -t dsa -P '' -f ~/.ssh/id_dsa
Generating public/private dsa key pair.
Your identification has been saved in /home/master/.ssh/id_dsa.
Your public key has been saved in /home/master/.ssh/id_dsa.pub.
The key fingerprint is:
f5:a6:3b:8f:cf:dd:e7:94:1f:64:37:f4:44:b1:71:e8 master@master.hadoop
The key's randomart image is:
+--[ DSA 1024]----+
|               ++|
|              ..+|
|          .  . o.|
|         . .  E..|
|        S   o  +o|
|           o  o +|
|          .    o.|
|          .+ . o+|
|          o++ ..=|
+-----------------+
[master@master ~]$


Id_dsa.pub为公钥，id_dsa为私钥
    将公钥文件复制成authorized_keys文件 到.ssh目录

[master[size=1em]@master ~]# cd .ssh/
[master[size=1em]@master .ssh]# ls
id_dsa  id_dsa.pub  known_hosts
[master[size=1em]@master .ssh]#
[master[size=1em]@master .ssh]#
[master[size=1em]@master .ssh]# cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys
[master[size=1em]@master .ssh]#
[master[size=1em]@master .ssh]#
[master@master .ssh]$ ll
total 16
-rw-------. 1 master master  610 Oct 21 06:49 authorized_keys
-rw-------. 1 master master  668 Oct 21 06:48 id_dsa
-rw-r--r--. 1 master master  610 Oct 21 06:48 id_dsa.pub
-rw-r--r--. 1 master master 1181 Oct 21 06:50 known_hosts





 3、测试登录

[hadoop@master .ssh]$ ssh localhost
 期望结果是不需要输入密码，事与愿违：

[hadoop@master .ssh]$ ssh localhost
hadoop@localhost's password:
 找原因：

[hadoop@master .ssh]$ ssh -v localhost
OpenSSH_5.3p1, OpenSSL 1.0.0-fips 29 Mar 2010
debug1: Reading configuration data /etc/ssh/ssh_config
debug1: Applying options for *
debug1: Connecting to localhost [::1] port 22.
debug1: Connection established.
debug1: identity file /home/hadoop/.ssh/identity type -1
debug1: identity file /home/hadoop/.ssh/id_rsa type -1
debug1: identity file /home/hadoop/.ssh/id_dsa type 2
...
...
debug1: No valid Key exchange context
debug1: Next authentication method: gssapi-with-mic
debug1: Unspecified GSS failure.  Minor code may provide more information
Credentials cache file '/tmp/krb5cc_500' not found
debug1: Unspecified GSS failure.  Minor code may provide more information
Credentials cache file '/tmp/krb5cc_500' not found
debug1: Unspecified GSS failure.  Minor code may provide more information

debug1: Unspecified GSS failure.  Minor code may provide more information
Credentials cache file '/tmp/krb5cc_500' not found
debug1: Next authentication method: publickey
debug1: Trying private key: /home/hadoop/.ssh/identity
debug1: Trying private key: /home/hadoop/.ssh/id_rsa
debug1: Offering public key: /home/hadoop/.ssh/id_dsa
debug1: Authentications that can continue: publickey,gssapi-keyex,gssapi-with-mic,password
debug1: Next authentication method: password
hadoop@localhost's password:
 切root，看日志：

[iyunv@master ~]# tail -30 /var/log/secure
Sep  7 05:57:59 master sshd[3960]: Received signal 15; terminating.
Sep  7 05:57:59 master sshd[4266]: Server listening on 0.0.0.0 port 22.
Sep  7 05:57:59 master sshd[4266]: Server listening on :: port 22.
Sep  7 05:58:05 master sshd[4270]: Accepted password for root from ::1 port 44995 ssh2
Sep  7 05:58:06 master sshd[4270]: pam_unix(sshd:session): session opened for user root by (uid=0)
Sep  7 06:06:43 master su: pam_unix(su:session): session opened for user hadoop by root(uid=0)
Sep  7 06:07:09 master sshd[4395]: Authentication refused: bad ownership or modes for file /home/hadoop/.ssh/authorized_keys
Sep  7 06:07:09 master sshd[4395]: Authentication refused: bad ownership or modes for file /home/hadoop/.ssh/authorized_keys
 改权限：

chmod 600 ~/.ssh/authorized_keys
 再测试，通过。

[iyunv@master .ssh]# ssh localhost
The authenticity of host 'localhost (::1)' can't be established.
RSA key fingerprint is 10:e8:ce:b5:2f:d8:e7:18:82:5a:92:06:6a:0d:6d:c2.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'localhost' (RSA) to the list of known hosts.
[iyunv@master ~]#

4、公钥分发给slave节点，从而master可以免密码登录到slave

[hadoop@master .ssh]$ scp id_dsa.pub hadoop@slave01.hadoop:/home/hadoop/master.id_dsa.pub
[hadoop@master .ssh]$ scp id_dsa.pub hadoop@slave02.hadoop:/home/hadoop/master.id_dsa.pub
 5、在slave节点上，将master的认证密钥追加到authorized_keys

[hadoop@slave02 ~]$ cat master.id_dsa.pub > .ssh/authorized_keys
 6、从master主机ssh登录slave

[hadoop@master .ssh]$ ssh slave01.hadoop
Last login: Sat Sep  7 06:15:35 2013 from localhost
[hadoop@slave01 ~]$ exit
logout
Connection to slave01.hadoop closed.
[hadoop@master .ssh]$
[hadoop@master .ssh]$
[hadoop@master .ssh]$ ssh slave02.hadoop
Last login: Sat Sep  7 06:16:24 2013 from localhost
[hadoop@slave02 ~]$ exit
logout
Connection to slave02.hadoop closed.
 不需要密码了，done。
 注：目前实现的是master免密登录slave，如果要实现各个节点彼此免密，可将各个节点的公钥整合到一个临时文件，然后将内容覆盖到各个authorized_keys，省去很多分发、追加的操作。
