 一、现象

    1. 报警：我们的redis私有云有几百个redis实例，对于每个实例的存活，都有定时任务会每隔5分钟，重试多次ping命令去检查它的存活性，比如多次都ping不通，这时候就会收到报警短信： xxx系统-实例(10.10.xx.xx:xxxx)-由运行中变为心跳停止。这时候我就会去线上看一下出现了哪些问题。

    2. 检测代码：比较简易，但是比较有效。


public boolean isRun(final String ip, final int port) {
boolean isRun = new IdempotentConfirmer() {
private int timeOutFactor = 1;
@Override
public boolean execute() {
Jedis jedis = new Jedis(ip, port);
try {
jedis.getClient().setConnectionTimeout(Protocol.DEFAULT_TIMEOUT * (timeOutFactor++));
jedis.getClient().setSoTimeout(Protocol.DEFAULT_TIMEOUT * (timeOutFactor++));
String pong = jedis.ping();
return pong != null && pong.equalsIgnoreCase("PONG");
} catch (JedisDataException e) {
String message = e.getMessage();
logger.warn(e.getMessage());
if (StringUtils.isNotBlank(message) && message.startsWith("LOADING")) {
return true;
}
return false;
} catch (Exception e) {
logger.warn("{}:{} error message is {} ", ip, port, e.getMessage());
return false;
} finally {
jedis.close();
}
}
}.run();
return isRun;
}
    一个简易的幂等操作器：

package com.sohu.cache.util;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
* 幂等操作器
*/
public abstract class IdempotentConfirmer {
private final Logger logger = LoggerFactory.getLogger(this.getClass());
private int retry = 3;
protected IdempotentConfirmer(int retry) {
this.retry = retry;
}
public IdempotentConfirmer() {
}
public abstract boolean execute();
public boolean run() {
while (retry-- > 0) {
try {
boolean isOk = execute();
if (isOk){
return true;
}
} catch (Exception e) {
logger.error(e.getMessage(), e);
continue;
}
}
return false;
}
}


二、Redis-Cluster的拓扑结构

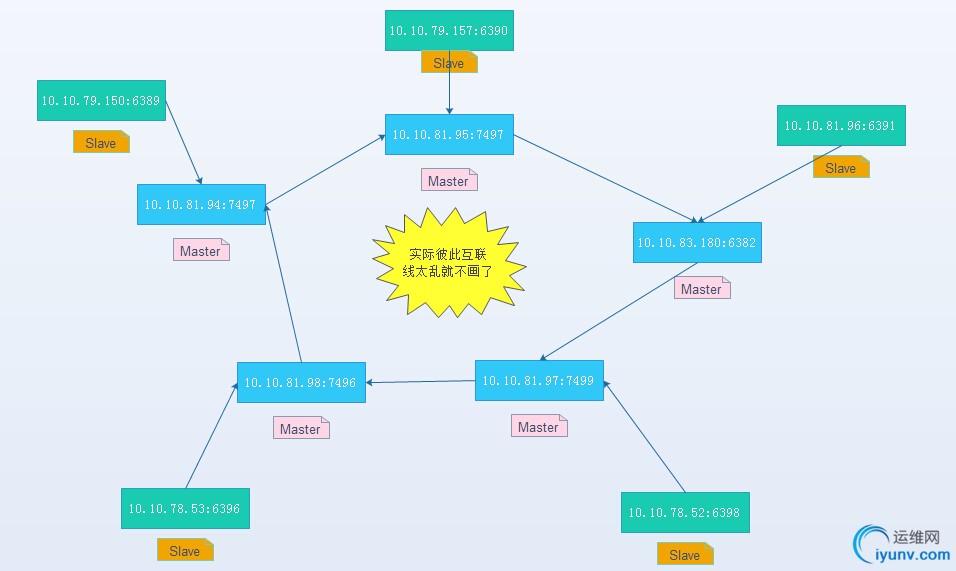

1. 拓扑图：

 2. 拓扑表

nodeidip:portreplication status
b6073bedf256d45e1dce97cd9242bb4789d5234310.10.81.94:7497master
efc1dfb19e120a2f41e0cec3d03d02f43e16823810.10.79.150:6389　　slave

792a356d3cd1474b8f1374aba1e5ceced1c6868d 10.10.81.95:7497　　master

472823a5f04ad10027b3cde2672cc33f5accdf9910.10.79.157:6390slave
19544b078897d8999b68a41f2538a20cbf84288d10.10.83.180:6382master
74d5cda02571651bba185cbc1b10d5810d048ac310.10.81.96:6391slave
b95759d39b6714544917e4aefa383b4de80f871c10.10.81.97:7499master
3379f2da275825c9ce4e476820254ccaf7b997d110.10.78.52:6398slave
5711268a4881b723273e618894ba9276b27a297f10.10.81.98:7496master
5b2aa80014f168fd26c246104b5f6adf6426275e10.10.78.53:6396slave



三、日志分析：

   1. [10:35:09] 10.10.81.97:7499（b95759d39b6714544917e4aefa383b4de80f871c）发现10.10.81.94:7497（b6073bedf256d45e1dce97cd9242bb4789d52343）不可达：

4051:M 26 Nov 10:35:09.768 * Marking node b6073bedf256d45e1dce97cd9242bb4789d52343 as failing (quorum reached).

   2.10.10.81.97:7499（b95759d39b6714544917e4aefa383b4de80f871c）通过gossip协议广播10.10.81.94:7497（b6073bedf256d45e1dce97cd9242bb4789d52343）失败的信息，其他实例收到了这个流言：

29177:S 26 Nov 10:35:10.939 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343

   3.投票：（在redisCluster中，只有Master会参与投票，因为从节点只是负责备份用），进入新的epoch

9611:M 26 Nov 10:35:12.068 # Failover auth granted to efc1dfb19e120a2f41e0cec3d03d02f43e168238 for epoch 18

   redis源码：

// 主机已经是一个出错节点了，自己作为从机可以升级为主机
void clusterHandleSlaveFailover(void) {
......
// 故障修复超时，重新启动故障修复
if (auth_age > auth_retry_time) { // 两次故障修复间隔不能过短
// 更新一些时间
......
redisLog(REDIS_WARNING,
"Start of election delayed for %lld milliseconds "
"(rank #%d, offset %lld).",
server.cluster->failover_auth_time - mstime(),
server.cluster->failover_auth_rank,
replicationGetSlaveOffset());
// 告知其他从机
/* Now that we have a scheduled election, broadcast our offset
* to all the other slaves so that they'll updated their offsets
* if our offset is better. */
clusterBroadcastPong(CLUSTER_BROADCAST_LOCAL_SLAVES);
return;
}
......
// 开头投票
/* Ask for votes if needed. */
if (server.cluster->failover_auth_sent == 0) {
server.cluster->currentEpoch++;
server.cluster->failover_auth_epoch = server.cluster->currentEpoch;
redisLog(REDIS_WARNING,"Starting a failover election for epoch %llu.",
(unsigned long long) server.cluster->currentEpoch);
clusterRequestFailoverAuth();
server.cluster->failover_auth_sent = 1;
clusterDoBeforeSleep(CLUSTER_TODO_SAVE_CONFIG|
CLUSTER_TODO_UPDATE_STATE|
CLUSTER_TODO_FSYNC_CONFIG);
return; /* Wait for replies. */
}
}


   4. 投票结果:
   (1) 10.10.79.150:6389是新的master, 成功执行了failover

3173:S 26 Nov 10:35:11.003 # Start of election delayed for 515 milliseconds (rank #0, offset 21516181352).
3173:S 26 Nov 10:35:11.606 # Starting a failover election for epoch 18.
3173:S 26 Nov 10:35:11.660 # Failover election won: I'm the new master.
3173:S 26 Nov 10:35:11.660 # configEpoch set to 18 after successful failover

   (2) 原来的master:10.10.81.94:7497(主) ，收到了判决书：节点失败(fail), 授权10.10.79.150:6389为它的master, 修改自己的cluster nodes, 没有了slave, cluster status ok, 开始主从复制...

3022:M 26 Nov 10:35:15.560 # Cluster state changed: fail
3022:M 26 Nov 10:35:15.562 # Failover auth denied to efc1dfb19e120a2f41e0cec3d03d02f43e168238: its master is up
3022:M 26 Nov 10:35:15.595 # Configuration change detected. Reconfiguring myself as a replica of efc1dfb19e120a2f41e0cec3d03d02f43e168238
3022:S 26 Nov 10:35:15.595 # Connection with slave 10.10.79.150:6389 lost.
3022:S 26 Nov 10:35:15.616 # Cluster state changed: ok
.................

   (3)新的主从通信成功，主从关系确定

 5. 其他机器开始，认定新的slave

7925:S 26 Nov 10:36:20.879 * Marking node b6073bedf256d45e1dce97cd9242bb4789d52343 as failing (quorum reached).
7925:S 26 Nov 10:35:33.603 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.

 6. 完整日志
    (1). 10.10.81.94:7497(主)

3022:M 26 Nov 10:35:15.560 # Cluster state changed: fail
3022:M 26 Nov 10:35:15.562 # Failover auth denied to efc1dfb19e120a2f41e0cec3d03d02f43e168238: its master is up
3022:M 26 Nov 10:35:15.595 # Configuration change detected. Reconfiguring myself as a replica of efc1dfb19e120a2f41e0cec3d03d02f43e168238
3022:S 26 Nov 10:35:15.595 # Connection with slave 10.10.79.150:6389 lost.
3022:S 26 Nov 10:35:15.616 # Cluster state changed: ok
3022:S 26 Nov 10:35:16.061 * Connecting to MASTER 10.10.79.150:6389
3022:S 26 Nov 10:35:16.061 * MASTER <-> SLAVE sync started
3022:S 26 Nov 10:35:16.062 * Non blocking connect for SYNC fired the event.
3022:S 26 Nov 10:35:16.062 * Master replied to PING, replication can continue...
3022:S 26 Nov 10:35:16.062 * Partial resynchronization not possible (no cached master)
3022:S 26 Nov 10:35:16.062 * Full resync from master: 80ac45a2b236fc44ebbef3d851e535bcbdd6367b:21516181353
3022:S 26 Nov 10:35:45.273 * MASTER <-> SLAVE sync: receiving 494097946 bytes from master
3022:S 26 Nov 10:35:51.052 * MASTER <-> SLAVE sync: Flushing old data
3022:S 26 Nov 10:36:22.165 * MASTER <-> SLAVE sync: Loading DB in memory
3022:S 26 Nov 10:37:44.355 * MASTER <-> SLAVE sync: Finished with success
3022:S 26 Nov 10:37:44.440 * Background append only file rewriting started by pid 4036
3022:S 26 Nov 10:38:34.988 * AOF rewrite child asks to stop sending diffs.
4036:C 26 Nov 10:38:34.988 * Parent agreed to stop sending diffs. Finalizing AOF...
4036:C 26 Nov 10:38:34.988 * Concatenating 0.02 MB of AOF diff received from parent.
4036:C 26 Nov 10:38:34.989 * SYNC append only file rewrite performed
4036:C 26 Nov 10:38:35.029 * AOF rewrite: 5 MB of memory used by copy-on-write
3022:S 26 Nov 10:38:35.127 * Background AOF rewrite terminated with success
3022:S 26 Nov 10:38:35.127 * Residual parent diff successfully flushed to the rewritten AOF (0.00 MB)
3022:S 26 Nov 10:38:35.128 * Background AOF rewrite finished successfully

    (2) 10.10.79.150:6389(从)

3173:S 26 Nov 10:35:10.934 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
3173:S 26 Nov 10:35:11.003 # Start of election delayed for 515 milliseconds (rank #0, offset 21516181352).
3173:S 26 Nov 10:35:11.606 # Starting a failover election for epoch 18.
3173:S 26 Nov 10:35:11.660 # Failover election won: I'm the new master.
3173:S 26 Nov 10:35:11.660 # configEpoch set to 18 after successful failover
3173:M 26 Nov 10:35:11.660 # Connection with master lost.
3173:M 26 Nov 10:35:11.660 * Caching the disconnected master state.
3173:M 26 Nov 10:35:11.660 * Discarding previously cached master state.
3173:M 26 Nov 10:35:15.605 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
3173:M 26 Nov 10:35:16.071 * Slave 10.10.81.94:7497 asks for synchronization
3173:M 26 Nov 10:35:16.071 * Full resync requested by slave 10.10.81.94:7497
3173:M 26 Nov 10:35:16.071 * Starting BGSAVE for SYNC with target: disk
3173:M 26 Nov 10:35:16.188 * Background saving started by pid 23531
3173:M 26 Nov 10:35:18.091 * Asynchronous AOF fsync is taking too long (disk is busy?). Writing the AOF buffer without waiting for fsync to complete, this may slow down Redis.
3173:M 26 Nov 10:35:31.056 * Asynchronous AOF fsync is taking too long (disk is busy?). Writing the AOF buffer without waiting for fsync to complete, this may slow down Redis.
3173:M 26 Nov 10:35:40.040 * Asynchronous AOF fsync is taking too long (disk is busy?). Writing the AOF buffer without waiting for fsync to complete, this may slow down Redis.
23531:C 26 Nov 10:35:45.048 * DB saved on disk
23531:C 26 Nov 10:35:45.113 * RDB: 6 MB of memory used by copy-on-write
3173:M 26 Nov 10:35:45.281 * Background saving terminated with success
3173:M 26 Nov 10:35:51.059 * Synchronization with slave 10.10.81.94:7497 succeeded
3173:M 26 Nov 10:36:11.107 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
3173:M 26 Nov 10:36:22.277 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.

   (3) 10.10.81.95:7497(主)

14795:M 26 Nov 10:35:10.309 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
14795:M 26 Nov 10:35:11.034 # Failover auth granted to efc1dfb19e120a2f41e0cec3d03d02f43e168238 for epoch 18
14795:M 26 Nov 10:35:14.979 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
14795:M 26 Nov 10:36:20.480 * Marking node b6073bedf256d45e1dce97cd9242bb4789d52343 as failing (quorum reached).
14795:M 26 Nov 10:36:31.652 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.


   (4) 10.10.79.157:6390(从)

29177:S 26 Nov 10:35:10.939 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
29177:S 26 Nov 10:35:15.609 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
29177:S 26 Nov 10:36:11.111 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
29177:S 26 Nov 10:36:22.281 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.


   (5) 10.10.83.180:6382(主)

9611:M 26 Nov 10:35:11.342 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
9611:M 26 Nov 10:35:12.068 # Failover auth granted to efc1dfb19e120a2f41e0cec3d03d02f43e168238 for epoch 18
9611:M 26 Nov 10:35:16.013 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
9611:M 26 Nov 10:36:11.516 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
9611:M 26 Nov 10:36:22.686 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.


   (6) 10.10.81.96:6391(从)

7925:S 26 Nov 10:35:10.260 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
7925:S 26 Nov 10:35:14.930 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
7925:S 26 Nov 10:36:20.879 * Marking node b6073bedf256d45e1dce97cd9242bb4789d52343 as failing (quorum reached).
7925:S 26 Nov 10:35:33.603 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.

   (7) 10.10.81.97:7499(主)

4051:M 26 Nov 10:35:09.768 * Marking node b6073bedf256d45e1dce97cd9242bb4789d52343 as failing (quorum reached).
4051:M 26 Nov 10:35:10.507 # Failover auth granted to efc1dfb19e120a2f41e0cec3d03d02f43e168238 for epoch 18
4051:M 26 Nov 10:35:14.452 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
4051:M 26 Nov 10:36:09.955 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
4051:M 26 Nov 10:36:21.125 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.


   (8) 10.10.78.52:6398(从)


22972:S 26 Nov 10:35:10.944 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
22972:S 26 Nov 10:35:15.635 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
22972:S 26 Nov 10:36:11.116 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
22972:S 26 Nov 10:36:22.286 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.


   (9) 10.10.81.98:7496(主)


2062:M 26 Nov 10:35:10.908 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
2062:M 26 Nov 10:35:11.634 # Failover auth granted to efc1dfb19e120a2f41e0cec3d03d02f43e168238 for epoch 18
2062:M 26 Nov 10:35:15.599 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
2062:M 26 Nov 10:36:11.080 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
2062:M 26 Nov 10:36:22.250 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.

   (10) 10.10.78.53:6396(从)

19527:S 26 Nov 10:35:10.944 * FAIL message received from b95759d39b6714544917e4aefa383b4de80f871c about b6073bedf256d45e1dce97cd9242bb4789d52343
19527:S 26 Nov 10:35:15.615 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: master without slots is reachable again.
19527:S 26 Nov 10:36:11.117 * FAIL message received from 792a356d3cd1474b8f1374aba1e5ceced1c6868d about b6073bedf256d45e1dce97cd9242bb4789d52343
19527:S 26 Nov 10:36:22.287 * Clear FAIL state for node b6073bedf256d45e1dce97cd9242bb4789d52343: slave is reachable again.



四、原因查找
redis节点被认为失败，可能有如下原因：
1. 机器本身问题：负载过高，网络阻塞，cpu过高等等。
   通过tsar命令，查询机器当时各个指标，未发现有什么问题：

Time           ---cpu-- ---mem-- ---tcp-- -----traffic---- --sda--- --sdb--- --sdc--- --sdd--- --sde--- --sdf--- --sdg--- --sdh--- --sdi--- --sdj--- --sdk--- --sdl--- --sdm---  ---load-
Time             util     util   retran    bytin  bytout     util     util     util     util     util     util     util     util     util     util     util     util     util     load1
26/11/15-10:20   4.07    67.89     0.00     1.7M    1.7M     0.05     0.00     1.75     0.00     8.07     0.00     0.00     0.00     0.00     0.00     0.38     0.25     0.00      1.77
26/11/15-10:25   4.11    67.89     0.00     1.7M    1.6M     0.01     0.00     1.95     0.00     7.45     0.00     0.00     0.00     0.00     0.00     3.47     0.27     0.00      0.94
26/11/15-10:30   4.37    67.89     0.00     1.7M    1.7M     0.18     0.00     2.00     0.00     7.79     0.00     0.00     0.00     0.00     0.00     5.31     0.15     0.00      0.94
26/11/15-10:35   4.86    68.38     0.00     1.8M    1.7M     0.47     0.00     2.40     0.00     7.99     0.00     0.00     0.00     0.00     0.00     3.06     0.15     0.00      1.22
26/11/15-10:40   7.29    67.66     0.00     2.9M    1.6M     1.55     0.00     2.92     0.00     8.46     0.00     0.00     0.00     0.00     0.00     0.87     0.11     0.00      1.14
26/11/15-10:45   4.08    67.68     0.00     1.2M    1.6M     0.09     0.00     0.34     0.00     9.12     0.00     0.00     0.00     0.00     0.00     0.25     1.35     0.00      0.46

2. cluster-node-timeout: 这个我们设置的是15秒，一直未发现问题，从别人的分享看，这个数字已经足够了。

3. 被判断失败的redis本身的问题：阻塞操作(比较常见的有: aof阻塞、慢查询）：从redis的日志看没有发生aof阻塞的情况，但是从慢查询的日志中，发现了如下，瞬间就明白了，许多慢查询，redis的单线程什么都堵住了。

五、注意：
     本文的日志时间做过纠正，实际有些机器没有做时间同步，造成日志实际对不上，不利排查，而且在分布式系统中，时间的一致性通常非常重要，所以这个要注意。

参考文献：



  • Random and small clusterdown(github redis)
  • redis集群定时clusterdown分析

运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-316876-1-1.html 上篇帖子： redis集合类型概述（2-1） 下篇帖子： Redis的java客户端Jedis配置与使用
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
