运维自动化之ansible playbook结合docker安装smokeping

linre

本次介绍ansible的paly book结合docker进行虚拟机里安装2.6.8版本smokeping（apache版本是2.4.7）。

docker版本

1 2 3 4 5 6 7 8 9 10

09:26:53 # docker version Client version: 0.11.1 Client API version: 1.11 Go version (client): go1.2.1 Git commit (client): fb99f99/0.11.1 Server version: 0.11.1 Server API version: 1.11 Git commit (server): fb99f99/0.11.1 Go version (server): go1.2.1 Last stable version: 1.1.2, please update docker

ansible版本

1 2	09:28:13 # ansible --version ansible 1.4.3

1、查看docker已有镜像

1 2 3 4 5

09:25:55 # docker images REPOSITORY          TAG                 IMAGE ID            CREATED             VIRTUAL SIZE ubuntu              3.0                 6cee55276528        9 weeks ago         369.8 MB centos5             3.0                 e08d23b09189        9 weeks ago         840.9 MB centos6             3.0                 e94a3b24a19b        9 weeks ago         415.9 MB

可以看到有3个镜像，1个是ubuntu，1个centos5，1个centos6.我这里打算使用centos6来弄。
2、加载新容器

1 2 3 4 5 6

09:31:01 # time  docker inspect $(docker run -d -p 22 -p 80:80 --name="smokeping" centos6:3.0 /usr/sbin/sshd -D)|grep -i address|awk -F '"' '{print $4}' 172.17.0.5 real    0m4.737s user    0m0.038s sys 0m0.054s

可以看到4秒就加载新容器完成，并且镜像为centos6系统，容器名为smokeping，开启了ssh服务，并且暴漏了22与80端口。
下面在从后端看看本机都运行了哪些容器

1 2 3 4 5 6

09:31:29 # docker ps -a CONTAINER ID        IMAGE               COMMAND             CREATED              STATUS              PORTS                                       NAMES 56b70c31a07e        centos6:3.0         /usr/sbin/sshd -D   About a minute ago   Up About a minute   0.0.0.0:80->80/tcp, 0.0.0.0:49156->22/tcp   smokeping            846efb9e4d7a        ubuntu:3.0          /usr/sbin/sshd -D   12 days ago          Up 4 days           0.0.0.0:49167->22/tcp                       ubuntu-test1         b9a9e6f2caed        centos6:3.0         /usr/sbin/sshd -D   3 weeks ago          Up 4 days           0.0.0.0:49166->22/tcp                       zabbix-server       978fff134b18        centos6:3.0         /usr/sbin/sshd -D   4 weeks ago          Up 4 days           0.0.0.0:49165->22/tcp                       centos6-test5

下面是ansible安装smokeping的部分
3、ansible安装smokeping的信息

1 2 3 4 5

09:34:06 # cat smokeping_install/vars/main.yml smokeping_dir: /usr/local/smokeping smokeping_version: 2.6.8 smokeping_user: admin smokeping_passwd: '()TF%penst*&MedHU'

可以看到smokeping安装目录是/usr/local/smokeping，安装版本是2.6.8，登陆的账户是admin，登陆密码是()TF%penst*&MedHU
4、下面是安装smokeping的playbook结构

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

09:36:25 # tree smokeping_* smokeping_delete ├── files │   └── delete_smokeping.sh ├── handlers ├── meta │   └── main.yml ├── tasks │   ├── copy.yml │   ├── delete.yml │   └── main.yml ├── templates └── vars     ├── main.xml     ├── main.yml     └── vars         └── main.yml smokeping_install ├── files │   ├── rpmforge-release-0.5.3-1.el6.rf.x86_64.rpm │   └── smokeping.tar.gz ├── handlers ├── meta │   └── main.yml ├── tasks │   ├── copy.yml │   ├── delete.yml │   ├── install.yml │   └── main.yml ├── templates │   ├── config │   └── smokeping.conf └── vars     └── main.yml 13 directories, 18 files

5、playbook安装smokeping的内容是

1 2 3 4 5 6 7 8 9 10

09:37:27 # cat smokeping_install.yml --- - hosts: "{{host}}"   remote_user: "{{user}}"   gather_facts: True   roles:     - common     - pcre_install     - apache_install     - smokeping_install

6、playbook删除smokeping的内容是

1 2 3 4 5 6 7 8 9

09:38:01 # cat smokeping_delete.yml --- - hosts: "{{host}}"   remote_user: "{{user}}"   gather_facts: True   roles:     - apache_delete     - pcre_delete     - smokeping_delete

下面是安装与测试过程
7、把docker新容器smokeping的ip加入到ansible的hosts里

1	echo "172.17.0.5">>/etc/ansible/hosts

8、安装smokeping

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125

09:39:10 # time ansible-playbook smokeping_install.yml --extra-vars "host=172.17.0.5 user=root" -k SSH password: PLAY [172.17.0.5] ************************************************************* GATHERING FACTS *************************************************************** ok: [172.17.0.5] TASK: [common | Install initializtion require software] *********************** changed: [172.17.0.5] TASK: [pcre_install | Copy Pcre Software To Redhat Client] ******************** changed: [172.17.0.5] TASK: [pcre_install | Uncompression Pcre Software In Redhat Client] *********** changed: [172.17.0.5] TASK: [pcre_install | Delete Pcre Software In Redhat Client] ****************** changed: [172.17.0.5] TASK: [apache_install | Copy Apache Software To Redhat Client] **************** changed: [172.17.0.5] => (item=httpd-2.4.7.tar.gz) changed: [172.17.0.5] => (item=libiconv.tar.gz) TASK: [apache_install | Create Apache User In Redhat Client] ****************** changed: [172.17.0.5] TASK: [apache_install | Uncompression Apache Software To Redhat Client] ******* changed: [172.17.0.5] TASK: [apache_install | Copy Apache Config To Redhat Client] ****************** changed: [172.17.0.5] TASK: [apache_install | Copy Apache Vhost Config To Redhat Client] ************ changed: [172.17.0.5] TASK: [apache_install | Copy Apache Start Service Script  To Redhat Client] *** changed: [172.17.0.5] TASK: [apache_install | Create Lib Install Dir] ******************************* ok: [172.17.0.5] TASK: [apache_install | Check Apache Iconv In Redhat Client] ****************** changed: [172.17.0.5] TASK: [apache_install | Install Apache Iconv In Redhat Client] **************** changed: [172.17.0.5] TASK: [apache_install | Check Lib In Config In Redhat Client] ***************** failed: [172.17.0.5] => {"changed": true, "cmd": "grep -c /usr/local/lib/ /etc/ld.so.conf ", "delta": "0:00:00.006524", "end": "2014-08-11 09:40:48.822372", "item": "", "rc": 1, "start": "2014-08-11 09:40:48.815848"} stdout: 0 ...ignoring TASK: [apache_install | Install Apache Iconv In Redhat Client] **************** changed: [172.17.0.5] TASK: [apache_install | Create Apache Dir] ************************************ changed: [172.17.0.5] => (item=/data/webroot/apache) changed: [172.17.0.5] => (item=/data/webroot/apache/logs) changed: [172.17.0.5] => (item=/data/webroot/apache/vhost) TASK: [apache_install | Install Check Script In Redhat Client] **************** changed: [172.17.0.5] TASK: [apache_install | Create Index Html To Redhat Client] ******************* changed: [172.17.0.5] TASK: [apache_install | Start Apache Service In Redhat Client] **************** changed: [172.17.0.5] TASK: [apache_install | Add Boot Start Apache Service In Redhat Client] ******* changed: [172.17.0.5] TASK: [apache_install | Delete Apache compression Software In Redhat Client] *** changed: [172.17.0.5] TASK: [smokeping_install | Create Smokeping Install Dir] ********************** changed: [172.17.0.5] TASK: [smokeping_install | Copy Smokeping Software To Redhat Client] ********** changed: [172.17.0.5] => (item=rpmforge-release-0.5.3-1.el6.rf.x86_64.rpm) changed: [172.17.0.5] => (item=smokeping.tar.gz) TASK: [smokeping_install | Install Epel Yum Repo] ***************************** changed: [172.17.0.5] TASK: [smokeping_install | Install Require Software] ************************** changed: [172.17.0.5] TASK: [smokeping_install | Uncompression  Smokeping] ************************** changed: [172.17.0.5] TASK: [smokeping_install | Copy Smokeping Config To Redhat Client] ************ changed: [172.17.0.5] TASK: [smokeping_install | Copy Smokeping Httpd Config To Redhat Client] ****** changed: [172.17.0.5] TASK: [smokeping_install | Check Boot Start In Redhat Client] ***************** failed: [172.17.0.5] => {"changed": true, "cmd": "grep -c '/usr/local/smokeping/bin/smokeping --logfile=/var/log/smokeping.log 2>&1 &' /etc/rc.local ", "delta": "0:00:00.007325", "end": "2014-08-11 09:46:03.045378", "item": "", "rc": 1, "start": "2014-08-11 09:46:03.038053"} stdout: 0 ...ignoring TASK: [smokeping_install | Add Boot Start In Redhat Client] ******************* changed: [172.17.0.5] TASK: [smokeping_install | Modify Smokeping Dir Permission In Redhat Client] *** changed: [172.17.0.5] TASK: [smokeping_install | Start Smokeping Service In Redhat Client] ********** changed: [172.17.0.5] TASK: [smokeping_install | Restart Apache Service In Redhat Client] *********** changed: [172.17.0.5] TASK: [smokeping_install | Delete Installed File] ***************************** changed: [172.17.0.5] PLAY RECAP ******************************************************************** 172.17.0.5                 : ok=35   changed=33   unreachable=0    failed=0    real    6m52.934s user    0m15.104s sys 0m1.632s

花费6分52秒完成，花费时间多的主要是yum安装基础库与使用epel安装smokeping依赖库。
9、安装后测试

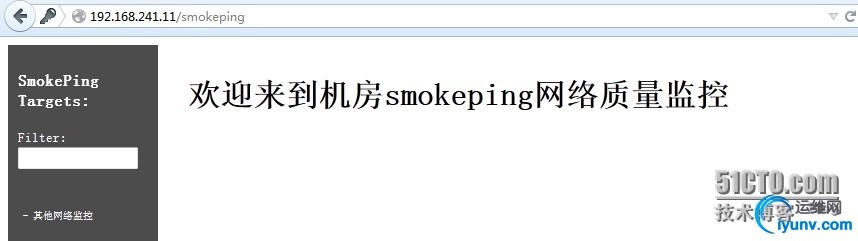

查看smokeping

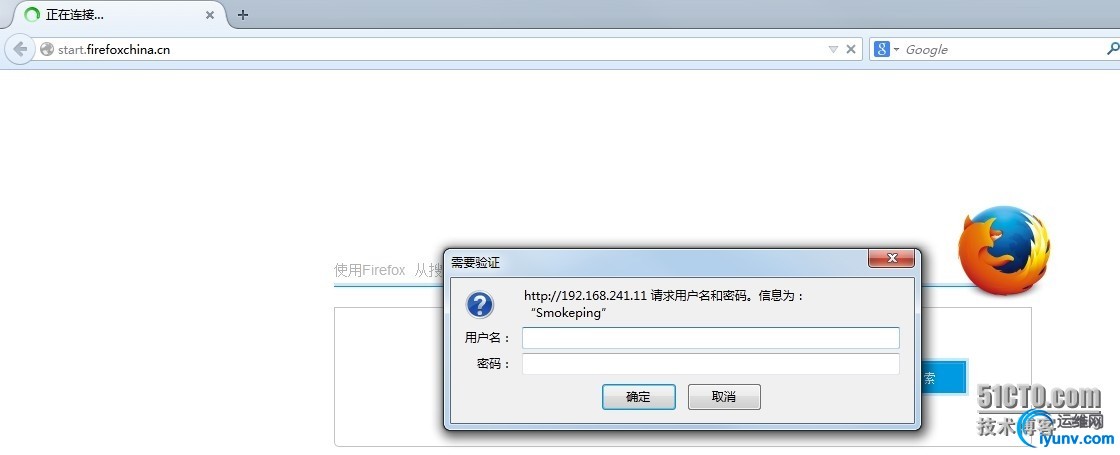

由于我做了安全认证，需要输入账户与密码，这个账户与密码就上文第3步的账户与密码

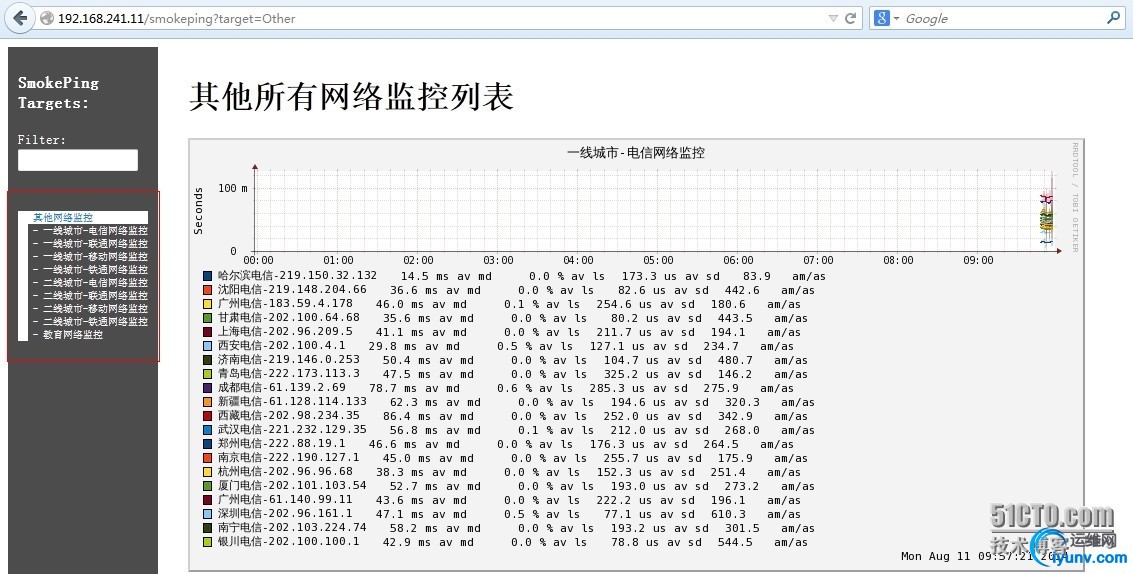

然后默认的其他网络监控（包括1、2、3线电信、移动、联通、铁通与教育网的节点监控已经做好）

如果有其他的监控需要自己来添加即可。
10、删除

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

09:46:08 # time ansible-playbook smokeping_delete.yml --extra-vars "host=172.17.0.5 user=root" -k SSH password: PLAY [172.17.0.5] ************************************************************* GATHERING FACTS *************************************************************** ok: [172.17.0.5] TASK: [apache_delete | Stop Httpd Service In RedHat Client] ******************* changed: [172.17.0.5] TASK: [apache_delete | Delete Boot Start In RedHat Client] ******************** changed: [172.17.0.5] TASK: [apache_delete | Delete Apache Dir In RedHat Client] ******************** changed: [172.17.0.5] TASK: [apache_delete | Delete Apache Service Script In RedHat Client] ********* changed: [172.17.0.5] TASK: [apache_delete | Delete Apache User] ************************************ changed: [172.17.0.5] TASK: [pcre_delete | Delete Pcre] ********************************************* changed: [172.17.0.5] TASK: [smokeping_delete | Stop Smokeping Service In Redhat Client] ************ changed: [172.17.0.5] TASK: [smokeping_delete | Delete Smokeping Dir In Redhat Client] ************** changed: [172.17.0.5] TASK: [smokeping_delete | Delete Boot Start In Redhat Client] ***************** changed: [172.17.0.5] PLAY RECAP ******************************************************************** 172.17.0.5                 : ok=10   changed=9    unreachable=0    failed=0    real    0m9.326s user    0m2.914s sys 0m0.446s

11、删除后测试

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

09:59:45 # ssh 172.17.0.5 root@172.17.0.5's password: root@56b70c31a07e:~ 09:59:57 # ifconfig eth0      Link encap:Ethernet  HWaddr A6:80:57:2D:D3:F1             inet addr:172.17.0.5  Bcast:0.0.0.0  Mask:255.255.0.0           inet6 addr: fe80::a480:57ff:fe2d:d3f1/64 Scope:Link           UP BROADCAST RUNNING  MTU:1500  Metric:1           RX packets:84520 errors:0 dropped:0 overruns:0 frame:0           TX packets:86385 errors:0 dropped:0 overruns:0 carrier:0           collisions:0 txqueuelen:1000           RX bytes:69075188 (65.8 MiB)  TX bytes:9400662 (8.9 MiB) lo        Link encap:Local Loopback             inet addr:127.0.0.1  Mask:255.0.0.0           inet6 addr: ::1/128 Scope:Host           UP LOOPBACK RUNNING  MTU:16436  Metric:1           RX packets:2 errors:0 dropped:0 overruns:0 frame:0           TX packets:2 errors:0 dropped:0 overruns:0 carrier:0           collisions:0 txqueuelen:0           RX bytes:168 (168.0 b)  TX bytes:168 (168.0 b) root@56b70c31a07e:~ 09:59:59 # ps -ef|grep httpd root      1017  1002  0 10:00 pts/0    00:00:00 grep httpd root@56b70c31a07e:~ 10:00:04 # ps -ef|grep smokeping root      1019  1002  0 10:00 pts/0    00:00:00 grep smokeping root@56b70c31a07e:~ 10:00:07 # ll /usr/local/ total 40 drwxr-xr-x 2 root root 4096 Sep 23  2011 bin drwxr-xr-x 2 root root 4096 Sep 23  2011 etc drwxr-xr-x 2 root root 4096 Sep 23  2011 games drwxr-xr-x 2 root root 4096 Sep 23  2011 include drwxr-xr-x 2 root root 4096 Aug 11 09:40 lib drwxr-xr-x 2 root root 4096 Sep 23  2011 lib64 drwxr-xr-x 2 root root 4096 Sep 23  2011 libexec drwxr-xr-x 2 root root 4096 Sep 23  2011 sbin drwxr-xr-x 5 root root 4096 Sep 23  2011 share drwxr-xr-x 2 root root 4096 Sep 23  2011 src root@56b70c31a07e:~ 10:00:11 # cat /etc/rc.local #!/bin/sh # # This script will be executed *after* all the other init scripts. # You can put your own initialization stuff in here if you don't # want to do the full Sys V style init stuff. touch /var/lock/subsys/local

如果大家想使用我的例子，可以从github里下载（地址是https://github.com/dl528888/ansi ... r/smokeping_install），然后放到/etc/ansible目录里，下面是内容
