framework apache commons

qweewq123qwe

　　http://commons.apache.org/


　　


　　web service >>> xml to java
object

= diggester+beanutils+logging

　　Commons Digester 2.0 API


　　http://commons.apache.org/digester/
　　http://commons.apache.org/digester/commons-digester-2.0/docs/api/
　　Digester download

　　http://archive.apache.org/dist/commons/digester/binaries/
　　http://archive.apache.org/dist/commons/digester/binaries/commons-digester-2.0-bin.zip


　　Commons BeanUtils 1.8.2 API



　　http://commons.apache.org/beanutils/
　　http://commons.apache.org/beanutils/api/index.html
　　beanutils download


　　http://archive.apache.org/dist/commons/beanutils/binaries/
　　http://labs.xiaonei.com/apache-mirror/commons/beanutils/binaries/commons-beanutils-1.8.2-bin.zip
　　Commons Logging 1.1.2-SNAPSHOT API



　　http://commons.apache.org/logging/apidocs/index.html
　　loggind download

　　http://archive.apache.org/dist/commons/logging/
　　http://archive.apache.org/dist/commons/logging/binaries/commons-logging-1.1.1-bin.zip
　　webservice begin


　　[iyunv@localhost digester]# pwd

/home/lindows/workspace/test/src/com/javaeye/lindows/digester

[iyunv@localhost digester]# ll

总计 64

-rw-r--r-- 1 lindows users  835 11-25 21:17 Academy.java

-rw-r--r-- 1 lindows users  993 11-25 21:29 academyRules.xml

-rw-r--r-- 1 lindows users  984 11-20 08:18 acdemy.xml

-rw-r--r-- 1 lindows users  330 11-25 15:40 Course.java

drwxr-xr-x 2 lindows users 4096 11-25 21:31 CVS

-rw-r--r-- 1 lindows users 2114 11-25 21:23 DigestXMLJavaAcademy.java

-rw-r--r-- 1 lindows users  755 11-25 18:45 Student.java

-rw-r--r-- 1 lindows users  607 11-25 21:22 Teacher.java
　　http://developer.ccidnet.com/art/322/20021211/33259_1.html
　　
　　相关资源

　　·The Jakarta Commons homepage: http://jakarta.apache.org/commons

　　·Two open source XML parsers suitable for use with Digester are:

　　o Xerces

　　o Crimson

　　·Open source projects that use Digester:

　　o Struts

　　o Tomcat

　　·Other Jakarta Commons components:

　　http://jakarta.apache.org/commons/components.html

　　· Erik Swenson's previous Open Source Profile column, "Reports Made Easy with JasperReports" (JavaWorld, September 2002):

　　http://www.javaworld.com/javaworld/jw-09-2002/jw-0920-opensourceprofile.html

　　· Browse the Java and XML section of JavaWorld's Topical Index:

　　http://www.javaworld.com/channel_content/jw-xml-index.shtml

　　·Chat about Java development in the JavaWorld Forum:

　　http://forums.devworld.com/webx?13@@.ee6b802

　　· Sign up for JavaWorld's free weekly email newsletters:

　　http://www.javaworld.com/subscribe

　　· You'll find a wealth of IT-related articles from our sister publications at IDG.net




　　Java Open Source Software: Jakarta commons Digester


　　http://www.itags.org/java/583235/
　　Hi
　　Anyone like to offer an example that uses the
org.apache.commons.digester to create objects with a non empty
constructor. Nothing too complicated - an object with a String in the
Constructor will suffice.


Apache Digester应用实例 [原创]

　　http://www.iyunv.com/topic/39330
　　http://philos.iyunv.com/blog/176724
　　前段时间项目中需要根据xml文件创建java对象,而apache commons-digester是首选.


一直想把它写下来,可是总有点懒
这次介绍一下digester的常用法,其他更高级的使用方法请参阅digester doc(由于比较忙,下次有时间写一篇关于cglib的常用法,呵呵)


Apache Digester应用实例 [原创]


--------------利用 apache commons-digester 自动根据xml文件创建java 对象


<day day up>


author: binker


email: binker_cao@163.com


date: 2006/12/16


note: 本文可以任意转载,但请保持其完整性并注明来源,谢谢.



一.序


  Digester是apache的一个组件 apache
commons-digester.jar,通过它可以很方便的从xml文件生成java对象.你不用再象以前通过jdom或者Xerces去读取一个
document对象.(jdom和Xerces仍然有它们的用武之地及强大之处,在其它应用里你也少不了它们)


我只是用一个例子展示一下如何把xml文件生成一个java object.


首先你必须把jar加入到你的项目classpath.


(一)准备:


1.环境: Eclipse, jdk1.4+


2.需求说明：学院包含学生和老师，学生可以选修课程，老师有不同的资格认证。


3.Java Class的定义，简洁起见，略去import内容。


4.使用Digester生成java对象 必须要定义一个xml文件，此xml文件必须符合digester-rules.dtd的规则。


5.所有的xml文件必须在classpath路径中，这样可以通过Class.getClassLoader().getInputStream()读取xml文件。



(二)提要:


  本示例所需的java class 和 xml文件分成四类:


1.基础xml文件: [academy.xml]: 你将要解析的xml文件.


2.基础java class: [Academy.java, Teacher.java, Student.java, Cousre.java]: 生成的对象的类定义


3.digesterRules.xml: [academyRules.xml]: 定义了基础xml文件到基础java class的匹配(映射)关系


4.Digester class: [DigestXMLJavaAcademy.java]: 根据digesterRules.xml去解析基础xml文件,并生成java 对象



(三)参考资料


   1.English ebook: Pro Jakarta Commons by Harshad Oak  Apress 2004



二.基础Java Class


1.学院 class Academy.java

•
  public

  class
   Academy {


•
      private
   Vector students;


•
      private
   Vector teachers;


•
      private
   String name;


•


•
      public
   Academy() {


•
          students = new
   Vector();


•
          teachers = new
   Vector();


•
      }

•


•
      public

  void
   addStudent(Student student) {


•
          students.addElement(student);

•
      }

•


•
      public

  void
   addTeacher(Teacher teacher) {


•
          teachers.addElement(teacher);

•
      }

•


•
      public
   Vector getStudents() {


•
          return
   students;


•
      }

•


•
      public

  void
   setStudents(Vector newStudents) {


•
          students = newStudents;

•
      }

•
      public
   Vector getTeachers() {


•
          return
   teachers;


•
      }

•


•
      public

  void
   setTeachers(Vector newTeachers) {


•
          teachers = newTeachers;

•
      }

•


•
      public
   String getName() {


•
          return
   name;


•
      }

•


•
      public

  void
   setName(String newName) {


•
          name = newName;

•
      }

•
  }


public class Academy {
private Vector students;
private Vector teachers;
private String name;
public Academy() {
students = new Vector();
teachers = new Vector();
}
public void addStudent(Student student) {
students.addElement(student);
}
public void addTeacher(Teacher teacher) {
teachers.addElement(teacher);
}
public Vector getStudents() {
return students;
}
public void setStudents(Vector newStudents) {
students = newStudents;
}
public Vector getTeachers() {
return teachers;
}
public void setTeachers(Vector newTeachers) {
teachers = newTeachers;
}
public String getName() {
return name;
}
public void setName(String newName) {
name = newName;
}
}

　　


============================================================


2.学生 Student.java

•
  public

  class
   Student {


•
      private
   Vector courses;


•
      private
   String name;


•
      private
   String division;


•


•
      public
   Student() {


•
          courses = new
   Vector();


•
      }

•


•
      public

  void
   addCourse(Course course) {


•
          courses.addElement(course);

•
      }

•


•
      public
   String getName() {


•
          return
   name;


•
      }

•
      public

  void
   setName(String newName) {


•
          name = newName;

•
      }

•


•
      public
   String getDivision() {


•
          return
   division;


•
      }

•


•
      public

  void
   setDivision(String newDivision) {


•
          division = newDivision;

•
      }

•


•
      public

  void
   setCourses(Vector courses) {


•
          this
  .courses = courses;


•
      }

•


•
      public
   Vector getCourses() {


•
          return
   courses;


•
      }

•
  }


public class Student {
private Vector courses;
private String name;
private String division;
public Student() {
courses = new Vector();
}
public void addCourse(Course course) {
courses.addElement(course);
}
public String getName() {
return name;
}
public void setName(String newName) {
name = newName;
}
public String getDivision() {
return division;
}
public void setDivision(String newDivision) {
division = newDivision;
}
public void setCourses(Vector courses) {
this.courses = courses;
}
public Vector getCourses() {
return courses;
}
}

　　


============================================================


3.老师 Teacher.java

•
  public

  class
   Teacher {


•
      private
   String name;


•
      private
   Vector certifications;


•


•
      public
   Teacher() {


•
          certifications = new
   Vector();


•
      }

•


•
      public

  void
   addCertification(String certification) {


•
          certifications.addElement(certification);

•
      }

•


•
      public
   String getName() {


•
          return
   name;


•
      }

•


•
      public

  void
   setName(String newName) {


•
          name = newName;

•
      }

•


•
      public

  void
   setCertifications(Vector certifications) {


•
          this
  .certifications = certifications;


•
      }

•


•
      public
   Vector getCertifications() {


•
          return
   certifications;


•
      }

•
  }


public class Teacher {
private String name;
private Vector certifications;
public Teacher() {
certifications = new Vector();
}
public void addCertification(String certification) {
certifications.addElement(certification);
}
public String getName() {
return name;
}
public void setName(String newName) {
name = newName;
}
public void setCertifications(Vector certifications) {
this.certifications = certifications;
}
public Vector getCertifications() {
return certifications;
}
}

　　


============================================================


4.课程 Course.java

•
  public

  class
   Course {


•
      private
   String id;


•
      private
   String name;


•


•
      public
   Course() {


•
      }

•


•
      public
   String getId() {


•
          return
   id;


•
      }

•


•
      public

  void
   setId(String newId) {


•
          id = newId;

•
      }

•
      public
   String getName() {


•
          return
   name;


•
      }

•


•
      public

  void
   setName(String newName) {


•
          name = newName;

•
      }

•
  }


public class Course {
private String id;
private String name;
public Course() {
}
public String getId() {
return id;
}
public void setId(String newId) {
id = newId;
}
public String getName() {
return name;
}
public void setName(String newName) {
name = newName;
}
}

　　


三.基础XML文件


============================================================


学院 academy.xml,包含了学生(包含了课程),老师

•
  <?xml version=
  "1.0"
  ?>


•
  <academy name="JAcademy"
   >


•
           <student name="JavaBoy"
   division=
  "A"
  >


•
                    <course>

•
                        <id>C1</id>

•
                        <name>JSP</name>

•
                    </course>

•
                    <course>

•
                        <id>C2</id>

•
                        <name>Servlets</name>

•
                    </course>

•
           </student>

•
           <student name="JavaGirl"
   division=
  "B"
  >


•
                    <course>

•
                        <id>C3</id>

•
                        <name>EJB</name>

•
                    </course>

•
           </student>

•


•
           <teacher name="JavaGuru"
  >


•
                    <certification>SCJP</certification>

•
                    <certification>SCWCD</certification>

•
           </teacher>

•
           <teacher name="JavaMaster"
  >


•
                    <certification>OCP</certification>

•
                    <certification>SCJP</certification>

•
                    <certification>SCEA</certification>

•
           </teacher>

•
  </academy>


<?xml version="1.0"?>
<academy name="JAcademy" >
<student name="JavaBoy" division="A">
<course>
<id>C1</id>
<name>JSP</name>
</course>
<course>
<id>C2</id>
<name>Servlets</name>
</course>
</student>
<student name="JavaGirl" division="B">
<course>
<id>C3</id>
<name>EJB</name>
</course>
</student>
<teacher name="JavaGuru">
<certification>SCJP</certification>
<certification>SCWCD</certification>
</teacher>
<teacher name="JavaMaster">
<certification>OCP</certification>
<certification>SCJP</certification>
<certification>SCEA</certification>
</teacher>
</academy>

　　


============================================================



四.Digester Class


DigestXMLJavaAcademy.java 和academyRules.xml


其中academyRules.xml用来定义xml文件和java对象的匹配(映射)关系,格式要符合digester-rules.dtd格式约束


DigestXMLJavaAcademy.java 根据academyRules.xml解析academy.xml文件并生成 Academy对象.


============================================================

•
  1
  . academyRules.xml


•
  <?xml version="1.0"
  ?>


•
  <digester-rules>

•
    <pattern value="academy"
  >


•
        <object-create-rule classname="com.commonsbook.chap7.academy.Academy"
   />


•
       <set-properties-rule />

•
       <pattern value="student"
  >


•
           <object-create-rule classname="com.commonsbook.chap7.academy.Student"
   />


•
           <set-properties-rule />

•


•
           <pattern value="course"
  >


•
               <object-create-rule classname="com.commonsbook.chap7.academy.Course"
   />


•
               <bean-property-setter-rule pattern="id"
  />


•
               <bean-property-setter-rule pattern="name"
  />


•
               <set-next-rule methodname="addCourse"
   />


•
           </pattern>

•
           <set-next-rule methodname="addStudent"
   />


•
       </pattern>

•


•
       <pattern value="teacher"
  >


•
           <object-create-rule classname="com.commonsbook.chap7.academy.Teacher"
   />


•
           <set-properties-rule />

•
           <call-method-rule pattern="certification"
   methodname=
  "addCertification"



•
               paramcount="1"
   />


•
           <call-param-rule pattern="certification"
   paramnumber=
  "0"
  />


•
           <set-next-rule methodname="addTeacher"
   />


•
       </pattern>

•
   </pattern>

•
  </digester-rules>


1. academyRules.xml
<?xml version="1.0"?>
<digester-rules>
<pattern value="academy">
<object-create-rule classname="com.commonsbook.chap7.academy.Academy" />
<set-properties-rule />
<pattern value="student">
<object-create-rule classname="com.commonsbook.chap7.academy.Student" />
<set-properties-rule />
<pattern value="course">
<object-create-rule classname="com.commonsbook.chap7.academy.Course" />
<bean-property-setter-rule pattern="id"/>
<bean-property-setter-rule pattern="name"/>
<set-next-rule methodname="addCourse" />
</pattern>
<set-next-rule methodname="addStudent" />
</pattern>
<pattern value="teacher">
<object-create-rule classname="com.commonsbook.chap7.academy.Teacher" />
<set-properties-rule />
<call-method-rule pattern="certification" methodname="addCertification"
paramcount="1" />
<call-param-rule pattern="certification" paramnumber="0"/>
<set-next-rule methodname="addTeacher" />
</pattern>
</pattern>
</digester-rules>

　　


============================================================


2. DigestXMLJavaAcademy.java

•
  public

  class
   DigestXMLJavaAcademy {


•
      public

  void
   digest(){


•
          try
   {


•
              //Create Digester using rules defined in academyRules.xml



•
              Digester digester = DigesterLoader.createDigester(

•
                       this
  .getClass().getClassLoader().getResource(
  "academyRules.xml"
  ));


•


•
              //Parse academy.xml using the Digester to get an instance of Academy



•
              Academy a = (Academy)digester.parse(

•
              this
  .getClass().getClassLoader().getResourceAsStream(
  "academy.xml"
  ));


•


•
              Vector vStud=a.getStudents();

•
              Vector vTeach=a.getTeachers();

•


•
              for
   (
  int
   i =
  0
  ; i < vStud.size(); i++) {


•
                  System.out.println("Student>> "
  +PropertyUtils.describe(vStud.get(i)));


•
              }

•


•
              for
   (
  int
   i =
  0
  ; i < vTeach.size(); i++) {


•
                  System.out.println("Teacher>> "
  + PropertyUtils.describe(vTeach.get(i)));


•
              }

•
           } catch
  (Exception e) {


•
               e.printStackTrace();

•
           }

•
      }

•


•
      public

  static

  void
   main(String[] args) {


•
          DigestXMLJavaAcademy xmlDigest= new
   DigestXMLJavaAcademy();


•
          xmlDigest.digest();

•
      }

•
  }


public class DigestXMLJavaAcademy {
public void digest(){
try {
//Create Digester using rules defined in academyRules.xml
Digester digester = DigesterLoader.createDigester(
this.getClass().getClassLoader().getResource("academyRules.xml"));
//Parse academy.xml using the Digester to get an instance of Academy
Academy a = (Academy)digester.parse(
this.getClass().getClassLoader().getResourceAsStream("academy.xml"));
Vector vStud=a.getStudents();
Vector vTeach=a.getTeachers();
for (int i = 0; i < vStud.size(); i++) {
System.out.println("Student>> "+PropertyUtils.describe(vStud.get(i)));
}
for (int i = 0; i < vTeach.size(); i++) {
System.out.println("Teacher>> "+ PropertyUtils.describe(vTeach.get(i)));
}
} catch(Exception e) {
e.printStackTrace();
}
}
public static void main(String[] args) {
DigestXMLJavaAcademy xmlDigest= new DigestXMLJavaAcademy();
xmlDigest.digest();
}
}

　　


五.运行结果

　　PropertyUtils.describ(Object)用法


　　http://philos.iyunv.com/blog/176724
　　使用org.apache.commons.beanutils.PropertyUtils.describ(Object)生成Map实例，其中包含了源bean中所有可读的属性。下面的代码片段演示了这个特性：

•
  Person author =
  new
   Person();


•
  author.setName("Timothy M. O'Brien"
  );


•


•
  Book book = new
   Book();


•
  book.setName("Jakarta Commons Cookbook"
  );


•
  book.setAuthor(author);

•


•
  // 取得book中的所有可读属性,返回到map中



•
  Map bookMap = PropertyUtils.describe(book);

•
  // Book类中包含一个Author类型的属性



•
  // 取bookMap中的author bean,并将其所有可读属性返回到authorMap中



•
  Map authorMap = PropertyUtils.describe(bookMap.get("author"
  ));


•


•
  // 输出



•
  // Book Name: Jakarta Commons Cookbook



•
  // Author Name: Timothy M. O'Brien



•
  System.out.println("Book Name: "
   + bookMap.get(
  "name"
  ));


•
  System.out.println("Author Name: "
   + authorMap.get(
  "name"
  ));



Person author = new Person();
author.setName("Timothy M. O'Brien");
Book book = new Book();
book.setName("Jakarta Commons Cookbook");
book.setAuthor(author);
// 取得book中的所有可读属性,返回到map中
Map bookMap = PropertyUtils.describe(book);
// Book类中包含一个Author类型的属性
// 取bookMap中的author bean,并将其所有可读属性返回到authorMap中
Map authorMap = PropertyUtils.describe(bookMap.get("author"));
// 输出
// Book Name: Jakarta Commons Cookbook
// Author Name: Timothy M. O'Brien
System.out.println("Book Name: " + bookMap.get("name"));
System.out.println("Author Name: " + authorMap.get("name"));
　　在上面的例子中假如Book类中还有个Integer型的page属性，代表书籍页数，在没设置的情况下，将返回null，如果page属性为int型，则将返回0。


　　http://commons.apache.org/fileupload/


　　FileUpload 1.2.1
- 18 January 2008

• Download the binary and source distributions from a mirror site
  here


　　DWR + FileUpload 多文件上传实例

　　http://www.iyunv.com/topic/247420
　　功能： 文件上传
　　特点： 动态显示进度， 百分比， 文件名， 文件长度， 上传速度... 剩下的自己看吧
　　主要技术： DWR， Apache commons FileUpload
　　原理： FileUpload实现上传功能， UploadListener 监听上传进度， DWR push (Reverse Ajax) 进度信息并更新页面， 实现无刷新多文件上传
　　运行环境： Tomcat 6， WAS 6 测试通过
　　WAR
包下载
见附件

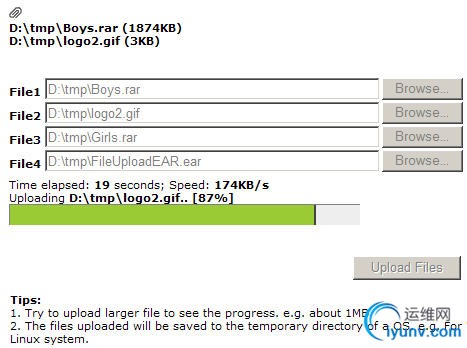

　　顺便截个图：

　　http://dl.iyunv.com/topics/download/53b9ba95-5a12-3d89-a545-8d7f90fddb75
　　end
