使用mysql5.7.16头文件库文件编译安装atlas

iuuuoi

最近mysql数据库升级到5.7.16，而中间件atlas之前是基于mysql5.6编译的，打算重新编译下atlas并使用mysql5.7.16的库文件头文件。这里主要介绍下编译过程遇到问题及解决方法。

由于需要glib版本要大于2.32以上，centos6.6系统自带的glib版本为2.28，因此需要重新编译安装2.32以上的glib，这里安装2.34版本的glib需要依赖pcre大于8.31
一、编译安装pcre8.35
# ./configure --prefix=/usr/local/glib --with-pcre=/usr/local/pcre/
# make
# make install
二、编译安装glib-2.34.3.tar.xz
# ./configure --prefix=/usr/local/glib --with-pcre=/usr/local/pcre/
# make
# make install
三、编译安装Atlas-2.2.1.tar.gz
1.解决依赖关系
# yum install libffi-devel lua-devel libevent libevent-devel jemalloc jemalloc-devel
2.修改源码中mysql版本代码，这里mysql版本为5.7.16
找到plugins/proxy/proxy-plugin.c文件
修改1974行：challenge->server_version_str = g_strdup("5.0.81-log");
为：challenge->server_version_str = g_strdup("5.7.16-log");
修改1974行：challenge->server_version = 50081;
为：challenge->server_version = 50716;
3.安装atlas
修改bootstrap.sh

1 2 3 4

#!/bin/sh base=$(cd "$(dirname "$0")"; pwd) cd $base PKG_CONFIG_PATH=/usr/local/glib/lib/pkgconfig ./configure --with-mysql=/usr/local/mysql5.7.16/bin/mysql_config --prefix=/usr/local/mysql-proxy CFLAGS="-DHAVE_LUA_H -O2" CPPFLAGS="-I/usr/local/mysql5.7.16/include/" LDFLAGS="-lm -ldl -lcrypto -ljemalloc" LUA_CFLAGS="-I/usr/include/" LUA_LIBS="-L/usr/lib64 -llua"

执行
# ./bootstrap.sh
# make && make install
4.执行make时会报错：
错误1：
libtool: compile:  gcc -DHAVE_CONFIG_H -I. -I.. -I/usr/local/mysql5.7/include -I/usr/local/glib/include/glib-2.0 -I/usr/local/glib/lib/glib-2.0/include -pthread -I/usr/local/glib/include/glib-2.0 -I/usr/local/glib/lib/glib-2.0/include -g -O2 -MT libmysql_proxy_la-network-mysqld-packet.lo -MD -MP -MF .deps/libmysql_proxy_la-network-mysqld-packet.Tpo -c network-mysqld-packet.c  -fPIC -DPIC -o .libs/libmysql_proxy_la-network-mysqld-packet.o
network-mysqld-packet.c: In function ‘network_mysqld_auth_challenge_new’:
network-mysqld-packet.c:1147: error: ‘CLIENT_SECURE_CONNECTION’ undeclared (first use in this function)
network-mysqld-packet.c:1147: error: (Each undeclared identifier is reported only once
network-mysqld-packet.c:1147: error: for each function it appears in.)
network-mysqld-packet.c: In function ‘network_mysqld_proto_get_auth_challenge’:
network-mysqld-packet.c:1221: error: ‘CLIENT_SECURE_CONNECTION’ undeclared (first use in this function)
network-mysqld-packet.c: In function ‘network_mysqld_auth_response_new’:
network-mysqld-packet.c:1323: error: ‘CLIENT_SECURE_CONNECTION’ undeclared (first use in this function)
network-mysqld-packet.c: In function ‘network_mysqld_proto_get_auth_response’:
network-mysqld-packet.c:1378: error: ‘CLIENT_SECURE_CONNECTION’ undeclared (first use in this function)
make[3]: *** [libmysql_proxy_la-network-mysqld-packet.lo] Error 1
make[3]: Leaving directory `/usr/local/src/Atlas-2.2.1/src'
make[2]: *** [all] Error 2
make[2]: Leaving directory `/usr/local/src/Atlas-2.2.1/src'
make[1]: *** [all-recursive] Error 1
make[1]: Leaving directory `/usr/local/src/Atlas-2.2.1'
make: *** [all] Error 2
错误2：
libtool: compile:  gcc -DHAVE_CONFIG_H -I. -I../.. -I/usr/local/mysql5.7.16/include -I/usr/local/glib/include/glib-2.0 -I/usr/local/glib/lib/glib-2.0/include -I/usr/include/ -pthread -I/usr/local/glib/include/glib-2.0 -I/usr/local/glib/lib/glib-2.0/include -I../../src/ -I/usr/local/mysql5.7.16/include/ -DHAVE_LUA_H -O2 -MT libadmin_la-admin-plugin.lo -MD -MP -MF .deps/libadmin_la-admin-plugin.Tpo -c admin-plugin.c  -fPIC -DPIC -o .libs/libadmin_la-admin-plugin.o
admin-plugin.c: In function ‘server_con_init’:
admin-plugin.c:203: error: ‘CLIENT_SECURE_CONNECTION’ undeclared (first use in this function)
admin-plugin.c:203: error: (Each undeclared identifier is reported only once
admin-plugin.c:203: error: for each function it appears in.)
make[3]: *** [libadmin_la-admin-plugin.lo] Error 1
make[3]: Leaving directory `/usr/local/src/Atlas-2.2.1/plugins/admin'
make[2]: *** [all-recursive] Error 1
make[2]: Leaving directory `/usr/local/src/Atlas-2.2.1/plugins'
make[1]: *** [all-recursive] Error 1
make[1]: Leaving directory `/usr/local/src/Atlas-2.2.1'
make: *** [all] Error 2

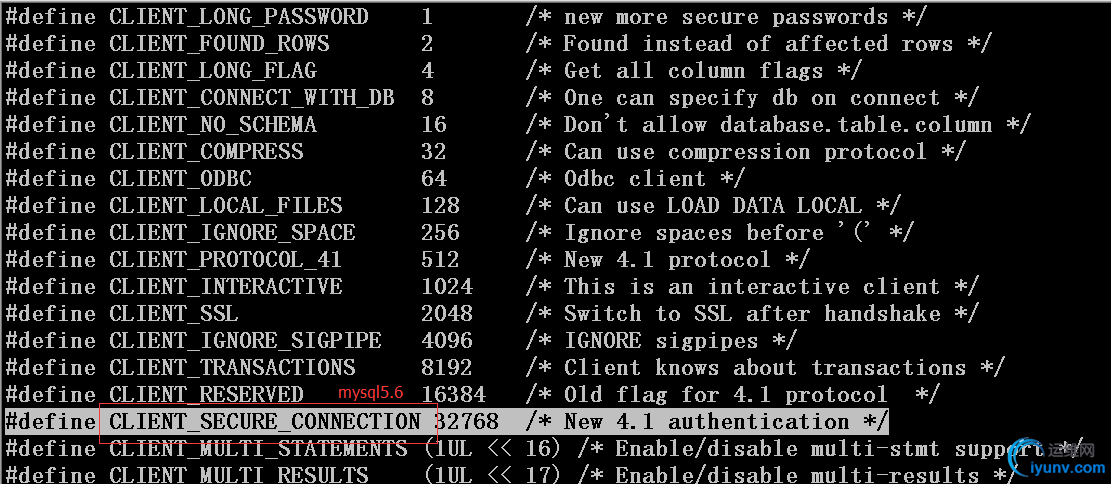

报错原因：mysql5.7之后头文件中的CLIENT_SECURE_CONNECTION变量名修改为CLIENT_RESERVED2
cat /usr/local/src/mysql-5.6.17/include/mysql_com.h
cat /usr/local/src/mysql-5.7.16/include/mysql_com.h

5.解决方法：
修改atlas源码

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143

visrc/network-mysqld-packet.c 1139network_mysqld_auth_challenge *network_mysqld_auth_challenge_new() { 1140         network_mysqld_auth_challenge *shake; 1141 1142         shake =g_new0(network_mysqld_auth_challenge, 1); 1143 1144         shake->challenge =g_string_sized_new(20); 1145         shake->capabilities = 1146                 CLIENT_PROTOCOL_41 | 1147                 CLIENT_SECURE_CONNECTION | 1148                 0; 1149 1150 1151         return shake; 1152 } 修改1147行为如下： 1139network_mysqld_auth_challenge *network_mysqld_auth_challenge_new() { 1140         network_mysqld_auth_challenge *shake; 1141 1142         shake =g_new0(network_mysqld_auth_challenge, 1); 1143 1144         shake->challenge =g_string_sized_new(20); 1145         shake->capabilities = 1146                 CLIENT_PROTOCOL_41 | 1147                 CLIENT_RESERVED2 | 1148                 0; 1149 1150 1151         return shake; 1152 } 1220 1221         if (shake->capabilities &CLIENT_SECURE_CONNECTION) { 1222                 err = err ||network_mysqld_proto_get_string_len(packet, &scramble_2, 12); 1223                 err = err ||network_mysqld_proto_skip(packet, 1); 1224         } 1225 1226         if (!err) { 1227                 /* process the data */ 1228 1229                 if (3 !=sscanf(shake->server_version_str, "%d.%d.%d%*s", &maj,&min, &patch)) { 1230                         /* can't parse theprotocol */ 1231 1232                         g_critical("%s:protocol 10, but version number not parsable", G_STRLOC); 1233 1234                         return -1; 1235                 } 1236 修改1221行为如下： 1220 1221         if (shake->capabilities & CLIENT_RESERVED2) { 1222                 err = err ||network_mysqld_proto_get_string_len(packet, &scramble_2, 12); 1223                 err = err ||network_mysqld_proto_skip(packet, 1); 1224         } 1225 1226         if (!err) { 1227                 /* process the data */ 1228 1229                 if (3 !=sscanf(shake->server_version_str, "%d.%d.%d%*s", &maj,&min, &patch)) { 1230                         /* can't parse theprotocol */ 1231 1232                         g_critical("%s:protocol 10, but version number not parsable", G_STRLOC); 1233 1234                         return -1; 1235                 } 1236 1312network_mysqld_auth_response *network_mysqld_auth_response_new() { 1313         network_mysqld_auth_response *auth; 1314 1315         auth =g_new0(network_mysqld_auth_response, 1); 1316 1317         /* we have to make surescramble->buf is not-NULL to get 1318          * the "empty string" andnot a "NULL-string" 1319          */ 1320         auth->response =g_string_new(""); 1321         auth->username =g_string_new(""); 1322         auth->database =g_string_new(""); 1323         auth->capabilities =CLIENT_SECURE_CONNECTION | CLIENT_PROTOCOL_41; 1324 1325         return auth; 1326 } 修改1323行为如下： 1312network_mysqld_auth_response *network_mysqld_auth_response_new() { 1313         network_mysqld_auth_response *auth; 1314 1315         auth =g_new0(network_mysqld_auth_response, 1); 1316 1317         /* we have to make surescramble->buf is not-NULL to get 1318          * the "empty string" andnot a "NULL-string" 1319          */ 1320         auth->response =g_string_new(""); 1321         auth->username =g_string_new(""); 1322         auth->database =g_string_new(""); 1323         auth->capabilities = CLIENT_RESERVED2 | CLIENT_PROTOCOL_41; 1324 1325         return auth; 1326 } 1378                 if (auth->capabilities& CLIENT_SECURE_CONNECTION) { 1379                         err = err ||network_mysqld_proto_get_lenenc_gstring(packet, auth->response); 1380                 } else { 1381                         err = err ||network_mysqld_proto_get_gstring(packet, auth->response); 1382                 } 1383 1384                 if (packet->offset !=packet->data->len) { 1385                         /* database isoptional and may include a trailing \0 char */ 1386                         err = err ||network_mysqld_proto_get_gstring_len 修改1378行为如下： 1378                 if (auth->capabilities& CLIENT_RESERVED2) { 1379                         err = err ||network_mysqld_proto_get_lenenc_gstring(packet, auth->response); 1380                 } else { 1381                         err = err ||network_mysqld_proto_get_gstring(packet, auth->response); 1382                 } 1383 1384                 if (packet->offset !=packet->data->len) { 1385                         /* database isoptional and may include a trailing \0 char */ 1386                         err = err ||network_mysqld_proto_get_gstring_len viplugins/admin/admin-plugin.c 195NETWORK_MYSQLD_PLUGIN_PROTO(server_con_init) { 196         network_mysqld_auth_challenge*challenge; 197         GString *packet; 198 199         challenge =network_mysqld_auth_challenge_new(); 200         challenge->server_version_str =g_strdup("5.0.99-agent-admin"); 201         challenge->server_version     = 50099; 202         challenge->charset            = 0x08; /* latin1 */ 203         challenge->capabilities       = CLIENT_PROTOCOL_41 |CLIENT_SECURE_CONNECTION | CLIENT_LONG_PASSWORD; 204         challenge->server_status      = SERVER_STATUS_AUTOCOMMIT; 205         challenge->thread_id          = 1; 修改203行为如下： 195NETWORK_MYSQLD_PLUGIN_PROTO(server_con_init) { 196         network_mysqld_auth_challenge*challenge; 197         GString *packet; 198 199         challenge =network_mysqld_auth_challenge_new(); 200         challenge->server_version_str =g_strdup("5.0.99-agent-admin"); 201         challenge->server_version     = 50099; 202         challenge->charset            = 0x08; /* latin1 */ 203         challenge->capabilities       = CLIENT_PROTOCOL_41 | CLIENT_RESERVED2 | CLIENT_LONG_PASSWORD; 204         challenge->server_status      = SERVER_STATUS_AUTOCOMMIT; 205         challenge->thread_id          = 1;

6.重新编译安装
7.导入mysql5.7库文件
# echo '/usr/local/mysql5.7.16/lib' >> /etc/ld.so.conf
# ldconfig
8.启动atlas
# /usr/local/mysql-proxy/bin/mysql-proxyd test start
