路由器远程登录与单臂路由

23rewr

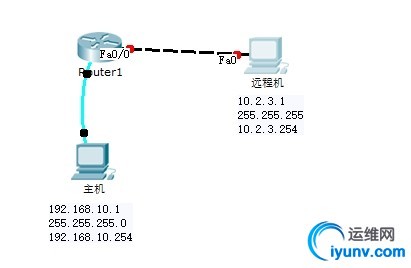

远程登录：


主机进入终端模式;

1 2 3 4 5 6 7 8 9 10 11 12 13

Router>enable Router#conf t Router(config)#enable secret 123456     //设置enable密码 Router(config)#line vty 0 4            //设置远程登录机数为5台 Router(config-line)#password cisco      //远程登录密码为cisco Router(config-line)#login          //登录时验证 Router(config-line)#exit Router(config)#interface fa 0/0 Router(config-if)#ip addre Router(config-if)#ip address 10.2.3.254 255.255.255.0  //给接口配置IP地址，远程机的网关 Router(config-if)#no shut Router(config-if)#end

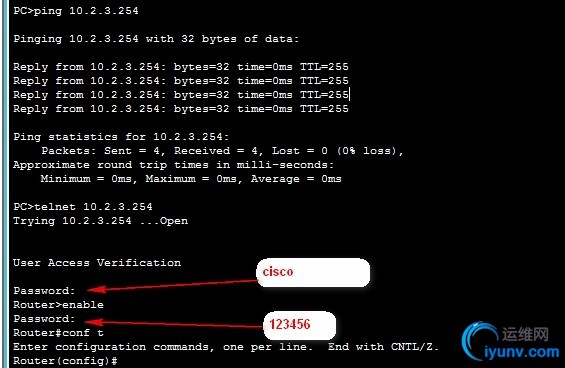

远程登录机进行登录：

---

单臂路由

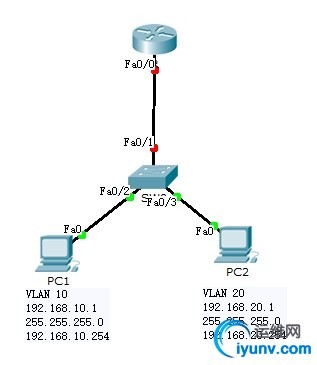

两个VLAN之间的通讯可以通过一个路由器解决。
交换机：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Switch>enable Switch#conf t Enter configuration commands, one per line.  End with CNTL/Z. Switch(config)#vlan 10 Switch(config-vlan)#exit Switch(config)#vlan 20 Switch(config-vlan)#exit              //定义两个ＶＬＡＮ Switch(config)#       Switch(config)#interface fa 0/2 Switch(config-if)#switchport access vlan 10 Switch(config-if)#exit Switch(config)#interface fa 0/3 Switch(config-if)#switchport access vlan 20 Switch(config-if)#exit Switch(config)#interface f 0/1 Switch(config-if)#switchport mode trunk 　　　　　　//F 0/1定义为Trunk模式 Switch(config-if)#exit Switch(config)#

路由器：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Router>enable Router# Router#conf t Enter configuration commands, one per line.  End with CNTL/Z. Router(config)#inter f 0/0 Router(config-if)#no shut Router(config-if)# %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up Router(config-if)# Router(config-if)#exit Router(config)# Router(config)#inter f 0/0.1          //进入F0/0的子接口 F0/0.1 Router(config-subif)# %LINK-5-CHANGED: Interface FastEthernet0/0.1, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.1, changed state to up Router(config-subif)#encapsulation dot1Q 10 Router(config-subif)#ip address 192.168.10.254 255.255.255.0 Router(config-subif)#exit Router(config)#inter f 0/0.2 Router(config-subif)# %LINK-5-CHANGED: Interface FastEthernet0/0.2, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.2, changed state to up Router(config-subif)#encapsulation Dot1Q 20 Router(config-subif)#ip address 192.168.20.254 255.255.255.0 Router(config-subif)#exit Router(config)# Router#show ip route                     //查看路由条目   Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP        i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area        * - candidate default, U - per-user static route, o - ODR        P - periodic downloaded static route Gateway of last resort is not set                                 //显示两条直连路由 C    192.168.10.0/24 is directly connected, FastEthernet0/0.1 C    192.168.20.0/24 is directly connected, FastEthernet0/0.2 Router#

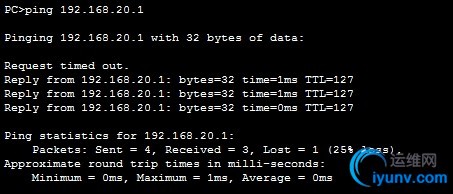

PC1 ping PC1结果：
