zabbix 3.2安装部署(一)

34212131 · 发表于 2017-1-12 08:56:52

一.zabbix server端安装
二.zabbix agent端安装

LNMP环境准备略过
一.zabbix server端安装
1.数据库操作

1 2	ln -s /usr/lib64/mysql/libmysqlclient.so.16.0.0 /usr/lib64/mysql/libmysqlclient.so ln -s /usr/lib64/mysql/libmysqlclient_r.so.16.0.0 /usr/lib64/mysql/libmysqlclient_r.so

1.1.创建数据

1	create database zabbix character set utf8;

1.2.创建用户

1	grant all on zabbix.* to 'zabbix'@'localhost' identified by '12345';

1.3.导入数据

1
2
3
4
5
6

tar -xf zabbix-3.2.3.tar.gz
cd zabbix-3.2.3/database/mysql/
mysql -uroot -p
source /tmp/soft/zabbix-3.2.3/database/mysql/schema.sql;
source /tmp/soft/zabbix-3.2.3/database/mysql/images.sql;
source /tmp/soft/zabbix-3.2.3/database/mysql/data.sql;

2.安装zabbix server
2.1.添加运行用户

1 2	groupadd zabbix useradd -g zabbix zabbix -s /sbin/nologin

2.2.安装需要扩展包

1	yum install net-snmp-devel curl-devel net-snmp-libs net-snmp-utils unixODBC-devel libssh2-devel OpenIPMI-devel

2.3.编译安装文件

1
2
3
4

cd zabbix-3.2.3
./configure --prefix=/usr/local/zabbix --enable-server --enable-agent --with-mysql --enable-ipv6 --with-net-snmp --with-libcurl --with-libxml2 --with-unixodbc --with-ssh2 --with-openipmi --with-openssl
make
make install

2.4.程序运行文件链接

1 2	ln -s /usr/local/zabbix/sbin/* /usr/local/sbin/ ln -s /usr/local/zabbix/bin/* /usr/local/bin/

3.启动脚本文件

1
2
3
4
5

cp misc/init.d/fedora/core/zabbix_server /etc/rc.d/init.d/zabbix_server
cp misc/init.d/fedora/core/zabbix_agentd /etc/rc.d/init.d/zabbix_agentd
chmod +x /etc/rc.d/init.d/zabbix_*
chkconfig zabbix_server on
chkconfig zabbix_agentd on

4.zabbix server配置文件操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

vim /usr/local/zabbix/etc/zabbix_server.conf
ListenPort=10053
LogFile=/usr/local/zabbix/logs/zabbix_server.log
LogFileSize=1
PidFile=/usr/local/zabbix/pid/zabbix_server.pid
DBName=zabbix
DBUser=zabbix
DBPassword=111111
DBSocket=/data/mysql/3306/mysql.sock
DBPort=3306
StartPollers=10
StartIPMIPollers=5
StartPollersUnreachable=5
StartTrappers=5
StartPingers=5
StartDiscoverers=5
CacheSize=1024M
Timeout=4
LogSlowQueries=3000

启动程序：

1	/etc/init.d/zabbix_server start

5.nginx 配置文件操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

vim zabbix.conf
server {
listen    80;
server_name  1.19.12.1;
error_log /usr/local/nginx/logs/zabbix_error.log;
access_log /usr/local/nginx/logs/zabbix_access.log main;
location / {
   root /opt/web/zabbix;
   index  index.php index.html index.htm;
}
error_page 500 502 503 504  /50x.html;
location = /50x.html {
   root html;
}
location ~ \.(php|php5)?$ {
root /opt/web/zabbix;
      fastcgi_pass 127.0.0.1:9000;
      fastcgi_index index.php;
      fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
         fastcgi_buffers 2 256k;
         fastcgi_buffer_size 128k;
         fastcgi_busy_buffers_size 256k;
         fastcgi_temp_file_write_size 256k;
         include fastcgi_params;
}
}

重新加载nginx

1	/etc/init.d/nginx reload

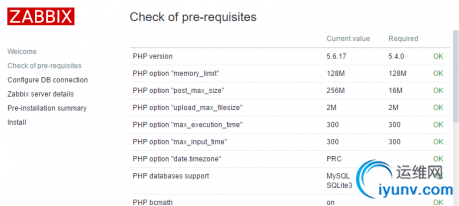

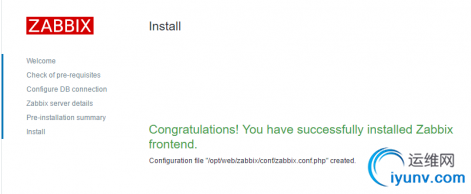

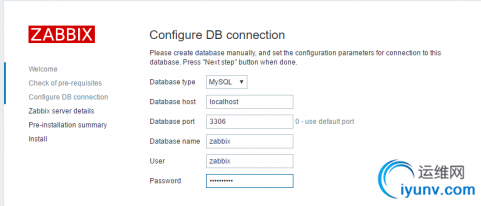

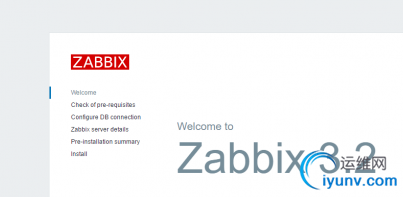

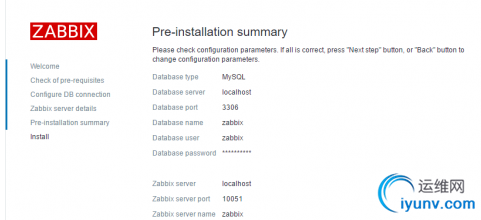

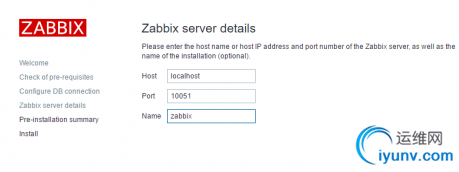

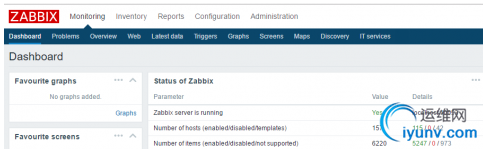

6.登录访问

初始用户
admin:zabbix
二.zabbix agent端安装
1.安装agent
1.1.添加运行用户

1 2	groupadd zabbix useradd -g zabbix zabbix -s /sbin/nologin

1.2.安装agent

1
2
3
4
5

tar -zxf zabbix-3.2.3.tar.gz
cd zabbix-3.2.3
./configure --prefix=/usr/local/zabbix-agent --enable-agent
make
make install

1.3.运行脚本

1 2	cp misc/init.d/fedora/core/zabbix_agentd /etc/rc.d/init.d/ chmod +x /etc/rc.d/init.d/zabbix_agentd

1.4.链接程序文件

1 2	ln -s /usr/local/zabbix-agent/sbin/* /usr/local/sbin/ ln -s /usr/local/zabbix-agent/bin/* /usr/local/bin/

1.5.配置文件操作

1
2
3
4
5
6
7
8
9

vim /usr/local/zabbix-agent/etc/zabbix_agentd.conf
PidFile=/usr/local/zabbix-agent/pid/zabbix_agentd.pid
LogFile=/usr/local/zabbix-agent/log/zabbix_agentd.log
LogFileSize=1
Server=10.8.40.111
ServerActive=10.8.40.111:10053
Hostname=10.2.4.1
UserParameter=disk.discovery

,/bin/bash /usr/local/zabbix-agent/scripts/disk_io.sh
UserParameter=disk.status

,/bin/bash /usr/local/zabbix-agent/scripts/disk_stats.sh $1 $2

1.6.启动程序：
