check_oracle_health监控oracle

455分hkhj

一、准备工作

1.在数据库上创建用户并赋予权限(DBA配合操作；用户、密码待定；只是监控本机数据库TNS、SID）
CREATE USER nagios IDENTIFIED BY XXXX;
GRANT CREATE SESSIONTO nagios;
GRANT SELECT anydictionary TO nagios;
GRANT SELECT ONV_$SYSSTAT TO nagios;
GRANT SELECT ONV_$INSTANCE TO nagios;
GRANT SELECT ON V_$LOGTO nagios;
GRANT SELECT ONSYS.DBA_DATA_FILES TO nagios;
GRANT SELECT ONSYS.DBA_FREE_SPACE TO nagios;

GRANT SELECT ONsys.dba_tablespaces TO nagios;
GRANT SELECT ONdba_temp_files TO nagios;
GRANT SELECT ONsys.v_$Temp_extent_pool TO nagios;
GRANT SELECT ONsys.v_$TEMP_SPACE_HEADER  TO nagios;
GRANT SELECT ONsys.v_$session TO nagios;

  2.将nagios加入oinstall组

usermod -a -G oinstall nagios

二、查看被监控是否安装了perl?并且被监控机安装DBI和DBD

   1.[iyunv@D-MDB-90 ~]# perl -v

This is perl, v5.10.1 (*) built forx86_64-linux-thread-multi
Copyright 1987-2009, Larry Wall
Perl may be copied only under theterms of either the Artistic License or the
GNU General Public License, which maybe found in the Perl 5 source kit.
Complete documentation for Perl,including FAQ lists, should be found on
this system using "manperl" or "perldoc perl". If you have access to the
Internet, point your browser athttp://www.perl.org/, the Perl Home Page.
  2.下载DBI
     wget http://www.cpan.org/authors/id/T/TI/TIMB/DBI-1.636.tar.gz
  3.解压DBI
     [iyunv@D-MDB-90 src]#tar zxvf DBI-1.636.tar.gz
  4.安装DBI
     [iyunv@D-MDB-90 src]# cd DBI-1.636
     [iyunv@D-MDB-90 DBI-1.636]# perlMakefile.PL
     [iyunv@D-MDB-90 DBI-1.636]# make all
     [iyunv@D-MDB-90 DBI-1.636]# make install
  5.下载安装DBD-Oracle
    [iyunv@D-MDB-90 src]# wget http://mirrors.neusoft.edu.cn/cp ... -Oracle-1.74.tar.gz
    [iyunv@D-MDB-90 src]# tar zxvf DBD-Oracle-1.74.tar.gz
     [iyunv@D-MDB-90 src]# cd DBD-Oracle-1.74
     [root@D-MDB-90DBD-Oracle-1.74]# perl Makefile.PL
  6.这里会碰到安装错误
    切换到oracle用户：su - oracle
    查看ORACLE_HOME路径：echo $ORACLE_HOME
[iyunv@D-MDB-90libexec]# echo $ORACLE_HOME /oracle/app/oracle/products/11.2.0.3/db   #记住这条oracle_home环境

7.重新切回root：ctrl+d或su - root设置环境变量[root@D-MDB-90DBD-Oracle-1.74]#export ORACLE_HOME=/oracle/app/oracle/products/11.2.0.3/db

  [iyunv@D-MDB-90 DBD-Oracle-1.74]# perl Makefile.PL

  [root@D-MDB-90DBD-Oracle-1.74]#make && make install

三、下载安装check_oracle_health

     1.[iyunv@D-MDB-90 src]# wget https://labs.consol.de/assets/do ... alth-2.1.3.5.tar.gz
     2.[iyunv@D-MDB-90 src]# tar -zxvfcheck_oracle_health-2.1.3.5.tar.gz
     3.[iyunv@D-MDB-90 src]#cd check_oracle_health-2.1.3.5
     4. ./configure --prefix=/usr/local/nagios--with-nagios-user=nagios --with-nagios-group=nagios--with-mymodules-dir=/usr/local/nagios/libexec --with-mymodules-dyndir=/usr/local/nagios/libexec
     5. [iyunv@D-MDB-90 src]make all
     6.[iyunv@D-MDB-90 src]make install
     7.chown nagios:nagios/usr/local/nagios/libexec/check_oracle_health
     8.chmod 775/usr/local/nagios/libexec/check_oracle_health

四、测试

   1.安装完成后执行命令：/usr/local/nagios/libexec/check_oracle_health --connect=oracle_SID    --user=oracle用户 --password=oracle用户密码 --mode=connected-users

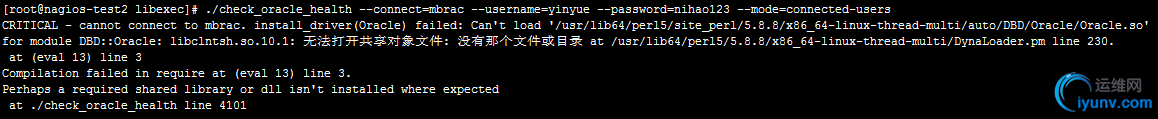

   如果提示错误：如

解决方法：
[iyunv@D-MDB-90libexec]# ldd /usr/local/lib64/perl5/auto/DBD/Oracle/Oracle.so （安装缺少文件路径找）
发现没有libclntsh.so.11.1

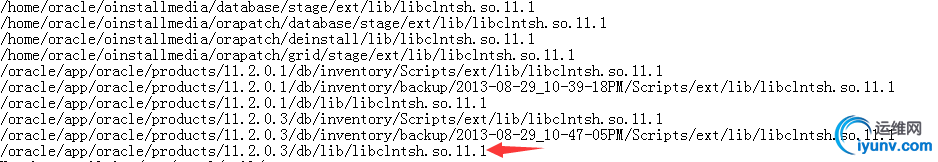

[iyunv@D-MDB-90libexec]# locate  libclntsh.so.11.1


[iyunv@D-MDB-90 libexec]# ln -s /oracle/app/oracle/products/11.2.0.3/db/lib/libclntsh.so.11.1（空格）/lib/libclntsh.so.11.1
[iyunv@D-MDB-90 libexec]# vim /etc/ld.so.conf
添加
include ld.so.conf.d/*.conf
/oracle/app/oracle/products/11.2.0.3/db/lib  #这里的路径与libclntsh.so.11.1 的路径有关

[iyunv@D-MDB-90 libexec]# ldconfig

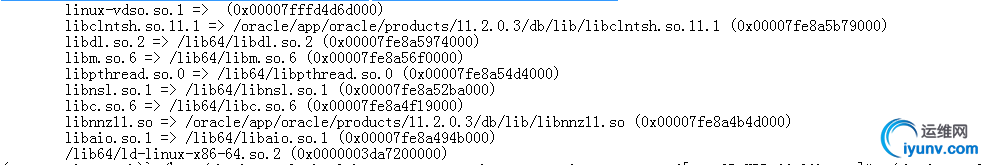

[iyunv@D-MDB-90 libexec]# ldd/usr/local/lib64/perl5/auto/DBD/Oracle/Oracle.so


2.[iyunv@D-MDB-90 libexec]#/usr/local/nagios/libexec/check_oracle_health --connect=pomoho --user=nagios --password=oradbmon --mode=tnsping
结果输出OK - connection established to pomoho.

3.修改/usr/local/nagios/etc/nrpe.cfg

  在allowed_hosts后加上本机与监控主机的IP
  最后加一行command[check_oracle_health]=/usr/local/nagios/libexec/check_oracle_health --connect=oracle_SID    --user=oracle用户 --password=oracle用户密码 --mode=tnsping

4.重启nrpe

5./usr/local/nagios/libexec/check_nrpe -H你的被监控机IP地址 -c check_oracle_health

如果结果同样为OK - connectionestablished to pomoho，则OK

五、修改监控主机的/usr/local/nagios/etc/objects/services.cfg

添加

###################XX-XXX-XXcheck_oracle_health#####################################

define service{

       host_name               XX-XXX-XX

       service_description    check_oracle_health_tnsping

       check_command          check_nrpe!check_oracle_health

        max_check_attempts      5

       normal_check_interval   5

       retry_check_interval    2

       check_period            24x7

       notification_interval   10

       notification_period     24x7

       notification_options    w,u,c,r

       contact_groups          yunwei

}

检查配置是否正确 /usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg
重新加载nagios ： service nagios reload
