Cisco基础【路由器】静态路由与默认路由

4rwgf

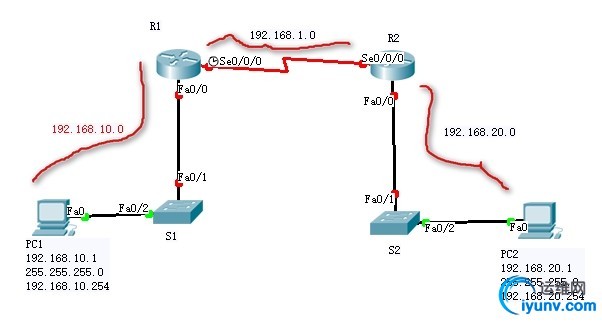

实现PC1 与 PC2 的通信
R1：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Router>enable Router# Router#conf t Router(config)#inter f 0/0 Router(config-if)#ip address 192.168.10.254 255.255.255.0 Router(config-if)#no shut Router(config-if)#exit Router(config)# Router(config)#inter s 0/0/0 Router(config-if)#ip address 192.168.1.1 255.255.255.0 Router(config-if)#clock rate 64000 Router(config-if)#no shut Router(config-if)#exit etected at '^' marker. Router(config-if)#exit Router(config)# Router# Router#show ip route Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP        i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area        * - candidate default, U - per-user static route, o - ODR        P - periodic downloaded static route Gateway of last resort is not set                      //两条直连路由 C    192.168.1.0/24 is directly connected, Serial0/0/0 C    192.168.10.0/24 is directly connected, FastEthernet0/0 Router#

R2：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Router>enable Router#conf t Enter configuration commands, one per line.  End with CNTL/Z. Router(config)#inter f 0/0 Router(config-if)#ip address 192.168.20.254 255.255.255.0 Router(config-if)#no shut Router(config-if)#exit Router(config)# Router(config)#inter s 0/0/0 Router(config-if)#ip address 192.168.1.2 255.255.255.0 Router(config-if)#no shut Router(config-if)# Router(config-if)#exit Router(config)#end Router# Router#show ip route Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP        i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area        * - candidate default, U - per-user static route, o - ODR        P - periodic downloaded static route Gateway of last resort is not set                              //两条直连路由 C    192.168.1.0/24 is directly connected, Serial0/0/0 C    192.168.20.0/24 is directly connected, FastEthernet0/0 Router#

PC 1 ping PC 2


Ping不通，目标主机不可达。路由器无法将192.168.10.0的数据包传送出去。
配置静态路由
R 1:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

Router#conf t   //配置静态路由，格式为： ip route 目的网段 子网掩码 吓一跳地址 Router(config)#ip route 192.168.20.0 255.255.255.0 192.168.1.2 Router(config)#exit Router# %SYS-5-CONFIG_I: Configured from console by console Router#show ip route Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP        i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area        * - candidate default, U - per-user static route, o - ODR        P - periodic downloaded static route Gateway of last resort is not set C    192.168.1.0/24 is directly connected, Serial0/0/0 C    192.168.10.0/24 is directly connected, FastEthernet0/0 S    192.168.20.0/24 [1/0] via 192.168.1.2      //出现去往192.168.20.0的网络 Router#

R2：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Router(config)# Router(config)#ip route 192.168.10.0 255.255.255.0 192.168.1.1 Router(config)#end Router# %SYS-5-CONFIG_I: Configured from console by console Router#show ip route Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP        i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area        * - candidate default, U - per-user static route, o - ODR        P - periodic downloaded static route Gateway of last resort is not set C    192.168.1.0/24 is directly connected, Serial0/0/0 S    192.168.10.0/24 [1/0] via 192.168.1.1   //有去往192.168.10.0的网络了 C    192.168.20.0/24 is directly connected, FastEthernet0/0 Router#

PC1 ping PC 2

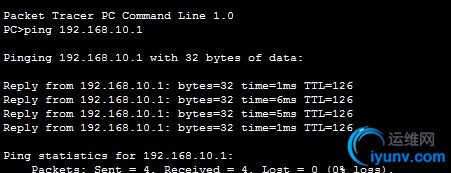

PC 2 ping PC1
