系统环境：
操作系统： RedHat EL4
Oracle:    Oracle 10.2.0.1.0

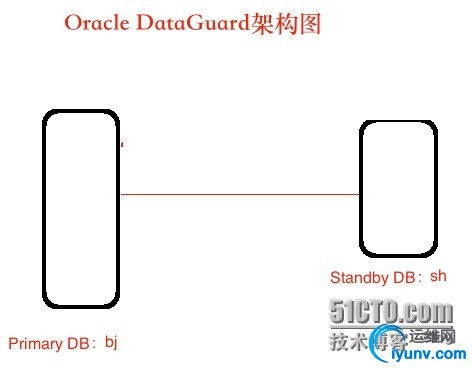

                                  从以上图中所示：主库为bj（db_unique_name)，备库为sh。

案例分析：
本案例采用RMAN Duplicate方式建立standby database。
一、配置主备库初始化参数
主库的初始化参数：initbj.ora
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[oracle@ocmtest dbs]$ more initbj.ora
*.audit_file_dest='/u01/app/oracle/admin/bj/adump'
*.background_dump_dest='/u01/app/oracle/admin/bj/bdump'
*.compatible='10.2.0.1.0'
*.control_files='/u01/app/oracle/oradata/bj/control01.ctl','/u01/app/oracle/oradata/bj/control02.ctl','/u01/app/oracle/oradata/bj/control
03.ctl'
*.core_dump_dest='/u01/app/oracle/admin/bj/cdump'
*.db_block_size=8192
*.db_domain=''
*.db_file_multiblock_read_count=16
*.db_name='bj'
*.db_recovery_file_dest='/u01/app/oracle/flash_recovery_area'
*.db_recovery_file_dest_size=2147483648
*.dispatchers='(PROTOCOL=TCP) (SERVICE=bjXDB)'
*.job_queue_processes=10
*.open_cursors=300
*.pga_aggregate_target=68157440
*.processes=150
*.remote_login_passwordfile='EXCLUSIVE'
*.sga_target=205520896
*.undo_management='AUTO'
*.undo_tablespace='UNDOTBS1'
*.user_dump_dest='/u01/app/oracle/admin/bj/udump'



以下为DG配置参数:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DB_UNIQUE_NAME=bj
LOG_ARCHIVE_CONFIG='DG_CONFIG=(bj,sh)'

LOG_ARCHIVE_DEST_1='LOCATION=/u01/disk1/arch/bj/ VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=bj'

LOG_ARCHIVE_DEST_2='SERVICE=sh LGWR ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=sh'

LOG_ARCHIVE_DEST_STATE_1=ENABLE
LOG_ARCHIVE_DEST_STATE_2=ENABLE
REMOTE_LOGIN_PASSWORDFILE=EXCLUSIVE
LOG_ARCHIVE_MAX_PROCESSES=3
FAL_SERVER=sh
FAL_CLIENT=bj
DB_FILE_NAME_CONVERT='/u01/app/oracle/oradata/sh/','/u01/app/oracle/oradata/bj/'
LOG_FILE_NAME_CONVERT='/u01/app/oracle/oradata/sh/','/u01/app/oracle/oradata/bj/'
STANDBY_FILE_MANAGEMENT=AUTO



备库的初始化参数：initsh.ora
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[oracle@ocmtest1 dbs]$ more initsh.ora
*.audit_file_dest='/u01/app/oracle/admin/sh/adump'
*.background_dump_dest='/u01/app/oracle/admin/sh/bdump'
*.compatible='10.2.0.1.0'
*.control_file_record_keep_time=7
*.control_files='/u01/app/oracle/oradata/sh/control01.ctl','/u01/app/oracle/oradata/sh/control02.ctl','/u01/app/oracle/oradata/sh/control
03.ctl'
*.core_dump_dest='/u01/app/oracle/admin/sh/cdump'
*.db_block_size=8192
*.db_domain=''
*.db_file_multiblock_read_count=16
*.DB_FILE_NAME_CONVERT='/u01/app/oracle/oradata/bj/','/u01/app/oracle/oradata/sh/'
*.db_name='bj'
*.db_recovery_file_dest='/u01/app/oracle/flash_recovery_area'
*.db_recovery_file_dest_size=2147483648
*.open_cursors=300
*.pga_aggregate_target=68157440
*.processes=150
*.REMOTE_LOGIN_PASSWORDFILE='EXCLUSIVE'
*.sga_target=205520896
*.undo_management='AUTO'
*.undo_tablespace='UNDOTBS1'
*.user_dump_dest='/u01/app/oracle/admin/sh/udump'



以下为DG配置参数:
1
2
3
4
5
6
7
8
9
10
11
12
13
*.DB_UNIQUE_NAME='sh'
*.FAL_CLIENT='sh'
*.FAL_SERVER='bj'
*.job_queue_processes=10
*.LOG_ARCHIVE_CONFIG='DG_CONFIG=(bj,sh)'
*.LOG_ARCHIVE_DEST_1='LOCATION=/u01/disk1/arch/sh/ VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=sh'
*.LOG_ARCHIVE_DEST_2='SERVICE=bj LGWR ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=bj'
*.LOG_ARCHIVE_DEST_STATE_1='ENABLE'
*.LOG_ARCHIVE_DEST_STATE_2='ENABLE'
*.log_archive_format='arch_%t_%s_%r.log'
*.LOG_ARCHIVE_MAX_PROCESSES=3
*.LOG_FILE_NAME_CONVERT='/u01/app/oracle/oradata/bj/','/u01/app/oracle/oradata/sh/'
*.STANDBY_FILE_MANAGEMENT='AUTO'



二、在主库上建立standby 日志
1
2
3
4
5
6
7
   对于默认的最大性能的保护方式，可以不用建立standby redo logfiles；但建立standby redo logfiles可以更好的保存redo log；standby redo日志组组数应等于或多于redo log，日志的大小应该一致。

SQL> alter database add standby logfile group 4 ('/u01/app/oracle/oradata/bj/redo04.log') size 50m;

SQL> alter database add standby logfile group 5 ('/u01/app/oracle/oradata/bj/redo05.log.rdo') size 50m;

SQL> alter database add standby logfile group 6 ('/u01/app/oracle/oradata/bj/redo06.log') size 50m;




三、在备库上建立相应目录：
1
2
3
4
5
[oracle@ocmtest1 dbs]$mkdir -p /u01/app/oracle/admin/sh/adump
[oracle@ocmtest1 dbs]$mkdir -p /u01/app/oracle/admin/sh/udump
[oracle@ocmtest1 dbs]$mkdir -p /u01/app/oracle/admin/sh/bdump
[oracle@ocmtest1 dbs]$mkdir -p /u01/app/oracle/admin/sh/cdump
[oracle@ocmtest1 dbs]$mkdir -p /u01/app/oracle/oradata/sh



四、在主库生成备库的controlfile和备份

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1、数据库在mount 状态下
06:57:41 SQL> alter database create standby controlfile as '/home/oracle/std_control01.ctl';

2、 将生成的控制文件，拷贝到备库相同的目录下
[oracle@ocmtest1 ~]$ scp  /home/oracle/std_control01.ctl 192.168.8.86:/home/oracle

对主库进行备份
[oracle@ocmtest bj]$ rman target /
Recovery Manager: Release 10.2.0.1.0 - Production on Wed Aug 31 10:55:55 2011
Copyright (c) 1982, 2005, Oracle.  All rights reserved.
connected to target database (not started)
RMAN> run {
2>  startup force mount;
3>  backup database format='/u01/disk1/rman/bj/bj_%s.bak' plus archivelog;
4> alter database open;
5> }




五、在备库上Duplicate  Database（备库启动到弄mount）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
1）在备库上建立/u01/disk1/rman/bj目录
   拷贝主库的备份到备库/u01/disk1/rman/bj目录（拷贝到相同的目录下）

[oracle@ocmtest bj]$ scp /u01/disk1/rman/bj/bj_*.bak 192.168.8.86:/u01/disk1/rman/bj

2）配置Oracle network

因为，备库启动到no mount 状态，拒绝用户远程联机，所以采用静态注册，如下所示备库listenter
[oracle@ocmtest1 admin]$ cat listener.ora
# listener.ora Network Configuration File: /u01/app/oracle/product/10.2.0/db_1/network/admin/listener.ora
# Generated by Oracle configuration tools.
SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = PLSExtProc)
      (ORACLE_HOME = /u01/app/oracle/product/10.2.0/db_1)
      (PROGRAM = extproc)
    )
   (SID_DESC =
      (GLOBAL_DBNAME = bj)
      (ORACLE_HOME = /u01/app/oracle/product/10.2.0/db_1)
      (SID_NAME = bj)
    )

)

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ocmtest1.51CTO提醒您，请勿滥发广告!)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC0))
    )
  )

如下所示：主库的tnsnames文件：
[oracle@ocmtest1 admin]$
[oracle@ocmtest admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /u01/app/oracle/product/10.2.0/db_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.
BJ =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.8.84)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = bj)
    )
)
SH =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.8.86)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = sh)
       (UR=A)   ；添加此项连接到静态注册的备库
    )
)

测试连接备库
[oracle@ocmtest bj]$ sqlplus sys/oracle@sh as sysdba
SQL*Plus: Release 10.2.0.1.0 - Production on Wed Aug 31 11:19:32 2011
Copyright (c) 1982, 2005, Oracle.  All rights reserved.
Connected to:
Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - Production
With the Partitioning, OLAP and Data Mining options
SQL> exit
Disconnected from Oracle Database 10g Enterprise Edition Release 10.2.0.1.0 - Production
With the Partitioning, OLAP and Data Mining options

通过主库连接到备库，进行恢复（通过克隆方式建立备库）
[oracle@ocmtest bj]$ rman target /
Recovery Manager: Release 10.2.0.1.0 - Production on Wed Aug 31 11:19:36 2011
Copyright (c) 1982, 2005, Oracle.  All rights reserved.
connected to target database: BJ (DBID=1015723911)

RMAN> connect auxiliary sys/oracle@sh;
connected to auxiliary database: BJ (not mounted)

RMAN> duplicate target database for standby;
Starting Duplicate Db at 31-AUG-11
using target database control file instead of recovery catalog
allocated channel: ORA_AUX_DISK_1
channel ORA_AUX_DISK_1: sid=155 devtype=DISK
contents of Memory Script:
{
   restore clone standby controlfile;
   sql clone 'alter database mount standby database';
}
executing Memory Script
Starting restore at 31-AUG-11
using channel ORA_AUX_DISK_1
channel ORA_AUX_DISK_1: restoring control file
channel ORA_AUX_DISK_1: copied control file copy
input filename=/home/oracle/stand.ctl
output filename=/u01/app/oracle/oradata/sh/control01.ctl
output filename=/u01/app/oracle/oradata/sh/control02.ctl
output filename=/u01/app/oracle/oradata/sh/control03.ctl
Finished restore at 31-AUG-11
sql statement: alter database mount standby database
released channel: ORA_AUX_DISK_1
contents of Memory Script:
{
   set newname for tempfile  1 to
"/u01/app/oracle/oradata/sh/temp01.dbf";
   switch clone tempfile all;
   set newname for datafile  1 to
"/u01/app/oracle/oradata/sh/system01.dbf";
   set newname for datafile  2 to
"/u01/app/oracle/oradata/sh/undotbs01.dbf";
   set newname for datafile  3 to
"/u01/app/oracle/oradata/sh/sysaux01.dbf";
   set newname for datafile  4 to
"/u01/app/oracle/oradata/sh/users01.dbf";
   set newname for datafile  5 to
"/u01/app/oracle/oradata/sh/example01.dbf";
   restore
   check readonly
   clone database
   ;
}
executing Memory Script
executing command: SET NEWNAME
renamed temporary file 1 to /u01/app/oracle/oradata/sh/temp01.dbf in control file
executing command: SET NEWNAME
executing command: SET NEWNAME
executing command: SET NEWNAME
executing command: SET NEWNAME
executing command: SET NEWNAME
Starting restore at 31-AUG-11
allocated channel: ORA_AUX_DISK_1
channel ORA_AUX_DISK_1: sid=155 devtype=DISK
channel ORA_AUX_DISK_1: starting datafile backupset restore
channel ORA_AUX_DISK_1: specifying datafile(s) to restore from backup set
restoring datafile 00001 to /u01/app/oracle/oradata/sh/system01.dbf
restoring datafile 00002 to /u01/app/oracle/oradata/sh/undotbs01.dbf
restoring datafile 00003 to /u01/app/oracle/oradata/sh/sysaux01.dbf
restoring datafile 00004 to /u01/app/oracle/oradata/sh/users01.dbf
restoring datafile 00005 to /u01/app/oracle/oradata/sh/example01.dbf
channel ORA_AUX_DISK_1: reading from backup piece /u01/disk1/rman/bj/bj_2.bak
channel ORA_AUX_DISK_1: restored backup piece 1
piece handle=/u01/disk1/rman/bj/bj_2.bak tag=TAG20110831T105953
channel ORA_AUX_DISK_1: restore complete, elapsed time: 00:00:48
Finished restore at 31-AUG-11
contents of Memory Script:
{
   switch clone datafile all;
}
executing Memory Script
datafile 1 switched to datafile copy
input datafile copy recid=10 stamp=760621486 filename=/u01/app/oracle/oradata/sh/system01.dbf
datafile 2 switched to datafile copy
input datafile copy recid=11 stamp=760621487 filename=/u01/app/oracle/oradata/sh/undotbs01.dbf
datafile 3 switched to datafile copy
input datafile copy recid=12 stamp=760621487 filename=/u01/app/oracle/oradata/sh/sysaux01.dbf
datafile 4 switched to datafile copy
input datafile copy recid=13 stamp=760621487 filename=/u01/app/oracle/oradata/sh/users01.dbf
datafile 5 switched to datafile copy
input datafile copy recid=14 stamp=760621487 filename=/u01/app/oracle/oradata/sh/example01.dbf
Finished Duplicate Db at 31-AUG-11




---备库建立完毕，并启动到mount状态！

六、在备库上启动MRP进程
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
11:40:28 SQL> SELECT status from v$instance;
STATUS
------------
MOUNTED

11:45:40 SQL> alter database recover managed standby database disconnect from session;
Database altered.

告警日志：
alter database recover managed standby database disconnect from session
Wed Aug 31 11:46:00 2011
Attempt to start background Managed Standby Recovery process (sh)
MRP0 started with pid=22, OS id=14159
Wed Aug 31 11:46:01 2011
MRP0: Background Managed Standby Recovery process started (sh)
Managed Standby Recovery not using Real Time Apply
Wed Aug 31 11:46:06 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 1 of thread 1
ORA-00312: online log 1 thread 1: '/u01/app/oracle/oradata/sh/redo01.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Wed Aug 31 11:46:06 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 1 of thread 1
ORA-00312: online log 1 thread 1: '/u01/app/oracle/oradata/sh/redo01.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Clearing online redo logfile 1 /u01/app/oracle/oradata/sh/redo01.log
Clearing online log 1 of thread 1 sequence number 23
Wed Aug 31 11:46:06 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 1 of thread 1
ORA-00312: online log 1 thread 1: '/u01/app/oracle/oradata/sh/redo01.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Wed Aug 31 11:46:07 2011
Completed: alter database recover managed standby database disconnect from session
Wed Aug 31 11:46:08 2011
Clearing online redo logfile 1 complete
Wed Aug 31 11:46:08 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 2 of thread 1
ORA-00312: online log 2 thread 1: '/u01/app/oracle/oradata/sh/redo02.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Wed Aug 31 11:46:08 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 2 of thread 1
ORA-00312: online log 2 thread 1: '/u01/app/oracle/oradata/sh/redo02.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Clearing online redo logfile 2 /u01/app/oracle/oradata/sh/redo02.log
Clearing online log 2 of thread 1 sequence number 21
Wed Aug 31 11:46:08 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 2 of thread 1
ORA-00312: online log 2 thread 1: '/u01/app/oracle/oradata/sh/redo02.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Clearing online redo logfile 2 complete
Wed Aug 31 11:46:09 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 3 of thread 1
ORA-00312: online log 3 thread 1: '/u01/app/oracle/oradata/sh/redo03.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Wed Aug 31 11:46:09 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 3 of thread 1
ORA-00312: online log 3 thread 1: '/u01/app/oracle/oradata/sh/redo03.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Clearing online redo logfile 3 /u01/app/oracle/oradata/sh/redo03.log
Clearing online log 3 of thread 1 sequence number 22
Wed Aug 31 11:46:09 2011
Errors in file /u01/app/oracle/admin/sh/bdump/sh_mrp0_14159.trc:
ORA-00313: open failed for members of log group 3 of thread 1
ORA-00312: online log 3 thread 1: '/u01/app/oracle/oradata/sh/redo03.log'
ORA-27037: unable to obtain file status
Linux Error: 2: No such file or directory
Additional information: 3
Clearing online redo logfile 3 complete
Media Recovery Waiting for thread 1 sequence 23
Wed Aug 31 11:47:00 2011
Using STANDBY_ARCHIVE_DEST parameter default value as /u01/disk1/arch/sh/
Redo Shipping Client Connected as PUBLIC
-- Connected User is Valid
RFS[1]: Assigned to RFS process 14219
RFS[1]: Identified database type as 'physical standby'
Wed Aug 31 11:47:00 2011
RFS LogMiner: Client disabled from further notification
Wed Aug 31 11:47:01 2011
Redo Shipping Client Connected as PUBLIC
-- Connected User is Valid
RFS[2]: Assigned to RFS process 14221
RFS[2]: Identified database type as 'physical standby'
Wed Aug 31 11:47:01 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_7_760458507.log'
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_8_760458507.log'
Wed Aug 31 11:47:01 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_6_760458507.log'
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_10_760458507.log'
Wed Aug 31 11:47:01 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_9_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_11_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_12_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_13_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_14_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_15_760458507.log'
Wed Aug 31 11:47:02 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_16_760458507.log'
Wed Aug 31 11:47:03 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_17_760458507.log'
Wed Aug 31 11:47:03 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_18_760458507.log'
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_19_760458507.log'
Wed Aug 31 11:47:03 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_20_760458507.log'
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_22_760458507.log'
Wed Aug 31 11:47:04 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_21_760458507.log'
Wed Aug 31 11:47:04 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_24_760458507.log'
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_25_760458507.log'
Wed Aug 31 11:47:05 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_23_760458507.log'
Wed Aug 31 11:47:05 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_26_760458507.log'
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_27_760458507.log'
Wed Aug 31 11:47:05 2011
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_28_760458507.log'
Wed Aug 31 11:47:05 2011
RFS[2]: Archived Log: '/u01/disk1/arch/sh/arch_1_29_760458507.log'
Wed Aug 31 11:47:05 2011
Media Recovery Log /u01/disk1/arch/sh/arch_1_23_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_24_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_25_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_26_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_27_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_28_760458507.log
Media Recovery Log /u01/disk1/arch/sh/arch_1_29_760458507.log
Media Recovery Waiting for thread 1 sequence 30



七、在主库上切换日志测试数据同步
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
RMAN> sql'alter system switch logfile';
sql statement: alter system switch logfile

备库告警日志：
RFS[1]: No standby redo logfiles created
RFS[1]: Archived Log: '/u01/disk1/arch/sh/arch_1_30_760458507.log'
Wed Aug 31 11:48:06 2011
Redo Shipping Client Connected as PUBLIC
-- Connected User is Valid
RFS[3]: Assigned to RFS process 14234
RFS[3]: Identified database type as 'physical standby'
Primary database is in MAXIMUM PERFORMANCE mode
Primary database is in MAXIMUM PERFORMANCE mode
RFS[3]: No standby redo logfiles created
Wed Aug 31 11:48:08 2011
Media Recovery Log /u01/disk1/arch/sh/arch_1_30_760458507.log
Media Recovery Waiting for thread 1 sequence 31 (in transit)

---备库接收到归档日志，并对其做Media Recover。



八、查看数据库信息：
1
2
3
4
5
6
7
8
9
18:02:08 SYS@ bj >select name,database_role,protection_mode from v$database;
NAME      DATABASE_ROLE    PROTECTION_MODE
--------- ---------------- --------------------
BJ         PRIMARY          MAXIMUM PERFORMANCE

18:02:50 SYS@ sh >select name,database_role,protection_mode from v$database;
NAME      DATABASE_ROLE    PROTECTION_MODE
--------- ---------------- --------------------
BJ        PHYSICAL STANDBY MAXIMUM PERFORMANCE





----@此案例采用Oracle 10g的环境，对于备库在recover状态下，只能启动到mount状态，如果启动到open环境，则会停止recover，失去了数据保护的功能；对于Oracle 11g，Oracle启用了新的特性，“Active Standby”，可以将备库启动到open状态，并且可以继续recover，从而增强了备库的应用范围和备库的功能。




Oracle

相关帖子


运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-34039-1-1.html 上篇帖子： Oracle中查看锁表 下篇帖子： Oracle 中的PL/SQL、存储过程、触发器、函数、包（学习笔记） Oracle
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
