saltstack的状态文件

ookkl

saltstack状态文件设定：

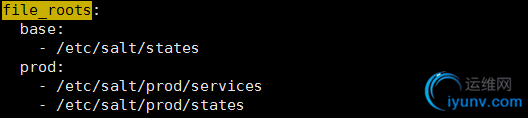

编辑/etc/salt/master，修改其中关于“设置文件的目录”的设置：


说明：注意语法格式，顶格/冒号/两个空格

1 2 3 4 5 6 7 8 9 10

state_top: top.sls # The state system uses a "top" file to tell the minions what environment to # use and what modules to use. The state_top file is defined relative to the # root of the base environment as defined in "File Server settings" below. #state_top: top.sls [iyunv@master ~]# mkdir -p /etc/salt/states [iyunv@master ~]# vim /etc/salt/states/top.sls [iyunv@master ~]# sed -i '329s/#//' /etc/salt/master state_top: top.sls 说明：将329行的注释取消

进入base环境下，并配置下top.sls

1 2 3 4 5 6 7 8

[iyunv@master ~]# cd /etc/salt/states/ [iyunv@master states]# mkdir -p init [iyunv@master states]# mkdir -p prod [iyunv@master states]# vim top.sls [iyunv@master states]# cat top.sls base:   'node01.saltstack.com':     -init.pkg

说明：base是指定一个名称，init为文件夹的名称，pkg为pkg.sls

1 2 3 4 5 6 7 8 9 10 11 12 13 14

[iyunv@master states]# ll 总用量 12 drwxr-xr-x 2 root root 4096 2月  15 14:16 init drwxr-xr-x 2 root root 4096 2月  15 14:16 prod -rw-r--r-- 1 root root   46 2月  15 14:17 top.sls [iyunv@master states]# cd init/ [iyunv@master init]# vim pkg.sls [iyunv@master init]# cat pkg.sls pkg.init:   pkg.installed:     - names:       - lrzsz       - mtr       - nmap

案例1：使用salt初始化系统模块：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

[iyunv@master init]# salt '*' state.sls init.pkg node01.saltstack.com: ----------           ID: pkg.init     Function: pkg.installed         Name: mtr       Result: True      Comment: Package mtr is already installed.      Started: 14:56:02.574416     Duration: 11389.014 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: nmap       Result: True      Comment: Package nmap is already installed.      Started: 14:56:13.963968     Duration: 3.619 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: lrzsz       Result: True      Comment: Package lrzsz is already installed.      Started: 14:56:13.967979     Duration: 1.042 ms      Changes:    Summary ------------ Succeeded: 3 Failed:    0 ------------ Total states run:     3

案例2：saltstack修改内核参数：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

[iyunv@master ~]# cd /etc/salt/states/init/ [iyunv@master init]# tree . └── pkg.sls 0 directories, 1 file [iyunv@master init]# mkdir -p files [iyunv@master init]# cd files/ [iyunv@master init]# vim limit.sls limit-conf-config:   file.managed:     - name: /etc/security/limits.conf     - source: salt://init/files/limits.conf     - user: root     - group: root     - mode: 644 [iyunv@master files]# cd /etc/security/ [iyunv@master security]# ls access.conf       console.perms    limits.d        opasswd           time.conf chroot.conf       console.perms.d  namespace.conf  pam_env.conf console.apps      group.conf       namespace.d     pam_winbind.conf console.handlers  limits.conf      namespace.init  sepermit.conf [iyunv@master security]# cp limits.conf /etc/salt/states/init/files/ [iyunv@master files]# vim limits.conf *               soft    core            0 *               hard    rss             10000 [iyunv@master states]# pwd /etc/salt/states 注意：要将新的模块添加到top.sls中，不然会有其它报错 [iyunv@master states]# cat top.sls base:   '*':     - init.pkg     - init.limit [iyunv@master init]# salt '*' state.highstate node01.saltstack.com: ----------           ID: pkg.init     Function: pkg.installed         Name: mtr       Result: True      Comment: Package mtr is already installed.      Started: 17:42:55.479576     Duration: 7120.831 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: nmap       Result: True      Comment: Package nmap is already installed.      Started: 17:43:02.601307     Duration: 2.278 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: lrzsz       Result: True      Comment: Package lrzsz is already installed.      Started: 17:43:02.603841     Duration: 0.952 ms      Changes:    ----------           ID: limit-conf-config     Function: file.managed         Name: /etc/security/limits.conf       Result: True      Comment: File /etc/security/limits.conf updated      Started: 17:43:02.612678     Duration: 19.256 ms      Changes:                  ----------               diff:                   ---                     +++                     @@ -39,8 +39,8 @@                    #<domain>      <type>  <item>         <value>                    #                                        -#*               soft    core            0                   -#*               hard    rss             10000                   +*               soft    core            0                   +*               hard    rss             10000                    #@student        hard    nproc           20                    #@faculty        soft    nproc           20                    #@faculty        hard    nproc           50 Summary ------------ Succeeded: 4 (changed=1) Failed:    0 ------------ Total states run:     4 客户端测试： [iyunv@node01 security]# egrep -v '#|^$' limits.conf *               soft    core            0 *               hard    rss             10000

案例3：同步某个计划任务

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161

最近发现很多服务器上没有配置ntp服务器指向，简单写个计划任务，然后通过状态文件下发 思路： a）准备好需要下发的文件 b）编辑sls文件 c）修改top.sls，添加信息进去 [iyunv@master ~]# cat /var/spool/cron/root */5 * * * * /usr/sbin/ntpdate -u 202.120.2.101>/dev/null 2>&1 [iyunv@master ~]# cd /etc/salt/states/ [iyunv@master states]# ls init  prod  top.sls [iyunv@master states]# cd init/ [iyunv@master init]# ls files  limit.sls  pkg.sls [iyunv@master init]# cp limit.sls ntp-crontab.sls [iyunv@master init]# ls files  limit.sls  ntp-crontab.sls  pkg.sls [iyunv@master init]# cd files/ [iyunv@master files]# cp /var/spool/cron/root . [iyunv@master files]# pwd /etc/salt/states/init/files [iyunv@master files]# cat root */5 * * * * /usr/sbin/ntpdate -u 202.120.2.101>/dev/null 2>&1 [iyunv@master files]# mv root ntp-crontab.conf [iyunv@master files]# cat ntp-crontab.conf */5 * * * * /usr/sbin/ntpdate -u 202.120.2.101>/dev/null 2>&1 [iyunv@master files]# cd .. [iyunv@master init]# ls files  limit.sls  ntp-crontab.sls  pkg.sls [iyunv@master ~]# cat /etc/salt/states/init/ntp-crontab.sls ntp-crontab-config:   file.managed:     - name: /var/spool/cron/root     - source: salt://init/files/ntp-crontab.conf     - user: root     - group: root     - mode: 644 计划任务更新执行结果： [iyunv@master init]# salt '*' state.highstate node01.saltstack.com: ----------           ID: pkg.init     Function: pkg.installed         Name: mtr       Result: True      Comment: Package mtr is already installed.      Started: 21:09:06.608808     Duration: 4265.514 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: nmap       Result: True      Comment: Package nmap is already installed.      Started: 21:09:10.874647     Duration: 0.685 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: lrzsz       Result: True      Comment: Package lrzsz is already installed.      Started: 21:09:10.875446     Duration: 0.583 ms      Changes:    ----------           ID: limit-conf-config     Function: file.managed         Name: /etc/security/limits.conf       Result: True      Comment: File /etc/security/limits.conf is in the correct state      Started: 21:09:10.879350     Duration: 4.1 ms      Changes:    ----------           ID: ntp-crontab-config     Function: file.managed         Name: /var/spool/cron/root       Result: True      Comment: File /var/spool/cron/root updated      Started: 21:09:10.883639     Duration: 9.342 ms      Changes:                  ----------               diff:                   New file               mode:                   0644 Summary ------------ Succeeded: 5 (changed=1) Failed:    0 ------------ Total states run:     5 node02.saltstack.com: ----------           ID: pkg.init     Function: pkg.installed         Name: mtr       Result: True      Comment: Package mtr is already installed.      Started: 21:09:07.831431     Duration: 4292.2 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: nmap       Result: True      Comment: Package nmap is already installed.      Started: 21:09:12.123977     Duration: 0.714 ms      Changes:    ----------           ID: pkg.init     Function: pkg.installed         Name: lrzsz       Result: True      Comment: Package lrzsz is already installed.      Started: 21:09:12.124798     Duration: 0.426 ms      Changes:    ----------           ID: limit-conf-config     Function: file.managed         Name: /etc/security/limits.conf       Result: True      Comment: File /etc/security/limits.conf is in the correct state      Started: 21:09:12.128235     Duration: 5.165 ms      Changes:    ----------           ID: ntp-crontab-config     Function: file.managed         Name: /var/spool/cron/root       Result: True      Comment: File /var/spool/cron/root updated      Started: 21:09:12.133621     Duration: 8.761 ms      Changes:                  ----------               diff:                   New file               mode:                   0644 Summary ------------ Succeeded: 5 (changed=1) Failed:    0 ------------ Total states run:     5 检查结果： [iyunv@node01 spool]# cd /var/spool/cron/ [iyunv@node01 cron]# ls root [iyunv@node01 cron]# cat root */5 * * * * /usr/sbin/ntpdate -u 202.120.2.101>/dev/null 2>&1 [iyunv@node02 ~]# cat /var/spool/cron/root */5 * * * * /usr/sbin/ntpdate -u 202.120.2.101>/dev/null 2>&1 通过对比会发现，与master的下发文件一致

案例4：同步内网的hosts文件（适用于内网没有建立独立DNS的情况）

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

[iyunv@master ~]# cd /etc/salt/states/init/ [iyunv@master init]# ll 总用量 16 drwxr-xr-x 2 root root 4096 2月  18 21:01 files -rw-r--r-- 1 root root  168 2月  18 17:42 limit.sls -rw-r--r-- 1 root root  169 2月  18 21:08 ntp-crontab.sls -rw-r--r-- 1 root root   79 2月  15 14:55 pkg.sls [iyunv@master init]# cd files/ [iyunv@master files]# vim hosts.conf 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140    master  master.saltstack.com 10.10.10.141    node01  node01.saltstack.com 10.10.10.142    node02  node02.saltstack.com 10.10.10.143    node03  node03.saltstack.com [iyunv@master init]# cat hosts.sls hosts-config:   file.managed:     - name: /etc/hosts     - source: salt://init/files/hosts.conf     - user: root     - group: root     - mode: 644 说明：下发文件到/etc/hosts，源文件 [iyunv@master states]# cat /etc/salt/states/top.sls base:   '*':     - init.pkg     - init.limit     - init.ntp-crontab     - init.hosts [iyunv@master states]# salt '*' state.highstate ----------前面的部分我直接省略了-------------- ----------           ID: hosts-config     Function: file.managed         Name: /etc/hosts       Result: True      Comment: File /etc/hosts updated      Started: 21:31:43.644962     Duration: 13.119 ms      Changes:                  ----------               diff:                   ---                     +++                     @@ -3,3 +3,4 @@                    10.10.10.140 mastermaster.saltstack.com                    10.10.10.141 node01node01.saltstack.com                    10.10.10.142 node02node02.saltstack.com                   +10.10.10.143  node03node03.saltstack.com Summary ------------ Succeeded: 6 (changed=1) Failed:    0 ------------ Total states run:     6 客户端进行测试： [iyunv@node01 cron]# cat /etc/hosts 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140 master master.saltstack.com 10.10.10.141 node01 node01.saltstack.com 10.10.10.142 node02 node02.saltstack.com 10.10.10.143 node03 node03.saltstack.com [iyunv@node02 ~]# cat /etc/hosts 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140 master master.saltstack.com 10.10.10.141 node01 node01.saltstack.com 10.10.10.142 node02 node02.saltstack.com 10.10.10.143 node03 node03.saltstack.com 如果此时我在master端修改hosts.conf文件 [iyunv@master init]# pwd /etc/salt/states/init [iyunv@master init]# cat files/hosts.conf 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140 master master.saltstack.com 10.10.10.141 node01 node01.saltstack.com 10.10.10.142 node02 node02.saltstack.com 10.10.10.143 node03 node03.saltstack.com 10.10.10.144 openstack01 openstack01.saltstack.com 10.10.10.145 openstack02 openstack02.saltstack.com [iyunv@master init]# salt '*' state.highstate ----------前面的部分我直接省略了-------------- ----------           ID: hosts-config     Function: file.managed         Name: /etc/hosts       Result: True      Comment: File /etc/hosts updated      Started: 21:37:50.679328     Duration: 78.269 ms      Changes:                  ----------               diff:                   ---                     +++                     @@ -4,3 +4,5 @@                    10.10.10.141node01node01.saltstack.com                    10.10.10.142node02node02.saltstack.com                    10.10.10.143node03node03.saltstack.com                   +10.10.10.144openstack01openstack01.saltstack.com                   +10.10.10.145openstack02openstack02.saltstack.com Summary ------------ Succeeded: 6 (changed=1) Failed:    0 ------------ Total states run:     6 客户端进行测试： [iyunv@node01 cron]# cat /etc/hosts 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140 master master.saltstack.com 10.10.10.141 node01 node01.saltstack.com 10.10.10.142 node02 node02.saltstack.com 10.10.10.143 node03 node03.saltstack.com 10.10.10.144 openstack01 openstack01.saltstack.com 10.10.10.145 openstack02 openstack02.saltstack.com [iyunv@node02 ~]# cat /etc/hosts 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1         localhost localhost.localdomain localhost6 localhost6.localdomain6 10.10.10.140 master master.saltstack.com 10.10.10.141 node01 node01.saltstack.com 10.10.10.142 node02 node02.saltstack.com 10.10.10.143 node03 node03.saltstack.com

关于salt批量配置hosts文件：http://www.ttlsa.com/linux/salt-modules-hosts/

这里我只写一个添加hosts文件的例子，更多内容可以参考上面的链接（干货很多）

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

[iyunv@master ~]# salt '*' hosts.set_host 10.10.10.145 openstack02.saltstack.com node02.saltstack.com:     True node01.saltstack.com:     True [iyunv@master ~]# salt '*' hosts.set_host 10.10.10.143 openstack03.saltstack.com node02.saltstack.com:     True node01.saltstack.com:     True [iyunv@master ~]# salt-ssh '*' cmd.run 'tail -2 /etc/hosts' node02:     10.10.10.144 openstack01 openstack01.saltstack.com     10.10.10.145 openstack02.saltstack.com node01:     10.10.10.144 openstack01 openstack01.saltstack.com     10.10.10.145 openstack02.saltstack.com
