MySQL-MongoDB开源监控利器之PMM

4323213 · 发表于 2017-3-3 13:25:16

最近要对数据库的监控体系进行改进，发现Percona 公司的一款开源的监控工具Percona Monitoring and Management(PMM) 对于MySQL的监控指标各项值比较全面准确，现在公司内部的开发测试环境进行了部署体验。主要的架构图如下：源于官方

可以看到主要是由客户端的代理程序node_export\mysqld_export\mongodb_export等和客户端管理工具pmm-admin做为数据的收集方式并发送到服务端的QAN API\Consul API\Prometheus等各个API然后通过Grafana来展示数据指标，界面非常靓丽

Pmm 的server端的运行方式主要有官方提供的以下三种方式：
   1.已经集成好的Docker方式
   2.集成好的VirtualBox方式
   3. Amazon Machine Image (AMI)
   在这里我用的是Docker方式，轻量部署、升级很方便
PMM的client安装比较方便，直接安装官方的yum安装就OK了

#详细的请参考官方文档
https://www.percona.com/doc/perc ... nagement/index.html

#Dokcer方式部署
提前准备好系统和Docker服务，安装不在这里展示
1-创建容器的数据磁盘
docker create \ -v /opt/prometheus/data \ -v /opt/consul-data \ -v /var/lib/mysql \ -v /var/lib/grafana \ --name pmm-data \ percona/pmm-server:1.1.1 /bin/true2-创建容器的运行实例
docker run -d \ -p 80:80 \ --volumes-from pmm-data \ --name pmm-server \ --restart always \ percona/pmm-server:1.1.1

#客户端安装
[iyunv@master ~]# yum install http://www.percona.com/downloads ... se-0.1-4.noarch.rpm
[iyunv@master ~]# yum install -y pmm-client

#增加客户端mysql监控

[iyunv@master ~]# pmm-admin config  --server 192.168.100.171
OK, PMM server is alive.

PMM Server    | 192.168.100.171
Client Name    | master.wboy.com
Client Address  | 192.168.100.41

[iyunv@master ~]# pmm-admin list
pmm-admin 1.1.1

PMM Server    | 192.168.100.171
Client Name    | master.wboy.com
Client Address  | 192.168.100.41
Service Manager | unix-systemv

No monitoring registered for this node identified as 'master.wboy.com'.

#命令帮助
[iyunv@master ~]# pmm-admin  add --help
This command is used to add a monitoring service.

Usage:
  pmm-admin add [command]

Available Commands:
  mysql          Add complete monitoring for MySQL instance (linux and mysql metrics, queries).
  linux:metrics Add this system to metrics monitoring.
  mysql:metrics Add MySQL instance to metrics monitoring.
  mysql:queries Add MySQL instance to Query Analytics.
  mongodb       Add complete monitoring for MongoDB instance (linux and mongodb metrics).
  mongodb:metrics  Add MongoDB instance to metrics monitoring.
  proxysql:metrics Add ProxySQL instance to metrics monitoring.

Flags:
   --service-port uint16 service port

Global Flags:
  -c, --config-file string PMM config file (default "/usr/local/percona/pmm-client/pmm.yml")

Use "pmm-admin add [command] --help" for more information about a command.
[iyunv@master ~]# pmm-admin  add  mysql --help
This command adds the given MySQL instance to system, metrics and queries monitoring.

When adding a MySQL instance, this tool tries to auto-detect the DSN and credentials.
If you want to create a new user to be used for metrics collecting, provide --create-user option. pmm-admin will create
a new user 'pmm@' automatically using the given (auto-detected) MySQL credentials for granting purpose.

Table statistics is automatically disabled when there are more than 10000 tables on MySQL.

[name] is an optional argument, by default it is set to the client name of this PMM client.

Usage:
  pmm-admin add mysql [name] [flags]

Examples:
  pmm-admin add mysql --password abc123
  pmm-admin add mysql --password abc123 --create-user
  pmm-admin add mysql --password abc123 --port 3307 instance3307

Flags:
   --create-user                      create a new MySQL user
   --create-user-maxconn uint16       max user connections for a new user (default 10)
   --create-user-password string    optional password for a new MySQL user
   --defaults-file string             path to my.cnf
   --disable-binlogstats             disable binlog statistics
   --disable-processlist             disable process state metrics
   --disable-tablestats             disable table statistics
   --disable-tablestats-limit uint16 number of tables after which table stats are disabled automatically (default 1000)
   --disable-userstats                disable user statistics
   --force                            force to create/update MySQL user
   --host string                      MySQL host
   --password string                MySQL password
   --port string                      MySQL port
   --query-source string             source of SQL queries: auto, slowlog, perfschema (default "auto")
   --socket string                   MySQL socket
   --user string                      MySQL username

Global Flags:
  -c, --config-file string PMM config file (default "/usr/local/percona/pmm-client/pmm.yml")
   --service-port uint16 service port

#增加本地mysql实例
[iyunv@master ~]# pmm-admin  add  mysql  --user root --password root
[linux:metrics] OK, now monitoring this system.
[mysql:metrics] OK, now monitoring MySQL metrics using DSN root:***@unix(/var/lib/mysql/mysql.sock)
[mysql:queries] OK, now monitoring MySQL queries from slowlog using DSN root:***@unix(/var/lib/mysql/mysql.sock)

安装完成后的访问地址列表：其实在 landing page包含了下面三个功能的页面

[td]

各个组件	功能访问地址
PMM landing page	http://192.168.100.1

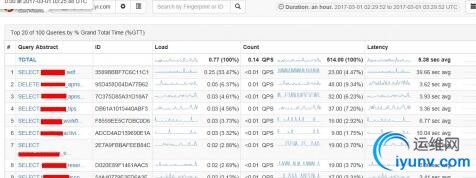

Query Analytics (QAN web app)	http://192.168.100.1/qan/
Metrics Monitor (Grafana)	http://192.168.100.1/graph/ User name: admin Password: admin
Orchestrator	http://192.168.100.1/orchestrator
