Puppet 3.7 结合Dashboard 1.2

fdwe2e

1. 环境准备

   OS：CentOS 6.4

   关闭selinux和iptables

   部署Puppet：1.0 Puppet 3.7部署

   安装Puppet源：http://yum.puppetlabs.com/puppetlabs-release-el-6.noarch.rpm

   Dashboard是Puppet官方提供的一个简易的Web UI，可以很方便的做Puppet报告的展示和ENC的管理.但是很功能和简易。后面会更新一个更强大的Foreman，敬请期待..

2. 安装Dashboard

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

#安装dashboard包和mysql数据库 yum install puppet-dashboard mysql-server mysql -y /etc/init.d/mysqld start chkconfig mysqld on #初始化数据库相关... mysql -e 'CREATE DATABASE dashboard_production CHARACTER SET utf8;' mysql -e "CREATE USER 'dashboard'@'localhost' IDENTIFIED BY 'dbsa.cn';" mysql -e "GRANT ALL PRIVILEGES ON dashboard_production.* TO 'dashboard'@'localhost';" mysql -e 'set GLOBAL max_allowed_packet = 33554432;' #在/etc/my.cnf中增加以下参数 [mysqld] max_allowed_packet = 32M #执行表迁移任务，会生成相关的数据库表.. cd /usr/share/puppet-dashboard/ sed -i 's/UTC/Beijing/' config/environment.rb                                #修改显示时区 sed -ri 's/s+password:.*/  password: dbsa.cn/' config/database.yml          #修改默认的数据库密码.. rake RAILS_ENV=production db:migrate cp /usr/share/puppet-dashboard/ext/puppet/puppet_dashboard.rb  /usr/lib/ruby/site_ruby/1.8/puppet/reports #使用默认的WEBrick服务运行dashboard测试以下... cd /usr/share/puppet-dashboard/ ./script/server -e production #访问dashboard... http://ip:3000/

3. 配置Puppet
    配置由dashaboard分析Puppet的报告

1 2 3 4 5

#在Puppet Master上配置... /etc/puppet/puppet.conf [master]   reports = store, http   reporturl = http://localhost:3000/reports/upload               #localhost是发往dashboard的地址

    配置由dashboard管理class和parameters

1 2 3 4 5 6

#在Puppet Master上配置... /etc/puppet/puppet.conf [master]   node_terminus = exec   #localhost是发往dashboard的地址   external_nodes = /usr/bin/env PUPPET_DASHBOARD_URL=http://localhost:3000 /usr/share/puppet-dashboard/bin/external_node

4. 配置Nginx替代默认的WEBrick
    安装Ningx和passenger

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

yum install ruby-devel rubygems gcc gcc-c++ make -y yum install curl-devel openssl-devel zlib-devel pcre-devel -y gem install rake -v 10.4.0 -V gem install rack -v 1.5.2 -V gem install passenger -v 3.0.19 -V #更换gem 源为淘宝的，国内因为gfw更新可能会失败并且很慢. gem sources -a   gem sources --remove http://rubygems.org/ gem sources -l #安装nginx... cd /tmp wget http://mirrors.sohu.com/nginx/nginx-1.6.2.tar.gz tar xf nginx-1.6.2.tar.gz #使用passenger编译Nginx passenger-install-nginx-module #选择1,在选择2, 然后在分别输入:   /tmp/nginx-1.6.2   /usr/local/nginx   一路回车... #puppet rack mkdir -p /etc/puppet/rack/public cp /usr/share/puppet/ext/rack/config.ru /etc/puppet/rack chown -R puppet.puppet  /etc/puppet/rack

    Nginx配置文件：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

cat > /usr/local/nginx/conf/nginx.conf <<eof user root; worker_processes 1; events {     worker_connections 1024; } http {     passenger_root /usr/lib/ruby/gems/1.8/gems/passenger-3.0.19;     passenger_ruby /usr/bin/ruby;     passenger_max_pool_size 32;     include mime.types;     default_type application/octet-stream;     log_format main '$remote_addr - $remote_user [$time_local] "$request" '      '$status  "$http_referer" '      '"$http_user_agent" "$http_x_forwarded_for"'      '$upstream_addr $upstream_cache_status $upstream_status';     sendfile on;     keepalive_timeout 65;     include /usr/local/nginx/conf/puppet.conf;          #如果按照 1.0 在本机部署了Puppet这个就不用注释...     include /usr/local/nginx/conf/dashboard.conf; } EOF cat > /usr/local/nginx/conf/dashboard.conf <<eof server {     listen 3000;     server_name localhost;     root /usr/share/puppet-dashboard/public;     passenger_enabled on;     access_log /usr/local/nginx/logs/access-3000.log main; } EOF #启动dashboard服务 /usr/local/nginx/sbin/nginx -s reload touch /usr/share/puppet-dashboard/log/production.log chown -R puppet-dashboard.puppet-dashboard /usr/share/puppet-dashboard/log chown -R puppet-dashboard.puppet-dashboard /usr/share/puppet-dashboard/tmp chmod 666 /usr/share/puppet-dashboard/log/production.log /etc/init.d/puppet-dashboard-workers start

    报告处理过程:
    1. Puppet Master在收到Agent的报告的时候，会通过http往自身的/reports/upload 接口POST一份..
    2. dashboard接收到post来的报告会保存到/usr/share/puppet-dashboard/spool
    3. 启动puppet-dashboard-workers 会开始处理报告..。
       默认puppet-dashboard-workers 启动两个进程处理，如果报告很多, 可以再配置进程数量.

1 2 3

cat >> /etc/sysconfig/puppet-dashboard <<eof CPUS=`cat /proc/cpuinfo |grep process|wc -l` EOF

    4. 处理完成的报告会写入数据库



5. 节点管理(ENC)
    在前面的master puppet.conf中配置使用enc。

1 2 3 4 5

#下面是一个测试.. cat > /etc/puppet/manifests/site.pp <<eof node default { } EOF

   1. 在Dashboard 添加一个class。。(base的class在之前的blog中已经创建过,可以查看1.0 Puppet安装）

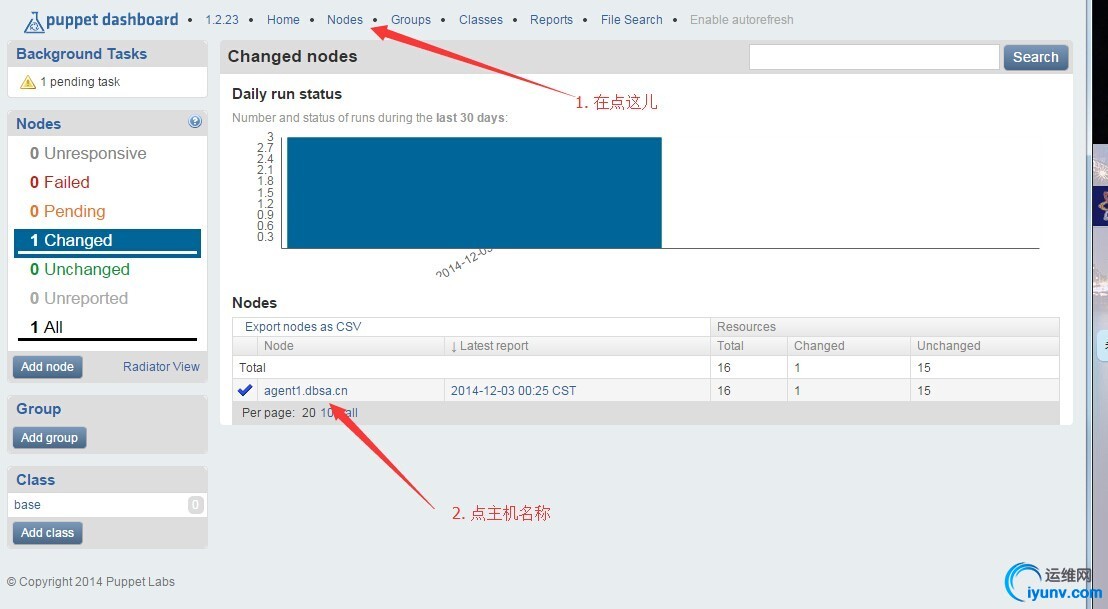

    2. 选择一个主机..


    3. 给这个主机添加class和parameters

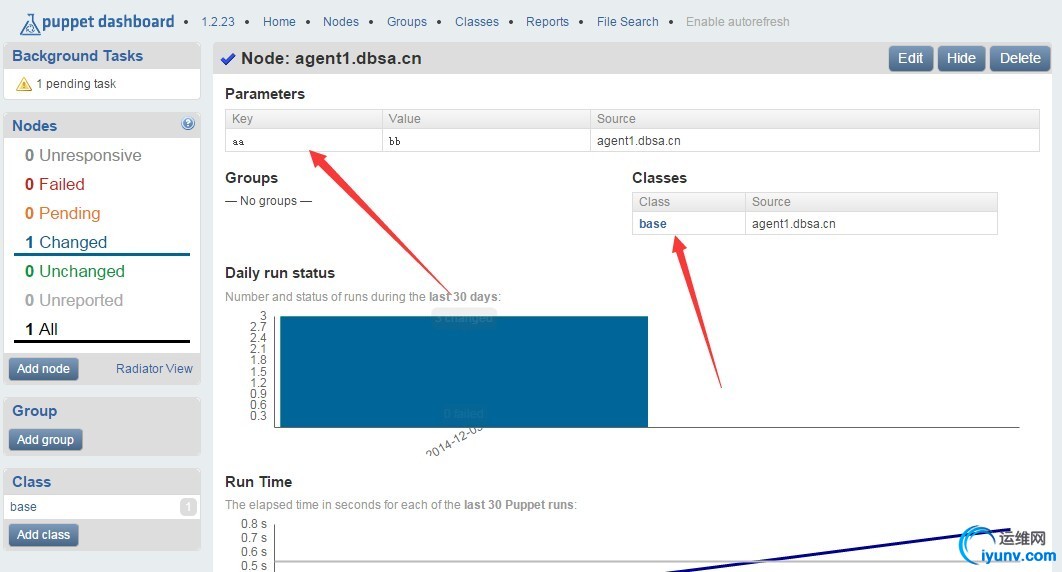

    4. 查看添加的类和参数..


    5. 通过执行命令，查询配置

1 2 3 4 5 6 7

[iyunv@master ~]# /usr/bin/env PUPPET_DASHBOARD_URL=http://localhost:3000 /usr/share/puppet-dashboard/bin/external_node agent1.dbsa.cn --- classes: - base parameters:   aa: bb name: agent1.dbsa.cn

6. 常用维护命令
    导入现有的日志

1 2	cd /usr/share/puppet-dashboard;rake RAILS_ENV=production reports:import cd /usr/share/puppet-dashboard;rake RAILS_ENV=production reports:import REPORT_DIR=/path/to/your/reports

   当数据量过大时,优化数据库

1	cd /usr/share/puppet-dashboard;rake RAILS_ENV=production db:raw:optimize

    删除一个月之前的日志

1	cd /usr/share/puppet-dashboard;rake RAILS_ENV=production reports:prune upto=1 unit=mon

    删除15天前的日志

1	cd /usr/share/puppet-dashboard;rake RAILS_ENV=production reports:prune upto=15 unit=day

    备份数据库

1	mysqldump --add-locks --create-options --disable-keys --extended-insert --quick --set-charset --user=dashboard --password=dbsa.cn dashboard > production.sql

    恢复数据库

1	rake RAILS_ENV=production FILE=production.sql db:raw:restore
