haproxy负载均衡的配置，以及haproxy+keeplived

6y45t4

####Haproxy##########(http代理)###
准备三台虚拟机

yum install haproxy -y
cd /etc/haproxy/
vim haproxy.cfg

/etc/init.d/haproxy start
vim haproxy.cfg
将前端和后端的注释
#---------------------------------------------------------------------
# main frontend which proxys to the backends
#---------------------------------------------------------------------
#frontend  main *:5000
#    acl url_static       path_beg       -i /static /images /javascript /stylesheets
#    acl url_static       path_end       -i .jpg .gif .png .css .js

#   use_backend static          if url_static
#    default_backend             app

#---------------------------------------------------------------------
# static backend for serving up images, stylesheets and such
#---------------------------------------------------------------------
#backend static
#    balance     roundrobin
#   server      static 127.0.0.1:4331 check

#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
#backend app
#    balance     roundrobin
#    server  app1 127.0.0.1:5001 check
#    server  app2 127.0.0.1:5002 check
#    server  app3 127.0.0.1:5003 check
#    server  app4 127.0.0.1:5004 check

listen lyitx *:80
        balance     roundrobin
        server web1 172.25.50.30:80 check
        server web2 172.25.50.40:80 check

/etc/init.d/haproxy start

netstat -anplt##可以看到80端口在haproxy上

开启sever4，server3 的httpd服务，写个测试页面
在真机上curl测试
[iyunv@real Desktop]# curl 172.25.50.10
<h1>server3.example.com</h1>
[iyunv@real Desktop]# curl 172.25.50.10
Server4.example.com
[iyunv@real Desktop]# curl 172.25.50.10
<h1>server3.example.com</h1>
[iyunv@real Desktop]# curl 172.25.50.10
Server4.example.com



##############监控页面添加认证####################
listen admin *:8080
        stats enable
        stats uri /status
        stats auth admin:lyitx##admin是登陆的用户名lyitx是密码
        stats   refresh 5s
listen lyitx *:80
        balance     roundrobin
        server web1 172.25.50.30:80 check
        server web2 172.25.50.40:80 check

/etc/init.d/haproxy reload
再在浏览器上；

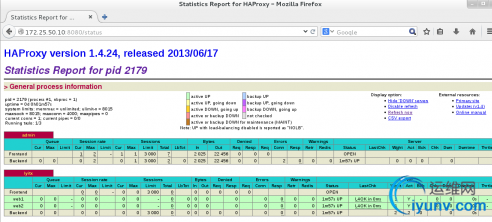

172.25.50.10：8080/status



/////////////设置前后端//////////////
listen admin *:8080
        stats enable
        stats uri /status
        stats auth admin:lyitx
        stats   refresh 5s

frontend lyitx *:80
        default_backend app
backend static
        balance     roundrobin
        server web1 172.25.50.30:80 check

backend app
        balance     roundrobin
        server web1 172.25.50.40:80 check

再在浏览器上；
172.25.50.10：8080/status


//////////////////////动静分离///////////////////////////////

vim haproxy.cfg

listen admin *:8080
        stats enable
        stats uri /status
        stats auth admin:lyitx
        stats   refresh 5s

frontend lyitx *:80
        acl url_static       path_beg       -i /images
        acl url_static       path_end       -i .jpg .gif .png

        use_backend static          if url_static
        default_backend app

backend static
        balance     roundrobin
        server web1 172.25.50.30:80 check

backend app
        balance     roundrobin
        server web2 172.25.50.40:80 check



[iyunv@server3 html]# mkdir images
[iyunv@server3 html]# ls
images  index.html
[iyunv@server3 html]# cd images/
[iyunv@server3 images]# ls
OSI.gif  doggyt.jpg

在浏览器中：172.25.50.10/images/doggy.jpg



###########ACL+地址转发+重定向################

listen admin *:8080
        stats enable
        stats uri /status
        stats auth admin:lyitx
        stats   refresh 5s

frontend lyitx *:80
        acl url_static       path_beg       -i /images
        acl url_static       path_end       -i .jpg .gif .png

        acl badhost src 172.25.50.250#设置禁止访问的ip。可以是个网段的
        block if badhost
        errorloc 403 http://172.25.50.10:8000#错误代码403的话，将地址转发到10主机上（在这之前将10主机的httpd打开，并将端口转换为8000（配置文件的136行））
        redirect location http://172.25.50.10:8000 if badhost#badhost重定向
        use_backend static          if url_static
        default_backend app

backend static
        balance     roundrobin
        server web1 172.25.50.30:80 check

测试：172.25.50.10


////////////////////读写分离/////////////////////////
server2和server3都安装php
yum install php -y

在调度器server1上；
编辑配置文件：

vim haproxy.cfg
listen admin *:8080
        stats enable
        stats uri /status
        stats auth admin:lyitx
        stats   refresh 5s


frontend lyitx *:80
        acl url_static       path_beg       -i /images
        acl url_static       path_end       -i .jpg .gif .png

        acl lyitx.com hdr_beg(host) -i lyitx.com
        acl badhost src 172.25.50.250

        acl read method GET
        acl read method HEAD
        acl write method PUT
        acl write method POST

#       block if badhost
#       errorloc 403 http://172.25.50.10:8000
#       redirect location http://172.25.12.10:8000 if badhost

        redirect code 301 location http://www.lyitx.com if lyitx.com
        use_backend app          if write
        default_backend static

backend static
        balance     roundrobin
        server web1 172.25.50.30:80 check
backend app
        balance     roundrobin
        server web2 172.25.50.40:80 check

/etc/init.d/haproxy reload

真机上发送upload
[iyunv@real Desktop]# scp -r upload/ 172.25.50.30:/var/www/html/
[iyunv@real Desktop]# scp -r upload/ 172.25.50.40:/var/www/html/
在server3和server4上都进行如下操作

[iyunv@server3 html]# ls
index.html  upload
[iyunv@server3 html]# cd upload/
[iyunv@server3 upload]# ls
index.php  upload_file.php
[iyunv@server3 upload]# mv * ..
[iyunv@server3 upload]# ls
[iyunv@server3 upload]# cd ..
[iyunv@server3 html]# ls
index.html  index.php  upload  upload_file.php
[iyunv@server3 html]# chmod 777 upload
[iyunv@server3 html]# ll
total 16
-rw-r--r-- 1 root root   33 Feb 19 23:57 index.html
-rw-r--r-- 1 root root  257 Mar 18 03:36 index.php
drwxrwxrwx 2 root root 4096 Mar 18 03:44 upload
-rw-r--r-- 1 root root  927 Mar 18 03:36 upload_file.php
[iyunv@server3 html]# vim upload_file.php
&& ($_FILES["file"]["size"] < 2000000))

[iyunv@server3 html]# /etc/init.d/httpd restart
Stopping httpd:                                            [  OK  ]
Starting httpd:                                            [  OK  ]
[iyunv@server3 html]# ls
index.html  index.php  upload  upload_file.php

Server4和3重新启动httpd

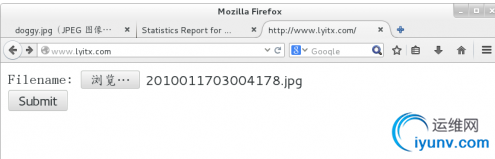

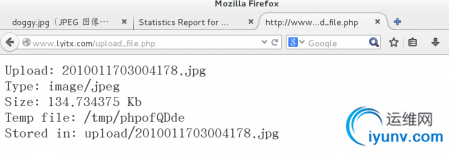

在真机添加上解析后，在浏览器上www.lyitx.com



Keepalived+haproxy

编辑主从调度器的keepalived配置文件
把haproxy配置文件进行如下配置：
Vim /etc/haproxy/haproxy.cfg

在主调度器上：
[iyunv@server1 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
vrrp_script check_haproxy {
        script "/opt/check_haproxy.sh"
        interval 2
        weight 2
        }

global_defs {
   notification_email {
     root@localhost
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
}
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.50.100
    }
    track_script {
check_haproxy
    }
}


[iyunv@server2 ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
vrrp_script check_haproxy {
        script "/opt/check_haproxy.sh"
        interval 2
        weight 2
        }

global_defs {
   notification_email {
     root@localhost
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
}
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 50
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.50.100
    }
    track_script {
check_haproxy
    }
}
编写配置脚本文件，主从调度器都需要进行如下配置
[iyunv@server2 ~]# cat /opt/check_haproxy.sh
#!/bin/bash
/etc/init.d/haproxy status &> /dev/null || /etc/init.d/haproxy restart &> /dev/null
if [ $? -ne 0 ];then
/etc/init.d/keepalived stop &> /dev/null
fi
[iyunv@server2 ~]# chmod 755 /opt/check_haproxy.sh 给定权限755

配置完成后。
在真机上测试：
[iyunv@real50 Desktop]# curl 172.25.50.100
<h2>server4.example.com</h2>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h1>server3.example.com</h1>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h2>server4.example.com</h2>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h1>server3.example.com</h1>

Vip 是在server1上的
[iyunv@server1 ~]# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 52:54:00:06:13:fa brd ff:ff:ff:ff:ff:ff
    inet 172.25.50.10/24 brd 172.25.50.255 scope global eth0
    inet 172.25.50.100/32 scope global eth0
    inet6 fe80::5054:ff:fe06:13fa/64 scope link

测试：将server1的网卡接口关闭，
[iyunv@server1 ~]# ip link set down eth0
负载均衡调度依然正常，此时vip出现在server2主机上
[iyunv@real50 Desktop]# curl 172.25.50.100
<h2>server4.example.com</h2>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h1>server3.example.com</h1>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h2>server4.example.com</h2>
[iyunv@real50 Desktop]# curl 172.25.50.100
<h1>server3.example.com</h1>


[iyunv@server2 ~]# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 52:54:00:07:bb:e5 brd ff:ff:ff:ff:ff:ff
    inet 172.25.50.20/24 brd 172.25.50.255 scope global eth0
    inet 172.25.50.100/32 scope global eth0
    inet6 fe80::5054:ff:fe07:bbe5/64 scope link
       valid_lft forever preferred_lft forever

把网卡端口打开后，serevr1继续接管vip，server2上的vip调转。


Realsever



测试成功！！！！！
