　　转载注明 出处!
　　一直都在了解FPDF 生成PDF,和一些基于FPDF的生成PDF的类,没有一个适合的报表方案.
　　将网页生成PDF是一种好的方法```但得控制表格````种种原因,触使我自己写一个方法来生成PDF
　　报表.
　　须下载fpdf 和fpdf 中文化类.
　　这过程中,得处理中文乱码,....

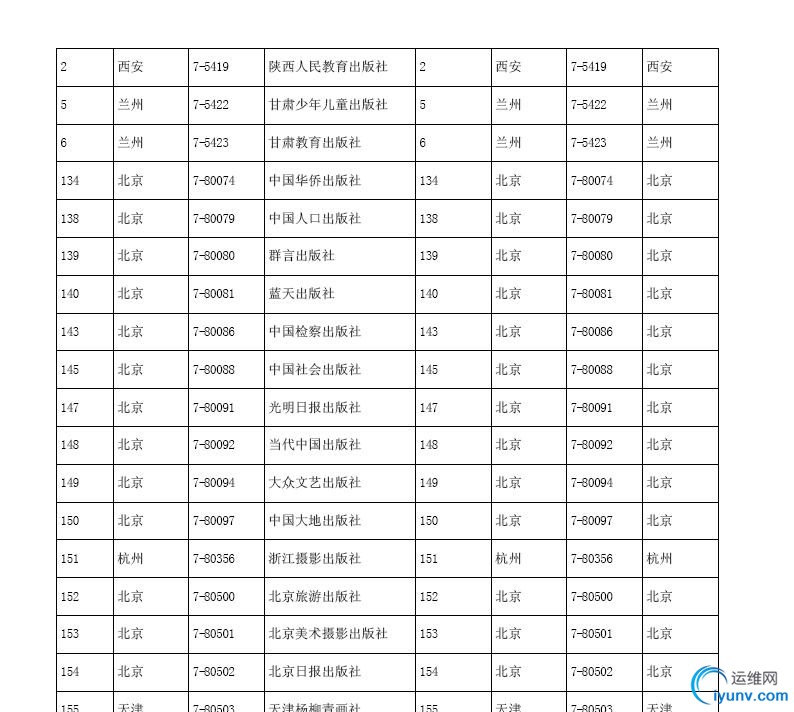

　　效果如下:
DSC0000.jpg 原码如下:

　　<?
require('chinese.php');
$pdf=new PDF_Chinese();
$pdf->AddGBFont('simsun','宋体');
$pdf->Open();
$pdf->AddPage();
　　$pdf->SetAutoPageBreak(true);
$pdf->SetFont('simsun','',10);
　　
$conn=mysql_connect('localhost','root','');
　　mysql_select_db('j',$conn);
　　mysql_query("SET NAMES 'gb2312'");
　　$sql=mysql_query("select * from tssb limit 0,565");
　　$pdf->SetY(20);
　　while(($array =mysql_fetch_array($sql)) != false)
{
　　$pdf->SetX(15);
$Mywidth=array(15,20,20,40,20,20,20,20);
$Mytable=array($array["ls"],$array["cd"],$array["in"],$array["cm"],$array["h"],$array["c"],$array["n"],$array["d"]);
$pdf->Row($Mywidth,$Mytable,10);
$pdf->ln();
}
　　
$pdf->Output();
?>
　　新增函数:
　　class PDF_Chinese extends FPDF
{
　　
//表格输出
function Row($Arr,$Row,$MyHeight){
$MyTable=$Row;
//SetWidths($arr);
$Width=$Arr;
for($i=0;$i<count($Width);$i++){ //循环输出表头
// $this->SetX(20);
$this->Cell($Width[$i],$MyHeight,$MyTable[$i],1,0);
// $this->Ln();
}
}

　　这样一个表格就完整输出啦``
　　附中文类:
　　<?php
require('fpdf.php');
　　$Big5_widths=array(' '=>250,'!'=>250,'"'=>408,'#'=>668,'$'=>490,'%'=>875,'&'=>698,'/''=>250,
'('=>240,')'=>240,'*'=>417,'+'=>667,','=>250,'-'=>313,'.'=>250,'/'=>520,'0'=>500,'1'=>500,
'2'=>500,'3'=>500,'4'=>500,'5'=>500,'6'=>500,'7'=>500,'8'=>500,'9'=>500,':'=>250,';'=>250,
'<'=>667,'='=>667,'>'=>667,'?'=>396,'@'=>921,'A'=>677,'B'=>615,'C'=>719,'D'=>760,'E'=>625,
'F'=>552,'G'=>771,'H'=>802,'I'=>354,'J'=>354,'K'=>781,'L'=>604,'M'=>927,'N'=>750,'O'=>823,
'P'=>563,'Q'=>823,'R'=>729,'S'=>542,'T'=>698,'U'=>771,'V'=>729,'W'=>948,'X'=>771,'Y'=>677,
'Z'=>635,'['=>344,'//'=>520,']'=>344,'^'=>469,'_'=>500,'`'=>250,'a'=>469,'b'=>521,'c'=>427,
'd'=>521,'e'=>438,'f'=>271,'g'=>469,'h'=>531,'i'=>250,'j'=>250,'k'=>458,'l'=>240,'m'=>802,
'n'=>531,'o'=>500,'p'=>521,'q'=>521,'r'=>365,'s'=>333,'t'=>292,'u'=>521,'v'=>458,'w'=>677,
'x'=>479,'y'=>458,'z'=>427,'{'=>480,'|'=>496,'}'=>480,'~'=>667);
　　$GB_widths=array(' '=>207,'!'=>270,'"'=>342,'#'=>467,'$'=>462,'%'=>797,'&'=>710,'/''=>239,
'('=>374,')'=>374,'*'=>423,'+'=>605,','=>238,'-'=>375,'.'=>238,'/'=>334,'0'=>462,'1'=>462,
'2'=>462,'3'=>462,'4'=>462,'5'=>462,'6'=>462,'7'=>462,'8'=>462,'9'=>462,':'=>238,';'=>238,
'<'=>605,'='=>605,'>'=>605,'?'=>344,'@'=>748,'A'=>684,'B'=>560,'C'=>695,'D'=>739,'E'=>563,
'F'=>511,'G'=>729,'H'=>793,'I'=>318,'J'=>312,'K'=>666,'L'=>526,'M'=>896,'N'=>758,'O'=>772,
'P'=>544,'Q'=>772,'R'=>628,'S'=>465,'T'=>607,'U'=>753,'V'=>711,'W'=>972,'X'=>647,'Y'=>620,
'Z'=>607,'['=>374,'//'=>333,']'=>374,'^'=>606,'_'=>500,'`'=>239,'a'=>417,'b'=>503,'c'=>427,
'd'=>529,'e'=>415,'f'=>264,'g'=>444,'h'=>518,'i'=>241,'j'=>230,'k'=>495,'l'=>228,'m'=>793,
'n'=>527,'o'=>524,'p'=>524,'q'=>504,'r'=>338,'s'=>336,'t'=>277,'u'=>517,'v'=>450,'w'=>652,
'x'=>466,'y'=>452,'z'=>407,'{'=>370,'|'=>258,'}'=>370,'~'=>605);
　　class PDF_Chinese extends FPDF
{
　　
//表格输出
function Row($Arr,$Row,$MyHeight){
$MyTable=$Row;
//SetWidths($arr);
$Width=$Arr;
for($i=0;$i<count($Width);$i++){ //循环输出表头
// $this->SetX(20);
$this->Cell($Width[$i],$MyHeight,$MyTable[$i],1,0);
// $this->Ln();
}
}
　　function AddCIDFont($family,$style,$name,$cw,$CMap,$registry)
{
$fontkey=strtolower($family).strtoupper($style);
if(isset($this->fonts[$fontkey]))
$this->Error("Font already added: $family $style");
$i=count($this->fonts)+1;
$name=str_replace(' ','',$name);
$this->fonts[$fontkey]=array('i'=>$i,'type'=>'Type0','name'=>$name,'up'=>-130,'ut'=>40,'cw'=>$cw,'CMap'=>$CMap,'registry'=>$registry);
}
　　function AddCIDFonts($family,$name,$cw,$CMap,$registry)
{
$this->AddCIDFont($family,'',$name,$cw,$CMap,$registry);
$this->AddCIDFont($family,'B',$name.',Bold',$cw,$CMap,$registry);
$this->AddCIDFont($family,'I',$name.',Italic',$cw,$CMap,$registry);
$this->AddCIDFont($family,'BI',$name.',BoldItalic',$cw,$CMap,$registry);
}
　　function AddBig5Font($family='Big5',$name='MSungStd-Light-Acro')
{
//Add Big5 font with proportional Latin
$cw=$GLOBALS['Big5_widths'];
$CMap='ETenms-B5-H';
$registry=array('ordering'=>'CNS1','supplement'=>0);
$this->AddCIDFonts($family,$name,$cw,$CMap,$registry);
}
　　function AddBig5hwFont($family='Big5-hw',$name='MSungStd-Light-Acro')
{
//Add Big5 font with half-witdh Latin
for($i=32;$i<=126;$i++)
$cw[chr($i)]=500;
$CMap='ETen-B5-H';
$registry=array('ordering'=>'CNS1','supplement'=>0);
$this->AddCIDFonts($family,$name,$cw,$CMap,$registry);
}
　　function AddGBFont($family='GB',$name='STSongStd-Light-Acro')
{
//Add GB font with proportional Latin
$cw=$GLOBALS['GB_widths'];
$CMap='GBKp-EUC-H';
$registry=array('ordering'=>'GB1','supplement'=>2);
$this->AddCIDFonts($family,$name,$cw,$CMap,$registry);
}
　　function AddGBhwFont($family='GB-hw',$name='STSongStd-Light-Acro')
{
//Add GB font with half-width Latin
for($i=32;$i<=126;$i++)
$cw[chr($i)]=500;
$CMap='GBK-EUC-H';
$registry=array('ordering'=>'GB1','supplement'=>2);
$this->AddCIDFonts($family,$name,$cw,$CMap,$registry);
}
　　function GetStringWidth($s)
{
if($this->CurrentFont['type']=='Type0')
return $this->GetMBStringWidth($s);
else
return parent::GetStringWidth($s);
}
　　function GetMBStringWidth($s)
{
//Multi-byte version of GetStringWidth()
$l=0;
$cw=&$this->CurrentFont['cw'];
$nb=strlen($s);
$i=0;
while($i<$nb)
{
$c=$s[$i];
if(ord($c)<128)
{
$l+=$cw[$c];
$i++;
}
else
{
$l+=1000;
$i+=2;
}
}
return $l*$this->FontSize/1000;
}
　　function MultiCell($w,$h,$txt,$border=0,$align='L',$fill=0)
{
if($this->CurrentFont['type']=='Type0')
$this->MBMultiCell($w,$h,$txt,$border,$align,$fill);
else
parent::MultiCell($w,$h,$txt,$border,$align,$fill);
}
　　function MBMultiCell($w,$h,$txt,$border=0,$align='L',$fill=0)
{
//Multi-byte version of MultiCell()
$cw=&$this->CurrentFont['cw'];
if($w==0)
$w=$this->w-$this->rMargin-$this->x;
$wmax=($w-2*$this->cMargin)*1000/$this->FontSize;
$s=str_replace("/r",'',$txt);
$nb=strlen($s);
if($nb>0 and $s[$nb-1]=="/n")
$nb--;
$b=0;
if($border)
{
if($border==1)
{
$border='LTRB';
$b='LRT';
$b2='LR';
}
else
{
$b2='';
if(is_int(strpos($border,'L')))
$b2.='L';
if(is_int(strpos($border,'R')))
$b2.='R';
$b=is_int(strpos($border,'T')) ? $b2.'T' : $b2;
}
}
$sep=-1;
$i=0;
$j=0;
$l=0;
$nl=1;
while($i<$nb)
{
//Get next character
$c=$s[$i];
//Check if ASCII or MB
$ascii=(ord($c)<128);
if($c=="/n")
{
//Explicit line break
$this->Cell($w,$h,substr($s,$j,$i-$j),$b,2,$align,$fill);
$i++;
$sep=-1;
$j=$i;
$l=0;
$nl++;
if($border and $nl==2)
$b=$b2;
continue;
}
if(!$ascii)
{
$sep=$i;
$ls=$l;
}
elseif($c==' ')
{
$sep=$i;
$ls=$l;
}
$l+=$ascii ? $cw[$c] : 1000;
if($l>$wmax)
{
//Automatic line break
if($sep==-1 or $i==$j)
{
if($i==$j)
$i+=$ascii ? 1 : 2;
$this->Cell($w,$h,substr($s,$j,$i-$j),$b,2,$align,$fill);
}
else
{
$this->Cell($w,$h,substr($s,$j,$sep-$j),$b,2,$align,$fill);
$i=($s[$sep]==' ') ? $sep+1 : $sep;
}
$sep=-1;
$j=$i;
$l=0;
$nl++;
if($border and $nl==2)
$b=$b2;
}
else
$i+=$ascii ? 1 : 2;
}
//Last chunk
if($border and is_int(strpos($border,'B')))
$b.='B';
$this->Cell($w,$h,substr($s,$j,$i-$j),$b,2,$align,$fill);
$this->x=$this->lMargin;
}
　　function Write($h,$txt,$link='')
{
if($this->CurrentFont['type']=='Type0')
$this->MBWrite($h,$txt,$link);
else
parent::Write($h,$txt,$link);
}
　　function MBWrite($h,$txt,$link)
{
//Multi-byte version of Write()
$cw=&$this->CurrentFont['cw'];
$w=$this->w-$this->rMargin-$this->x;
$wmax=($w-2*$this->cMargin)*1000/$this->FontSize;
$s=str_replace("/r",'',$txt);
$nb=strlen($s);
$sep=-1;
$i=0;
$j=0;
$l=0;
$nl=1;
while($i<$nb)
{
//Get next character
$c=$s[$i];
//Check if ASCII or MB
$ascii=(ord($c)<128);
if($c=="/n")
{
//Explicit line break
$this->Cell($w,$h,substr($s,$j,$i-$j),0,2,'',0,$link);
$i++;
$sep=-1;
$j=$i;
$l=0;
if($nl==1)
{
$this->x=$this->lMargin;
$w=$this->w-$this->rMargin-$this->x;
$wmax=($w-2*$this->cMargin)*1000/$this->FontSize;
}
$nl++;
continue;
}
if(!$ascii or $c==' ')
$sep=$i;
$l+=$ascii ? $cw[$c] : 1000;
if($l>$wmax)
{
//Automatic line break
if($sep==-1 or $i==$j)
{
if($this->x>$this->lMargin)
{
//Move to next line
$this->x=$this->lMargin;
$this->y+=$h;
$w=$this->w-$this->rMargin-$this->x;
$wmax=($w-2*$this->cMargin)*1000/$this->FontSize;
$i++;
$nl++;
continue;
}
if($i==$j)
$i+=$ascii ? 1 : 2;
$this->Cell($w,$h,substr($s,$j,$i-$j),0,2,'',0,$link);
}
else
{
$this->Cell($w,$h,substr($s,$j,$sep-$j),0,2,'',0,$link);
$i=($s[$sep]==' ') ? $sep+1 : $sep;
}
$sep=-1;
$j=$i;
$l=0;
if($nl==1)
{
$this->x=$this->lMargin;
$w=$this->w-$this->rMargin-$this->x;
$wmax=($w-2*$this->cMargin)*1000/$this->FontSize;
}
$nl++;
}
else
$i+=$ascii ? 1 : 2;
}
//Last chunk
if($i!=$j)
$this->Cell($l/1000*$this->FontSize,$h,substr($s,$j,$i-$j),0,0,'',0,$link);
}
　　function _putfonts()
{
$nf=$this->n;
foreach($this->diffs as $diff)
{
//Encodings
$this->_newobj();
$this->_out('<</Type /Encoding /BaseEncoding /WinAnsiEncoding /Differences ['.$diff.']>>');
$this->_out('endobj');
}
$mqr=get_magic_quotes_runtime();
set_magic_quotes_runtime(0);
foreach($this->FontFiles as $file=>$info)
{
//Font file embedding
$this->_newobj();
$this->FontFiles[$file]['n']=$this->n;
if(defined('FPDF_FONTPATH'))
$file=FPDF_FONTPATH.$file;
$size=filesize($file);
if(!$size)
$this->Error('Font file not found');
$this->_out('<</Length '.$size);
if(substr($file,-2)=='.z')
$this->_out('/Filter /FlateDecode');
$this->_out('/Length1 '.$info['length1']);
if(isset($info['length2']))
$this->_out('/Length2 '.$info['length2'].' /Length3 0');
$this->_out('>>');
$f=fopen($file,'rb');
$this->_putstream(fread($f,$size));
fclose($f);
$this->_out('endobj');
}
set_magic_quotes_runtime($mqr);
foreach($this->fonts as $k=>$font)
{
//Font objects
$this->_newobj();
$this->fonts[$k]['n']=$this->n;
$this->_out('<</Type /Font');
if($font['type']=='Type0')
$this->_putType0($font);
else
{
$name=$font['name'];
$this->_out('/BaseFont /'.$name);
if($font['type']=='core')
{
//Standard font
$this->_out('/Subtype /Type1');
if($name!='Symbol' and $name!='ZapfDingbats')
$this->_out('/Encoding /WinAnsiEncoding');
}
else
{
//Additional font
$this->_out('/Subtype /'.$font['type']);
$this->_out('/FirstChar 32');
$this->_out('/LastChar 255');
$this->_out('/Widths '.($this->n+1).' 0 R');
$this->_out('/FontDescriptor '.($this->n+2).' 0 R');
if($font['enc'])
{
if(isset($font['diff']))
$this->_out('/Encoding '.($nf+$font['diff']).' 0 R');
else
$this->_out('/Encoding /WinAnsiEncoding');
}
}
$this->_out('>>');
$this->_out('endobj');
if($font['type']!='core')
{
//Widths
$this->_newobj();
$cw=&$font['cw'];
$s='[';
for($i=32;$i<=255;$i++)
$s.=$cw[chr($i)].' ';
$this->_out($s.']');
$this->_out('endobj');
//Descriptor
$this->_newobj();
$s='<</Type /FontDescriptor /FontName /'.$name;
foreach($font['desc'] as $k=>$v)
$s.=' /'.$k.' '.$v;
$file=$font['file'];
if($file)
$s.=' /FontFile'.($font['type']=='Type1' ? '' : '2').' '.$this->FontFiles[$file]['n'].' 0 R';
$this->_out($s.'>>');
$this->_out('endobj');
}
}
}
}
　　function _putType0($font)
{
//Type0
$this->_out('/Subtype /Type0');
$this->_out('/BaseFont /'.$font['name'].'-'.$font['CMap']);
$this->_out('/Encoding /'.$font['CMap']);
$this->_out('/DescendantFonts ['.($this->n+1).' 0 R]');
$this->_out('>>');
$this->_out('endobj');
//CIDFont
$this->_newobj();
$this->_out('<</Type /Font');
$this->_out('/Subtype /CIDFontType0');
$this->_out('/BaseFont /'.$font['name']);
$this->_out('/CIDSystemInfo <</Registry '.$this->_textstring('Adobe').' /Ordering '.$this->_textstring($font['registry']['ordering']).' /Supplement '.$font['registry']['supplement'].'>>');
$this->_out('/FontDescriptor '.($this->n+1).' 0 R');
if($font['CMap']=='ETen-B5-H')
$W='13648 13742 500';
elseif($font['CMap']=='GBK-EUC-H')
$W='814 907 500 7716 [500]';
else
$W='1 ['.implode(' ',$font['cw']).']';
$this->_out('/W ['.$W.']>>');
$this->_out('endobj');
//Font descriptor
$this->_newobj();
$this->_out('<</Type /FontDescriptor');
$this->_out('/FontName /'.$font['name']);
$this->_out('/Flags 6');
$this->_out('/FontBBox [0 -200 1000 900]');
$this->_out('/ItalicAngle 0');
$this->_out('/Ascent 800');
$this->_out('/Descent -200');
$this->_out('/CapHeight 800');
$this->_out('/StemV 50');
$this->_out('>>');
$this->_out('endobj');
}
}
?>

运维网声明 1、欢迎大家加入本站运维交流群:群②:261659950 群⑤:202807635 群⑦870801961 群⑧679858003
2、本站所有主题由该帖子作者发表，该帖子作者与运维网享有帖子相关版权
3、所有作品的著作权均归原作者享有，请您和我们一样尊重他人的著作权等合法权益。如果您对作品感到满意，请购买正版
4、禁止制作、复制、发布和传播具有反动、淫秽、色情、暴力、凶杀等内容的信息，一经发现立即删除。若您因此触犯法律，一切后果自负，我们对此不承担任何责任
5、所有资源均系网友上传或者通过网络收集，我们仅提供一个展示、介绍、观摩学习的平台，我们不对其内容的准确性、可靠性、正当性、安全性、合法性等负责，亦不承担任何法律责任
6、所有作品仅供您个人学习、研究或欣赏，不得用于商业或者其他用途，否则，一切后果均由您自己承担，我们对此不承担任何法律责任
7、如涉及侵犯版权等问题，请您及时通知我们，我们将立即采取措施予以解决
8、联系人Email：admin@iyunv.com 网址：www.yunweiku.com

所有资源均系网友上传或者通过网络收集,我们仅提供一个展示、介绍、观摩学习的平台,我们不对其承担任何法律责任,如涉及侵犯版权等问题,请您及时通知我们,我们将立即处理,联系人Email:kefu@iyunv.com,QQ:1061981298 本贴地址：https://www.yunweiku.com/thread-356672-1-1.html 上篇帖子： PHP 分页类 潇湘博客 下篇帖子： PHP_判断是否为数字
回复

使用道具 举报

返回列表
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 立即注册

本版积分规则

扫码加入运维网微信交流群X

扫码加入运维网微信交流群

扫描二维码加入运维网微信交流群，最新一手资源尽在官方微信交流群！快快加入我们吧...

扫描微信二维码查看详情

客服 E-mail:iyunvcom@gmail.com

本站由青云提供云计算服务

运维网--中国最专业的运维工程师交流社区

豫ICP备20007574号-1 Copyright © 2012-2025

关于我们

发展历程

联系我们

关注我们

广告服务

广告案例

隐私条款

免责声明

用户登录

用户注册

版主守则

申请版主

手机版

金币获取

帮助中心

每日签到

Good Good

Study

Day Day

UP


客服E-mail:kefu@iyunv.com 客服QQ：1061981298


QQ群⑦：运维网交流群⑦ QQ群⑧：运维网交流群⑧ k8s群：运维网kubernetes交流群


提醒：禁止发布任何违反国家法律、法规的言论与图片等内容；本站内容均来自个人观点与网络等信息，非本站认同之观点.


本站大部分资源是网友从网上搜集分享而来，其版权均归原作者及其网站所有，我们尊重他人的合法权益，如有内容侵犯您的合法权益，请及时与我们联系进行核实删除！



合作伙伴: 青云cloud

快速回复 返回顶部 返回列表
