探索Oracle之数据库升级二 11.2.0.3升级到11.2.0.4完整步骤

ewr212

说明：

        这篇文章主要是记录下单实例环境下Oracle 11.2.0.1升级到11.2.0.3的过程，当然RAC的升级是会有所不同。但是他们每个版本之间升级步骤都是差不多的，先升级Database Software，再升级Oracle Instance。

Oracle 11.2.0.4的Patchset No:19852360下载需要有Oracle Support才可以。

Patchset包含有7个文件，关于这七个文件的作用，详见如下链接：

我们升级Database，只需要其中的第一个和第二文件即可。将2个文件解压缩后就可以执行升级操作了。

升级前准备：

1、查看数据库和操作系统相关信息:

    [iyunv@db01 ~]# uname -a
    Linux db01 2.6.18-308.el5 #1SMP Fri Jan 27 17:17:51 EST 2012 x86_64 x86_64 x86_64 GNU/Linux

    [iyunv@db01 ~]# lsb_release-a
    LSB Version:    :core-4.0-amd64:core-4.0-ia32:core-4.0-noarch:graphics-4.0-amd64:graphics-4.0-ia32:graphics-4.0-noarch:printing-4.0-amd64:printing-4.0-ia32:printing-4.0-noarch
    Distributor ID:RedHatEnterpriseServer
    Description:    Red Hat Enterprise Linux Server release 5.8(Tikanga)
    Release:        5.8
    Codename:       Tikanga

    [iyunv@db01 ~]# su - oracle-c "sqlplus / as sysdba";
    SQL*Plus: Release 11.2.0.3.0Production on Fri Oct 3 21:32:02 2014
    Copyright (c) 1982, 2011,Oracle.  All rights reserved.

    Connected to:
    Oracle Database 11gEnterprise Edition Release 11.2.0.3.0 - 64bit Production
    With the Partitioning, OLAP,Data Mining and Real Application Testing options

    SQL> select name fromv$database;


    NAME
    ---------
    WOO

    SQL>



2、备份数据库


    [oracle@db01 ~]$ rman target/


    Recovery Manager: Release11.2.0.3.0 - Production on Fri Oct 3 21:43:04 2014
    Copyright (c) 1982, 2011,Oracle and/or its affiliates.  All rightsreserved.
    connected to targetdatabase: WOO (DBID=4199461782)

    RMAN> backup databaseplus archivelog delete input format '/DBBackup/Phycal/full_%U.bak';


    Starting backup at 03-OCT-14
    current log archived
    using target databasecontrol file instead of recovery catalog
    allocated channel:ORA_DISK_1
    channel ORA_DISK_1: SID=149device type=DISK
    channel ORA_DISK_1: startingarchived log backup set
    channel ORA_DISK_1:specifying archived log(s) in backup set
    input archived log thread=1sequence=15 RECID=1 STAMP=860017183
    input archived log thread=1sequence=16 RECID=2 STAMP=860017184
    input archived log thread=1sequence=17 RECID=3 STAMP=860017186
    input archived log thread=1sequence=18 RECID=4 STAMP=860017186
    input archived log thread=1sequence=19 RECID=5 STAMP=860017188
    input archived log thread=1sequence=20 RECID=6 STAMP=860017387
    channel ORA_DISK_1: startingpiece 1 at 03-OCT-14
    channel ORA_DISK_1: finishedpiece 1 at 03-OCT-14
    piecehandle=/DBBackup/Phycal/full_01pk5knb_1_1.bak tag=TAG20141003T214307comment=NONE
    channel ORA_DISK_1: backupset complete, elapsed time: 00:00:02
    channel ORA_DISK_1: deletingarchived log(s)
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_15_b2x9rz0z_.arcRECID=1 STAMP=860017183
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_16_b2x9s05l_.arcRECID=2 STAMP=860017184
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_17_b2x9s2nx_.arcRECID=3 STAMP=860017186
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_18_b2x9s2od_.arcRECID=4 STAMP=860017186
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_19_b2x9s4dr_.arcRECID=5 STAMP=860017188
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_20_b2x9zbz2_.arcRECID=6 STAMP=860017387
    Finished backup at 03-OCT-14

    Starting backup at 03-OCT-14
    using channel ORA_DISK_1
    channel ORA_DISK_1: startingfull datafile backup set
    channel ORA_DISK_1:specifying datafile(s) in backup set
    input datafile filenumber=00001 name=/DBData/woo/system01.dbf
    input datafile filenumber=00002 name=/DBData/woo/sysaux01.dbf
    input datafile filenumber=00005 name=/DBData/woo/example01.dbf
    input datafile filenumber=00003 name=/DBData/woo/undotbs01.dbf
    input datafile filenumber=00004 name=/DBData/woo/users01.dbf
    channel ORA_DISK_1: startingpiece 1 at 03-OCT-14
    channel ORA_DISK_1: finishedpiece 1 at 03-OCT-14
    piecehandle=/DBSoft/fast_recovery_area/WOO/backupset/2014_10_03/o1_mf_nnndf_TAG20141003T214309_b2x9zfm5_.bkptag=TAG20141003T214309 comment=NONE
    channel ORA_DISK_1: backupset complete, elapsed time: 00:01:45
    channel ORA_DISK_1: startingfull datafile backup set
    channel ORA_DISK_1:specifying datafile(s) in backup set
    including current controlfile in backup set
    including current SPFILE inbackup set
    channel ORA_DISK_1: startingpiece 1 at 03-OCT-14
    channel ORA_DISK_1: finishedpiece 1 at 03-OCT-14
    piecehandle=/DBSoft/fast_recovery_area/WOO/backupset/2014_10_03/o1_mf_ncsnf_TAG20141003T214309_b2xb2qlm_.bkptag=TAG20141003T214309 comment=NONE
    channel ORA_DISK_1: backupset complete, elapsed time: 00:00:01
    Finished backup at 03-OCT-14


    Starting backup at 03-OCT-14
    current log archived
    using channel ORA_DISK_1
    channel ORA_DISK_1: startingarchived log backup set
    channel ORA_DISK_1:specifying archived log(s) in backup set
    input archived log thread=1sequence=21 RECID=7 STAMP=860017496
    channel ORA_DISK_1: startingpiece 1 at 03-OCT-14
    channel ORA_DISK_1: finishedpiece 1 at 03-OCT-14
    piecehandle=/DBBackup/Phycal/full_04pk5kqo_1_1.bak tag=TAG20141003T214456comment=NONE
    channel ORA_DISK_1: backupset complete, elapsed time: 00:00:01
    channel ORA_DISK_1: deletingarchived log(s)
    archived log filename=/DBSoft/fast_recovery_area/WOO/archivelog/2014_10_03/o1_mf_1_21_b2xb2rsf_.arcRECID=7 STAMP=860017496
    Finished backup at 03-OCT-14


    RMAN>



3、停止数据库


    ###停止数据库

    SQL> shutdown immediate
    Database closed.
    Database dismounted.
    ORACLE instance shut down.

    ###停止监听

    SQL> host lsnrctl stop


    LSNRCTL for Linux: Version11.2.0.3.0 - Production on 04-OCT-2014 01:39:26


    Copyright (c) 1991, 2011,Oracle.  All rights reserved.
    Connecting to(DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
    The command completedsuccessfully

    ###停止EM

    SQL> host emctl stopdbconsole

    Oracle Enterprise Manager11g Database Control Release 11.2.0.3.0
    Copyright (c) 1996, 2011Oracle Corporation.  All rights reserved.
    <a target=_blank href="https://db01:1158/em/console/aboutApplication">https://db01:1158/em/console/aboutApplication</a>
    Stopping Oracle EnterpriseManager 11g Database Control ...

    ###查看oracle进程，检查是否已经停止完毕

    [iyunv@db01 ~]# ps -ef|grepora
    root      4971 4944  0 01:46 pts/0    00:00:00 grep ora



4、备份老的ORACLE_HOME和oraInventory


    [iyunv@db01 ~]#tar –cvfproduct.zip /DBSoft/product/
    [iyunv@db01 ~]#tar –cvforaInventory.zip /DBSoft/product/oraInventory/



5、上传并解压缩Oracle Database 11.2.0.4安装介质


    [oracle@db01 ~]$ ll

    total 2489644
    drwxr-xr-x 2 oracle oinstall       4096 Oct 3 04:06 Desktop
    -rw-r--r-- 1 oracle oinstall1395582860 Oct  3 06:55p13390677_112040_Linux-x86-64_1of7.zip
    -rw-r--r-- 1 oracle oinstall1151304589 Oct  3 06:54p13390677_112040_Linux-x86-64_2of7.zip

    [oracle@db01 ~]$ unzipp13390677_112040_Linux-x86-64_1of7.zip
    [oracle@db01 ~]$ unzipp13390677_112040_Linux-x86-64_2of7.zip



6、 开始安装

6.1 将文件解压缩后进入安装目录执行./runInstall

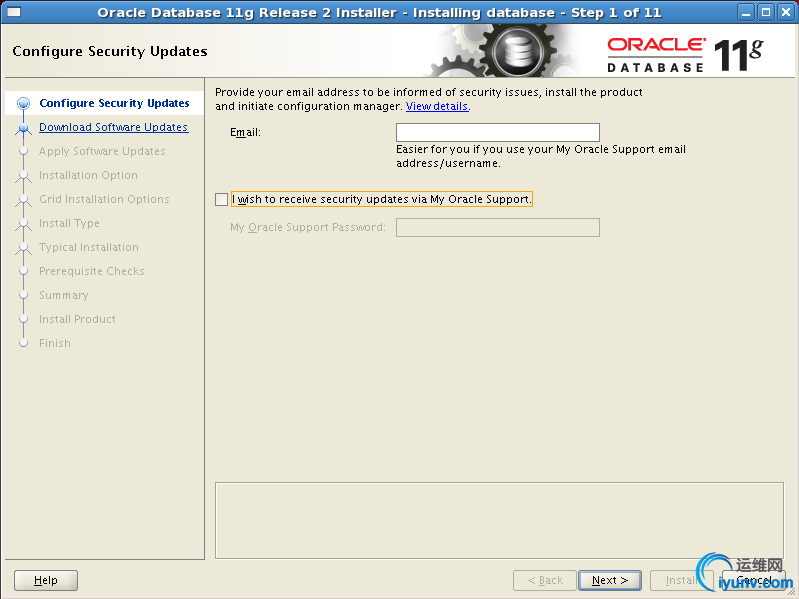

  6.2 取消Oracle支持选项，点击Next

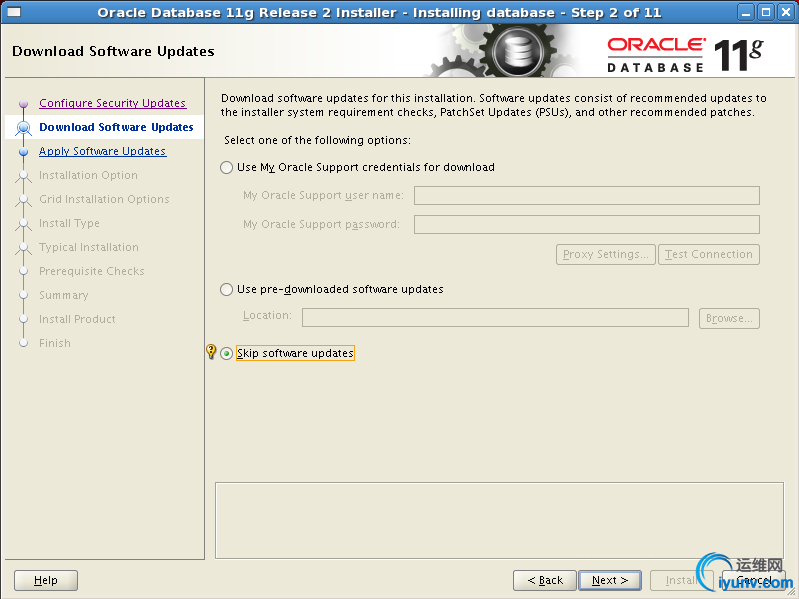

  6.3 选择最后一个选项"skip software update" 点击Next

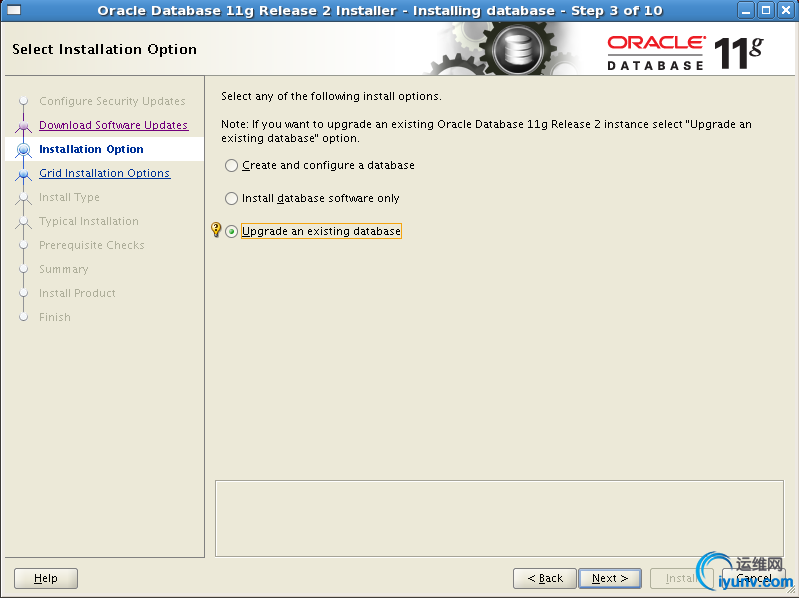

   6.4 选择最后一个选项"Upgrade an existing database" 后执行Next

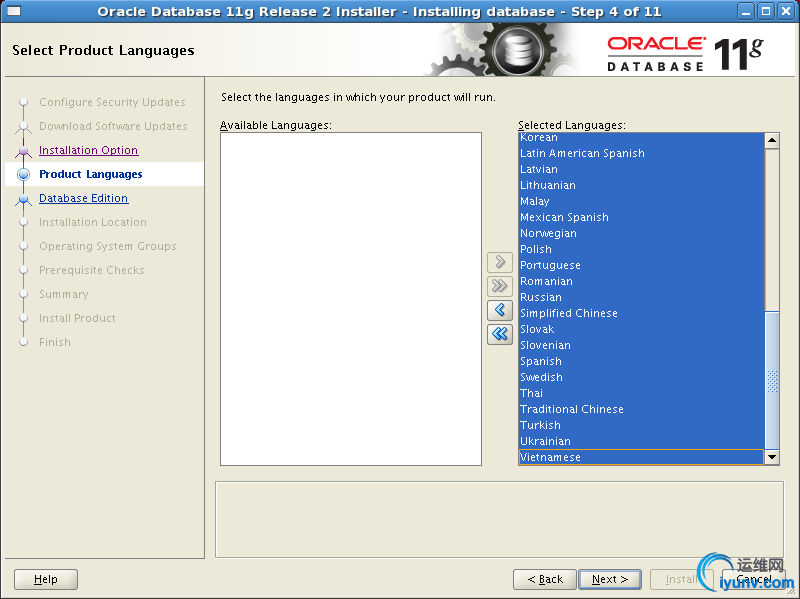

   6.5 选择所有语言，后点击Next

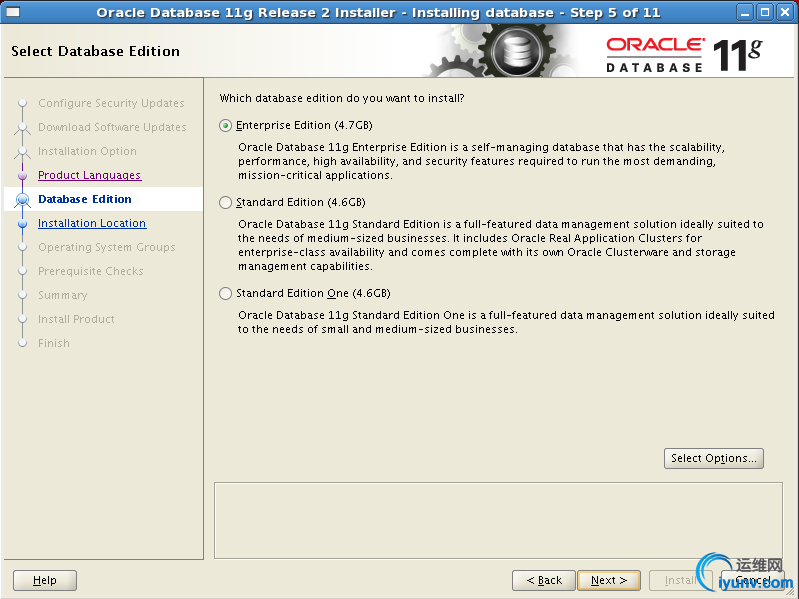

  6.6 选择要升级的数据库版本，后点击Next

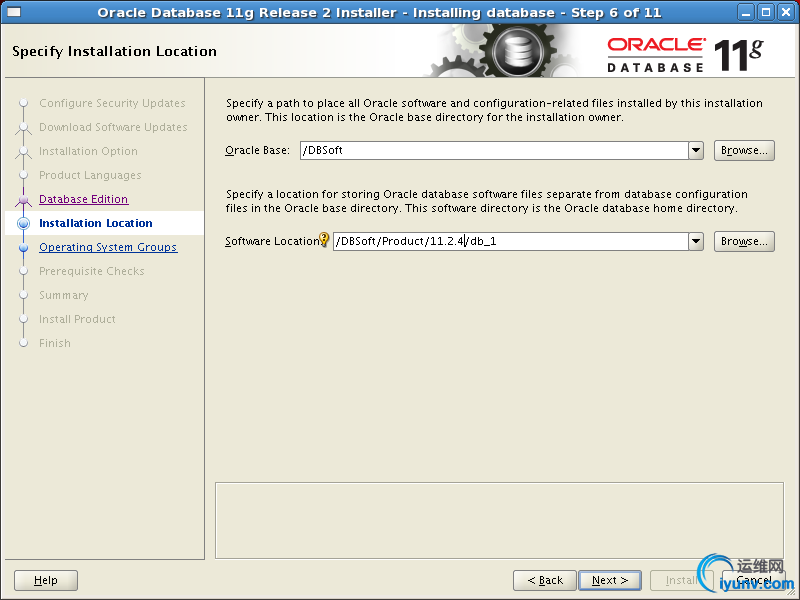

   6.7 选择新版本的数据库软件安装目录，后点击Next

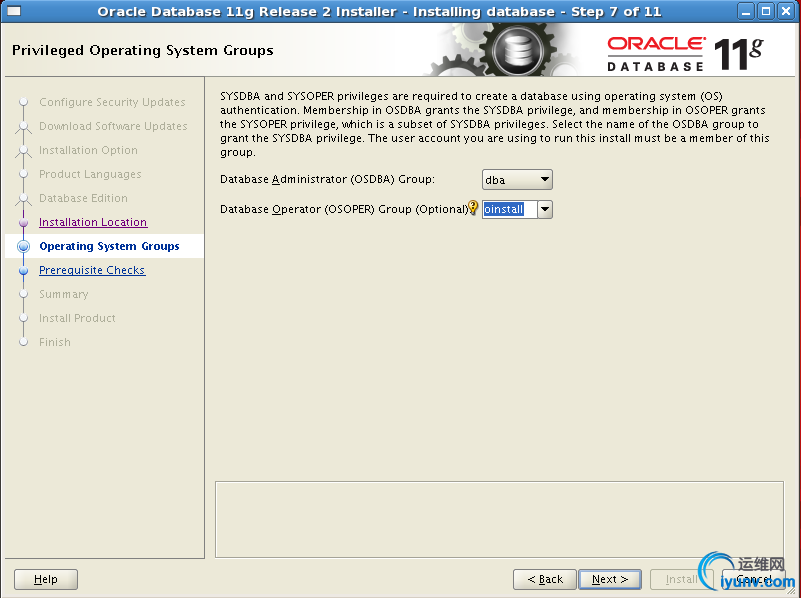

   6.8 选择数据库所属用户组，后点击Next

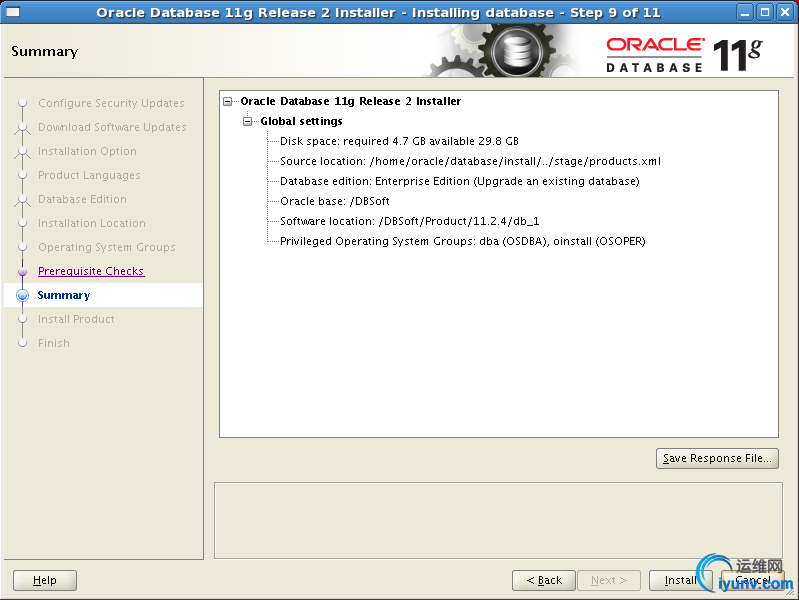

  6.9 察看数据库配置信息后，点击Install开始进行新版本软件安装

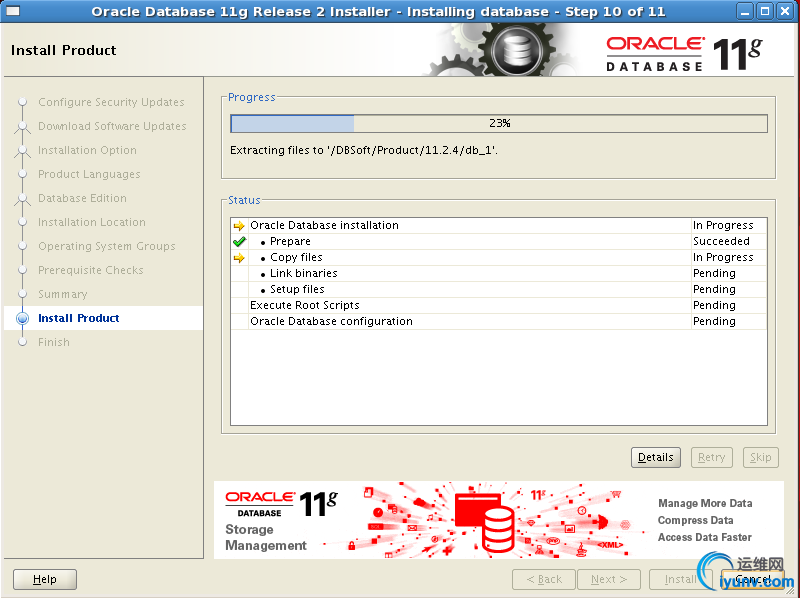

   6.10 安装进度，这个过程将会持续15分钟左右

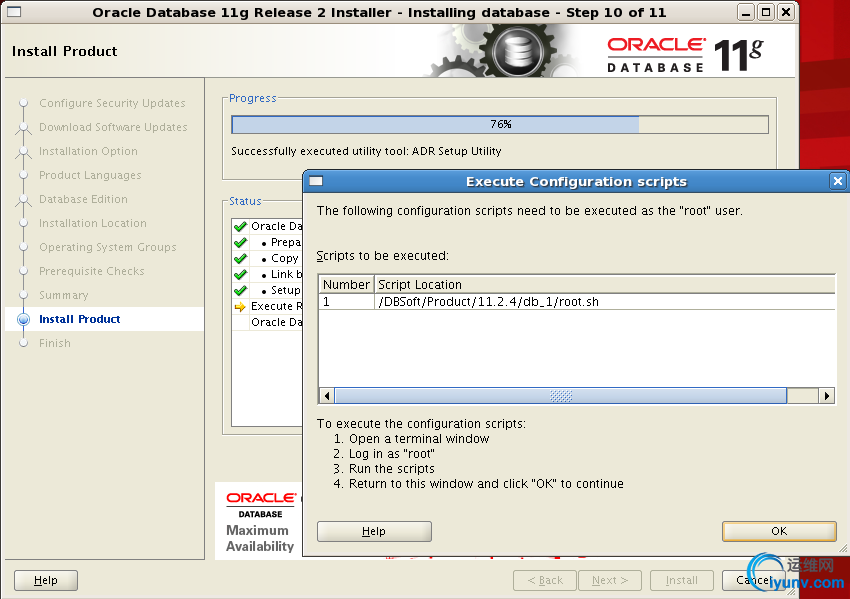

  6.11 弹出对话框要求执行/DBSoft/Product/11.2.4/db_1/root.sh 脚本

7、 执行root.sh脚本

    [iyunv@db01 ~]#/DBSoft/Product/11.2.4/db_1/root.sh

    Performing root useroperation for Oracle 11g


    The following environmentvariables are set as:
        ORACLE_OWNER= oracle
        ORACLE_HOME=  /DBSoft/Product/11.2.4/db_1


    Enter the full pathname ofthe local bin directory: [/usr/local/bin]:
    The contents of"dbhome" have not changed. No need to overwrite.
    The contents of"oraenv" have not changed. No need to overwrite.
    The contents of"coraenv" have not changed. No need to overwrite.


    Entries will be added to the/etc/oratab file as needed by
    Database ConfigurationAssistant when a database is created
    Finished running genericpart of root script.
    Now product-specific rootactions will be performed.
    Finished product-specificroot actions.

    [iyunv@db01 ~]#

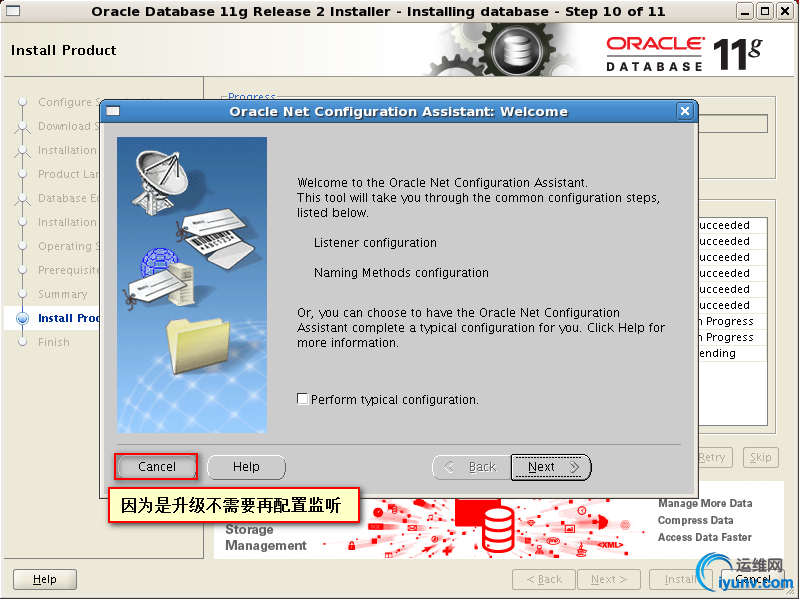

6.12 执行完脚本之后继续运行，提示配置监听，选择Cancel，稍后复制即可

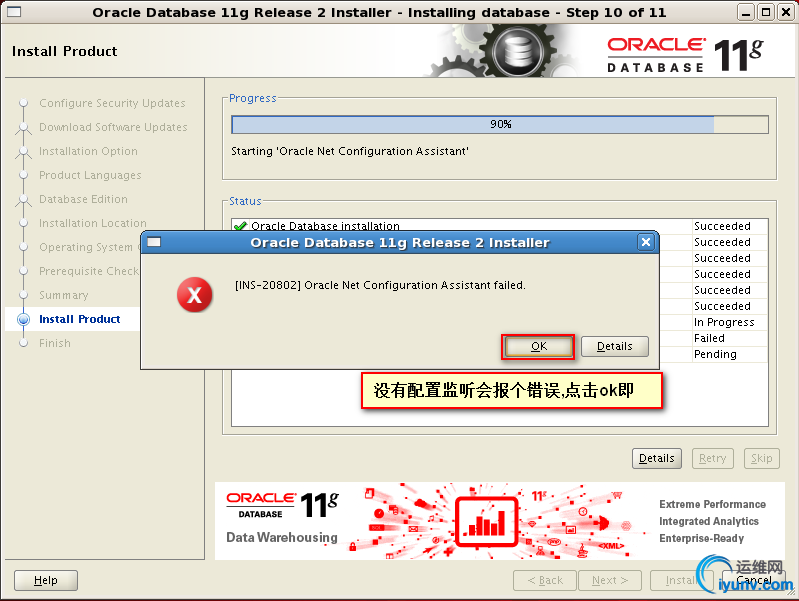

  6.13 提示监听配置失败，点击ok即可

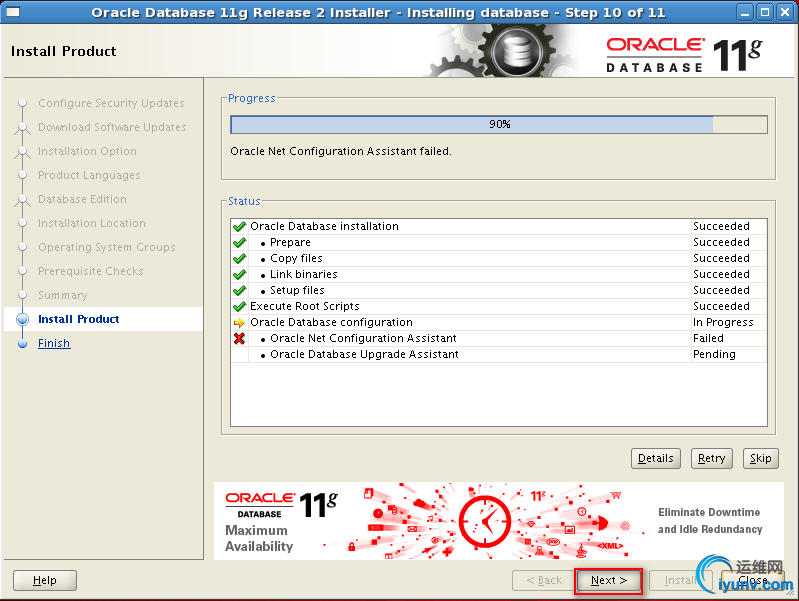

  6.14 有报错不用管，我们直接Next即可

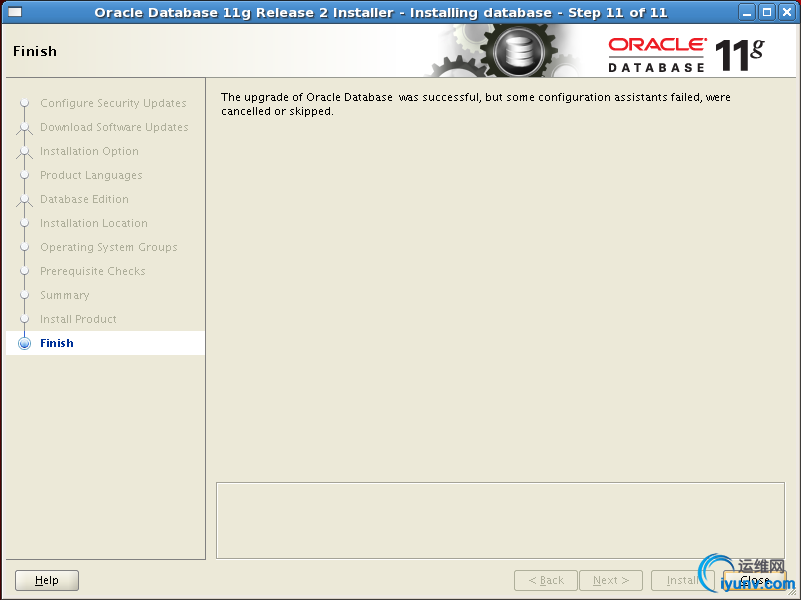

   6.15 至此软件安装完成，点击Close关闭安装界面

至此软件安装完成，但是并不代表数据库就已经升级完成了。

8、至此11.2.0.4的软件就已经装完了，修改Oracle环境变量


    [iyunv@db01 ~]# su - oracle
    [oracle@db01 ~]$ vi.bash_profile                   -------修改如下行,将11.2.3改成11.2.4即可
    export ORACLE_HOME=$ORACLE_BASE/Product/11.2.4/db_1

    [oracle@db01 ~]$ vi /etc/oratab                     -------修改如下行11.2.3为11.2.4
    woo:/DBSoft/Product/11.2.4/db_1:N

    [oracle@db01 admin]$ cp/DBSoft/Product/11.2.3/db_1/dbs/* /DBSoft/Product/11.2.4/db_1/dbs/



9、 拷贝监听配置文件


    [oracle@db01 admin]$ source~/.bash_profile
    [oracle@db01 admin]$ pwd
    /DBSoft/Product/11.2.3/db_1/network/admin

    [oracle@db01 admin]$ cd$ORACLE_HOME/network/admin
    [oracle@db01 admin]$ ls

    samples  shrept.lst

    [oracle@db01 admin]$ cp -r/DBSoft/Product/11.2.3/db_1/network/admin/* $ORACLE_HOME/network/admin
    [oracle@db01 admin]$ ls
    listener.ora  samples shrept.lst  sqlnet.ora  tnsnames.ora



10、执行预升级脚本检查


    [oracle@db01 dbs]$ sqlplus /as sysdba


    SQL*Plus: Release 11.2.0.4.0Production on Sat Oct 4 02:26:01 2014
    Copyright (c) 1982, 2013,Oracle.  All rights reserved.
    Connected to an idleinstance.


    SQL> startup upgrade;

    ORACLE instance started.
    Total System Global Area2037673984 bytes
    Fixed Size                  2254704 bytes
    Variable Size            1811941520 bytes
    Database Buffers          218103808 bytes
    Redo Buffers                5373952 bytes
    Database mounted.
    Database opened.

    SQL>@?/rdbms/admin/utlu112i.sql    ---执行升级前检查

    Oracle Database 11.2Pre-Upgrade Information Tool 10-04-2014 02:27:38
    Script Version: 11.2.0.4.0Build: 001
    .
    **********************************************************************
    Database:
    **********************************************************************

    --> name:          WOO
    --> version:       11.2.0.3.0
    --> compatible:    11.2.0.0.0
    --> blocksize:     8192
    --> platform:      Linux x86 64-bit
    --> timezone file: V14
    .
    **********************************************************************
    Tablespaces: [makeadjustments in the current environment]
    **********************************************************************

    --> SYSTEM tablespace isadequate for the upgrade.
    .... minimum required size:917 MB
    --> SYSAUX tablespace isadequate for the upgrade.
    .... minimum required size:646 MB
    --> UNDOTBS1 tablespaceis adequate for the upgrade.
    .... minimum required size:400 MB
    --> TEMP tablespace isadequate for the upgrade.
    .... minimum required size:60 MB
    .
    **********************************************************************
    Flashback: OFF
    **********************************************************************

    **********************************************************************
    Update Parameters: [UpdateOracle Database 11.2 init.ora or spfile]
    Note: Pre-upgrade tool wasrun on a lower version 64-bit database.
    **********************************************************************

    --> If Target Oracle is32-Bit, refer here for Update Parameters:
    WARNING: -->"shared_pool_size" needs to be increased to at least 236 MB
    .


    --> If Target Oracle is64-Bit, refer here for Update Parameters:
    WARNING: -->"shared_pool_size" needs to be increased to at least 472 MB
    .
    **********************************************************************
    Renamed Parameters: [UpdateOracle Database 11.2 init.ora or spfile]
    **********************************************************************

    -- No renamed parametersfound. No changes are required.
    .
    **********************************************************************
    Obsolete/DeprecatedParameters: [Update Oracle Database 11.2 init.ora or spfile]
    **********************************************************************

    -- No obsolete parametersfound. No changes are required
    .

    **********************************************************************
    Components: [The followingdatabase components will be upgraded or installed]
    **********************************************************************

    --> Oracle CatalogViews         [upgrade]  VALID
    --> Oracle Packages andTypes    [upgrade]  VALID
    --> JServer JAVA VirtualMachine [upgrade]  VALID
    --> Oracle XDK forJava          [upgrade]  VALID
    --> Oracle WorkspaceManager     [upgrade]  VALID
    --> OLAP Analytic Workspace      [upgrade] VALID
    --> OLAP Catalog                 [upgrade]  VALID
    --> EM Repository                [upgrade]  VALID
    --> Oracle Text                  [upgrade]  VALID
    --> Oracle XMLDatabase          [upgrade]  VALID
    --> Oracle Java Packages         [upgrade]  VALID
    --> OracleinterMedia            [upgrade]  VALID
    --> Spatial                      [upgrade]  VALID
    --> ExpressionFilter            [upgrade]  VALID
    --> Rule Manager                 [upgrade]  VALID
    --> Oracle ApplicationExpress   [upgrade]  VALID
    ... APEX will only beupgraded if the version of APEX in
    ... the target Oracle homeis higher than the current one.
    --> Oracle OLAP API              [upgrade]  VALID
    .
    **********************************************************************
    Miscellaneous Warnings
    **********************************************************************

    WARNING: --> Your recyclebin is turned on and currently contains no objects.
    .... Because it is REQUIREDthat the recycle bin be empty prior to upgrading
    .... and your recycle bin isturned on, you may need to execute the command:
            PURGE DBA_RECYCLEBIN
    .... prior to executing yourupgrade to confirm the recycle bin is empty.
    WARNING: --> Databasecontains schemas with objects dependent on DBMS_LDAP package.
    .... Refer to the 11gUpgrade Guide for instructions to configure Network ACLs.
    .... USER APEX_030200 hasdependent objects.
    .

    **********************************************************************
    Recommendations
    **********************************************************************

    Oracle recommends gatheringdictionary statistics prior to
    upgrading the database.
    To gather dictionarystatistics execute the following command
    while connected as SYSDBA:


        EXECUTE dbms_stats.gather_dictionary_stats;


    **********************************************************************
    Oracle recommends removingall hidden parameters prior to upgrading.
    To view existing hiddenparameters execute the following command
    while connected AS SYSDBA:


        SELECT name,description fromSYS.V$PARAMETER WHERE name
            LIKE '\_%' ESCAPE '\'

    Changes will need to be madein the init.ora or spfile.
    **********************************************************************

    Oracle recommends reviewingany defined events prior to upgrading.
    To view existing non-defaultevents execute the following commands
    while connected AS SYSDBA:

      Events:
        SELECT (translate(value,chr(13)||chr(10),'')) FROM sys.v$parameter2
          WHERE UPPER(name) ='EVENT' AND isdefault='FALSE'


      Trace Events:
        SELECT (translate(value,chr(13)||chr(10),'')) from sys.v$parameter2
          WHERE UPPER(name) = '_TRACE_EVENTS' ANDisdefault='FALSE'


    Changes will need to be madein the init.ora or spfile.



11、     修改不满足项


    SQL> show parametershared


    NAME                                 TYPE        VALUE
    ----------------------------------------------- ------------------------------
    hi_shared_memory_address             integer     0
    max_shared_servers                   integer
    shared_memory_address                integer     0
    shared_pool_reserved_size            big integer 8M
    shared_pool_size                     big integer 160M
    shared_server_sessions               integer
    shared_servers                       integer     1

    SQL> alter system setshared_pool_size=800m scope=spfile;


    System altered.



    SQL> shutdown immediate

    Database closed.
    Database dismounted.
    ORACLE instance shut down.

    SQL> startup mountl

    SP2-0714: invalidcombination of STARTUP options

    SQL> startup mount;

    ORACLE instance started.
    Total System Global Area2872786944 bytes
    Fixed Size                  2256712 bytes
    Variable Size            2634023096 bytes
    Database Buffers          218103808 bytes
    Redo Buffers               18403328 bytes

    Database mounted.

    SQL> alter databaseflashback on;


    ###创建一个回滚点
    SQL> create restore pointmaclean_rollback guarantee flashback database;


    Restore point created.



    SQL> select * fromv$restore_point;



           SCN DATABASE_INCARNATION# GUASTORAGE_SIZE
    ------------------------------- --- ------------

    TIME
    ---------------------------------------------------------------------------
    RESTORE_POINT_TIME                                                         PRE
    ------------------------------------------------------------------------------
    NAME
    --------------------------------------------------------------------------------
       1187867                     2 YES     52428800

    04-OCT-14 02.41.43.000000000AM

                                                                               YES
    MACLEAN_ROLLBACK



    再次运行检查：

    SQL>@?/rdbms/admin/utlu112i.sql

    Oracle Database 11.2Pre-Upgrade Information Tool 10-04-2014 03:26:20
    Script Version: 11.2.0.4.0Build: 001

    .
    **********************************************************************
    Database:
    **********************************************************************

    --> name:          WOO
    --> version:       11.2.0.3.0
    --> compatible:    11.2.0.0.0
    --> blocksize:     8192
    --> platform:      Linux x86 64-bit
    --> timezone file: V14

    .
    **********************************************************************
    Tablespaces: [makeadjustments in the current environment]
    **********************************************************************

    --> SYSTEM tablespace isadequate for the upgrade.
    .... minimum required size:917 MB
    --> SYSAUX tablespace isadequate for the upgrade.
    .... minimum required size:646 MB
    --> UNDOTBS1 tablespaceis adequate for the upgrade.
    .... minimum required size:400 MB
    --> TEMP tablespace isadequate for the upgrade.
    .... minimum required size:60 MB

    .
    **********************************************************************
    Flashback: ON
    **********************************************************************

    FlashbackInfo:
    --> name:          /DBSoft/fast_recovery_area
    --> limit:         4122 MB
    --> used:          1490 MB
    --> size:          4122 MB
    --> reclaim:       1097.734375 MB
    --> files:         11

    WARNING: --> FlashbackRecovery Area Set.  Please ensureadequate disk space              inrecover
    y areas before performing anupgrade.
    .
    **********************************************************************
    Update Parameters: [UpdateOracle Database 11.2 init.ora or spfile]
    Note: Pre-upgrade tool wasrun on a lower version 64-bit database.
    **********************************************************************

    --> If Target Oracle is32-Bit, refer here for Update Parameters:
    -- No update parameterchanges are required.
    .


    --> If Target Oracle is64-Bit, refer here for Update Parameters:
    -- No update parameterchanges are required.
    .

    **********************************************************************
    Renamed Parameters: [UpdateOracle Database 11.2 init.ora or spfile]
    **********************************************************************
    -- No renamed parametersfound. No changes are required.
    .

    **********************************************************************
    Obsolete/DeprecatedParameters: [Update Oracle Database 11.2 init.ora or spfile]
    **********************************************************************
    -- No obsolete parametersfound. No changes are required
    .


    **********************************************************************
    Components: [The followingdatabase components will be upgraded or installed]
    **********************************************************************

    --> Oracle CatalogViews          [upgrade]  VALID
    --> Oracle Packages andTypes     [upgrade]  VALID
    --> JServer JAVA VirtualMachine  [upgrade]  VALID
    --> Oracle XDK forJava           [upgrade]  VALID
    --> Oracle WorkspaceManager      [upgrade]  VALID
    --> OLAP AnalyticWorkspace       [upgrade]  VALID
    --> OLAP Catalog                 [upgrade]  VALID
    --> EM Repository                [upgrade]  VALID
    --> Oracle Text                  [upgrade]  VALID
    --> Oracle XMLDatabase           [upgrade]  VALID
    --> Oracle JavaPackages          [upgrade]  VALID
    --> OracleinterMedia             [upgrade]  VALID
    --> Spatial                      [upgrade]  VALID
    --> ExpressionFilter             [upgrade]  VALID
    --> Rule Manager                 [upgrade]  VALID
    --> Oracle ApplicationExpress    [upgrade]  VALID
    ... APEX will only beupgraded if the version of APEX in
    ... the target Oracle homeis higher than the current one.
    --> Oracle OLAP API              [upgrade]  VALID
    .

    **********************************************************************
    Miscellaneous Warnings
    **********************************************************************

    WARNING: --> Your recyclebin is turned on and currently contains no objects.
    .... Because it is REQUIREDthat the recycle bin be empty prior to upgrading
    .... and your recycle bin isturned on, you may need to execute the command:
            PURGE DBA_RECYCLEBIN
    .... prior to executing yourupgrade to confirm the recycle bin is empty.
    WARNING: --> Databasecontains schemas with objects dependent on DBMS_LDAP package.
    .... Refer to the 11gUpgrade Guide for instructions to configure Network ACLs.
    .... USER APEX_030200 hasdependent objects.
    .

    **********************************************************************
    Recommendations
    **********************************************************************
    Oracle recommends gatheringdictionary statistics prior to
    upgrading the database.
    To gather dictionarystatistics execute the following command
    while connected as SYSDBA:


        EXECUTE dbms_stats.gather_dictionary_stats;

    **********************************************************************
    Oracle recommends removingall hidden parameters prior to upgrading.
    To view existing hiddenparameters execute the following command
    while connected AS SYSDBA:


        SELECT name,description fromSYS.V$PARAMETER WHERE name
            LIKE '\_%' ESCAPE '\'

    Changes will need to be madein the init.ora or spfile.

    **********************************************************************
    Oracle recommends reviewingany defined events prior to upgrading.
    To view existing non-defaultevents execute the following commands
    while connected AS SYSDBA:
      Events:
        SELECT (translate(value,chr(13)||chr(10),'')) FROM sys.v$parameter2
          WHERE UPPER(name) ='EVENT' AND isdefault='FALSE'

      Trace Events:
        SELECT (translate(value,chr(13)||chr(10),'')) from sys.v$parameter2
          WHERE UPPER(name) = '_TRACE_EVENTS' ANDisdefault='FALSE'


    Changes will need to be madein the init.ora or spfile.



12、执行升级操作


    SQL> shutdown immediate

    Database closed.
    Database dismounted.
    ORACLE instance shut down.

    SQL> startup upgrade;

    ORACLE instance started.
    Total System Global Area2872786944 bytes
    Fixed Size                  2256712 bytes
    Variable Size            2634023096 bytes
    Database Buffers          218103808 bytes
    Redo Buffers               18403328 bytes
    Database mounted.

    Database opened.

    SQL> set echo on
    SQL> spool/home/oracle/upgrade.log
    SQL> set time on;

    03:28:37 SQL>@?/rdbms/admin/catupgrd.sql  ---该脚本会运行十分钟左右
    ……..

    Oracle Database 11.2Post-Upgrade Status Tool          10-04-2014 04:01:36
    .
    Component                               Current      Version     Elapsed Time
    Name                                    Status       Number      HH:MM:SS
    .
    Oracle Server
    .                                        VALID      11.2.0.4.0  00:08:38
    JServer JAVA Virtual Machine
    .                                        VALID      11.2.0.4.0  00:04:26
    Oracle Workspace Manager
    .                                        VALID      11.2.0.4.0  00:00:25
    OLAP Analytic Workspace
    .                                        VALID      11.2.0.4.0  00:01:27
    OLAP Catalog
    .                                        VALID      11.2.0.4.0  00:00:32
    Oracle OLAP API
    .                                        VALID      11.2.0.4.0  00:00:19
    Oracle Enterprise Manager
    .                                        VALID      11.2.0.4.0  00:06:25
    Oracle XDK
    .                                         VALID      11.2.0.4.0  00:00:26
    Oracle Text
    .                                        VALID      11.2.0.4.0  00:00:24
    Oracle XML Database
    .                                        VALID      11.2.0.4.0  00:01:46
    Oracle Database JavaPackages
    .                                         VALID      11.2.0.4.0  00:00:08
    Oracle Multimedia
    .                                        VALID      11.2.0.4.0  00:01:43
    Spatial
    .                                        VALID      11.2.0.4.0  00:05:34
    Oracle Expression Filter
    .                                        VALID      11.2.0.4.0  00:00:06
    Oracle Rules Manager
    .                                        VALID      11.2.0.4.0  00:00:07
    Oracle Application Express
    .                                        VALID     3.2.1.00.12
    Final Actions
    .                                                               00:00:00
    Total Upgrade Time: 00:32:35


    PL/SQL proceduresuccessfully completed.


    04:01:36 SQL>
    04:01:36 SQL> SETSERVEROUTPUT OFF
    04:01:36 SQL> SET VERIFYON
    04:01:36 SQL> commit;


    Commit complete.



    04:01:36 SQL>
    04:01:36 SQL> shutdownimmediate;

    Database closed.
    Database dismounted.
    ORACLE instance shut down.

    04:01:54 SQL>
    04:01:54 SQL>
    04:01:54 SQL> DOC
    04:01:54 DOC>#######################################################################
    04:01:54DOC>#######################################################################
    04:01:54 DOC>
    04:01:54 DOC>   The above sql script is the final step ofthe upgrade. Please
    04:01:54 DOC>   review any errors in the spool log file. Ifthere are any errors in
    04:01:54 DOC>   the spool file, consult the Oracle DatabaseUpgrade Guide for
    04:01:54 DOC>   troubleshooting recommendations.
    04:01:54 DOC>
    04:01:54 DOC>   Next restart for normal operation, and thenrun utlrp.sql to
    04:01:54 DOC>   recompile any invalid application objects.
    04:01:54 DOC>
    04:01:54 DOC>   If the source database had an older timezone version prior to
    04:01:54 DOC>   upgrade, then please run the DBMS_DSTpackage.  DBMS_DST will upgrade
    04:01:54 DOC>   TIMESTAMP WITH TIME ZONE data to use thelatest time zone file shipped
    04:01:54 DOC>   with Oracle.
    04:01:54 DOC>
    04:01:54DOC>#######################################################################
    04:01:54 DOC>#######################################################################
    04:01:54 DOC>#
    04:01:54 SQL>
    04:01:54 SQL> Rem Seterrorlogging off
    04:01:54 SQL> SETERRORLOGGING OFF;
    04:01:54 SQL>
    04:01:54 SQL> REM END OFCATUPGRD.SQL
    04:01:54 SQL>
    04:01:54 SQL> REM bug12337546 - Exit current sqlplus session at end of catupgrd.sql.
    04:01:54 SQL> REM                This forces user to start a newsqlplus session in order
    04:01:54 SQL> REM                to connect to the upgraded db.
    04:01:54 SQL> exit

    Disconnected from OracleDatabase 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production
    With the Partitioning, OLAP,Data Mining and Real Application Testing options



以上catupgrd.sql脚本运行了50分钟左右，执行完之后会shutdown immediate数据库。这个时候我们将要重启数据库运行utlrp.sql脚本编译失效对象：



13、运行utlrp.sql编译失效对象


    [oracle@db01 dbs]$ sqlplus /as sysdba



    SQL*Plus: Release 11.2.0.4.0Production on Sat Oct 4 04:11:22 2014
    Copyright (c) 1982, 2013,Oracle.  All rights reserved.


    Connected to an idleinstance.


    SQL> startup

    ORACLE instance started.


    Total System Global Area 2872786944bytes
    Fixed Size                  2256712 bytes
    Variable Size            2634023096 bytes
    Database Buffers          218103808 bytes
    Redo Buffers               18403328 bytes
    Database mounted.

    Database opened.

    SQL> @?/rdbms/admin/utlrp


    TIMESTAMP
    --------------------------------------------------------------------------------

    COMP_TIMESTAMPUTLRP_BGN  2014-10-04 04:14:57
    DOC>   The following PL/SQL block invokesUTL_RECOMP to recompile invalid
    DOC>   objects in the database. Recompilation timeis proportional to the
    DOC>   number of invalid objects in the database,so this command may take
    DOC>   a long time to execute on a database with alarge number of invalid
    DOC>   objects.
    DOC>
    DOC>   Use the following queries to trackrecompilation progress:
    DOC>
    DOC>   1. Query returning the number of invalidobjects remaining. This
    DOC>      number should decrease with time.
    DOC>         SELECT COUNT(*) FROM obj$ WHERE statusIN (4, 5, 6);
    DOC>
    DOC>   2. Query returning the number of objectscompiled so far. This number
    DOC>      should increase with time.
    DOC>         SELECT COUNT(*) FROMUTL_RECOMP_COMPILED;
    DOC>
    DOC>   This script automatically chooses serial orparallel recompilation
    DOC>   based on the number of CPUs available(parameter cpu_count) multiplied
    DOC>   by the number of threads per CPU (parameterparallel_threads_per_cpu).
    DOC>   On RAC, this number is added across all RACnodes.
    DOC>
    DOC>   UTL_RECOMP uses DBMS_SCHEDULER to createjobs for parallel
    DOC>   recompilation. Jobs are created withoutinstance affinity so that they
    DOC>   can migrate across RAC nodes. Use thefollowing queries to verify
    DOC>   whether UTL_RECOMP jobs are being createdand run correctly:
    DOC>
    DOC>   1. Query showing jobs created by UTL_RECOMP
    DOC>         SELECT job_name FROM dba_scheduler_jobs
    DOC>            WHERE job_name like'UTL_RECOMP_SLAVE_%';
    DOC>
    DOC>   2. Query showing UTL_RECOMP jobs that arerunning
    DOC>         SELECT job_name FROMdba_scheduler_running_jobs
    DOC>            WHERE job_name like'UTL_RECOMP_SLAVE_%';
    DOC>#


    PL/SQL proceduresuccessfully completed.




    TIMESTAMP
    --------------------------------------------------------------------------------

    COMP_TIMESTAMPUTLRP_END  2014-10-04 04:15:34

    DOC> The following queryreports the number of objects that have compiled
    DOC> with errors.
    DOC>
    DOC> If the number ishigher than expected, please examine the error
    DOC> messages reportedwith each object (using SHOW ERRORS) to see if they
    DOC> point to systemmisconfiguration or resource constraints that must be
    DOC> fixed beforeattempting to recompile these objects.
    DOC>#


    OBJECTS WITH ERRORS
    -------------------
                      0



    DOC> The following queryreports the number of errors caught during
    DOC> recompilation. Ifthis number is non-zero, please query the error
    DOC> messages in thetable UTL_RECOMP_ERRORS to see if any of these errors
    DOC> are due tomisconfiguration or resource constraints that must be
    DOC> fixed before objectscan compile successfully.
    DOC>#


    ERRORS DURING RECOMPILATION
    ---------------------------
                              0



    Function created.


    PL/SQL proceduresuccessfully completed.


    Function dropped.


    PL/SQL proceduresuccessfully completed.

    SQL>




该脚本耗时约为3分钟左右。



14、至此数据库已经升级完成，查看各组件版本号：




    SQL> select comp_name,status,version fromdba_server_registry


    COMP_NAME                                STATUS         VERSION
    ------------------------------------------------------ ------------------------------

    OWB                                      VALID          11.2.0.3.0
    Oracle ApplicationExpress                VALID          3.2.1.00.12
    Oracle EnterpriseManager                 VALID          11.2.0.4.0
    OLAP Catalog                             VALID          11.2.0.4.0
    Spatial                                  VALID          11.2.0.4.0
    Oracle Multimedia                        VALID          11.2.0.4.0
    Oracle XML Database                      VALID          11.2.0.4.0
    Oracle Text                              VALID          11.2.0.4.0
    Oracle ExpressionFilter                  VALID          11.2.0.4.0
    Oracle Rules Manager                     VALID          11.2.0.4.0
    Oracle WorkspaceManager                  VALID          11.2.0.4.0
    Oracle Database CatalogViews             VALID          11.2.0.4.0
    Oracle Database Packages andTypes        VALID          11.2.0.4.0
    JServer JAVA VirtualMachine              VALID          11.2.0.4.0
    Oracle XDK                               VALID          11.2.0.4.0
    Oracle Database JavaPackages             VALID          11.2.0.4.0
    OLAP Analytic Workspace                  VALID          11.2.0.4.0
    Oracle OLAP API                          VALID          11.2.0.4.0


    18 rows selected.



15、检查无效对象：


    SQL> select * fromdba_objects where status !='VALID';


    no rows selected



16、升级成功后删除原来的目录，通过EMCA重建EM


    [oracle@db01 /]$ rm -rf/DBSoft/Product/11.2.3/

    手工创建EM资料库:
    ####emca -repos drop


    [oracle@db01 /]$ emca -reposdrop

    STARTED EMCA at Oct 4, 20146:11:41 AM
    EM Configuration Assistant,Version 11.2.0.3.0 Production

    Copyright (c) 2003, 2011,Oracle.  All rights reserved.


    Enter the followinginformation:
    Database SID: woo
    Listener port number: 1521
    Password for SYS user:
    Password for SYSMANuser:


    ----------------------------------------------------------------------
    WARNING : While repositoryis dropped the database will be put in quiesce mode.
    ----------------------------------------------------------------------

    Do you wish to continue?[yes(Y)/no(N)]: y
    Oct 4, 2014 6:11:53 AMoracle.sysman.emcp.EMConfig perform
    INFO: This operation isbeing logged at /DBSoft/cfgtoollogs/emca/woo/emca_2014_10_04_06_11_41.log.
    Oct 4, 2014 6:11:53 AMoracle.sysman.emcp.EMReposConfig invoke
    INFO: Dropping the EMrepository (this may take a while) ...
    Oct 4, 2014 6:13:37 AMoracle.sysman.emcp.EMReposConfig invoke
    INFO: Repositorysuccessfully dropped
    Enterprise Managerconfiguration completed successfully
    FINISHED EMCA at Oct 4, 20146:13:37 AM

    ####emca -repos create


    [oracle@db01 /]$ emca -reposcreate


    STARTED EMCA at Oct 4, 20146:14:07 AM
    EM Configuration Assistant,Version 11.2.0.3.0 Production
    Copyright (c) 2003, 2011,Oracle.  All rights reserved.

    Enter the followinginformation:
    Database SID: woo
    Listener port number: 1521
    Password for SYS user:
    Password for SYSMANuser:

    Do you wish to continue?[yes(Y)/no(N)]: y
    Oct 4, 2014 6:14:20 AM oracle.sysman.emcp.EMConfigperform
    INFO: This operation isbeing logged at /DBSoft/cfgtoollogs/emca/woo/emca_2014_10_04_06_14_07.log.
    Oct 4, 2014 6:14:21 AMoracle.sysman.emcp.EMReposConfig createRepository
    INFO: Creating the EMrepository (this may take a while) ...
    Oct 4, 2014 6:17:57 AMoracle.sysman.emcp.EMReposConfig invoke
    INFO: Repositorysuccessfully created
    Enterprise Managerconfiguration completed successfully
    FINISHED EMCA at Oct 4, 20146:17:57 AM


    ###emca -config dbcontrol db

    [oracle@db01 /]$ emca-config dbcontrol db


    STARTED EMCA at Oct 4, 20146:24:04 AM
    EM Configuration Assistant,Version 11.2.0.3.0 Production
    Copyright (c) 2003, 2011,Oracle.  All rights reserved.


    Enter the followinginformation:
    Database SID: woo
    Database Control is alreadyconfigured for the database woo
    You have chosen to configureDatabase Control for managing the database woo
    This will remove theexisting configuration and the default settings and perform a freshconfiguration
    Do you wish to continue?[yes(Y)/no(N)]: y
    Listener ORACLE_HOME [/DBSoft/Product/11.2.4/db_1 ]:
    Password for SYS user:
    Password for DBSNMPuser:
    Password for SYSMANuser:
    Email address fornotifications (optional):
    Outgoing Mail (SMTP) serverfor notifications (optional):
    -----------------------------------------------------------------


    You have specified thefollowing settings

    Database ORACLE_HOME................ /DBSoft/Product/11.2.4/db_1
    Local hostname................ db01
    Listener ORACLE_HOME................ /DBSoft/Product/11.2.4/db_1
    Listener port number................ 1521
    Database SID................ woo
    Email address fornotifications ...............
    Outgoing Mail (SMTP) serverfor notifications ...............
    -----------------------------------------------------------------

    Do you wish to continue?[yes(Y)/no(N)]: y
    Oct 4, 2014 6:24:49 AMoracle.sysman.emcp.EMConfig perform
    INFO: This operation isbeing logged at /DBSoft/cfgtoollogs/emca/woo/emca_2014_10_04_06_24_04.log.
    Oct 4, 2014 6:24:50 AMoracle.sysman.emcp.util.DBControlUtil stopOMS
    INFO: Stopping DatabaseControl (this may take a while) ...
    Oct 4, 2014 6:24:54 AMoracle.sysman.emcp.EMReposConfig uploadConfigDataToRepository
    INFO: Uploadingconfiguration data to EM repository (this may take a while) ...
    Oct 4, 2014 6:25:53 AMoracle.sysman.emcp.EMReposConfig invoke
    INFO: Uploaded configurationdata successfully
    Oct 4, 2014 6:25:57 AMoracle.sysman.emcp.util.DBControlUtil secureDBConsole
    INFO: Securing DatabaseControl (this may take a while) ...
    Oct 4, 2014 6:26:03 AMoracle.sysman.emcp.util.DBControlUtil secureDBConsole
    INFO: Database Controlsecured successfully.
    Oct 4, 2014 6:26:03 AMoracle.sysman.emcp.util.DBControlUtil startOMS
    INFO: Starting DatabaseControl (this may take a while) ...
    Oct 4, 2014 6:26:23 AMoracle.sysman.emcp.EMDBPostConfig performConfiguration
    INFO: Database Controlstarted successfully
    Oct 4, 2014 6:26:23 AMoracle.sysman.emcp.EMDBPostConfig performConfiguration
    INFO:>>>>>>>>>>> The Database Control URL ishttps://db01:5500/em <<<<<<<<<<<
    Oct 4, 2014 6:26:25 AMoracle.sysman.emcp.EMDBPostConfig invoke
    WARNING:

    ************************  WARNING ************************

    Management Repository hasbeen placed in secure mode wherein Enterprise Manager data will be encrypted.  The encryption key has been placed in thefile: /DBSoft/Product/11.2.4/db_1/db01_woo/sysman/config/emkey.ora. Ensure thisfile is backed up as the encrypted data will become unusable if this file islost.


    ***********************************************************

    Enterprise Managerconfiguration completed successfully
    FINISHED EMCA at Oct 4, 20146:26:25 AM

    [oracle@db01 /]$



17、至此，升级已经全部完成。
