Azure Messaging-ServiceBus Messaging消息队列技术系列3-消息顺序保证

yzc164

　　上一篇:Window Azure ServiceBus Messaging消息队列技术系列2-编程SDK入门  http://www.cnblogs.com/tianqing/p/5944573.html
　　介绍了Azure Service Bus的编程SDK（主要的编程接口）
　　本文中我们以实际的使用场景来说明Azure Messaging是否支持以及如何编码实现：消息的收发顺序保证。
　　消息的收发在实际业务中往往是有顺序的：发送时1-2-3-4-5，接收时也必须是1-2-3-4-5，即FIFO特性。
　　在本文的Demo中，我们模拟销售订单消息队列异步处理场景，消息体是一条SalesOrder，顺序发送，顺序接收。
　　1. 我们还是使用上篇博客中在Windows Azure的Portal上建立好的NameSpace：servicebustest
　　销售订单队列名称：OrderQueue
　　2.简单封装一个Service Bus的工具类：ServiceBusUtils: 用于创建队列、删除队列、创建QueueClient、创建BrokerdMessage



using Microsoft.ServiceBus;
using Microsoft.ServiceBus.Messaging;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.Text;
using System.Threading.Tasks;
namespace AzureMessaging.FIFO
{
/// <summary>
/// ServiceBus工具类
/// </summary>
class ServiceBusUtils
{
//Namespace名称
private static readonly string namespaceName = "servicebustest";
/// <summary>
/// 创建队列
/// </summary>
/// <param name="queueName">队列名称</param>
/// <param name="isSession">是否支持会话</param>
public void CreateQueue(string queueName, bool isSession = true)
{
var namespaceClient = NamespaceManager.Create();
if (namespaceClient.QueueExists(queueName))
{
namespaceClient.DeleteQueue(queueName);
}
var queue = new QueueDescription(queueName) { RequiresSession = isSession };
namespaceClient.CreateQueue(queue);
}
/// <summary>
/// 删除队列
/// </summary>
/// <param name="queueName">队列名称</param>
public void DeleteQueue(string queueName)
{
var namespaceClient = NamespaceManager.Create();
if (namespaceClient.QueueExists(queueName))
{
namespaceClient.DeleteQueue(queueName);
}
}

/// <summary>
/// 创建队列客户端
/// </summary>
/// <returns>队列客户端</returns>
public QueueClient GetQueueClient(string queueName, bool isSession = false, ReceiveMode mode = ReceiveMode.ReceiveAndDelete)
{
return QueueClient.Create(queueName, mode);
}
/// <summary>
/// 创建队列客户端
/// </summary>
/// <returns>队列客户端</returns>
public QueueClient GetReceiveQueueClient(string queueName, ReceiveMode mode = ReceiveMode.PeekLock)
{
var namespaceClient = NamespaceManager.Create();
return QueueClient.Create(queueName, mode);
}
/// <summary>
/// 构造消息
/// </summary>
/// <param name="serializableObject">可序列化的对象</param>
/// <returns>消息</returns>
public BrokeredMessage Create(Object serializableObject)
{
var serializer = new DataContractSerializer(serializableObject.GetType(),
new DataContractSerializerSettings() { IgnoreExtensionDataObject = true, PreserveObjectReferences = false });
var message = new BrokeredMessage(serializableObject);
message.Properties.Add("Type", serializableObject.GetType().ToString());
return message;
}
}
}
　　2. 示例SalesOrder实体类



using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace AzureMessaging.FIFO
{
/// <summary>
/// 销售订单类
/// </summary>
public class SalesOrder
{
/// <summary>
/// 订单ID
/// </summary>
public string OrderID { get; set; }
/// <summary>
/// 订单编号
/// </summary>
public string Code { get; set; }
/// <summary>
/// 创建时间
/// </summary>
public DateTime CreateTime { get; set; }
/// <summary>
/// 总价格
/// </summary>
public Decimal TotalPrice { get; set; }
/// <summary>
/// 产品ID
/// </summary>
public int ProductID { get; set; }
}
}
　　3. 消息顺序发送
　　向OrderQueue发送10条消息订单消息，输出每条消息的顺序号以及MessageID



private static readonly string queueName = "OrderQueue";
/// <summary>
/// 发送消息
/// </summary>
private static void MessageSend()
{
var sbUtils = new ServiceBusUtils();
//创建队列
sbUtils.CreateQueue(queueName, false);
//顺序发送消息到OrderQueue
var queueSendClient = sbUtils.GetQueueClient(queueName);
for (int i = 0; i < 10; i++)
{
var order = new SalesOrder() { OrderID = i.ToString(), Code = "SalesOrder_" + i, CreateTime = DateTime.Now, ProductID = 17967, TotalPrice = new decimal(19999) };
var message = sbUtils.Create(order);
queueSendClient.Send(message);
Console.WriteLine(string.Format("Send {0} Message: {1}", i, message.MessageId));
}
Console.WriteLine("Send Completed!");
}

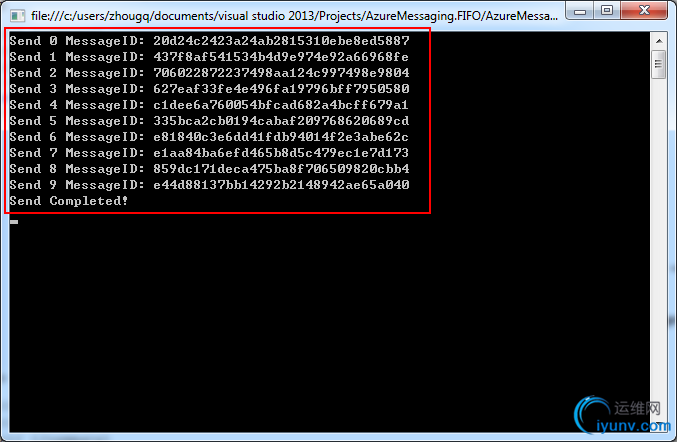

　　程序输出：

　　4. 消息顺序接收
　　消费OrderQueue中的消息，验证消息的接收顺序



private static readonly string queueName = "OrderQueue";
/// <summary>
/// 接收消息
/// </summary>
private static void MessageReceive()
{
int index = 0;
BrokeredMessage msg = null;
var sbUtils = new ServiceBusUtils();
var queueReveiveClient = sbUtils.GetReceiveQueueClient(queueName, ReceiveMode.ReceiveAndDelete);
while ((msg = queueReveiveClient.Receive(TimeSpan.FromMilliseconds(3))) != null)
{
Console.WriteLine(string.Format("Received {0} Message: {1}", index, msg.MessageId));
index++;
}
////删除队列
//sbUtils.DeleteQueue(queueName);

Console.WriteLine("Receive Completed!");
}

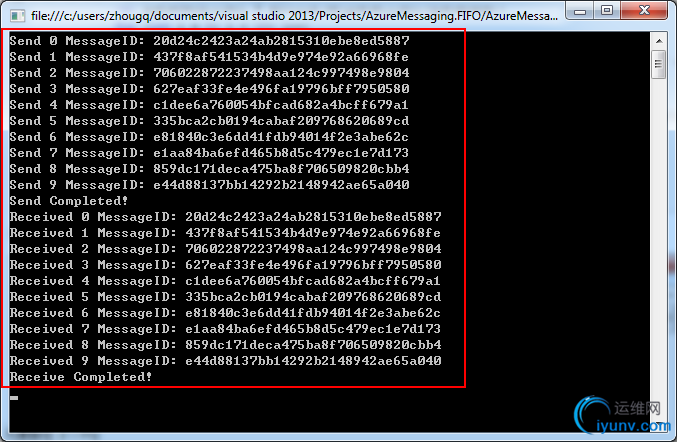

　　程序输出：

　　可以看出，Azure Messaging中ServiceBus对消息的收发是有顺序保证的。
　　下一篇我们继续其他特性的验证和介绍。
　　周国庆
　　2017/3/9
