Azure上每个VM多个IP地址

cdchenli

　　Azure的每个VM都有多种IP地址，包括DIP、VIP和PIP。具体如下：

　　DIP地址是在VM里能够看到的IP地址，即私网地址；PIP地址是这个VM关联的公网IP地址，即公网地址；VIP地址是负载均衡的地址。
　　目前Azure的VM已经支持每个网卡关联多个ipconfig，即可以支持VM的每个网卡关联多个私网和公网地址：DIP和PIP。

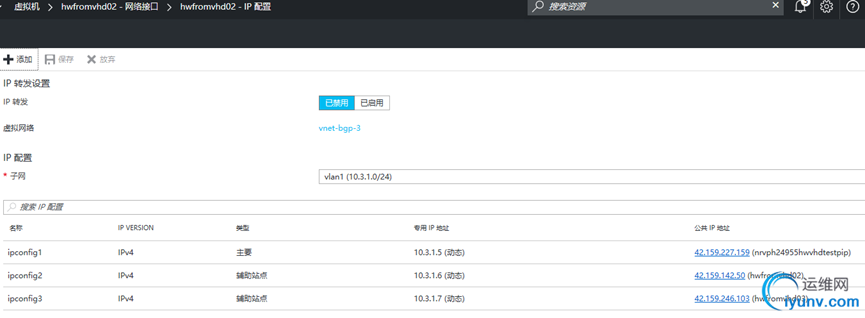

　　如下图：

　　具体配置如下：

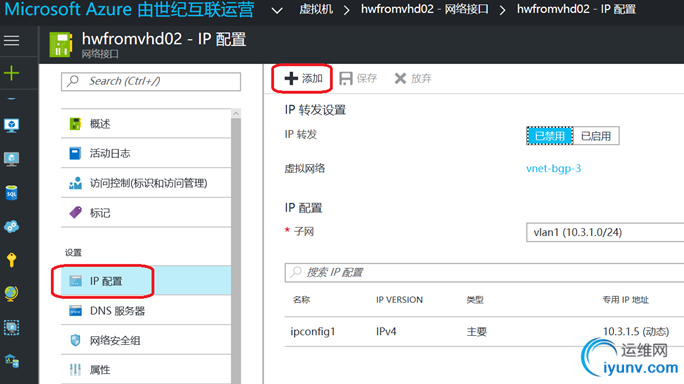

　　1. VM种NIC的ipconfig

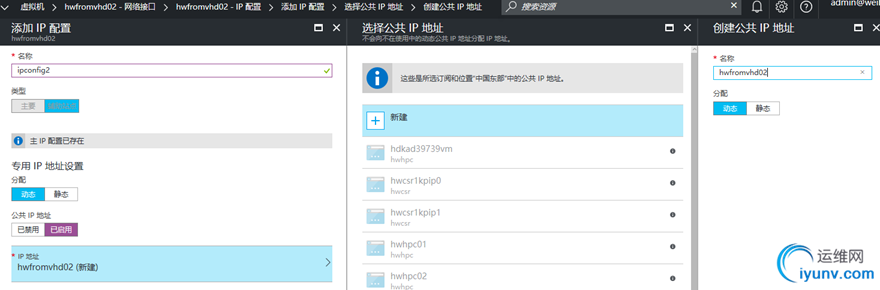

　　2. 添加ipconfig
　　点击添加后：

　　按相同的方法再添加第三个ipconfig，配置完后的配置结果：

　　3. VM内的配置（CentOS7）
　　登录到VM中，做如下修改：



[iyunv@hwvntp01 init.d]# cd /etc/sysconfig/network-scripts/
[iyunv@hwvntp01 network-scripts]# vim ifcfg-eth0:0
DEVICE=eth0:0
ONBOOT=yes
BOOTPROTO=static
IPADDR=10.3.1.6
NETMASK=255.255.255.0
[iyunv@hwvntp01 network-scripts]# vim ifcfg-eth0:1
DEVICE=eth0:1
ONBOOT=yes
BOOTPROTO=static
IPADDR=10.3.1.7
NETMASK=255.255.255.0
　　然后重启Network的服务：



[iyunv@hwvntp01 network-scripts]# cd /etc/init.d
[iyunv@hwvntp01 init.d]# ./network restart
　　4. 检验



[iyunv@hwvntp01 html]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.3.1.5 netmask 255.255.255.0 broadcast 10.3.1.255
inet6 fe80::217:faff:fe00:40f2 prefixlen 64 scopeid 0x20<link>
ether 00:17:fa:00:40:f2 txqueuelen 1000 (Ethernet)
RX packets 250659 bytes 131605494 (125.5 MiB)
RX errors 0 dropped 1 overruns 0 frame 0
TX packets 302252 bytes 48623564 (46.3 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.3.1.6 netmask 255.255.255.0 broadcast 10.3.1.255
ether 00:17:fa:00:40:f2 txqueuelen 1000 (Ethernet)
eth0:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.3.1.7 netmask 255.255.255.0 broadcast 10.3.1.255
ether 00:17:fa:00:40:f2 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1 (Local Loopback)
RX packets 10 bytes 1078 (1.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 10 bytes 1078 (1.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[iyunv@hwvntp01 html]# ping www.sina.com.cn
PING ara.sina.com.cn (121.14.1.190) 56(84) bytes of data.
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=1 ttl=51 time=45.7 ms
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=2 ttl=51 time=45.7 ms
^C
--- ara.sina.com.cn ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 45.710/45.716/45.723/0.213 ms
[iyunv@hwvntp01 html]# ping -I 10.3.1.6 www.sina.com.cn
PING ara.sina.com.cn (121.14.1.190) from 10.3.1.6 : 56(84) bytes of data.
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=1 ttl=53 time=48.4 ms
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=2 ttl=53 time=48.5 ms
^C
--- ara.sina.com.cn ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 999ms
rtt min/avg/max/mdev = 48.406/48.470/48.535/0.229 ms
[iyunv@hwvntp01 html]# ping -I 10.3.1.7 www.sina.com.cn
PING ara.sina.com.cn (121.14.1.190) from 10.3.1.7 : 56(84) bytes of data.
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=1 ttl=51 time=46.3 ms
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=2 ttl=51 time=46.4 ms
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=3 ttl=51 time=46.1 ms
64 bytes from 121.14.1.190 (121.14.1.190): icmp_seq=4 ttl=51 time=46.2 ms
^C
--- ara.sina.com.cn ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 5958ms
rtt min/avg/max/mdev = 46.190/46.298/46.423/0.277 ms
　　5. 通过服务检验
　　在VM中安装httpd：



yum install -y httpd
systemctl start httpd
systemctl status httpd
● httpd.service - The Apache HTTP Server
Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled; vendor preset: disabled)
Active: active (running) since Fri 2017-04-14 08:49:38 UTC; 6s ago
Docs: man:httpd(8)
man:apachectl(8)
Main PID: 14147 (httpd)
　　从外部检测：

　　三个地址都可以访问。
