第十二章：Python の 网络编程进阶(一)

qq489498494

本課主題

• RabbitMQ 的介紹和操作



  • Hello RabbitMQ

  • RabbitMQ 的工作队列

  • 消息确应、消息持久化和公平调度模式

  • RabbitMQ的发布和订阅

  • RabbitMQ的主题模式

  • RabbitMQ的RPC通信




• MySQL 的介紹

• Python 操作 MySQL API


RabbitMQ 的介紹和操作
　　RabbitMQ在新版本远程登入默应已经不接受 guest/guest的登入，所以我在我的虚拟机上首先创建一个新用户，这样我就可以以新用户打开 RabbitMQ控制台和远程连接运行程序。
　　启动 rabbitmq server



rabbitmq-server start
　　 检查 rabbitmq 的状况



invoke-rc.d rabbitmq-server status




rabbitmqctl add_user janice janice123
rabbitmqctl set_user_tags janice administrator
rabbitmqctl set_permissions -p / janice ".*" ".*" ".*"
添加新用户




rabbitmq-plugins enable rabbitmq_management
http://py-ubuntu:15672/
enable rabbitmq UI

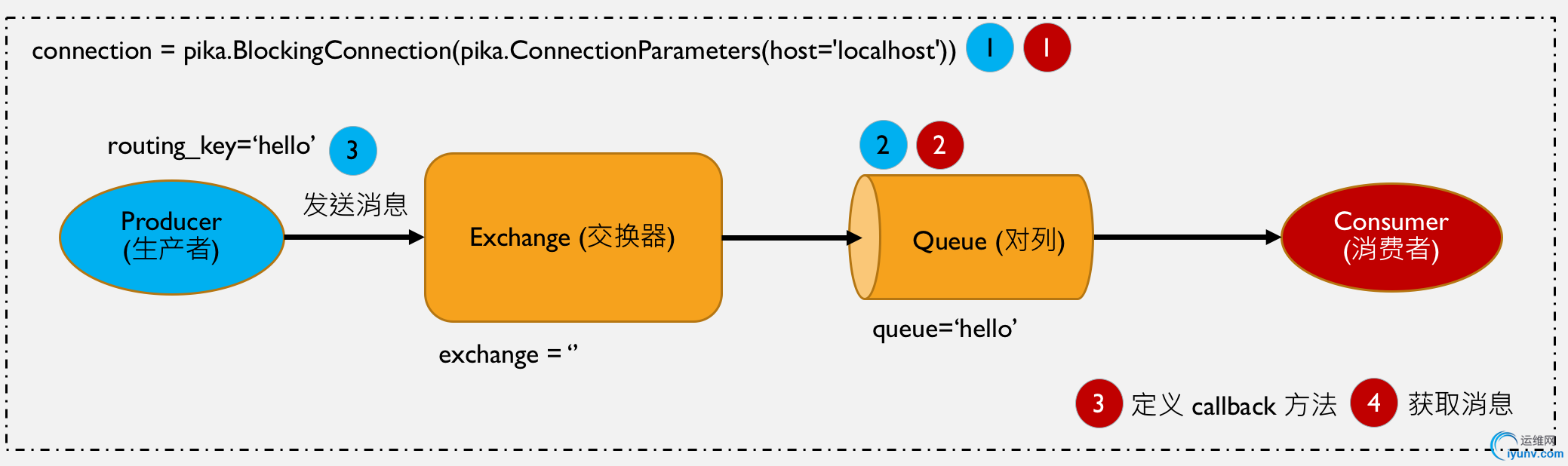

Hello RabbitMQ
　　现在试写写 RabbitMQ世界 的 HelloWolrd!

　　生产者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明对列的名称 e.g. channel.queue_declare(queue=‘hello’)

• 发送数据到匿名交换器 e.g. channel.basic_publish(exchange=‘’, routing_key=‘ hello‘,body=message)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
channel.queue_declare(queue='hello') # 声明一个名为hello的队列

channel.basic_publish(exchange='',
routing_key = 'hello', # 必需要跟队列名称一样
body = 'Hello Rabbmitmq' # 这是发送的消息内容本身
                      )
print("[x] Send Hello Rabbmitmq")
connection.close()
生产者 producer　　消费者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明对列的名称 e.g. channel.queue_declare(queue=‘hello’)

• 定义 callback 方法 e.g. def callback(ch, method, properties, body)

• 从对列中获取数据 e.g. channel.basic_consume(callback, queue=‘hello’, no_ack=True)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134',5672,'/',credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
channel.queue_declare(queue='hello') # 声明一个名为hello的队列
def callback(ch, method, properties, body):
print("[x] Received %r" %body)
channel.basic_consume(callback,
queue = 'hello', # 必需要跟队列名称一样
no_ack = True
)
print('

Waiting for messages. To exit press CTRL+C')
channel.start_consuming()
connection.close()
消费者 consumer　　当你发送信息到队列但信息没有被任何消费者消费的话，信息会一直留在对列当中，直到有消费者来获取信息，它才会消失。





root@py-ubuntu:~# sudo rabbitmqctl list_queues
Listing queues ...
hello    1
task_queue    0
root@py-ubuntu:~# sudo rabbitmqctl list_queues
Listing queues ...
hello    0
task_queue    0
rabbitmqctl list_queues
RabbitMQ 的工作队列

　　多人工作好比一个人工作效率高很多，在 RabbitMQ 的世界很容易就可以实现任务队列，试想想 RabbitMQ 就是项目的工头，Worker 程序就是程序员，在真实的生活中也是工头给我们委派任务，他们会有一张表单记录了当前任务是什么，要指派给谁，现在就模拟一下这个埸景。

• 工作队列





  import sys
  import pika
  credentials = pika.PlainCredentials('janice', 'janice123')
  parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
  connection = pika.BlockingConnection(parameters)
  channel = connection.channel()
  channel.queue_declare(queue='hello')
  message = ' '.join(sys.argv[1:]) or 'Hello World!'
  channel.basic_publish(exchange='', routing_key='hello', body = message)
  print("[x] Send %r" %(message,))
  connection.close()
  Producer(生产者)

• Worker





  #!/usr/bin/env python
  # -*- coding: utf-8 -*-
  # Author: Janice Cheng
  import pika
  import time
  credentials = pika.PlainCredentials('janice', 'janice123')
  parameters = pika.ConnectionParameters('172.16.201.134',5672,'/',credentials)
  connection = pika.BlockingConnection(parameters)
  channel = connection.channel()
  channel.queue_declare(queue='hello') # 声明一个名为hello的队列
  def callback(ch, method, properties, body):
  print('[x] Received %r' %body)
  time.sleep(body.decode().count('.'))
  print('[x] Done')
  channel.basic_consume(callback,
  queue = 'hello', # 必需要跟队列名称一样
  no_ack = True
  )
  print('

• Waiting for messages. To exit press CTRL+C')
  channel.start_consuming()
  connection.close()
  Consumer(消费者)


　　首先运行 2个Worker 程序，然后发送5条消息到交换器，结果如下：

Waiting for messages. To exit press CTRL+C
[x] Received b'First message.'
[x] Done
[x] Received b'Third message...'
[x] Done
[x] Received b'Fifth message.....'
[x] Done
Consumer1程序运行的结果

Waiting for messages. To exit press CTRL+C
[x] Received b'Second message..'
[x] Done
[x] Received b'Fourth message....'
[x] Done
Consumer2程序运行的结果


消息确应、消息持久化和公平调度模式

• 让消费者 Consumer 主动的跟你说，我收到你的信息啦！

• 有时候工头在分配任务的时候，可能有些人工作量会比较少，但有些人工作量又比较大，在 RabbitMQ 的世界，它提供了一个公平分派任务的方法。

• 消息确应是防止数据掉失的一个方法，当启动了消息确应模式后 (acknowledgments)，交换器必需收到消费者返回的确应信息，它才会把数据删除掉，也就是说，你完整了一个任务必需回报给工头知道，他才会把这个任务从任务列表中删除。


• 工作队列





  import sys
  import pika
  credentials = pika.PlainCredentials('janice', 'janice123')
  parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
  connection = pika.BlockingConnection(parameters)
  channel = connection.channel()
  channel.queue_declare(queue='task_queue', durable=True)
  message = ' '.join(sys.argv[1:]) or 'Hello World!'
  channel.basic_publish(exchange='',
  routing_key='task_queue',
  body = message,
  properties = pika.BasicProperties(delivery_mode=2)) #消息持久化
  print("[x] Send %r" %(message,))
  connection.close()
  消息确应和消息持久化（生产者）

• Worker





  #!/usr/bin/env python
  # -*- coding: utf-8 -*-
  # Author: Janice Cheng
  import pika
  import time
  credentials = pika.PlainCredentials('janice', 'janice123')
  parameters = pika.ConnectionParameters('172.16.201.134',5672,'/',credentials)
  connection = pika.BlockingConnection(parameters)
  channel = connection.channel()
  #RabbitMq不允许你使用不同的参数重新定义一个队列，所以要声明另外一个队列
  channel.queue_declare(queue='task_queue', durable=True) # 声明一个名为hello的队列并且持久化消息
  def callback(ch, method, properties, body):
  print('[x] Received %r' %body)
  time.sleep(body.decode().count('.'))
  print('[x] Done')
  ch.basic_ack(delivery_tag= method.delivery_tag)
  channel.basic_qos(prefetch_count=1) # 设置公平调度模式

  channel.basic_consume(callback, queue = 'task_queue')
  print('

• Waiting for messages. To exit press CTRL+C')
  channel.start_consuming()
  connection.close()
  消息确应和消息持久化（消费者）


　　这次我一次启动了5个 Worker，在发送方发送了10条数据，现在每个Worker很好的公平处理2条消息。
　　[这次我不把结果贴出来了，大家自己试一试。]

RabbitMQ的发布和订阅
　　发布和订阅模式好像数据广播，所有订阅了这个频道的订阅者都会收到发布者发布的信息，下图是我对发布和订阅模式的了解。

　　发布者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘logs’, type=‘fanout’ )

• 发送数据到 log 交换器 e.g. channel.basic_publish(exchange=‘logs’, routing_key=‘ ‘, body=message)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机
channel.exchange_declare(exchange='logs',
type='fanout')

message = ' '.join(sys.argv[1:]) or 'info: Hello World'
channel.basic_publish(exchange='logs',
routing_key = '',
body = message # 这是发送的消息内容本身
                      )
print("[x] Sent %r" %message)
connection.close()
发布和订阅模式(发布者)　　订阅者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘logs’, type=‘fanout’ )

• 声明对列 e.g. channel.queue_declare(exclusive=True)

• 生成随机对列 e.g. queue_name = results.method.queue

• 声明绑定的交换器对列的名称 e.g channel.queue_bind(exchange=‘logs’, queue=queue_name )

• 定义 callback 方法 e.g. def callback(ch, method, properties, body)

• 从交换器获取数据 e.g. channel.basic_consume(callback, queue=queue_name, no_ack=True)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机
exhange_name = 'logs'
channel.exchange_declare(exchange=exhange_name,
type='fanout')
# 声明一个随机的队列
# 当与消费者（consumer）断开连接的时候，这个队列应当被立即删除
results = channel.queue_declare(exclusive=True)
queue_name = results.method.queue #获得已经生成的随机队列名
#binding
channel.queue_bind(exchange=exhange_name,
queue=queue_name)
print('

Waiting for logs. To exit press CTRL+C')
def callback(ch, method, properties, body):
print("[x] Received %r" %body)
channel.basic_consume(callback,
queue = queue_name, # 必需要跟队列名称一样
no_ack = True
)
channel.start_consuming()
connection.close()

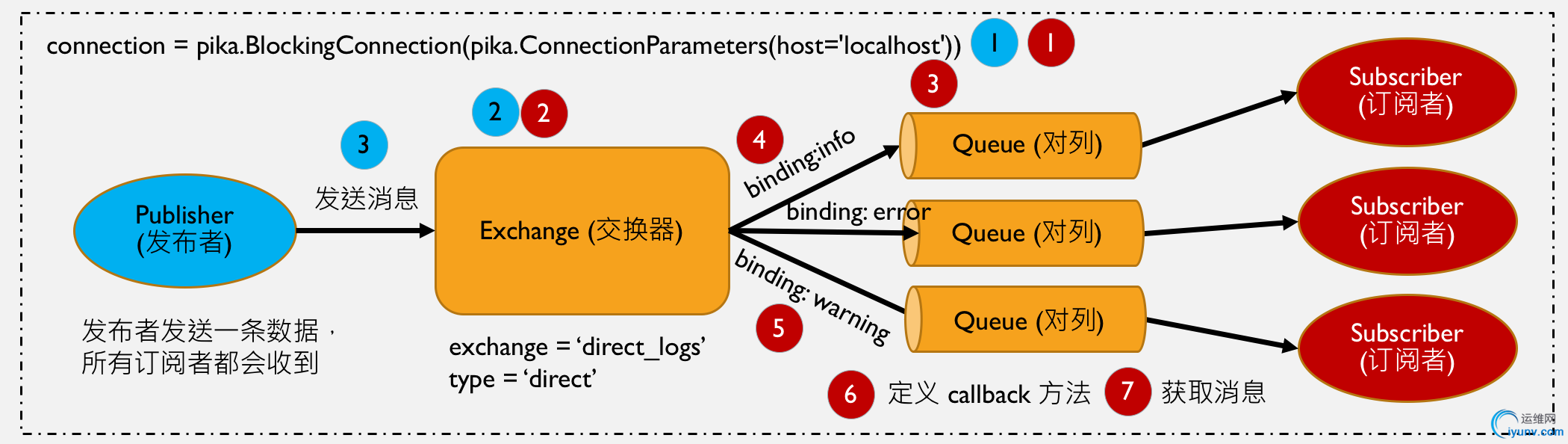

发布和订阅模式(订阅者)　　发布和订阅除了广播外，也可以发送到特定的对列，但是有两点要注意：

• 第一、发送到指定的对列需要用 direct exchange type；

• 第二、必需定义 routing_key


　　这样订阅者就可以绑定对列来获取数据

　　发布者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘direct_logs’, type=‘direct’ )

• 发送数据到 direct_log 交换器和指定的对列 e.g. channel.basic_publish(exchange=‘direct_logs’, routing_key=severity, body=message)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机
channel.exchange_declare(exchange='direct_logs',
type='direct')
# severities = sys.argv[1:] if len(sys.argv) > 1 else ["info"]
severities = ['info','error']
for severity in severities:
message = ''.join(severity) or 'info: Hello World'
channel.basic_publish(exchange='direct_logs',
routing_key = severity,
body = message # 这是发送的消息内容本身
                          )
print("[x] Sent %r:%r" %(severity,message))
connection.close()
发布和订阅模式-指定对列(发布者)　　订阅者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘direct_logs’, type=‘direct’ )

• 声明对列 e.g. channel.queue_declare(exclusive=True)

• 生成随机对列 e.g. queue_name = results.method.queue

• 声明绑定的交换器对列的名称和指定的对列 e.g channel.queue_bind(exchange=‘direct_logs’, routing_key=severity, queue=queue_name)

• 定义 callback 方法 e.g. def callback(ch, method, properties, body)

• 从交换器获取数据 e.g. channel.basic_consume(callback, queue=queue_name, no_ack=True)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机
exhange_name = 'direct_logs'
channel.exchange_declare(exchange=exhange_name,
type='direct')
# 声明一个随机的队列
# 当与消费者（consumer）断开连接的时候，这个队列应当被立即删除
results = channel.queue_declare(exclusive=True)
queue_name = results.method.queue #获得已经生成的随机队列名
# severties = sys.argv[1:]
severties = ['error','warning']
if not severties:
print('>>',sys.stderr,"Usuage: %s [info][warning][error]" %(sys.argv[0],))
sys.exit(1)
# 创建多个不如 severity 的对列
for severity in severties:
channel.queue_bind(exchange=exhange_name,
queue=queue_name,
routing_key=severity)
print('

Waiting for logs. To exit press CTRL+C')
def callback(ch, method, properties, body):
print("[x] Received %r:%r" %(method.routing_key, body,)) #body is byte format

channel.basic_consume(callback,
queue = queue_name, # 必需要跟队列名称一样
no_ack = True
)
channel.start_consuming()
connection.close()
发布和订阅模式-指定对列(订阅者)




#发布者
[x] Sent 'info':'info'
[x] Sent 'error':'error'
#订阅者

Waiting for logs. To exit press CTRL+C
[x] Received 'error':b'error'
程序结果
RabbitMQ的主题模式

　　发布者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘topics_logs’, type=‘topic’ )

• 发送数据到 log 交换器 e.g. channel.basic_publish(exchange=‘topics_logs’, routing_key=topic_key, body=message)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机
channel.exchange_declare(exchange='topic_logs',
type='topic')
topic_key_list = sys.argv[1:] if len(sys.argv) > 1 else 'anonymous.info'
for topic_key in topic_key_list:
message = ''.join(topic_key) or 'Hello World!'
channel.basic_publish(exchange='topic_logs',
routing_key = topic_key,
body = message
)
print("[x] Sent %r:%r" %(topic_key,message))
connection.close()
主题模式(发布者)　　订阅者

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明交换器的名称和类型 e.g channel.exchange_declare(exchange_type=‘topics_logs’, type=‘topic’ )

•

  声明对列 e.g. channel.queue_declare(exclusive=True)

•

  生成随机对列 e.g. queue_name = results.method.queue

• 声明绑定的交换器对列的名称 e.g channel.queue_bind(exchange=‘topics_logs’, routing_key=topic_key, queue=queue_name)

• 定义 callback 方法 e.g. def callback(ch, method, properties, body)

• 从交换器获取数据 e.g. channel.basic_consume(callback, queue=queue_name, no_ack=True)


#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
import sys
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# 声明一个logs交换机

channel.exchange_declare(exchange='topic_logs',
type='topic')
# 声明一个随机的队列
# 当与消费者（consumer）断开连接的时候，这个队列应当被立即删除
results = channel.queue_declare(exclusive=True)
queue_name = results.method.queue #获得已经生成的随机队列名

topic_binding_keys = sys.argv[1:]
if not topic_binding_keys:
print('>>',sys.stderr,"Usage: %s [topic_binding_keys]..." %(sys.argv[0],))
sys.exit(1)
# 创建多个不如 severity 的对列
for topic_binding_key in topic_binding_keys:
channel.queue_bind(exchange='topic_logs',
queue=queue_name,
routing_key=topic_binding_key)
print('

Waiting for logs. To exit press CTRL+C')
def callback(ch, method, properties, body):
print("[x] Received %r:%r" %(method.routing_key, body,))
channel.basic_consume(callback,
queue = queue_name, # 必需要跟队列名称一样
no_ack = True
)
channel.start_consuming()
connection.close()
主题模式(订阅者)

• ＊ (星号) 用来表示一个单词

• # (井号) 用来表示任意数量（零个或多个）单词。


# publisher
JCMACBKP501:practice jcchoiling$ python3 rabbitmq_emit_log_topic.py "kern.critical" "A critical kernel error"
[x] Sent 'kern.critical':'kern.critical'
[x] Sent 'A critical kernel error':'A critical kernel error'
# consumer
JCMACBKP501:practice jcchoiling$ python3 rabbitmq_receive_log_topic.py "*.critical"

Waiting for logs. To exit press CTRL+C
[x] Received 'kern.critical':b'kern.critical'
程序结果
RabbitMQ的RPC通信
　　什么是RPC通信，它的全写是Remote Procedure Call，意思是如果我们需要将一个函数运行在远程计算机上并且等待从那儿获取结果。
　　
　　客户端

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明对列 e.g. channel.queue_declare(exclusive=True)

• 生成随机对列 e.g. callback_queue= results.method.queue

• 定义on_response方法 e.g. def on_response(ch, method, property, body)

• 从交换器获取回覆数据 e.g. channel.basic_consume(on_response, queue=callback_queue, no_ack=True)

• 发送数据到匿名交换器 e.g. channel.basic_publish(exchange=‘’, routing_key=‘ rpc_queue‘, body=message)


#!/usr/bin/env python
import pika
import uuid
class FibonacciRpcClient(object):
def __init__(self):
self.credentials = pika.PlainCredentials('janice', 'janice123')
self.parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', self.credentials)
self.connection = pika.BlockingConnection(self.parameters)
self.channel = self.connection.channel()
result = self.channel.queue_declare(exclusive=True)
self.callback_queue = result.method.queue
self.channel.basic_consume(self.on_response,
no_ack=True,
queue=self.callback_queue)
def on_response(self, ch, method, props, body):
if self.corr_id == props.correlation_id:
self.response = body

def call(self, n):
self.response = None
self.corr_id = str(uuid.uuid4())
self.channel.basic_publish(exchange='',
routing_key='rpc_queue',
properties=pika.BasicProperties(
reply_to = self.callback_queue,
correlation_id = self.corr_id,
),
body=str(n))
while self.response is None:
self.connection.process_data_events()
return int(self.response)

if __name__=='__main__':
fibonacci_rpc = FibonacciRpcClient()
print(" [x] Requesting fib(30)")
response = fibonacci_rpc.call(30)
print(" [.] Got %r" % response)
rpc_client　　服务器端

• 连接并创建 channel e.g. channel = connection.channel( )

• 声明对列 e.g. channel.queue_declare(queue=‘rpc_queue’)

• 定义on_request方法 e.g. def on_request(ch, method, property, body)

• 从交换器获取数据 e.g. channel.basic_consume(on_request, queue=‘rpc_queue’)

• 发送数据到匿名交换器 e.g. channel.basic_publish(exchange=‘’, routing_key=‘ rpc_queue‘, body=message)



  • 此时服务器会接收到一个由客户端发过来的 correlation_id 和 callback_queue 的对列名称

  • 所以在服务器端发送确认信息时，切需把 correction_id 和 callback_queue 作为参数都传入到 property 中





#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Author: Janice Cheng
import pika
credentials = pika.PlainCredentials('janice', 'janice123')
parameters = pika.ConnectionParameters('172.16.201.134', 5672, '/', credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
channel.queue_declare(queue='rpc_queue')
def fib(n):
if n == 0:
return 0
elif n == 1:
return 1
else:
return fib(n-1) + fib(n-2)
def on_request(ch, method, props, body):
n = int(body)
print(" [.] fib(%s)" % n)
response = fib(n)
ch.basic_publish(exchange='',
routing_key=props.reply_to,
properties=pika.BasicProperties(correlation_id = \
props.correlation_id),
body=str(response))
ch.basic_ack(delivery_tag = method.delivery_tag)
channel.basic_qos(prefetch_count=1)
channel.basic_consume(on_request, queue='rpc_queue') #在对列里获取数据
print(" [x] Awaiting RPC requests")
channel.start_consuming()
roc_server




#rpc_client
[x] Requesting fib(30)
[.] Got 832040
# rpc_server
[x] Awaiting RPC requests
[.] fib(30)
运行结果
MySQL 的介紹

操作 MySQL
　　安装了 MySQL，修改以下配置文件 /etc/mysql/mysql.conf.d/mysqld.cnf，把 bind=127.0.0.1 改成特定的IP地址，就可以接受远端登入。





CREATE USER 'myuser'@'%' IDENTIFIED BY 'mypass';
GRANT ALL ON *.* TO 'myuser'@'%';
FLUSH PRIVILEGES;
EXIT;
设置权限




user@py-ubuntu:~$ mysql -u myuser -h 172.16.201.134 -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 5
Server version: 5.7.15-0ubuntu0.16.04.1 (Ubuntu)
Copyright (c) 2000, 2016, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql>
MySQL远端登入
用戶和权限操作

• 创建数据库 - CREATE <database_name>;





  mysql> CREATE DATABASE s13;
  Query OK, 1 row affected (0.01 sec)
  CREATE DATABASE

• 删除数据库 - DROP <database_name>;





  mysql> DROP DATABASE s13;
  Query OK, 0 rows affected (0.01 sec)
  DROP DATABASE

• 显示数据库 - SHOW DATABASES;





  mysql> SHOW DATABASES;
  +--------------------+
  | Database           |
  +--------------------+
  | information_schema |
  | mysql              |
  | performance_schema |
  | s13                |
  | sys                |
  +--------------------+
  5 rows in set (0.00 sec)
  SHOW DATABASES

• 数据库 - USE <database_name>;





  mysql> USE s13;
  Database changed
  USE DATABASE

• 创建用户 CREATE USER

• 指定权限 GRANTS RIGHTS


表操作
　　我会用以下数据模型作为例子，来展示如何用 SQL/ pymysql API 来对表进行操作。

• 创建表 - CREATE TABLE <table_name> (<col_name> <datatype> <nullable>);





  mysql> CREATE TABLE t1 (
  -> ID INT NOT NULL,
  -> NAME VARCHAR(10) NOT NULL
  -> );
  Query OK, 0 rows affected (0.01 sec)
  CREATE TABLE

• 删除表 - DROP TABLE <table_name>;





  mysql> DROP TABLE t1;
  Query OK, 0 rows affected (0.01 sec)
  DROP TABLE

• 清空表 - TRUNCATE TABLE <schema_name.table_name>;





  mysql> truncate table s13.t1;
  Query OK, 0 rows affected (0.00 sec)
  TRUNCATE TABLE

• 创建临时表 CREATE TEMPORARY TABLE <table_name>;





  mysql> CREATE TEMPORARY TABLE t1_temp (
  -> ID INT NOT NULL,
  -> NAME VARCHAR(10) NOT NULL
  -> );
  Query OK, 0 rows affected (0.00 sec)
  CREATE TEMPORARY TABLE

• 自动增量 AUTO INCREMENT，要定义自动增量的字段必须是有索引的 e.g. PRIMARY KEY





  mysql> CREATE TABLE t1 (
  -> SID INT NOT NULL AUTO_INCREMENT,
  -> NAME VARCHAR(10) NOT NULL,
  -> AGE INT(2) NOT NULL,
  -> PRIMARY KEY (SID)
  -> );
  Query OK, 0 rows affected (0.01 sec)
  AUTO_INCREMENT的应用

• 查看表的特征 - DESCRIBE <table_name>;





  mysql> DESCRIBE t1;
  +-------+-------------+------+-----+---------+----------------+
  | Field | Type        | Null | Key | Default | Extra          |
  +-------+-------------+------+-----+---------+----------------+
  | SID   | int(11)     | NO   | PRI | NULL    | auto_increment |
  | NAME  | varchar(10) | NO   |     | NULL    |                |
  | AGE   | int(2)      | NO   |     | NULL    |                |
  +-------+-------------+------+-----+---------+----------------+
  3 rows in set (0.00 sec)
  DESCRIBE

• 主键 PRIMARY KEY





  mysql> CREATE TABLE dm_person (
  -> sid INT NOT NULL AUTO_INCREMENT,
  -> name VARCHAR(10) NOT NULL,
  -> age INT(2) NOT NULL,
  -> PRIMARY KEY (sid)
  -> );
  Query OK, 0 rows affected (0.01 sec)
  PRIMARY KEY的应用

• 外键 - FOREIGN KEY (<own_table_sid>) REFERENCES <lookup_table> (<lookup_table_sid>)





  CREATE TABLE IF NOT EXISTS dm_person (
  sid INT NOT NULL AUTO_INCREMENT,
  name VARCHAR(10) NOT NULL,
  age INT(2) NOT NULL,
  PRIMARY KEY (sid)
  );

  CREATE TABLE IF NOT EXISTS dm_product (
  sid INT NOT NULL AUTO_INCREMENT,
  product_name VARCHAR(50) NOT NULL,
  product_category VARCHAR(50) NOT NULL,
  PRIMARY KEY (sid)
  );

  CREATE TABLE IF NOT EXISTS fct_sales (
  sid INT NOT NULL AUTO_INCREMENT,
  person_sid INT NOT NULL,
  product_sid INT NOT NULL,
  unit_price DOUBLE NULL,
  qty INT(10) NULL,
  PRIMARY KEY (sid),
  CONSTRAINT fk_person_to_sales FOREIGN KEY (person_sid) REFERENCES dm_person (sid),
  CONSTRAINT fk_product_to_sales FOREIGN KEY (product_sid) REFERENCES dm_product (sid)
  );
  FOREIGN KEY的应用

• 约束 CONSTRAINT





  CONSTRAINT fk_person_to_sales FOREIGN KEY (person_sid) REFERENCES dm_person (sid),
  CONSTRAINT fk_product_to_sales FOREIGN KEY (product_sid) REFERENCES dm_product (sid)
  CONSTRAINT的应用

• ALTER TABLE


　　数据操作

• 新增数据 - INSERT INTO <table_name> (col1,col2) values (val1,val2);





  INSERT INTO dm_person (name,age) values ('janice',20);
  INSERT INTO dm_person (name,age) values ('alex',21);
  INSERT INTO dm_person (name,age) values ('ken',22);
  INSERT INTO dm_person (name,age) values ('peter',23);
  INSERT INTO

• 删除数据 - DELETE FROM <table_name>;





  DELETE FROM fct_sales WHERE sid = 1;
  DELETE FROM

• 更新数据 - UPDATE <table_name> SET <col_name> = 'updated value';





  UPDATE dm_product
  SET product_name = 'updated_iPhone 6S'
  WHERE product_name = 'iPhone 6S';
  UPDATE

• WHERE - 查看用户 janice 的资料





  mysql> SELECT *
  -> FROM fct_sales
  -> WHERE person_sid = 1;
  +-----+------------+-------------+------------+------+
  | sid | person_sid | product_sid | unit_price | qty  |
  +-----+------------+-------------+------------+------+
  |   5 |          1 |           7 |        100 |    8 |
  |   6 |          1 |           9 |         10 |    7 |
  |   8 |          1 |           4 |       4000 |    5 |
  |  10 |          1 |          11 |     800000 |    1 |
  |  15 |          1 |           2 |       5888 |    9 |
  |  21 |          1 |           3 |       1999 |    3 |
  |  23 |          1 |           8 |         15 |    8 |
  |  29 |          1 |           6 |         88 |    7 |
  +-----+------------+-------------+------------+------+
  8 rows in set (0.00 sec)
  WHERE

• JOIN - 查看用户 janice 购买了哪些商品





  mysql> SELECT
  -> dm_person.name,
  -> dm_product.product_name,
  -> fct_sales.unit_price,
  -> fct_sales.qty
  -> FROM
  -> fct_sales
  -> JOIN dm_person ON
  -> dm_person.sid = fct_sales.person_sid
  -> JOIN dm_product ON
  -> dm_product.sid = fct_sales.product_sid
  -> WHERE
  -> dm_person.name = 'janice';
  +--------+------------------+------------+------+
  | name   | product_name     | unit_price | qty  |
  +--------+------------------+------------+------+
  | janice | Shakespeare      |        100 |    8 |
  | janice | Coffe            |         10 |    7 |
  | janice | Samsung Note 7   |       4000 |    5 |
  | janice | Tesla Model X    |     800000 |    1 |
  | janice | iPhone 7         |       5888 |    9 |
  | janice | XiaoMi 5         |       1999 |    3 |
  | janice | Coconut Water    |         15 |    8 |
  | janice | Python In Action |         88 |    7 |
  +--------+------------------+------------+------+
  8 rows in set (0.00 sec)
  JOIN

• GROUP BY - 查看用户 janice 一共花费了多少钱





  mysql> SELECT
  -> dm_person.name,
  -> sum(fct_sales.unit_price * fct_sales.qty) as total_price
  -> FROM
  -> fct_sales
  -> JOIN dm_person ON
  -> dm_person.sid = fct_sales.person_sid
  -> JOIN dm_product ON
  -> dm_product.sid = fct_sales.product_sid
  -> WHERE
  -> dm_person.name = 'janice'
  -> GROUP BY
  -> dm_person.name;
  +--------+-------------+
  | name   | total_price |
  +--------+-------------+
  | janice |      880595 |
  +--------+-------------+
  1 row in set (0.00 sec)
  GROUP BY

• ORDER BY - 查看所有用户一共花费了多少钱，排序以花费最多的用户开始





  SELECT
  dm_person.name,
  sum(fct_sales.unit_price * fct_sales.qty) as total_price
  FROM
  fct_sales
  JOIN dm_person ON
  dm_person.sid = fct_sales.person_sid
  JOIN dm_product ON
  dm_product.sid = fct_sales.product_sid
  GROUP BY
  1
  ORDER BY
  2 desc
  ORDER BY

• INSERT INTO SELECT





  mysql> INSERT INTO peson_sales (name,total_price)
  -> SELECT
  -> dm_person.name,
  -> sum(fct_sales.unit_price * fct_sales.qty) as total_price
  -> FROM
  -> fct_sales
  -> JOIN dm_person ON
  -> dm_person.sid = fct_sales.person_sid
  -> JOIN dm_product ON
  -> dm_product.sid = fct_sales.product_sid
  -> GROUP BY
  -> 1
  -> ORDER BY
  -> 2 desc;
  Query OK, 4 rows affected (0.01 sec)
  Records: 4  Duplicates: 0  Warnings: 0
  INSERT INTO SELECT

• 输出数据到外部文件

• 从外部文件导入数据


Python API 操作 MySQL
　　安装 pymysql API




pip3 install pymysql
　　首先是创建 MySQL 的连接 conn，定义 host, port, username, password 和 databae_name



conn = pymysql.connect(host='192.168.80.128',
port=3306,
user='myuser',
passwd='mypass',
db='s13')
　　然后创建一个游标 conn.cursor( )



# cursor = conn.cursor( )
cursor = conn.cursor(cursor=pymysql.cursors.DictCursor)

• conn.cursor( ) # 没有参数时，默认返回的是元组类型 <class 'tuple'> 元组里嵌套元组 ((1, 'janice', 20))

• conn.cursor(cursor=pymysql.cursors.DictCursor) # 輸入参数，默认返回的是列表类型 <class 'list'> 列表里嵌套字典 [{'name': 'janice', 'age': 20, 'sid': 1}]


　　基于这个游标你可以输入 SQL 语句来获取数据: cursor.execute()



cursor.execute("select * from dm_person")
　　然后可以用以下方法来取出实际数据



all_row = cursor.fetchall( )
for record in all_row:
print(record)

• cursor.fetchone( ) # 只获取表中的第一条数据 {'age': 20, 'sid': 1, 'name': 'janice'}

• cursor.fetchmany(x) # 只获取表中的头x条数据 [{'age': 20, 'sid': 1, 'name': 'janice'}]

• cursor.fetchall( ) # 获取表中的所有数据 [{'age': 20, 'sid': 1, 'name': 'janice'}]


　　完成一些 SQL操作后需要调用 conn.commit( )
　　最后把游标和连接都关闭了

• cursor.close( )

• conn.close( )


import pymysql
conn = pymysql.connect(host='192.168.80.128',
port=3306,
user='myuser',
passwd='mypass',
db='s13')
cursor = conn.cursor(cursor=pymysql.cursors.DictCursor) # 以字典的方式获取数据
cursor.execute("select * from dm_person")
all_row = cursor.fetchall()
for record in all_row:
print(record)

conn.commit()
cursor.close()
conn.close()
"""
{'age': 20, 'name': 'janice', 'sid': 1}
{'age': 21, 'name': 'alex', 'sid': 2}
{'age': 22, 'name': 'ken', 'sid': 3}
{'age': 23, 'name': 'peter', 'sid': 4}
"""
使用 pymysql查询数据库（完整的代码）


本周作业
　　作业：一个简单的RPC（远程调用模型）

• server端将要执行的命令及参数发送到RabbitMQ，

• client端从RabbitMQ获取要执行的命令，命令执行完成之后，将结果返回给server端

• server端接受client端的命令执行结果，并处理，

• 可选择指定主机或者主机组


　　
　　这次作业运用了以下的知识点：

• RabbitMQ -> RPC

• SQLAlchemy, Paramiko，利用 MySQL保存主机对应的关系，然后用 SQLAlchemy 创建表、执行SQL语句，最后把获取的主机名赋值到 Paramiko 的需要的主机参数


　　程序运行结果

　　

參考資料
　　银角大王：MySQL 操作

　　金角大王：
　　其他：RabbitMQ 中文文档 ｜RabbitMQ 教学练习｜pika API 文档｜MySQL安装
