思科WLC5508上传定制Portal展示模版

waid · 发表于 2017-7-8 20:21:20

　　1. 登录Cisco设备,获取模板样例
登录cisco WLC设备后点击help,打开帮助文档
Wireless Tab-->Web Login Page-->External Web Authentication-->Template for Customer Login Page
　　按照提供的模板创建login.html(文件名必须是login.html)
<html>
<head>
<meta http-equiv="Pragma" content="no-cache">
<meta HTTP-EQUIV="Content-Type" CONTENT="text/html; charset=iso-8859-1">
<title>success</title>
<script>

function submitAction(){
   var link = document.location.href;
   var searchString = "redirect=";
   var equalIndex = link.indexOf(searchString);
   var redirectUrl = "";
   if(equalIndex >= 0) {
         equalIndex += searchString.length;
         redirectUrl = "http://";
         redirectUrl += link.substring(equalIndex);
   }
   if(redirectUrl.length > 255)
   redirectUrl = redirectUrl.substring(0,255);
   document.forms[0].redirect_url.value = redirectUrl;

   document.forms[0].buttonClicked.value = 4;
   document.forms[0].submit();
}

function loadAction(){
   var url = window.location.href;
   var args = new Object();
   var query = location.search.substring(1);
   var pairs = query.split("&");
   for(var i=0;i<pairs.length;i++){
      var pos = pairs.indexOf('=');
      if(pos == -1) continue;
      var argname = pairs.substring(0,pos);
      var value = pairs.substring(pos+1);
      args[argname] = unescape(value);
   }
   //alert( "AP MAC Address is " + args.ap_mac);
   //alert( "The controller URL is " + args.switch_url);
   document.forms[0].action = args.switch_url;
}

</script>
</head>
<body topmargin="50" marginheight="50">
<form method="post">
<input TYPE="hidden" NAME="buttonClicked" SIZE="16" MAXLENGTH="15" value="0">
<input TYPE="hidden" NAME="redirect_url" SIZE="255" MAXLENGTH="255" VALUE="">
<input TYPE="hidden" NAME="err_flag" SIZE="16" MAXLENGTH="15" value="0">

<div align="center">
<table border="0" cellspacing="0" cellpadding="0">
<tr> <td> </td></tr>

<tr align="center"> <td colspan="2"><font size="10" color="#336699">Web Authentication</font></td></tr>

<tr align="center">

<td colspan="2"> User Name    <input type="TEXT" name="username" SIZE="25" MAXLENGTH="63" VALUE="">
</td>
</tr>
<tr align="center" >
<td colspan="2"> Password      <input type="Password" name="password" SIZE="25" MAXLENGTH="24">
</td>
</tr>

<tr align="center">
<td colspan="2"><input type="button" name="Submit" value="Submit" class="button">
</td>
</tr>
</table>
</div>

</form>
</body>
</html>
　　2.修改完成后打包成.tar文件类型的文件,上传到一个linux服务器中(其他方式也可以)

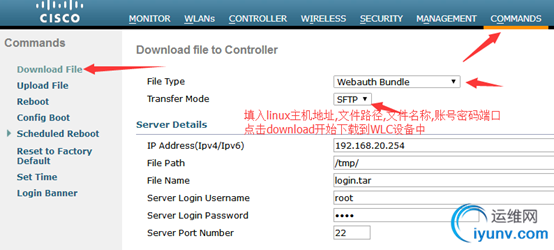

3.在cisco设备中下载该文件

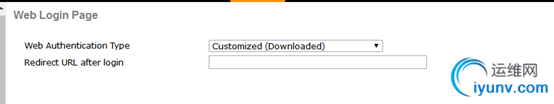

　　4.选择模版为该下载的模版
