Docker创建本地仓库

kjtyh

Docker是时下相当火热的技术，关于docker的介绍此处就不多说，本文主要介绍下如何在centos6.6环境下配置docker的本地仓库，对于想在局域网内大规模运用docker来说，频繁的从官网仓库下载镜像文件，无论从管理还是在效率上都无法接受。


一：以容器的方式运行registry服务
初次运行，本地不存在registry的image，会自动从官方网站上下载一份，速度较慢

1	# docker run -idt -p 5000:5000 --name registry -v /data/registry:/tmp/registry registry

二：配置Nginx， 需要配置用户验证和https支持
# /usr/local/nginx/sbin/nginx -V

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

# cat /usr/local/nginx/conf/extra/docker.conf # For versions of Nginx > 1.3.9 that include chunked transfer encoding support # Replace with appropriate values where necessary upstream docker-registry { server 127.0.0.1:5000; } server { listen  443; server_name  registry.fjhb.cn;   ssl on; ssl_certificate     /etc/ssl/certs/nginx.crt; ssl_certificate_key /etc/ssl/private/nginx.key; proxy_set_header Host       $http_host;   # required for Docker client sake proxy_set_header X-Real-IP  $remote_addr; # pass on real client IP client_max_body_size 0; # disable any limits to avoid HTTP 413 for large image uploads # required to avoid HTTP 411: see Issue #1486 (https://github.com/dotcloud/docker/issues/1486) chunked_transfer_encoding on; location / {      # let Nginx know about our auth file      auth_basic              "Restricted";      auth_basic_user_file    docker-registry.htpasswd;      proxy_pass http://docker-registry; } location /_ping {      auth_basic off;      proxy_pass http://docker-registry; }   location /v1/_ping {      auth_basic off;      proxy_pass http://docker-registry; } }

三：配置ssl证书和密码文件
1：生成根密钥

1 2 3 4

# cd /etc/pki/CA/ # touch ./{serial,index.txt} # echo "00" > serial # openssl  genrsa -out private/cakey.pem 2048

2：生成根证书

1	# openssl  req -new -x509 -key private/cakey.pem -days 3650 -out cacert.pem

3：生成nginx的key和nginx.csr证书请求文件

1 2 3

# cd /etc/ssl/ # openssl genrsa -out nginx.key 2048 # openssl  req -new -key nginx.key -out nginx.csr

4：私有CA根据请求来签发证书

1	# openssl ca -in nginx.csr -days 3650 -out nginx.crt

1 2	# cp /etc/pki/tls/certs/ca-bundle.crt{,.bak} # cat /etc/pki/CA/cacert.pem >> /etc/pki/tls/certs/ca-bundle.crt  #因为是自签的证书，此步骤的意义在于让系统接受该证书

5：复制生成的证书文件到相应位置

1 2	# cp nginx.crt  certs/ # cp nginx.key  private/

6：使用htpasswd工具创建密码文件

1 2 3 4 5 6 7 8 9 10

# yum -y install httpd-tools # htpasswd -c /usr/local/nginx/conf/docker-registry.htpasswd yang New password: Re-type new password: Adding password for user yang # htpasswd /usr/local/nginx/conf/docker-registry.htpasswd lin New password: Re-type new password: Adding password for user lin

四：启动nginx

1 2 3

# /usr/local/nginx/sbin/nginx  -t # /usr/local/nginx/sbin/nginx # netstat -ntpl |grep nginx

五：测试

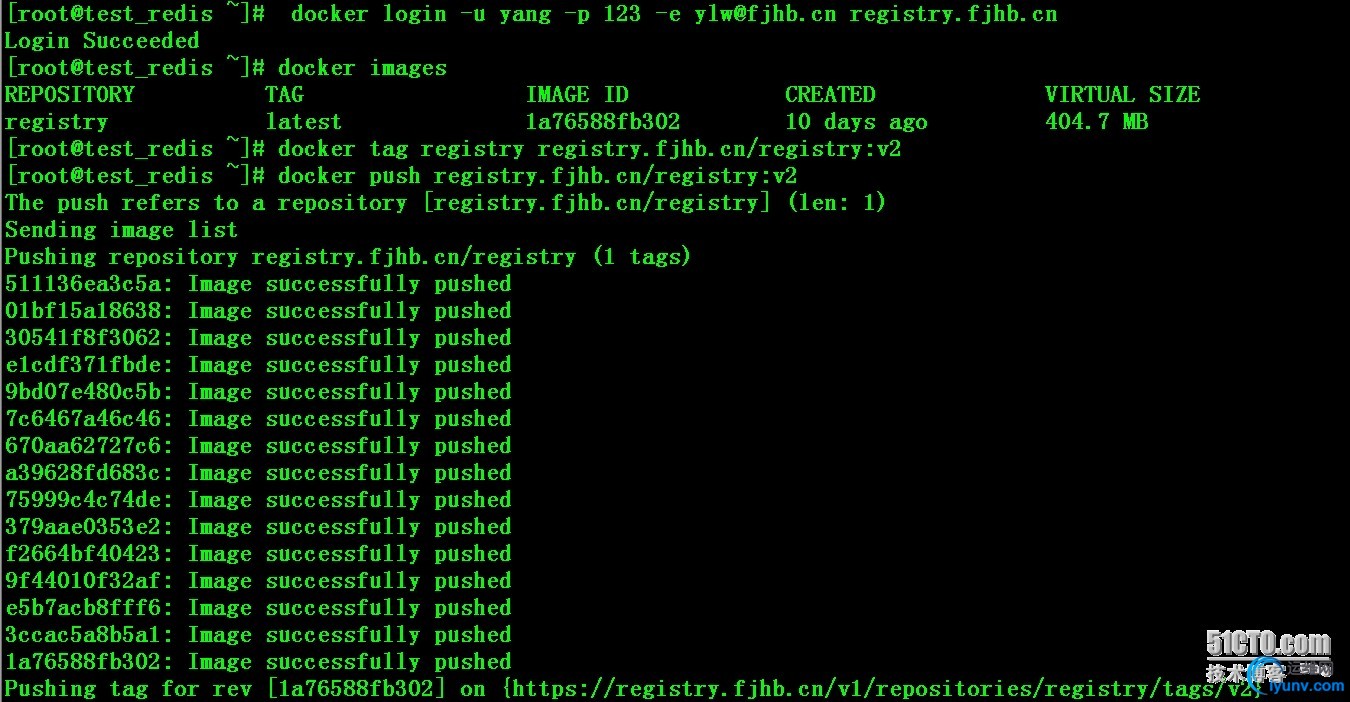

1：本地测试push

1 2 3 4

# docker login -u yang -p 123 -e ylw@fjhb.cn registry.fjhb.cn # docker images # docker tag registry registry.fjhb.cn/registry:v2 # docker push registry.fjhb.cn/registry:v2

2：其他客户端测试pull和push

1 2 3 4 5 6 7 8 9 10 11 12 13 14

# tail -1 /etc/hosts 192.168.1.12    registry.fjhb.cn # scp /etc/pki/CA/cacert.pem root@192.168.1.227:/root # cp /etc/pki/tls/certs/ca-bundle.crt{,.bak} # cat cacert.pem >> /etc/pki/tls/certs/ca-bundle.crt # curl -u yang:123  https://registry.fjhb.cn/v1/search # service docker restart # docker  login -u yang -p 123 -e ylw@fjhb.cn https://registry.fjhb.cn Login Succeeded # docker  images # docker tag centos6 registry.fjhb.cn/centos6 # docker push registry.fjhb.cn/centos6

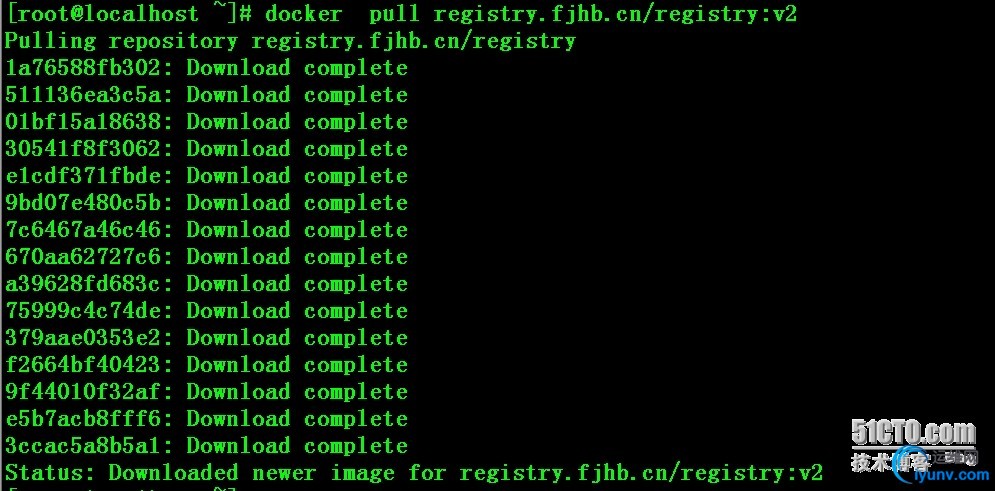

1	# docker  pull registry.fjhb.cn/registry:v2

异常处理：

1 2	# scp  /etc/pki/CA/cacert.pem root@192.168.2.227:/root # cat cacert.pem >> /etc/ssl/certs/ca-bundle.crt
