SQL Server 2014 日志传送部署（5）：通过T-SQL命令来部署日志传送

y45t4r3

13.2.5 通过T-SQL命令来部署日志传送

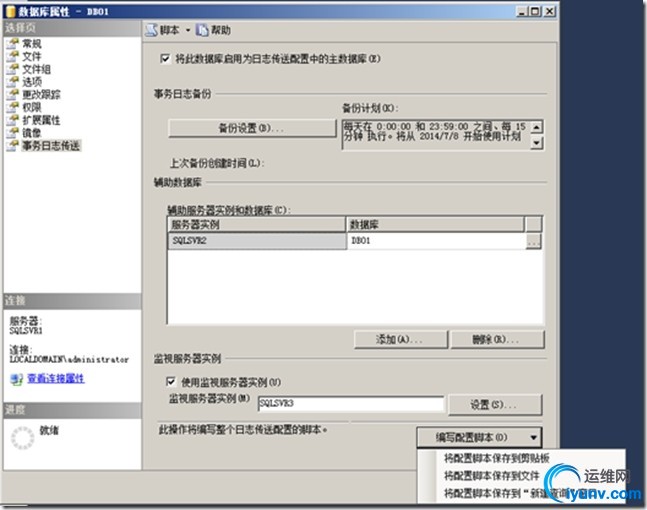

SQL Server还提供以T-SQL命令方式来部署日志传送。在上一个章节中当完成步骤（6）或者（8）后，可保存生成的命令脚本。这个脚本命令结果和在Management Studio中操作的结果是等价的，此命令脚本也可以使用在用户在灾难恢复方案中更快速的重新部署日志传送。

得到的命令脚本（带监视服务器）：
-- 在主服务器上执行下列语句，以便为数据库 [SQLSVR1].[DB01]
-- 配置日志传送。
-- 需要在主服务器上 [msdb] 数据库的上下文中运行该脚本。
-------------------------------------------------------------------------------------

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

-- 添加日志传送配置 -- ****** 开始: 要在主服务器 [SQLSVR1] 上运行的脚本 ****** DECLARE @LS_BackupJobId AS uniqueidentifier DECLARE @LS_PrimaryId AS uniqueidentifier DECLARE @SP_Add_RetCode As int EXEC @SP_Add_RetCode = master.dbo.sp_add_log_shipping_primary_database @database = N'DB01' ,@backup_directory = N'\192.168.1.20ackuplog' ,@backup_share = N'\192.168.1.20ackuplog' ,@backup_job_name = N'LSBackup_DB01' ,@backup_retention_period = 4320 ,@backup_compression = 2 ,@monitor_server = N'SQLSVR3' ,@monitor_server_security_mode = 1 ,@backup_threshold = 60 ,@threshold_alert_enabled = 1 ,@history_retention_period = 5760 ,@backup_job_id = @LS_BackupJobId OUTPUT ,@primary_id = @LS_PrimaryId OUTPUT ,@overwrite = 1 IF (@@ERROR = 0 AND @SP_Add_RetCode = 0) BEGIN DECLARE @LS_BackUpScheduleUID As uniqueidentifier DECLARE @LS_BackUpScheduleID AS int EXEC msdb.dbo.sp_add_schedule @schedule_name =N'LSBackupSchedule_SQLSVR11' ,@enabled = 1 ,@freq_type = 4 ,@freq_interval = 1 ,@freq_subday_type = 4 ,@freq_subday_interval = 15 ,@freq_recurrence_factor = 0 ,@active_start_date = 20140708 ,@active_end_date = 99991231 ,@active_start_time = 0 ,@active_end_time = 235900 ,@schedule_uid = @LS_BackUpScheduleUID OUTPUT ,@schedule_id = @LS_BackUpScheduleID OUTPUT EXEC msdb.dbo.sp_attach_schedule @job_id = @LS_BackupJobId ,@schedule_id = @LS_BackUpScheduleID EXEC msdb.dbo.sp_update_job @job_id = @LS_BackupJobId ,@enabled = 1 END EXEC master.dbo.sp_add_log_shipping_primary_secondary @primary_database = N'DB01' ,@secondary_server = N'SQLSVR2' ,@secondary_database = N'DB01' ,@overwrite = 1 -- ****** 结束: 要在主服务器 [SQLSVR1] 上运行的脚本 ******

-- 在辅助服务器上执行下列语句，以便为数据库 [SQLSVR2].[DB01]
-- 配置日志传送。
-- 需要在辅助服务器上 [msdb] 数据库的上下文中运行该脚本。
-------------------------------------------------------------------------------------

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87

-- 添加日志传送配置 -- ****** 开始: 要在辅助服务器 [SQLSVR2] 上运行的脚本 ****** DECLARE @LS_Secondary__CopyJobId AS uniqueidentifier DECLARE @LS_Secondary__RestoreJobId AS uniqueidentifier DECLARE @LS_Secondary__SecondaryId AS uniqueidentifier DECLARE @LS_Add_RetCode As int EXEC @LS_Add_RetCode = master.dbo.sp_add_log_shipping_secondary_primary @primary_server = N'SQLSVR1' ,@primary_database = N'DB01' ,@backup_source_directory = N'\192.168.1.20ackuplog' ,@backup_destination_directory = N'd:copylog' ,@copy_job_name = N'LSCopy_SQLSVR1_DB01' ,@restore_job_name = N'LSRestore_SQLSVR1_DB01' ,@file_retention_period = 4320 ,@monitor_server = N'SQLSVR3' ,@monitor_server_security_mode = 1 ,@overwrite = 1 ,@copy_job_id = @LS_Secondary__CopyJobId OUTPUT ,@restore_job_id = @LS_Secondary__RestoreJobId OUTPUT ,@secondary_id = @LS_Secondary__SecondaryId OUTPUT IF (@@ERROR = 0 AND @LS_Add_RetCode = 0) BEGIN DECLARE @LS_SecondaryCopyJobScheduleUID As uniqueidentifier DECLARE @LS_SecondaryCopyJobScheduleID AS int EXEC msdb.dbo.sp_add_schedule @schedule_name =N'DefaultCopyJobSchedule' ,@enabled = 1 ,@freq_type = 4 ,@freq_interval = 1 ,@freq_subday_type = 4 ,@freq_subday_interval = 15 ,@freq_recurrence_factor = 0 ,@active_start_date = 20140708 ,@active_end_date = 99991231 ,@active_start_time = 0 ,@active_end_time = 235900 ,@schedule_uid = @LS_SecondaryCopyJobScheduleUID OUTPUT ,@schedule_id = @LS_SecondaryCopyJobScheduleID OUTPUT EXEC msdb.dbo.sp_attach_schedule @job_id = @LS_Secondary__CopyJobId ,@schedule_id = @LS_SecondaryCopyJobScheduleID DECLARE @LS_SecondaryRestoreJobScheduleUID As uniqueidentifier DECLARE @LS_SecondaryRestoreJobScheduleID AS int EXEC msdb.dbo.sp_add_schedule @schedule_name =N'DefaultRestoreJobSchedule' ,@enabled = 1 ,@freq_type = 4 ,@freq_interval = 1 ,@freq_subday_type = 4 ,@freq_subday_interval = 15 ,@freq_recurrence_factor = 0 ,@active_start_date = 20140708 ,@active_end_date = 99991231 ,@active_start_time = 0 ,@active_end_time = 235900 ,@schedule_uid = @LS_SecondaryRestoreJobScheduleUID OUTPUT ,@schedule_id = @LS_SecondaryRestoreJobScheduleID OUTPUT EXEC msdb.dbo.sp_attach_schedule @job_id = @LS_Secondary__RestoreJobId ,@schedule_id = @LS_SecondaryRestoreJobScheduleID END DECLARE @LS_Add_RetCode2 As int IF (@@ERROR = 0 AND @LS_Add_RetCode = 0) BEGIN EXEC @LS_Add_RetCode2 = master.dbo.sp_add_log_shipping_secondary_database @secondary_database = N'DB01' ,@primary_server = N'SQLSVR1' ,@primary_database = N'DB01' ,@restore_delay = 0 ,@restore_mode = 0 ,@disconnect_users = 0 ,@restore_threshold = 45 ,@threshold_alert_enabled = 1 ,@history_retention_period = 5760 ,@overwrite = 1 ,@ignoreremotemonitor = 1 END IF (@@error = 0 AND @LS_Add_RetCode = 0) BEGIN EXEC msdb.dbo.sp_update_job @job_id = @LS_Secondary__CopyJobId ,@enabled = 1 EXEC msdb.dbo.sp_update_job @job_id = @LS_Secondary__RestoreJobId ,@enabled = 1 END -- ****** 结束: 要在辅助服务器 [SQLSVR2] 上运行的脚本 ******

-- ****** 开始: 要在监视器 [SQLSVR3] 上运行的脚本 ******

1 2 3 4 5 6 7 8 9 10 11 12 13 14

EXEC msdb.dbo.sp_processlogshippingmonitorsecondary @mode = 1 ,@secondary_server = N'SQLSVR2' ,@secondary_database = N'DB01' ,@secondary_id = N'' ,@primary_server = N'SQLSVR1' ,@primary_database = N'DB01' ,@restore_threshold = 45 ,@threshold_alert = 14420 ,@threshold_alert_enabled = 1 ,@history_retention_period = 5760 ,@monitor_server = N'SQLSVR3' ,@monitor_server_security_mode = 1 -- ****** 结束: 要在监视器 [SQLSVR3] 上运行的脚本 ******

这个命令脚本中包含的预定义的存储过程用来设定日志传送的各个部分；
master.dbo.sp_add_log_shipping_primary_database 为主数据库设定日志传送配置，并设定日志传送备份作业。
msdb.dbo.sp_add_schedule 为日志传送设定时间表，或者为复制作业设定时间表，或者为还原作业设定时间表。
msdb.dbo.sp_attach_schedule 把日志传送作业链接到时间表，或者把复制作业链接到时间表，或者把还原作业链接到时间表。
msdb.dbo.sp_update_job 启用事务日志的备份作业、复制作业或者还原作业
master.dbo.sp_add_log_shipping_primary_secondary在主数据库上为指定的辅助数据库设置相关信息。
master.dbo.sp_add_log_shipping_secondary_primary 在辅助数据库上为指定的主数据库设置相关信息、添加本地和远程的监控链接以及创建复制和还原作业。
master.dbo.sp_add_log_shipping_secondary_database 为日志传送设定辅助数据库。
msdb.dbo.sp_processlogshippingmonitorsecondary 在监视服务器上启用对主数据库和辅助数据库监视警报。
