HAProxy介绍 反向代理服务器,支持双机热备支持虚拟主机,但其配置简单,拥有非常不错的服务器健康检查功能,当其代理的后端服务器出现故障, HAProxy会自动将该服务器摘除,故障恢复后再自动将该服务器加入新的1.3引入了frontend,backend；frontend根据任意 HTTP请求头内容做规则匹配,然后把请求定向到相关的backend. HAProxy 提供高可用性、负载均衡以及基于 TCP 和 HTTP 应用的代理,支持虚拟主机,它是免费、快速并且可靠的一种解决方案。HAProxy 特别适用于那些负载特大的 web 站点, 这些站点通常又需要会话保持或七层处理。HAProxy 运行在当前的硬件上,完全可以支持数以万计的并发连接。并且它的运行模式使得它可以很简单安全的整 合进您当前的架构中, 同时可以保护你的 web 服务器不被暴露到网络上。
Keepalived 介绍 Keepalived 的作用是检测web服务器的状态，如果有一台web服务器死机，或工作出现故障，Keepalived将检测到，并将有故障的web服务器从系统中剔除， 当web服务器工作正常后Keepalived自动将web服务器加入到服务器群中，这些工作全部自动完成，不需要人工干涉，需要人工做的只是修复故障的 web服务器。
在上篇中，我使用了nginx反向代理加上keepalived，来达到双机主主模式的高可用。Haproxy也是一种反向代理的软件，故本次实验也将实现 haproxy 加上 keepalived 来实现主主模式的高可用。
一、环境说明 本次试验依旧使用的是2台 haproxy代理服务器 加上 keepalived，后端为了方便，使用apache来发布网页，达到测试的目的。
操作系统：centos7 64位 软件源：阿里云 2台服务器（haproxy1、haproxy2）安装 keepalived 和安装 haproxy 来反向代理 2台服务器（web1、web2）安装 apache 来提供服务 服务器的防火墙和selinux全部关闭
haproxy1 IP：192.168.163.166 haproxy2 IP：192.168.163.167 nginx1 IP：192.168.163.164 nginx2 IP：192.168.163.165 虚拟IP：192.168.163.100 和 192.168.163.200

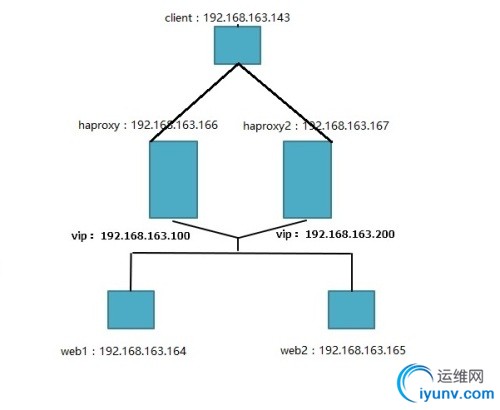

拓扑图如下： 二、环境安装
先安装好web服务器 1、首先为后端的2台web服务器安装apache [iyunv@web1 ~]# yum install -y httpd [iyunv@web2 ~]# yum install -y httpd
2、修改web1的域名为img.xhk.com web2的域名为test.xhk.com ServerName img.xhk.com:80 ServerName test.xhk.com:80
3、创建各自的网页 [iyunv@web1 ~]# echo "web1" > /var/www/html/index.html [iyunv@web2 ~]# echo "web2" > /var/www/html/index.html
4、启动服务 [iyunv@web1 ~]# systemctl start httpd [iyunv@web2 ~]# systemctl start httpd
5、在Client修改hosts文件并测试网页 [iyunv@client ~]# curl img.xhk.com web1 [iyunv@client ~]# curl test.xhk.com web2
接下来，就是安装haproxy服务器的 haproxy 和 keepalived 1、为了方便，在2台haproxy服务器都使用 yum 安装
[iyunv@haproxy ~]# yum install -y haproxy keepalived
2、先修改haproxy文件 [iyunv@haproxy ~]# vim /etc/haproxy/haproxy.cfg 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
| global
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
stats socket /var/lib/haproxy/stats
defaults
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 3000
frontend main *:80
option forwardfor except 127.0.0.0/8
rspadd X-via:\ haproxy/www.xhk.com
rspidel Server.*
stats enable #在frontend添加监控页面
stats uri /xhk?stats #自定义监控页面的url
stats realm Stats\ Page\ Area #去掉空格转译
stats authxhk:xhk #配置帐号密码
stats refresh 5s #每5s刷新一次监控页面
stats hide-version #隐藏版本信息
stats admin if TRUE
maxconn 10000 #定义最大并发为10000
acl url_img hdr(host) -i img.xhk.com
acl url_test hdr(host) -i test.xhk.com
use_backend img_web if url_img
use_backend test_web if url_test
backend img_web
balance roundrobin
server web1 192.168.163.164:80 check
backend test_web
balance roundrobin
server web2 192.168.163.165:80 check
|
保存退出
3、重启 haproxy 服务 [iyunv@haproxy haproxy]# systemctl restart haproxy [iyunv@haproxy haproxy]# systemctl status haproxy ● haproxy.service - HAProxy Load Balancer Loaded: loaded (/usr/lib/systemd/system/haproxy.service; disabled; vendor preset: disabled) Active: active (running) since Sat 2017-10-21 22:31:03 EDT; 5s ago Main PID: 2265 (haproxy-systemd) CGroup: /system.slice/haproxy.service ├─2265 /usr/sbin/haproxy-systemd-wrapper -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid ├─2266 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds └─2267 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
Oct 21 22:31:03 haproxy systemd[1]: Started HAProxy Load Balancer. Oct 21 22:31:03 haproxy systemd[1]: Starting HAProxy Load Balancer... Oct 21 22:31:03 haproxy haproxy-systemd-wrapper[2265]: haproxy-systemd-wrapper: executing /usr/sbin/haproxy -f /et... -Ds Hint: Some lines were ellipsized, use -l to show in full.

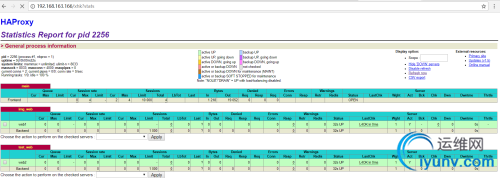

访问 haproxy 自带的监控页面，用户名密码为配置文件中设置的 url为haproxy服务器的IP地址加上自定义的url http://192.168.163.166/xhk?stats
4、接下来安装keepalived
[iyunv@haproxy haproxy]# yum install -y keepalived
5、编辑 keepalived 的配置文件
[iyunv@haproxy haproxy]# vim /etc/keepalived/keepalived.conf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| global_defs {
notification_email { # 邮件接收者
root@localhost
}
notification_email_from keepalived@localhost #邮件发送者
smtp_server 127.0.0.1 #邮件服务器地址
smtp_connect_timeout 30 #超时时限
router_id xhk #此处注意router_id为负载均衡标识
vrrp_mcast_group4 224.0.100.19 #添加ipv4的多播地址，并确保多播功能启用
}
vrrp_script check_haproxy {
script /root/check_haproxy.sh #检测脚本，该路径就是你脚本存放的位置
interval 2 #每隔2秒钟检测一次
# weight -2 #优先级减去2
}
vrrp_instance VI_1 {
state MASTER #状态只有MASTER和BACKUP两种
interface ens32 #网络接口
virtual_router_id 51 #虚拟路由标识
priority 100 #优先级
advert_int 1 #MASTER 与BACKUP 之间同步检查的时间间隔，单位为秒
authentication {
auth_type PASS #验证authentication。包含验证类型和验证密码
auth_pass xhk #AH 使用时有问题。验证密码为明文
}
virtual_ipaddress {
192.168.163.100 dev ens32 #虚拟ip地址,可以有多个地址
}
track_script { #运行上面所写的检测脚本
check_haproxy
}
}
vrrp_instance VI_2 {
state BACKUP
interface ens32
virtual_router_id 52
priority 99
advert_int 1
authentication {
auth_type PASS
auth_pass 123456
}
virtual_ipaddress {
192.168.163.200 dev ens32
}
track_script {
check_haproxy
}
}
|
保存退出
6、编写检测haproxy服务状态的脚本
vim /root/check_haproxy.sh
1
2
3
4
5
6
| #!/bin/bash
ps -C haproxy -o pid
if [ $? != 0 ];then
systemctl stop keepalived
fi
|
添加执行权限
[iyunv@haproxy2 ~]# chmod +x check_haproxy.sh
第二台 haproxy 服务器也执行上述这些操作，不同的是 keepalived 配置文件，下面贴出第二台 haproxy 的 keepalived
[iyunv@haproxy2 ~]# vim /etc/keepalived/keepalived.conf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| global_defs {
notification_email { # 邮件接收者
root@localhost
}
notification_email_from keepalived@localhost #邮件发送者
smtp_server 127.0.0.1 #邮件服务器地址
smtp_connect_timeout 30 #超时时限
router_id xhk #此处注意router_id为负载均衡标识
vrrp_mcast_group4 224.0.100.19 #添加ipv4的多播地址，并确保多播功能启用
}
vrrp_script check_haproxy {
script /root/check_haproxy.sh #检测脚本
interval 2 #每隔2秒钟检测一次
# weight -2 #优先级减去2
}
vrrp_instance VI_1 {
state BACKUP #状态只有MASTER和BACKUP两种。
interface ens32 #网络接口
virtual_router_id 51 #虚拟路由标识
priority 99 #优先级
advert_int 1 #MASTER 与BACKUP 之间同步检查的时间间隔，单位为秒。
authentication {
auth_type PASS #验证authentication
auth_pass xhk #AH 使用时有问题。验证密码为明文
}
virtual_ipaddress {
192.168.163.100 dev ens32 #虚拟ip地址,可以有多个地址
}
track_script { #运行上面所写的检测脚本
check_haproxy
}
}
vrrp_instance VI_2 {
state MASTER
interface ens32
virtual_router_id 52
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 123456
}
virtual_ipaddress {
192.168.163.200 dev ens32
}
track_script {
check_haproxy
}
}
|
不同之处也不过就是，各个 instance 的优先级要互为主备
7、开启 keepalived 服务
[iyunv@haproxy ~]# systemctl start keepalived
[iyunv@haproxy2 ~]# systemctl start keepalived
查看keepalived状态
[iyunv@haproxy ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
Loaded: loaded (/usr/lib/systemd/system/keepalived.service; disabled; vendor preset: disabled)
Active: active (running) since Sat 2017-10-21 22:44:46 EDT; 4min 5s ago
Process: 2278 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
Main PID: 2279 (keepalived)
CGroup: /system.slice/keepalived.service
├─2279 /usr/sbin/keepalived -D
├─2280 /usr/sbin/keepalived -D
└─2281 /usr/sbin/keepalived -D
Oct 21 22:45:04 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.100
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) Sending/queueing gratuitous ARPs on ens32 for ...3.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) Received advert with higher priority 100, ours 99
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) Entering BACKUP STATE
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) removing protocol VIPs.
Hint: Some lines were ellipsized, use -l to show in full.
[iyunv@haproxy ~]# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:4a:86:70 brd ff:ff:ff:ff:ff:ff
inet 192.168.163.166/24 brd 192.168.163.255 scope global ens32
valid_lft forever preferred_lft forever
inet 192.168.163.100/32 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe4a:8670/64 scope link
valid_lft forever preferred_lft forever
可以发现，因为第一台服务器的 VI_1 的优先级高，所以haproxy拿到了vip为192.168.163.100
而 VI_2 的优先级低，所以让 haproxy2 拿到了192.168.163.200，自己降为backup
三、测试环节
在Client绑定域名，让Client访问img.xhk.com、test.xhk.com 时分别去到192.168.163.100、192.168.163.200
[iyunv@client ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.163.100 img.xhk.com test.xhk.com
192.168.163.200 img.xhk.com test.xhk.com
访问网页
[iyunv@client ~]# curl img.xhk.com
web1
[iyunv@client ~]# curl test.xhk.com
web2
停掉第一台的haproxy服务
[iyunv@haproxy ~]# systemctl stop haproxy
[iyunv@haproxy ~]# systemctl status haproxy
● haproxy.service - HAProxy Load Balancer
Loaded: loaded (/usr/lib/systemd/system/haproxy.service; disabled; vendor preset: disabled)
Active: inactive (dead)
Oct 21 22:31:03 haproxy systemd[1]: Stopping HAProxy Load Balancer...
Oct 21 22:31:03 haproxy haproxy-systemd-wrapper[2253]: haproxy-systemd-wrapper: SIGTERM -> 2256.
Oct 21 22:31:03 haproxy haproxy-systemd-wrapper[2253]: haproxy-systemd-wrapper: exit, haproxy RC=0
Oct 21 22:31:03 haproxy systemd[1]: Started HAProxy Load Balancer.
Oct 21 22:31:03 haproxy systemd[1]: Starting HAProxy Load Balancer...
Oct 21 22:31:03 haproxy haproxy-systemd-wrapper[2265]: haproxy-systemd-wrapper: executing /usr/sbin/haproxy -f /et... -Ds
Oct 21 23:17:19 haproxy systemd[1]: Stopping HAProxy Load Balancer...
Oct 21 23:17:19 haproxy haproxy-systemd-wrapper[2265]: haproxy-systemd-wrapper: SIGTERM -> 2267.
Oct 21 23:17:19 haproxy haproxy-systemd-wrapper[2265]: haproxy-systemd-wrapper: exit, haproxy RC=0
Oct 21 23:17:19 haproxy systemd[1]: Stopped HAProxy Load Balancer.
Hint: Some lines were ellipsized, use -l to show in full.
[iyunv@haproxy ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
Loaded: loaded (/usr/lib/systemd/system/keepalived.service; disabled; vendor preset: disabled)
Active: inactive (dead)
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:06 haproxy Keepalived_vrrp[2281]: Sending gratuitous ARP on ens32 for 192.168.163.200
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) Received advert with higher priority 100, ours 99
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) Entering BACKUP STATE
Oct 21 22:45:36 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_2) removing protocol VIPs.
Oct 21 23:17:20 haproxy Keepalived[2279]: Stopping
Oct 21 23:17:20 haproxy systemd[1]: Stopping LVS and VRRP High Availability Monitor...
Oct 21 23:17:20 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_1) sent 0 priority
Oct 21 23:17:20 haproxy Keepalived_vrrp[2281]: VRRP_Instance(VI_1) removing protocol VIPs.
Oct 21 23:17:21 haproxy systemd[1]: Stopped LVS and VRRP High Availability Monitor.
停掉第一台的 haproxy 之后，keepalived的检测脚本检测到 haproxy 服务停止，执行脚本，停掉自身的keepalived进程
查看第二台 haproxy 服务器（haproxy2）的keepalived状态
[iyunv@haproxy2 ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
Loaded: loaded (/usr/lib/systemd/system/keepalived.service; disabled; vendor preset: disabled)
Active: active (running) since Sat 2017-10-21 22:45:35 EDT; 35min ago
Process: 2451 ExecStart=/usr/sbin/keepalived $KEEPALIVED_OPTIONS (code=exited, status=0/SUCCESS)
Main PID: 2452 (keepalived)
CGroup: /system.slice/keepalived.service
├─2452 /usr/sbin/keepalived -D
├─2453 /usr/sbin/keepalived -D
└─2454 /usr/sbin/keepalived -D
Oct 21 23:17:21 haproxy2 Keepalived_vrrp[2454]: Sending gratuitous ARP on ens32 for 192.168.163.100
[iyunv@haproxy2 ~]# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:d5:fc:a2 brd ff:ff:ff:ff:ff:ff
inet 192.168.163.167/24 brd 192.168.163.255 scope global dynamic ens32
valid_lft 1369sec preferred_lft 1369sec
inet 192.168.163.200/32 scope global ens32
valid_lft forever preferred_lft forever
inet 192.168.163.100/32 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fed5:fca2/64 scope link
valid_lft forever preferred_lft forever
2个VIP都已经漂移到 haproxy2 上
进行网页访问
[iyunv@client ~]# curl img.xhk.com
web1
[iyunv@client ~]# curl test.xhk.com
web2
实验成功！！！！！！！！！！！！！！！！！！！！！！！
|
QQ群⑧：
窥视卡
雷达卡
发表于 2017-10-23 17:23:27
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
