packet tracer 配置 终端服务器 最简单配置

sdfsf

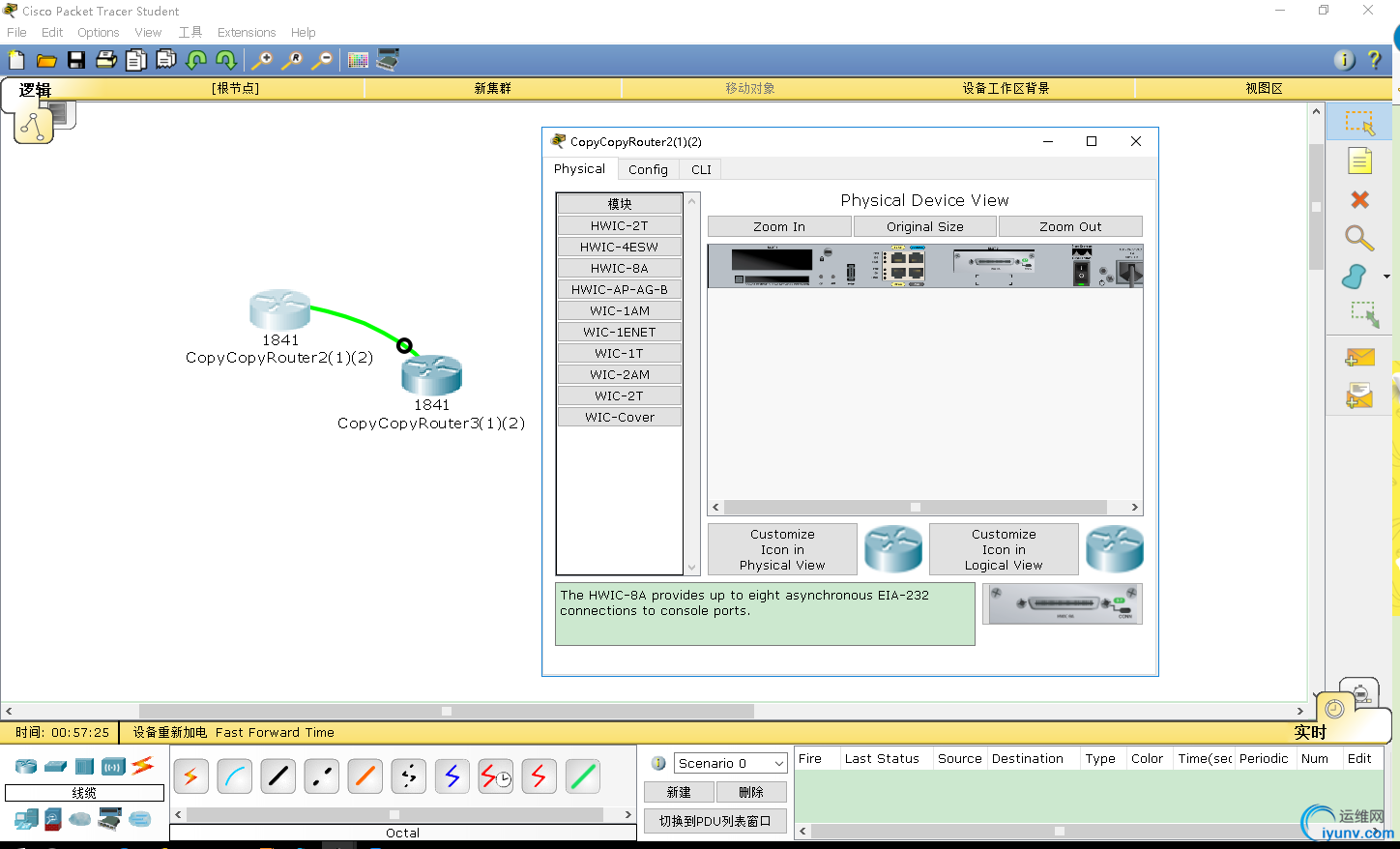

1841 router2 添加   hwic-8a 模块  octal 线缆连接  1841 router2  async 0/0/0 与   1841   router3 console


1841 router2配置如下：




Router>enable

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#interface loopback 0

Router(config-if)#

%LINK-5-CHANGED: Interface Loopback0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback0, changed state to up

Router(config-if)#ip address 1.1.1.1 255.255.255.255

Router(config-if)#end

Router#

%SYS-5-CONFIG_I: Configured from console by console

Router#show line

   Tty Line Typ     Tx/Rx    A Roty AccO AccI   Uses   Noise  Overruns   Int
*    0    0 CTY              -    -    -    -      0       0     0/0       -
     1    1 AUX   9600/9600  -    -    -    -      0       0     0/0       -
0/0/0    2 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/1    3 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/2    4 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/3    5 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/4    6 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/5    7 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/6    8 TTY   9600/9600  -    -    -    -      0       0     0/0       -
0/0/7    9 TTY   9600/9600  -    -    -    -      0       0     0/0       -
   194  194 VTY              -    -    -    -      0       0     0/0       -
   195  195 VTY              -    -    -    -      0       0     0/0       -
   196  196 VTY              -    -    -    -      0       0     0/0       -
   197  197 VTY              -    -    -    -      0       0     0/0       -
   198  198 VTY              -    -    -    -      0       0     0/0       -
Line(s) not in async mode -or- with no hardware support:
10-193

Router#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)#line tty 2 9

Router(config-line)#password 888888

Router(config-line)#transport input all

Router(config-line)#end

Router#

%SYS-5-CONFIG_I: Configured from console by console

Router#telnet 1.1.1.1 2002

Trying 1.1.1.1 ...Open


User Access Verification

Password: System Bootstrap, Version 12.3(8r)T8, RELEASE SOFTWARE (fc1)
Cisco 1841 (revision 5.0) with 114688K/16384K bytes of memory.

Readonly ROMMON initialized

Self decompressing the image :
######################### [OK]
              Restricted Rights Legend

Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.

           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706



Cisco IOS Software, 1841 Software (C1841-ADVIPSERVICESK9-M), Version 12.4(15)T1, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2007 by Cisco Systems, Inc.
Compiled Wed 18-Jul-07 04:52 by pt_team
Image text-base: 0x60080608, data-base: 0x6270CD50


This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
export@cisco.com.


Cisco 1841 (revision 5.0) with 114688K/16384K bytes of memory.
Processor board ID FTX0947Z18E
M860 processor: part number 0, mask 49
2 FastEthernet/IEEE 802.3 interface(s)
191K bytes of NVRAM.
63488K bytes of ATA CompactFlash (Read/Write)
Cisco IOS Software, 1841 Software (C1841-ADVIPSERVICESK9-M), Version 12.4(15)T1, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2007 by Cisco Systems, Inc.
Compiled Wed 18-Jul-07 04:52 by pt_team

Press RETURN to get started!
