puppet函数
puppet函数主要用途是完成一个功能的集合，puppet的函数很多,只例举常用的几个.
define函数
define函数主要用于创建自定义函数，define支持参数但不支持继承.通常可以通过define函数将多个资源整合为一个资源.
define函数示例(crontab计划任务模块):
新建cron模块,依次建{templates,manifests,lib,files}文件夹,模块资源清单文件manifests下必须有init.pp文件，定义此模块的类且类名唯一.
init.pp文件声明使用cron模块下的basescript类资源.
1
2
3
| class cron {
include cron::basescript
}
|
basescript.pp类文件定义资源.
注释:把/root/bin下匹配到的脚本文件发送到各agent端的/root/bin文件夹下,同时定义crontab计划任务.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| class cron::basescript{
file {"/root/bin":
ensure=> directory,
mode=>755,
}
define webcronscript ($mode = "755") {
file { "/root/bin/$name" :
source => "puppet:///modules/cron/root/bin/$name",
mode => $mode,
require=> File["/root/bin"],
}
}
webcronscript { ["check_ping.sh","check_hostname.sh"]: }
file { "/etc/cron.d/auto-task":
owner => root,
group => root,
mode => 644,
source => "puppet:///modules/cron/etc/cron.d/auto-task",
}
}
|
cron模块file文件夹下依次创建/root/bin目录及个脚本文件.

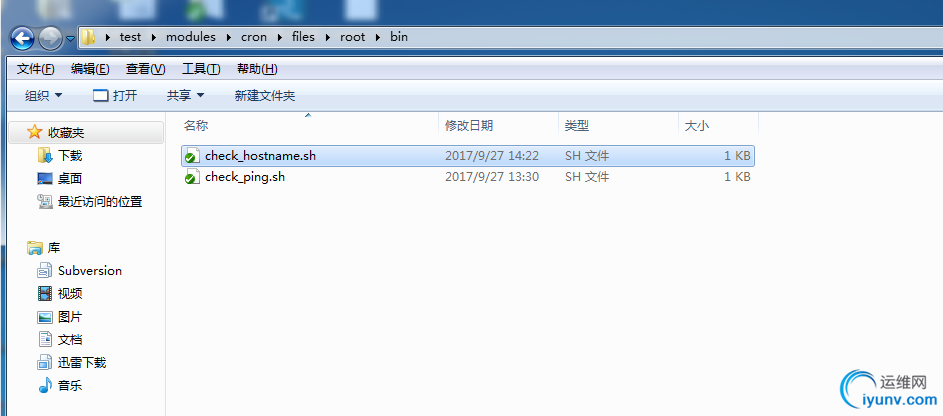

脚本文件路径:

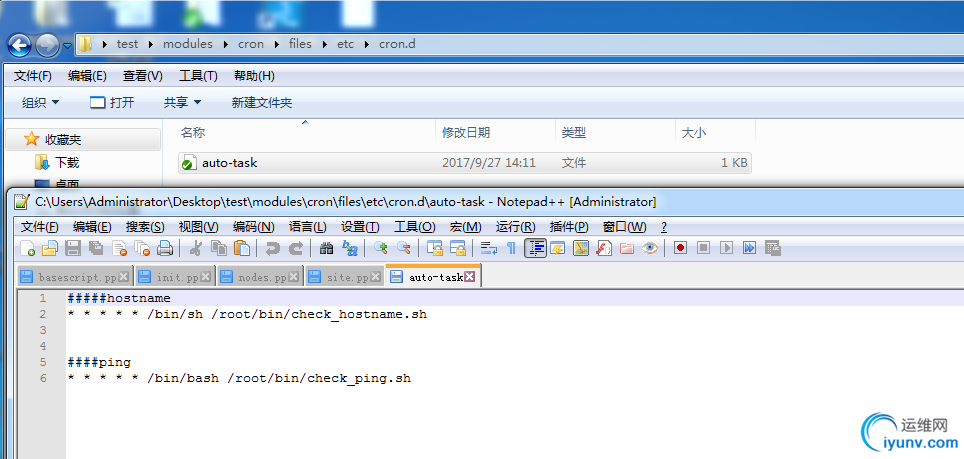

cron计划任务:
puppet 入口文件import载入nodes.pp文件.
1
2
| #----site.pp----
import"nodes"
|

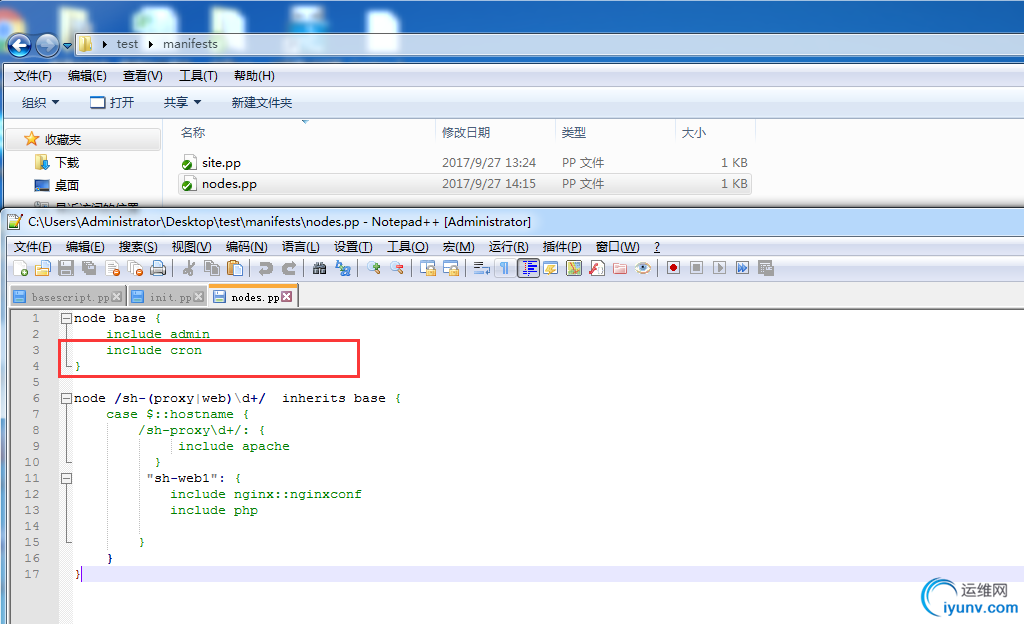

node.pp文件base节点载入cron模块.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| node base {
include admin
include cron
}
node /sh-(proxy|web)\d+/ inherits base {
case $::hostname {
/sh-proxy\d+/: {
include apache
}
"sh-web1": {
include nginx::nginxconf
include php
}
}
}
|
sh-proxy2和sh-web1两台agent端更新测试:
1
2
3
4
5
6
7
8
9
10
11
| [iyunv@sh-proxy2 ~]# puppet agent -t
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Loading facts
Info: Caching catalog for sh-proxy2.localdomain
Info: Applying configuration version '1506525578'
Notice: /Stage[main]/Admin/Exec[selinux]/returns: executed successfully
Notice: /Stage[main]/Cron::Basescript/File[/root/bin]/ensure: created
Notice: /Stage[main]/Cron::Basescript/Cron::Basescript::Webcronscript[check_ping.sh]/File[/root/bin/check_ping.sh]/ensure: defined content as '{md5}a68da6e8a332234afa8c9d3c2834c5df'
Notice: /Stage[main]/Cron::Basescript/Cron::Basescript::Webcronscript[check_hostname.sh]/File[/root/bin/check_hostname.sh]/ensure: defined content as '{md5}47b425aa5853a5487c139957101cb08c'
Notice: Finished catalog run in 0.44 seconds
|
1
2
3
4
5
6
7
8
9
10
11
12
| [iyunv@sh-web1 bin]# puppet agent -t
Notice: Ignoring --listen on onetime run
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Loading facts
Info: Caching catalog for sh-web1.localdomain
Info: Applying configuration version '1506522880'
Notice: /Stage[main]/Admin/Exec[selinux]/returns: executed successfully
Notice: /Stage[main]/Cron::Basescript/Cron::Basescript::Webcronscript[check_ping.sh]/File[/root/bin/check_ping.sh]/ensure: defined content as '{md5}a68da6e8a332234afa8c9d3c2834c5df'
Notice: /Stage[main]/Cron::Basescript/File[/etc/cron.d/auto-task]/ensure: defined content as '{md5}d77faa0254d615e0fcb646beb73a91e3'
Notice: /Stage[main]/Cron::Basescript/Cron::Basescript::Webcronscript[check_hostname.sh]/File[/root/bin/check_hostname.sh]/ensure: defined content as '{md5}47b425aa5853a5487c139957101cb08c'
Notice: Finished catalog run in 0.53 seconds
|
tagged函数用法:
tagged通过tag为资源做标记,并通过tagged函数判断被标记的类与类之间的关系.
下面通过php模块演示:

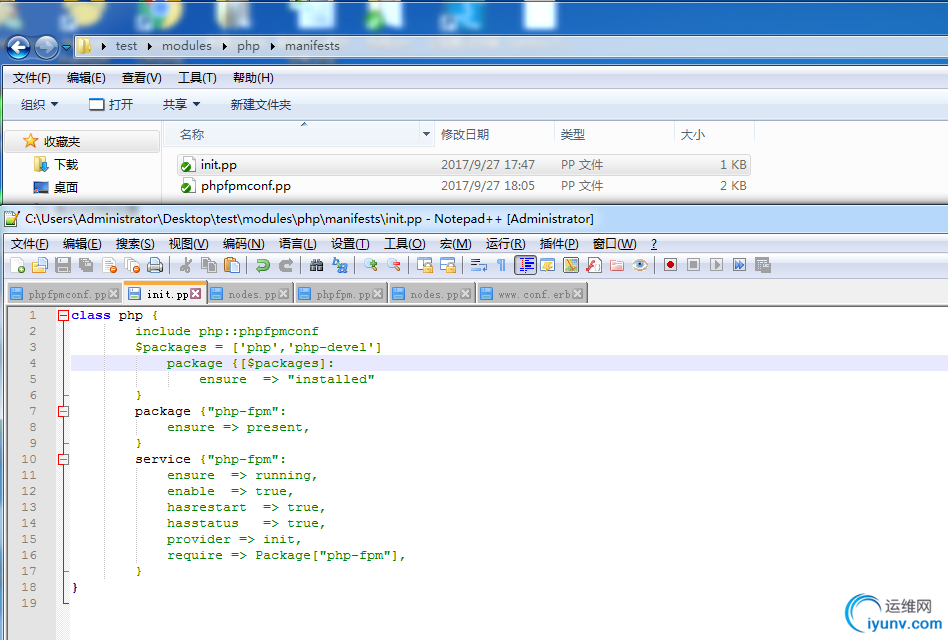

modules/php/init.pp文件内容：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| class php {
include php::phpfpmconf
$packages = ['php','php-devel']
package {[$packages]:
ensure=> "installed"
}
package {"php-fpm":
ensure => present,
}
service {"php-fpm":
ensure=> running,
enable=> true,
hasrestart=> true,
hasstatus=> true,
provider => init,
require=> Package["php-fpm"],
}
}
|
modules/php/phpfpmconf.pp函数文件内容:
注释:通过tagged函数来区分php参数，即各个类型主机匹配的资源.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
| class php::phpfpmconf {
define generatePHPFpmFiles () {
if tagged("web::proxy") {
/* web::proxy */
$sock_max_children = 50
$sock_max_spare_servers = 20
$sock_start_servers = 12
$www_max_children = 20
$www_max_spare_servers = 20
$www_start_servers = 12
$need_apc = false
$display_errors = "on"
$sock_max_requests = 5000
$www_max_requests = 5000
$memory_limit = 1024
$max_execution_time = 300
$slowlog_timeout = 10
$post_max_size="12M"
$upload_max_filesize="12M"
} else {
/* web */
$sock_max_children =20
$sock_max_spare_servers = 20
$sock_start_servers = 12
$www_max_children = 20
$www_max_spare_servers = 20
$www_start_servers = 12
$need_apc = false
$display_errors = "off"
$sock_max_requests = 500
$www_max_requests = 500
$memory_limit = 1024
$max_execution_time = 300
$slowlog_timeout = 10
$post_max_size="12M"
$upload_max_filesize="12M"
}
case $::hostname {
"sh-proxy2" : {
file { "/etc/php-fpm.d/www.conf":
ensure => file,
content => template('php/www.conf.erb'),
#notify => Service["php-fpm"],
}
}
default :{
file { "/etc/php-fpm.d/www.conf":
owner => "root",
group => "root",
mode => "644",
ensure => "file",
content => template("php/www.conf.erb")
}
}
}
}
case $::hostname {
/[a-z][A-Z]\d+/ : {
generatePHPFpmFiles { 'dv': }
}
default : {
generatePHPFpmFiles { $::hostname: }
}
}
}
|
modules/php/templates/www.conf.erb模板内容大致也就是上面那些定义变量的参数:
注释:先安装一台php-fpm，把/etc/php-fpm.d/www.conf文件复制粘贴一份做模板文件，里面参数改改就行.
1
2
3
4
5
| pm = static
pm.max_children = <%= www_max_children %>
pm.start_servers = <%= www_start_servers %>
pm.max_spare_servers = <%= www_max_spare_servers %>
.....
|
puppet的node.pp文件，在匹配sh-proxy主机时定义tag标记。
注释:匹配到主机sh-proxy定义tag为web::proxy.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| node base {
include admin
include cron
}
node /sh-(proxy|web)\d+/ inherits base {
case $::hostname {
/sh-proxy\d+/: {
tag ("web::proxy")
include php
}
"sh-web1": {
include php
}
}
}
|
agent端更新测试:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
| [iyunv@sh-proxy2 php-fpm.d]# puppet agent -t
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Loading facts
Info: Caching catalog for sh-proxy2.localdomain
Info: Applying configuration version '1506534804'
Notice: /Stage[main]/Admin/Exec[selinux]/returns: executed successfully
Notice: /Stage[main]/Php::Phpfpmconf/Php::Phpfpmconf::Generatephpfpmfiles[sh-proxy2]/File[/etc/php-fpm.d/www.conf]/content:
--- /etc/php-fpm.d/www.conf2017-03-22 20:29:28.000000000 +0800
+++ /tmp/puppet-file20170928-96466-ix9fq8-02017-09-28 01:53:24.115952791 +0800
@@ -1,3 +1,13 @@
+[global]
+; Pid file
+; Default Value: none
+pid = /var/run/php-fpm_www.pid
+
+
+; Error log file
+; Default Value: /usr/local/var/log/php-fpm.log
+error_log = /var/log/php-fpm/php-fpm.error.log
+
; Start a new pool named 'www'.
[www]
@@ -9,11 +19,14 @@
; specific port;
; '/path/to/unix/socket' - to listen on a unix socket.
; Note: This value is mandatory.
-listen = 127.0.0.1:9000
+
+
+listen = 9000
+
; Set listen(2) backlog. A value of '-1' means unlimited.
; Default Value: -1
-;listen.backlog = -1
+listen.backlog = 4096
; List of ipv4 addresses of FastCGI clients which are allowed to connect.
; Equivalent to the FCGI_WEB_SERVER_ADDRS environment variable in the original
@@ -21,7 +34,7 @@
; must be separated by a comma. If this value is left blank, connections will be
; accepted from any ip address.
; Default Value: any
-listen.allowed_clients = 127.0.0.1
+;listen.allowed_clients =
; Set permissions for unix socket, if one is used. In Linux, read/write
; permissions must be set in order to allow connections from a web server. Many
@@ -36,9 +49,9 @@
; Note: The user is mandatory. If the group is not set, the default user's group
; will be used.
; RPM: apache Choosed to be able to access some dir as httpd
-user = apache
+user = nobody
; RPM: Keep a group allowed to write in log dir.
-group = apache
+group = www
; Choose how the process manager will control the number of child processes.
; Possible Values:
@@ -57,7 +70,7 @@
; of 'idle' processes is greater than this
; number then some children will be killed.
; Note: This value is mandatory.
-pm = dynamic
+pm = static
; The number of child processes to be created when pm is set to 'static' and the
; maximum number of child processes to be created when pm is set to 'dynamic'.
@@ -67,12 +80,12 @@
; CGI.
; Note: Used when pm is set to either 'static' or 'dynamic'
; Note: This value is mandatory.
-pm.max_children = 50
+pm.max_children = 20
; The number of child processes created on startup.
; Note: Used only when pm is set to 'dynamic'
; Default Value: min_spare_servers + (max_spare_servers - min_spare_servers) / 2
-pm.start_servers = 5
+pm.start_servers = 12
; The desired minimum number of idle server processes.
; Note: Used only when pm is set to 'dynamic'
@@ -82,13 +95,13 @@
; The desired maximum number of idle server processes.
; Note: Used only when pm is set to 'dynamic'
; Note: Mandatory when pm is set to 'dynamic'
-pm.max_spare_servers = 35
+pm.max_spare_servers = 20
; The number of requests each child process should execute before respawning.
; This can be useful to work around memory leaks in 3rd party libraries. For
; endless request processing specify '0'. Equivalent to PHP_FCGI_MAX_REQUESTS.
-; Default Value: 0
-;pm.max_requests = 500
+; Default Value: -2
+pm.max_requests = 5000
; The URI to view the FPM status page. If this value is not set, no URI will be
; recognized as a status page. By default, the status page shows the following
@@ -118,7 +131,7 @@
; anything, but it may not be a good idea to use the .php extension or it
; may conflict with a real PHP file.
; Default Value: not set
-;pm.status_path = /status
+pm.status_path = /status
; The ping URI to call the monitoring page of FPM. If this value is not set, no
; URI will be recognized as a ping page. This could be used to test from outside
@@ -135,20 +148,20 @@
; This directive may be used to customize the response of a ping request. The
; response is formatted as text/plain with a 200 response code.
; Default Value: pong
-;ping.response = pong
+ping.response = pong
; The timeout for serving a single request after which the worker process will
; be killed. This option should be used when the 'max_execution_time' ini option
; does not stop script execution for some reason. A value of '0' means 'off'.
; Available units: s(econds)(default), m(inutes), h(ours), or d(ays)
; Default Value: 0
-;request_terminate_timeout = 0
+request_terminate_timeout = 0
; The timeout for serving a single request after which a PHP backtrace will be
; dumped to the 'slowlog' file. A value of '0s' means 'off'.
; Available units: s(econds)(default), m(inutes), h(ours), or d(ays)
; Default Value: 0
-;request_slowlog_timeout = 0
+request_slowlog_timeout = 10
; The log file for slow requests
; Default Value: not set
@@ -179,24 +192,16 @@
; Redirect worker stdout and stderr into main error log. If not set, stdout and
; stderr will be redirected to /dev/null according to FastCGI specs.
; Default Value: no
-;catch_workers_output = yes
+catch_workers_output = yes
-; Limits the extensions of the main script FPM will allow to parse. This can
-; prevent configuration mistakes on the web server side. You should only limit
-; FPM to .php extensions to prevent malicious users to use other extensions to
-; exectute php code.
-; Note: set an empty value to allow all extensions.
-; Default Value: .php
-;security.limit_extensions = .php .php3 .php4 .php5
-
; Pass environment variables like LD_LIBRARY_PATH. All $VARIABLEs are taken from
; the current environment.
; Default Value: clean env
-;env[HOSTNAME] = $HOSTNAME
-;env[PATH] = /usr/local/bin:/usr/bin:/bin
-;env[TMP] = /tmp
-;env[TMPDIR] = /tmp
-;env[TEMP] = /tmp
+env[HOSTNAME] = $HOSTNAME
+env[PATH] = /usr/local/bin:/usr/bin:/bin
+env[TMP] = /tmp
+env[TMPDIR] = /tmp
+env[TEMP] = /tmp
; Additional php.ini defines, specific to this pool of workers. These settings
; overwrite the values previously defined in the php.ini. The directives are the
@@ -215,12 +220,10 @@
; Default Value: nothing is defined by default except the values in php.ini and
; specified at startup with the -d argument
;php_admin_value[sendmail_path] = /usr/sbin/sendmail -t -i -f www@my.domain.com
-;php_flag[display_errors] = off
-php_admin_value[error_log] = /var/log/php-fpm/www-error.log
+php_flag[display_errors] = on
+php_admin_value[error_log] = /var/log/php-fpm/www.error.log
php_admin_flag[log_errors] = on
-;php_admin_value[memory_limit] = 128M
-
-; Set session path to a directory owned by process user
-php_value[session.save_handler] = files
-php_value[session.save_path] = /var/lib/php/session
+;php_admin_value[memory_limit] = 32M
+;add by zkf . add some file support. p file is used by channel.
+security.limit_extensions = .php .php3 .php4 .php5 .html .do .js .css .htm p
\ No newline at end of file
Info: Computing checksum on file /etc/php-fpm.d/www.conf
Info: /Stage[main]/Php::Phpfpmconf/Php::Phpfpmconf::Generatephpfpmfiles[sh-proxy2]/File[/etc/php-fpm.d/www.conf]: Filebucketed /etc/php-fpm.d/www.conf to puppet with sum 2402465907d7a7544db6315c55248938
Notice: /Stage[main]/Php::Phpfpmconf/Php::Phpfpmconf::Generatephpfpmfiles[sh-proxy2]/File[/etc/php-fpm.d/www.conf]/content: content changed '{md5}2402465907d7a7544db6315c55248938' to '{md5}a8ef2b23bd9feab1848d3dfe27ab1bd6'
Notice: Finished catalog run in 0.56 seconds
grep过滤修改的参数查看是否改变了:
[iyunv@sh-proxy2 php-fpm.d]# cat www.conf | grep requests
; The address on which to accept FastCGI requests.
; This value sets the limit on the number of simultaneous requests that will be
; The number of requests each child process should execute before respawning.
pm.max_requests = 5000
; The log file for slow requests
|
template函数
template函数可以通过file资源调用模块中的*.erb模板文件。
示例(上面的php模板)：
1
| content => template("php/www.conf.erb")
|
template也可以合并模板:
1
2
3
4
5
6
7
| "sh-proxy2" : {
file { "/etc/php-fpm.d/www.conf":
ensure => file,
content => template("php/www.conf.erb","php/wwwproxy.conf.erb"),
#notify => Service["php-fpm"],
}
}
|
agent端更新后做对比:
合并模板后:
1
2
| [iyunv@sh-proxy2 php-fpm.d]# cat www.conf | wc -l
458
|
合并模板前:
1
2
| [iyunv@sh-proxy2 php-fpm.d]# cat www.conf | wc -l
228
|
两个模板就算参数重复也不会覆盖，只是在同一个文件中追加另一个模板的内容.
1
2
3
| [iyunv@sh-proxy2 php-fpm.d]# cat www.conf | grep -v '^;' | grep -v '^$' | grep request_terminate_timeout
request_terminate_timeout = 0
request_terminate_timeout = 0
|
Generate 函数
generate 函数调用外部命令并且返回结果给Puppet，用法如下：
1
| $interfaces = generate("/sbin/ifconfig", "eth0")
|
这里定义了一个变量叫做$interfaces,它调用了generate 函数，所有的generate 函数必须有一个指明的命令，然后填入若干参数，这两个直接用逗号分割，返回的结果就是执行命令
注释:将返回结果返回给$interface,命令执行完必须返回状态码为0,返回其他的状态码就会造成解释错误。
本地应用:
示例:
1
2
3
| # cat 3.pp
$ifip=generate ('/sbin/ifconfig','eth0')
notice $ifip
|
1
2
3
4
5
6
7
8
9
10
11
| # puppet apply 3.pp
Notice: Scope(Class[main]): eth0 Link encap:Ethernet HWaddr 00:0C:29:06:AF:4B
inet addr:192.168.30.132 Bcast:192.168.30.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe06:af4b/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:612647 errors:0 dropped:0 overruns:0 frame:0
TX packets:174442 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:614959446 (586.4 MiB) TX bytes:24739431 (23.5 MiB)
Notice: Compiled catalog for sh-proxy2.localdomain in environment production in 0.06 seconds
Notice: Finished catalog run in 0.01 seconds
|
在puppet代码中嵌入这段代码,获取的就是master端的信息:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| node base {
include admin
include cron
}
node /sh-(proxy|web)\d+/ inherits base {
case $::hostname {
/sh-proxy\d+/: {
tag ("web::proxy")
include php
}
"sh-web1": {
include php
$ifip=generate('/sbin/ifconfig','eth0')
notify {"$ifip":}
}
}
}
|
agent端更新:
192.168.30.134为master端的ip.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| [iyunv@sh-web1 ~]# puppet agent -t
Notice: Ignoring --listen on onetime run
Info: Retrieving pluginfacts
Info: Retrieving plugin
Info: Loading facts
Info: Caching catalog for sh-web1.localdomain
Info: Applying configuration version '1506606174'
Notice: /Stage[main]/Admin/Exec[selinux]/returns: executed successfully
Notice: eth0 Link encap:Ethernet HWaddr 00:0C:29:53:DD:61
inet addr:192.168.30.134 Bcast:192.168.30.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe53:dd61/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:228766 errors:0 dropped:0 overruns:0 frame:0
TX packets:102934 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:107060668 (102.1 MiB) TX bytes:50130125 (47.8 MiB)
Notice: /Stage[main]/Main/Node[sh-proxywebd]/Notify[eth0 Link encap:Ethernet HWaddr 00:0C:29:53:DD:61
inet addr:192.168.30.134 Bcast:192.168.30.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe53:dd61/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:228766 errors:0 dropped:0 overruns:0 frame:0
TX packets:102934 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:107060668 (102.1 MiB) TX bytes:50130125 (47.8 MiB)
]/message: defined 'message' as 'eth0 Link encap:Ethernet HWaddr 00:0C:29:53:DD:61
inet addr:192.168.30.134 Bcast:192.168.30.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe53:dd61/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:228766 errors:0 dropped:0 overruns:0 frame:0
TX packets:102934 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:107060668 (102.1 MiB) TX bytes:50130125 (47.8 MiB)
'
Notice: Finished catalog run in 0.32 seconds
|
versioncmp函数(用的不多):
versioncmp函数用于版本号之间的比较.
versioncmp有三个返回值:
如果版本a大于版本b，则返回1.
如果版本a等于版本b，则返回0.
如果版本a小雨版本b，则返回-1.
puppet代码文件:
1
2
3
4
| # cat 4.pp
if versioncmp ('2.6','2.4') > 0 {
notice ("2.6 is > than 2.4")
}
|
puppet本地应用:
1
2
3
4
| # puppet apply 4.pp
Notice: Scope(Class[main]): 2.6 is > than 2.4
Notice: Compiled catalog for sh-web1.localdomain in environment production in 0.06 seconds
Notice: Finished catalog run in 0.01 seconds
|
|
|
QQ群⑧：
窥视卡
雷达卡
发表于 2017-10-31 16:11:44
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
